| Analog signal format system: | PAL, NTSC |
|---|
| Archiving on external media: | Screenshot of a frame of an image or recordings from an archive to a USB drive |
|---|
| Audio formats supported: | G.711 A-law, G.711 μ-law, PCM |
|---|
| Audio input channels: | 1 channels |
|---|
| Audio inputs: | 1 pc CINCH ,32 Channels - Coaxial audio support, HD-CVI only |
|---|
| Audio output channels: | 1.0 channels |
|---|
| Audio outputs: | 1 pc CINCH |
|---|
| Audio sample rate (16bit): | 8 kHz |
|---|
| Audio system: | 2-way |
|---|
| Backup function: | Yes |
|---|
| Bit rate: | 6144 Kbit/s |
|---|
| Bnc input ports: | 32 |
|---|
| Built-in memory: | No |
|---|
| Built-in processor: | Yes |
|---|
| Channels quantity: | 32 channels |
|---|
| Colour: | Black |
|---|
| Dc voltage: | 12 V |
|---|
| Depth: | 289.4 mm |
|---|
| Dimensions: | 375 x 289 x 53 mm |
|---|
| Dual stream support: | Yes |
|---|
| Ethernet interface type: | Gigabit Ethernet |
|---|
| Ethernet lan: | Yes |
|---|
| Ethernet lan (rj-45) ports: | 1 |
|---|
| Hdd interface: | SATA III |
|---|
| Hdmi ports quantity: | 1 |
|---|
| Height: | 53 mm |
|---|
| Image compression method: | AI Coding / H.265+ / H.265 / H.264+ / H.264 |
|---|
| Internal: | No |
|---|
| Maximum frame rate: | 60 fps |
|---|
| Maximum hdd capacity: | 16 TB |
|---|
| Maximum resolution of supported cameras: | 6 Mpix |
|---|
| Maximum video resolution: | 3840 x 2160 pixels |
|---|
| Mobile phone access: | Port: 37777 or cloud access (P2P) Android: Free DMSS app iOS (iPhone): Free DMSS app Watch the video on how to configure P2P in Dahua DVRs and how to enable the mobile application |
|---|
| Motion detection: | Zoning: 22 x 18 detection fields |
|---|
| Motion sensor: | Yes |
|---|
| Multi-display modes: | 36, 8, 16, 25, 9, 4, 1 |
|---|
| Multi-display supported: | Yes |
|---|

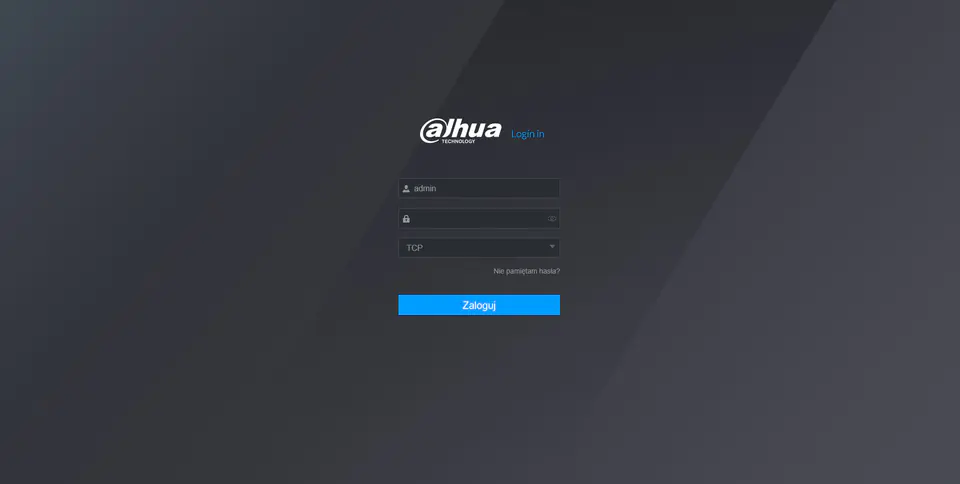

| Network features: | Full support via network, Remote copying of recordings, Built-in web server max. 128 users online |
|---|
| Number of hdds supported: | 2 |
|---|
| Operating modes: | 32 x AHD / HD-CVI / HD-TVI / CVBS / IP |
|---|
| Operating relative humidity (h-h): | 0 - 90% |
|---|
| Operating system installed: | Embedded LINUX |
|---|
| Operating temperature (t-t): | -10 - 55 °C |
|---|
| Package depth: | 141 mm |
|---|
| Package height: | 366 mm |
|---|
| Package weight: | 3.15 kg |
|---|
| Package width: | 433 mm |
|---|

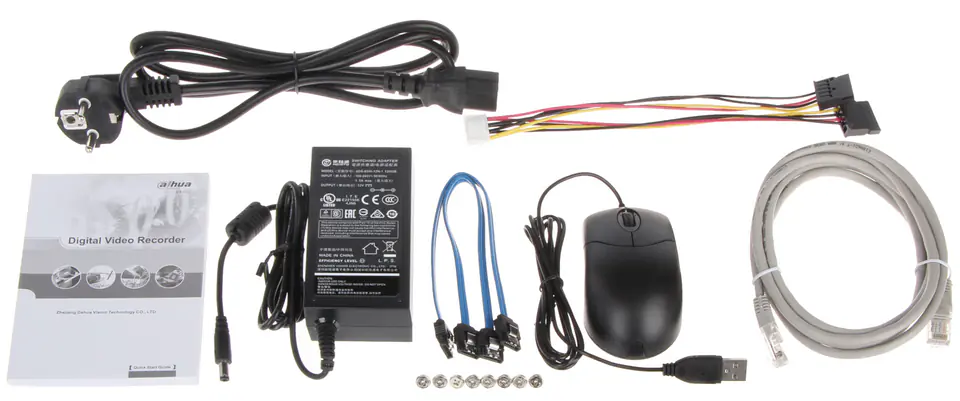

| Power: | 12 V DC / 5 A (power adapter included) |
|---|
| Power consumption (typical): | 17 W |
|---|
| Power supply type: | DC |
|---|
| Producer / brand: | DAHUA |
|---|
| Product colour: | Black |
|---|
| Ptz rotary head control: | IP Cameras: PTZ HD-CVRS-485 - PELCO-D/P |
|---|
| Rack capacity: | 1U |
|---|
| Recorded image resolutions: | AHD / HD-CVI / HD-TVI: 5M-N - 1296 x 1944, 4M-N - 1280 x 1440, 1080p - 1920 x 1080, 1080N - 960 x 1080, 720p - 1280 x 720 CVBS: 960H - 960 x 576 IP: max. 6 MP - 3072 x 2048 |
|---|
| Recording modes: | Manual, motion detection, scheduling |
|---|
| Rs-485 ports: | 1 |
|---|
| Scales: | 1.96 kg |
|---|
| Search and play back recordings: | Search for recordings by time + timeline with recording type. Playback: forward, accelerate, decelerate, stepAdvanced-to-second search)Synchronous playback by 1/4/9/16 channels |
|---|

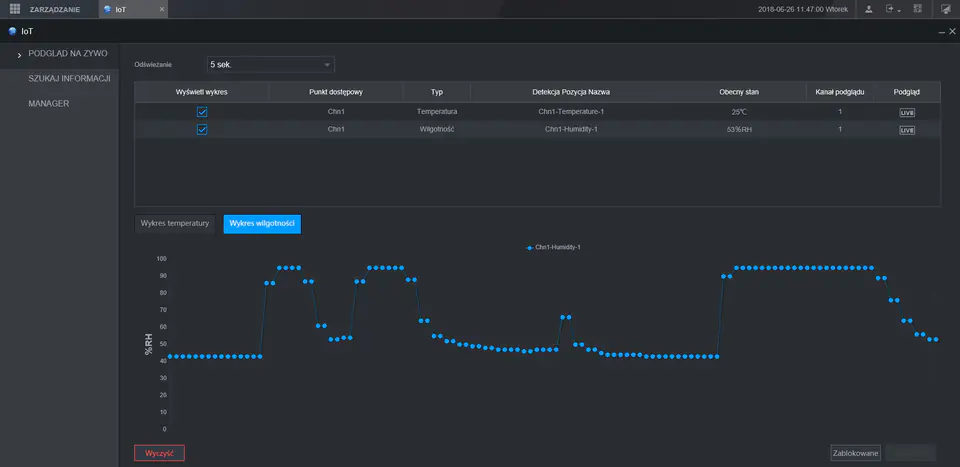

| Selected features: | Cooperation with Dahua devices working in the concept of the Internet of Things (IoT), POS - cooperation with devices installed in points of sale and displaying data from them in the form of overlaid text in the selected channel window, Coax Audio/Alarm support, intelligent image analysis: line crossing, warning zone crossing, classification of people and vehicles, advanced face and vehicle recognition and search functions False alarm filtering based on recognition of people and vehicles (line crossing, intrusion) Support for up to 10 face databases, including 10,000 face photos Detection of faces not in the device database Search in face recordings based on up to 8 selected photos with the possibility of independent similarity threshold setting for each photo SMD PLUS - searching for an object classified as: human, motor vehicle, Motorless vehicle |
|---|
| Standard: | AHD, HD-CVI, HD-TVI, CVBS, TCP/IP |
|---|
| Supported cameras: | AHD, CVBS, IP, TVI, HDCVI |
|---|
| Supported hard drives: | 2 x 16 TB SATA |
|---|
| Supported languages: | Polish, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Portuguese, Romanian, Russian, Serbian, Slovak, Slovenian, Spanish |
|---|
| Supported network protocols: | HTTP, HTTPS, TCP / IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P |
|---|
| Usb: | 1 pc USB 3.01 pcs USB 2.0 |
|---|
| Usb 2.0 ports quantity: | 2 |
|---|
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 1 |
|---|
| Usb connectivity: | Yes |
|---|
| Vga (d-sub) output ports: | 1 |
|---|
| Video capturing speed: | 30 fps |
|---|
| Video capturing speed (ntsc): | 30 fps |
|---|
| Video capturing speed (pal): | 25 fps |
|---|
| Video compression formats: | H.264, H.265, H.264+, H.265+ |
|---|
| Video input channels: | 32 channels |
|---|

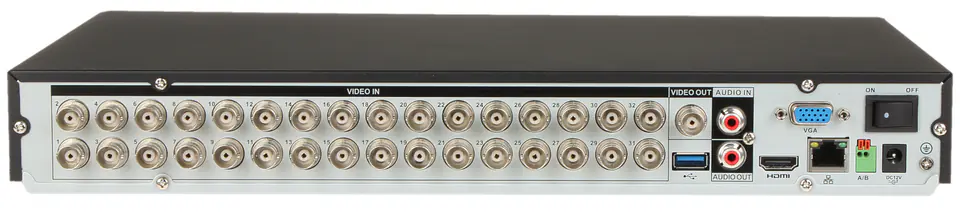

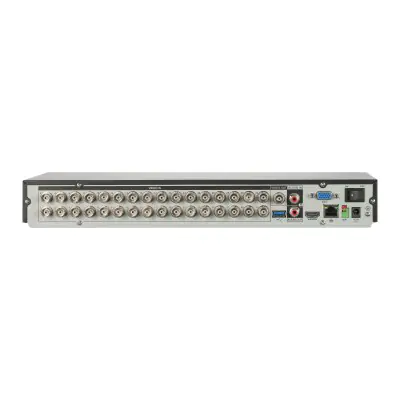

| Video inputs: | 32 pcs. BNC |
|---|
| Video loss detection: | Yes |
|---|
| Video motion detection: | Yes |
|---|
| Video outputs: | 1 pc HDMI 4K (1080p with AI enabled) 1 pc VGA |
|---|
| Video streaming: | Yes |
|---|
| Warranty: | 3 years |
|---|
| Weight: | 1.98 kg |
|---|
| Width: | 375 mm |
|---|
| Write speed adjustment: | 6 Mpx IP @ 1 ... 25 fps 5M-N @ 1 ... 10 fps / s4M-N @ 1 ... 15 fps @ 1080p @ 1 ... 15 fps @ 1080N @ 1 ... 25 fps @ 1 ... 25 to be allocated per channel |
|---|
