| Analog signal format system: | PAL, NTSC |
|---|---|
| Archiving on external media: | Archiving to a USB drive (pendrive, external drive) |
| Audio input: | 1 |
| Audio inputs: | 1 pc CINCH |
| Audio output: | 1 |
| Audio outputs: | 1 pc CINCH |
| Bit rate: | 6144 Kbit/s |
| Bitrate: | 32 ... 6144 Kb/s |
| Bnc input ports: | 16 |
| Channels quantity: | 32 channels |
| Colour: | Black |
| Dc voltage: | 12 V |
| Default administrator login / password: | admin/- |
| Default ip address: | DHCP or 192.168.1.64 |
| Depth: | 315 mm |
| Dimensions: | 380 x 330 x 52 mm |
| Dual stream support: | Yes |
| Ethernet interface type: | Gigabit Ethernet |
| Ethernet lan (rj-45) ports: | 1 |
| Hdd interface: | SATA |
| Hdmi ports quantity: | 1 |
| Height: | 52 mm |
| Image compression method: | H.265 / H.265+ / H.264 / H.264+ |
| Maximum frame rate: | 30 fps |
| Maximum hdd capacity: | 10 TB |
| Mobile app access port: | 8000 |
| Mobile phone access: | Port: 8000 or cloud access (P2P) Android: Free Hik-Connect app Android: Free Hik-Connect app |
| Motion detection: | Zoning: 22 x 18 detection fields |
| Network features: | Client program and IE browser: live viewing, playback and archiving of recordings, partial configuration of DVR parameters |
| Network interface: | 1 x RJ-45 - 10/100/1000 Base-T |
| Network protocols: | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF |
| Number of hdds supported: | 2 |
| Operating modes: | 32 x HD-TVI / AHD / HD-CVI / PAL / IP + 8 x IP |
| Operating relative humidity (h-h): | 10 - 90% |
| Operating temperature (t-t): | -10 - 55 °C |
| Pc app access ports: | 554 RTSP, 8000 |
| Port onvif: | 80 |
| Power: | 12 V DC / 5 A (power adapter included) |
| Power consumption (max): | 40 W |
| Power supply type: | DC |
| Producer / brand: | Hikvision |
| Product colour: | Black |
| Ptz rotary head control: | RS-485 PELCO-D/PSterowanie compatible with Hikvision HD-TVI coax |
| Recorded image resolutions: | AHD :4M-N - 1280 x 1440 ,1080p - 1920 x 1080 ,1080N - 960 x 1080 ,720p - 1280 x 720 , HD-CVI:4M-N - 1280 x 1440 ,1080p - 1920 x 1080 ,1080N - 960 x 1080 ,720p - 1280 x 720 , HD-TVI:4M-N - 1280 x 1440 ,1080p - 1920 x 1080 ,1080N - 960 x 1080 ,720p - 1280 x 720 , CVBS:960H - 960 x 576 , D1 - 704 x 576, IP: max. 6 MP - 3072 x 2048 |
| Recording modes: | Manual, motion detection, scheduling |
| Rs-485 ports: | 1 |
| Rtsp url: | rtsp://user:password o@192.168.1.64:554/Streaming/Channels/nrkanału01/ - Main stream rtsp://user:password o@192.168.1.64:554/Streaming/Channels/nrkanału02/ - Auxiliary stream |
| Sap code: | 300227850 |
| Scales: | 2.12 kg |
| Search and play back recordings: | Search for recordings in the timeline or file list. Playback: forward, accelerate, slow down recording. Play simultaneously max. 16 cameras |
| Selected features: | Intelligent Image Analysis : intrusion, line crossing, scene change |
| Standard: | AHD, HD-CVI, HD-TVI, CVBS, TCP/IP |
| Supported hard drives: | 2 x 10 TB SATA |
| Supported languages: | Polish, Bulgarian, Croatian, Czech, Danish, Dutch, English, Estonian, German, Greek, Hungarian, Italian, Norwegian, Portuguese, Romanian, Russian, Serbian, Slovak, Slovenian, Spanish, Swedish, Turkish |
| Supported network protocols: | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF |
| Usb 2.0 ports quantity: | 1 |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 1 |
| Vga (d-sub) output ports: | 1 |
| Video compression formats: | H.264, H.264+, H.265 Pro, H.265, H.265 Pro+ |
| Video inputs: | 32 pcs. BNC |
| Video outputs: | 1 pc HDMI1 pcs. VGA1 pcs. CVBS - BNC socket |
| Warranty: | 3 years |
| Web access ports: | 80 |
| Weight: | 2 kg |
| Width: | 385 mm |
| Write speed adjustment: | 6 Mpx IP @ 1 ... 25 fps IP4M-N @ 1 ... 15 fps @ 1080p @ 1 ... 15 fps @ 1080N @ 1 ... 25 fps @ 1 ... 25 fps @ 1 ... 25 fps per channel |

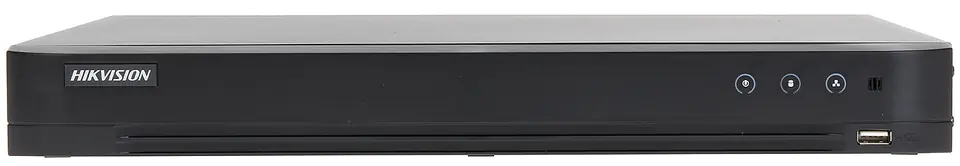

Digital DVR with AHD (Analog High Definition), HD-CVI (High Definition Composite Video Interface), HD-TVI (High Definition Transport Video Interface), TCP/IP and PAL interfaces is a professional device used in CCTV systems
The menu has been designed in a way that makes it easier for everyone, even novice users, to navigate and make changes to the DVR settings
