| Audio:: | Built-in microphone - HD-CVI only |
|---|---|
| Case:: | Compact, Metal |
| Colour:: | White + Black |

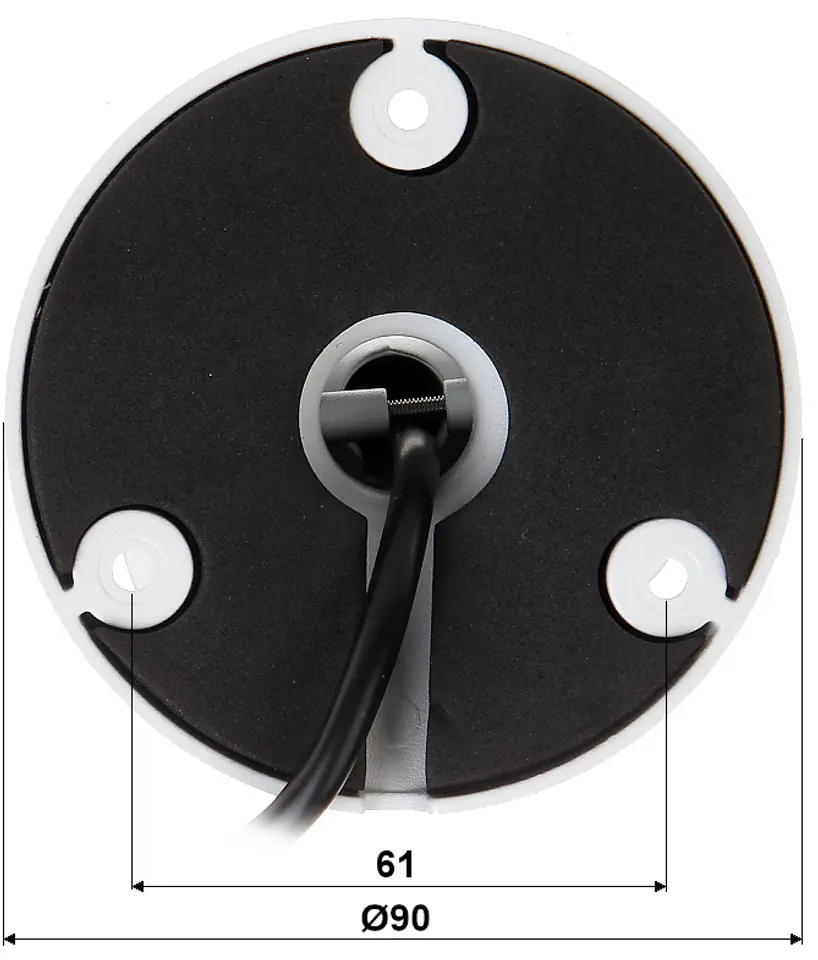

| Dimensions:: | 210 x 90 x 90 mm |
| Ir illuminator power adjustment:: | Automatic |
| Ir illuminator range:: | 60 m |
| Manufacturer / brand:: | DAHUA |
| Matrix size:: | 8.3 Mpx 4K UHD |
| Objective:: | 2.7 ... 13.5 mm - Motozoom, AutoFocus |
| Operating temperature :: | -30 °C ... 60 °C |
| Power consumption:: | ≤ 11 watts |
| Power:: | 12 VDC / 920 mA |
| Resolution:: | 3840 x 2160 - 8.3 Mpx, 4K UHD @ 15 fps, 2592 x 1944 - 5 Mpx @ 20 fps, 2560 x 1440 - 4 Mpx @ 25 fps, 960 x 576 - 960H, PAL |
| Scales:: | 0.55 kg |
| Sealing:: | IP67 |
| Selected features:: | Motozoom Lens - AutoFocus WDR - 120 dB - Wide Dynamic Range 2D-DNR, 3D-DNR - F-DNR Digital Noise Reduction (Defog) - BLC Precipitation Noise Reduction - HLC Back Light (Background) Compensation - Strong Light (Spot) Compensation D-ZOOM - Digital Zoom : 4x AGC - Auto ICR Gain Adjustment - Mechanical IR Filter Auto White Balance Customizable Privacy Zones Mirror - Mirror Sharpness image - Sharpen image outlines |
| Standard:: | AHD / HD-CVI / HD-TVI / PAL |
| Transducer:: | 1/2.7" Progressive Scan CMOS |
| Video output:: | AHD / HD-CVI / HD-TVI / CVBS, 1 Vpp / 75 Ω |
| Viewing angle:: | 105 ° ... 33° (manufacturer data) 101° ... 33° (our tests) |
| Warranty:: | 3 years |
Megapixel camera with 1/2.7" CMOS sensor and AHD / HD-CVI / HD-TVI / PAL interface
The AHD / HD-CVI / HD-TVI interface allows the transmission of analog video signal via coaxial cable in max. 8 Mpx (4K UHD)There are no delays during transmission and the original, high image quality is maintained
The camera meets ip67 protection class
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
