AHD CAMERA, HD-CVI, HD-TVI, PAL HAC-HFW1800T-A-0280B - 8.3 Mpx 2.8 mm DAHUA

€57.26
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
Dahua
Product code:
HAC-HFW1800T-A-0280B / 6939554972690

Specification

Audio::Built-in microphone, HD-CVI only
Case::Compact, Metal
Colour::white

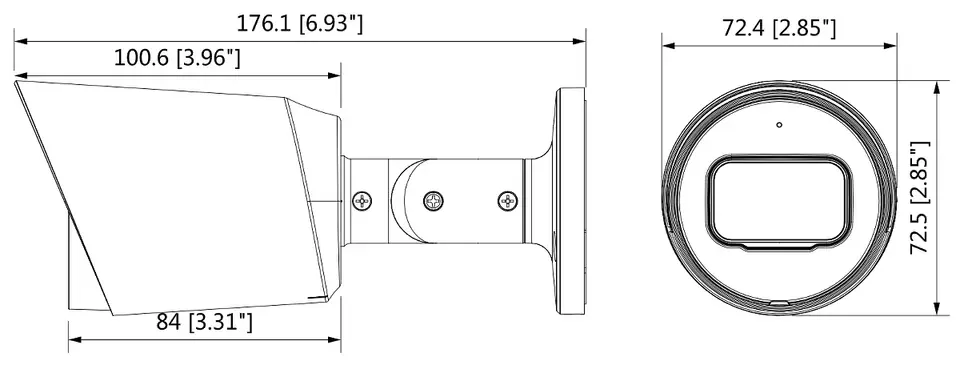

Dimensions::Ø 73 x 176 mm
Ir illuminator power adjustment::Automatic
Ir illuminator range::30 m
Manufacturer / brand::DAHUA
Matrix size::8.3 Mpx
Objective::2.8 mm
Operating temperature ::-40 °C ... 60 °C
Power consumption::≤ 4.3 watts
Power::12 VDC / 360 mA
Resolution::3840 x 2160 - 8.3 Mpx @ HD-CVI @ 25 fps , 3840 x 2160 - 8.3 Mpx @ HD-CVI / HD-TVI / AHD @ 15 fps ,2592 x 1944 - 5 Mpx @ HD-CVI @ 20 fps ,2560 x 1440 - 3.7 Mpx @ HD-CVI @ 25 fps ,960 x 576 - 960H @ PAL @ 25 fps
Scales::0.36 kg
Sealing::IP67
Selected features::D-WDR - Wide Dynamic Range 2D-DNR - Digital Noise Reduction in BLC/HLC Image - Background Light / Strong Light ICR Compensation - Mechanical Ir Sharpness Filter - AGC Image Contour Sharpening - Automatic Image Gain Adjustment Privacy Mirror Zone - Image Mirror Image Mirror Automatic White Balance
Standard::AHD, HD-CVI, HD-TVI, CVBS
Transducer::1/2.7" CMOS
Video output::AHD / HD-CVI / HD-TVI / CVBS, 1 Vpp / 75 Ω
Viewing angle::105° (manufacturer data) 100° (our tests)
Warranty::3 years

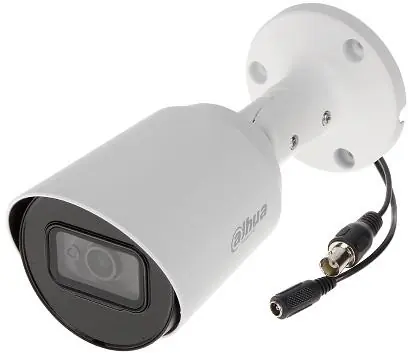

Megapixel camera with 1/2.7" CMOS sensor and AHD / HD-CVI / HD-TVI / PAL interface

The AHD / HD-CVI / HD-TVI interface allows the transmission of analog video signal via coaxial cable in max. 8 Mpx (4K UHD)There are no delays during transmission and the original, high image quality is maintained

In the case of video transmission by twisted pair and impedance matching transformers, it is important to bear in mind the possibility of signal reflections and signal penetration between each other

Integrated 3-Axis camera mount, adjustable in all three planes and allows the camera to rotate in any directionThe illuminator range given by the manufacturer depends on the environmental conditions (air transparency, environment, wall color, i.e. the so-called scene reflectance)The camera meets the IP67 tightness class

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
