AHD CAMERA, HD-CVI, HD-TVI, PAL HAC-HFW1231TM-I8-A-0360B - 1080p 3.6 mm DAHUA

Name: AHD CAMERA, HD-CVI, HD-TVI, PAL HAC-HFW1231TM-I8-A-0360B - 1080p 3.6 mm DAHUA
Brand: Dahua
SKU: 517738
Price: 55.82 EUR
Availability: InStock

€55.82

Shipping from warehouse: ⁨H7⁩

Estimated shipping: Tue, Nov 26 - Fri, Nov 29

14 days returnUnconditional return policy

Availability:: moderate quantity
Brand:: Dahua
Product code:: HAC-HFW1231TM-I8-A-0360B / 6923172506719

Specification

Angle of rotation:	360°
Audio::	Built-in microphone, HD-CVI only
Back light compensation (blc):	Yes
Bluetooth:	No
Bnc output ports:	1
Built-in hdd:	No
Camera shutter speed:	1/25 s–1/100,000
Camera shutter type:	Electronic
Case::	Compact, Metal
Colour::	white
Compatible memory cards:	MicroSD (TransFlash)
Connectivity technology:	Wired
Day/night mode:	Yes
Dc output voltage:	12
Depth:	90.7 mm
Detect distance:	110.3 m
Digital wide dynamic range (dwdr):	Yes

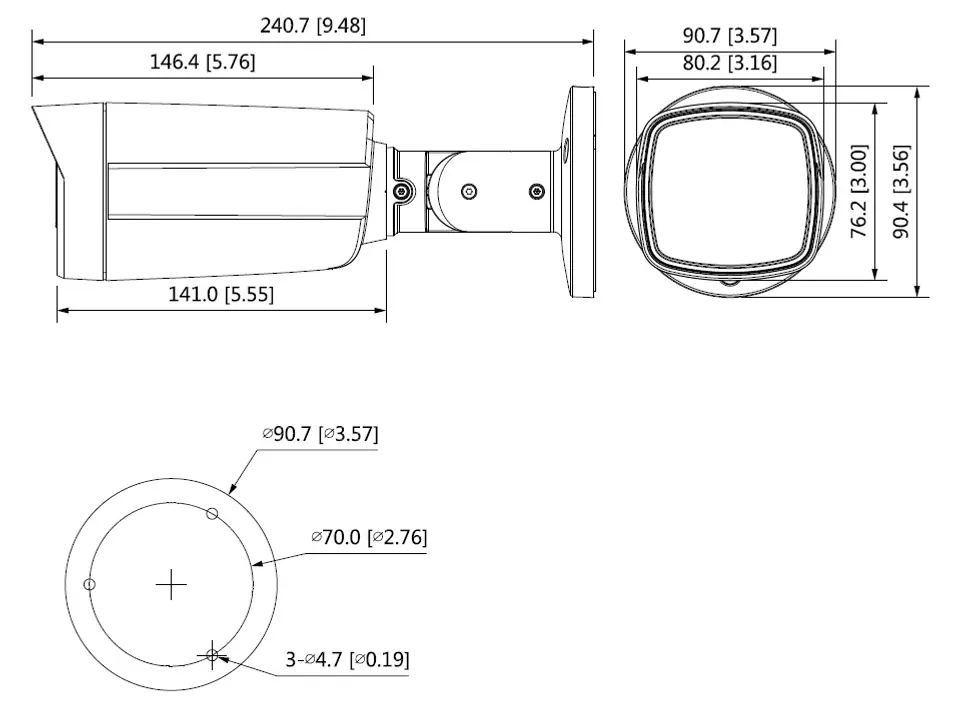

Dimensions::	241 x 91 x 90 mm
Dynamic range:	65 dB
Effective sensor resolution:	2 pixels
Ethernet interface type:	Fast Ethernet
Ethernet lan:	Yes
Form factor:	Bullet
Frame rate:	30 fps
Gain control type:	Auto/Manual
Height:	90.4 mm
Highlight compensation (hlc):	Yes
Housing material:	Metal
Identify distance:	11 m
Ir illuminator power adjustment::	Automatic
Ir illuminator range::	80 m
Manufacturer / brand::	DAHUA
Matrix size::	2.1 Mpx
Maximum aperture number:	1.6
Maximum resolution:	1920 x 1080 pixels
Minimum illumination:	0.002 lx
Mirror:	Yes
Mounting type:	Ceiling/Wall/Pole
Night vision:	Yes
Noise reduction:	Yes
Noise reduction technology:	3D noise reduction
Number of cameras:	1
Number of effective pixels (h x v):	1920 x 1080 pixels
Number of lenses:	4
Number of sensors:	1
Objective::	3.6 mm
Observe distance:	44.1 m
Operating relative humidity (h-h):	0 - 95%
Operating temperature ::	-40 °C ... 60 °C
Operating temperature (t-t):	-40 - 60 °C
Optical sensor size:	25.4 / 2.8 mm (1 / 2.8")
Pan range:	0 - 360°
Placement supported:	Indoor & outdoor
Power consumption::	≤ 5.1 watts
Power source type:	DC
Power::	12 VDC / 430 mA
Privacy masking:	Yes
Product colour:	White
Progressive scan:	Yes
Recognize distance:	22.1 m
Region of interest (roi) encoding:	Yes
Resolution::	1920 x 1080 - 1080p960 x 576 - 960H, PAL
S/n ratio::	> 65 dB
Scales::	0.65 kg
Sealing::	IP67
Selected features::	WDR - 130 dB - Wide Dynamic Range 3D-DNR - Digital Noise Reduction in BLC/HLC Image - Background Light / Strong Light Compensation ICR - AGC Mechanical IR Filter - Auto Image Gain Adjustment Auto White Balance Privacy Zone - Max. 8 Mirror - Sharpness Image Mirror - Sharpen Image Contours
Sensor type:	CMOS
Standard::	AHD, HD-CVI, HD-TVI, CVBS
Storage temperature (t-t):	-40 - 60 °C
Supported graphics resolutions:	1920 x 1080 (HD 1080), 960 x 480, 960 x 576
Supported video modes:	1080p
Tilt angle range:	0 - 90°
Total megapixels:	2 MP
Transducer::	1/2.8" CMOS
Type:	CCTV security camera
Video motion detection:	Yes
Video output::	AHD / HD-CVI / HD-TVI / CVBS, 1 Vpp / 75 Ω
Video streaming:	Yes
Viewing angle::	86° (manufacturer data) 82° (our tests)
Warranty::	3 years
Weight:	650 g
Wi-fi:	No
Wide dynamic range (wdr):	Yes
Width:	240.7 mm

Megapixel camera with 1/2.8" CMOS sensor and AHD / HD-CVI / HD-TVI / PAL interface

The AHD / HD-CVI / HD-TVI interface allows the transmission of analog video signal via coaxial cable in max. 8 Mpx (4K UHD)There are no delays during transmission and the original, high image quality is maintained

In the case of video transmission by twisted pair and impedance matching transformers, it is important to bear in mind the possibility of signal reflections and signal penetration between each other

Integrated 3-Axis camera mount, adjustable in all three planes and allows the camera to rotate in any directionThe illuminator range given by the manufacturer depends on the environmental conditions (air transparency, environment, wall color, i.e. the so-called scene reflectance)The camera meets the IP67 tightness class

Thanks to the "Starlight" technology used, the camera is satisfied with very low illumination to obtain a clear color image

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
