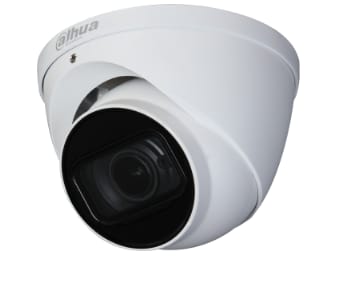

AHD CAMERA, HD-CVI, HD-TVI, PAL HAC-HDW2802T-Z-A-3711 - 8.3 Mpx 3.7 ... 11 mm - <strong>MOTOZOOM </strong>DAHUA

€215.45
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Mon, Dec 30 - Thu, Jan 2
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
Dahua
Product code:
HAC-HDW2802T-Z-A-3711 / 6939554932786

Specification

Audio::Built-in microphone - HD-CVI only, External microphone input - HD-CVI only
Case::Dome, Aluminum
Colour::white

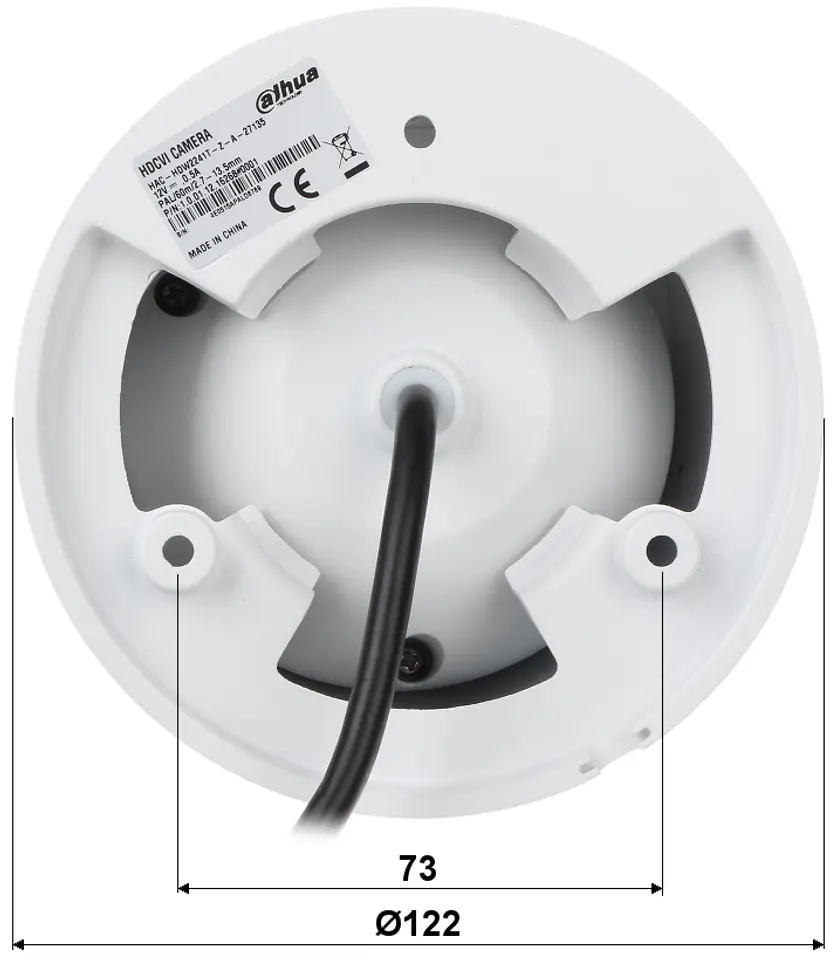

Dimensions::Ø 122 x 107 mm
Ir illuminator power adjustment::Automatic
Ir illuminator range::60 m
Manufacturer / brand::DAHUA
Matrix size::8 Mpx
Objective::3.7  ... 11 mm - Motozoom
Operating temperature ::-30 °C ... 60 °C
Osd menu::OSD menu available via DAHUA recorder
Power consumption::≤ 9.5 watts
Power::12 VDC / 800 mA
Resolution::HD-CVI: 3840 x 2160 - 8.3 Mpx, 4K UHD2880 x 1920 - 6 Mpx2560 x 1440 - 3.7 Mpx ; AHD / HD-TVI: 2592 x 1944 - 5 Mpx, 2560 x 1440 - 3.7 Mpx CVBS: 960 x 576 - 960H
S/n ratio::> 65 dB
Scales::0.61 kg
Sealing::IP67
Selected features::Motozoom lens - Control possible only from Dahua dvrs in HD-CVI WDR mode - 120 dB - Wide dynamic range of lighting 2D-DNR / 3D-DNR - Digital noise reduction in BLC/HLC image - Compensation of background light / strong ICR light - Mechanical IR filter Automatic white balance AGC - Automatic image gain adjustment Mirror - Mirror image mirror - Sharpness image contour sharpening - Mirror image reflection
Standard::AHD, HD-CVI, HD-TVI, CVBS
Transducer::1/1.8" Progressive Scan CMOS

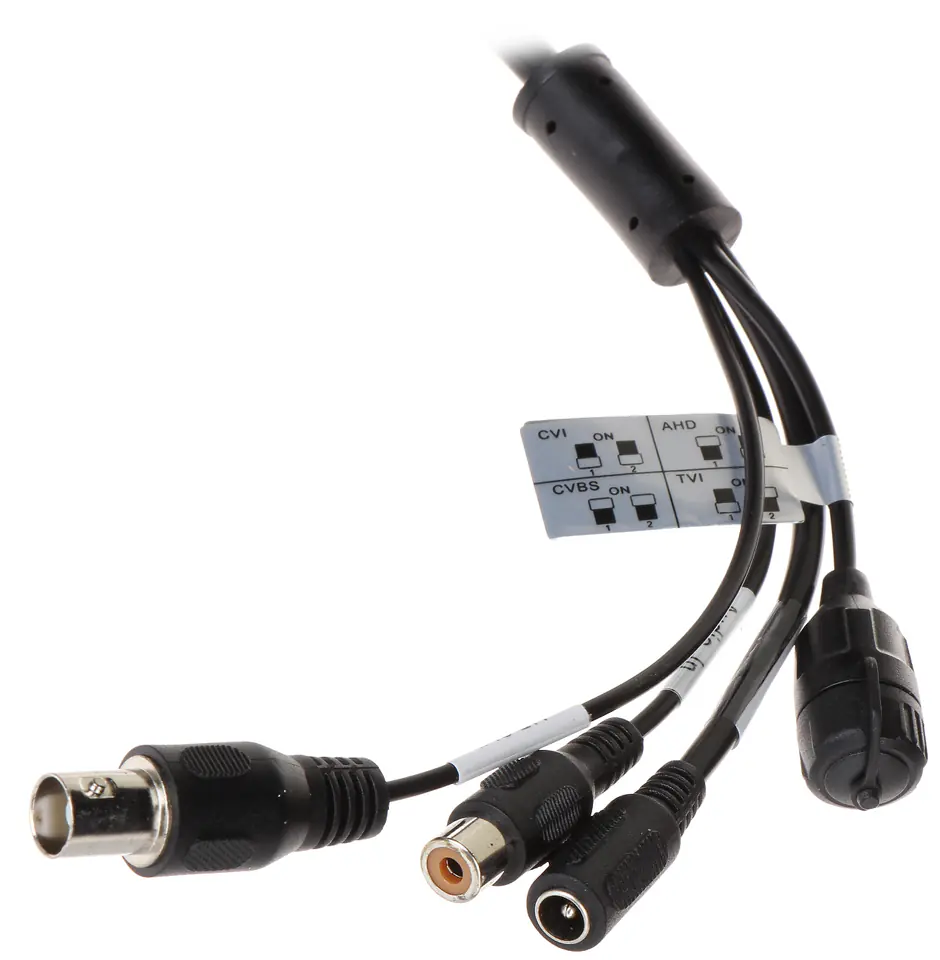

Video output::AHD / HD-CVI / HD-TVI / CVBS - 1 Vpp / 75 Ω
Viewing angle::112 ° ... 46° (manufacturer data) 105° ... 46° (our tests)
Warranty::3 years

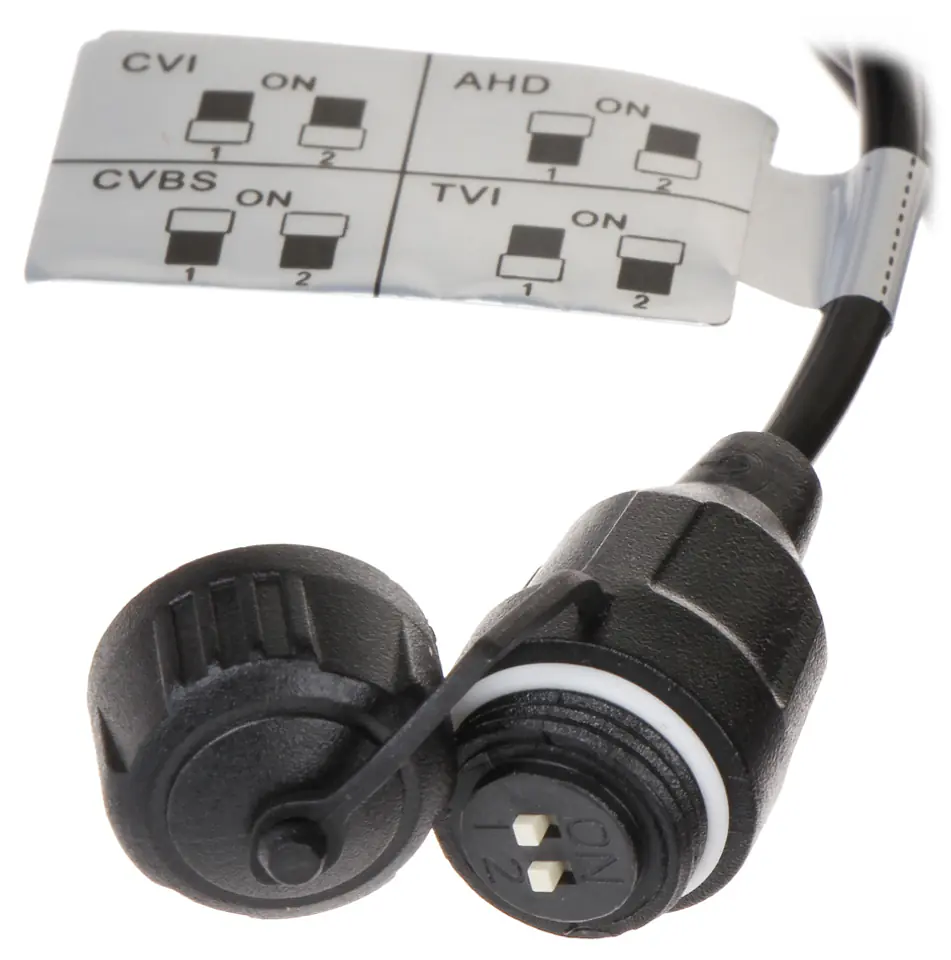

Megapixel camera with 1/1.8" CMOS sensor and AHD / HD-CVI / HD-TVI / PAL interfaceThe standard change is made using configuration switches

The AHD / HD-CVI / HD-TVI interface allows the transmission of analog video signal via coaxial cable in max. 8 Mpx (4K UHD)There are no delays during transmission and the original, high image quality is maintained

Thanks to the "Starlight" technology used, the camera is enough very poor lighting to obtain a clear color imageIn the case of video transmission using twisted pair and impedance matching transformers, it is necessary to bear in mind the possibility of signal reflections and signal penetration between each otherThe motozoom lens used with a focal length of 3.7 ... 11 mm allows remote adjustment of the viewing angle

The camera meets ip67 protection class

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
