AHD CAMERA, HD-CVI, HD-TVI, PAL HAC-HDW2501TMQ-A-0280B-S2 - 5 Mpx 2.8 mm DAHUA

€76.96
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
Dahua
Product code:
HAC-HDW2501TMQ-A-0280B-S2 / 6939554944918

Specification

Audio::Built-in Microphone, Support audio via coaxial cable - HD-CVI only
Case::Dome, Metal + Plastic
Colour::white

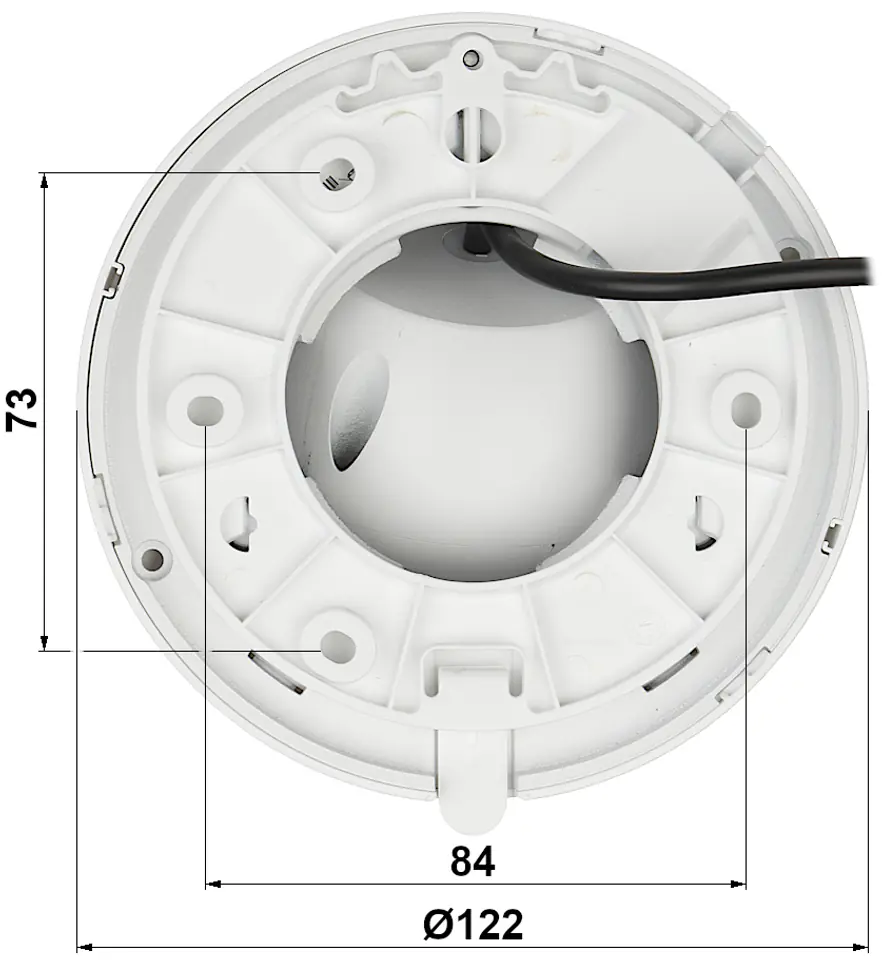

Dimensions::Ø 122 x 99 mm
Ir illuminator power adjustment::Automatic
Ir illuminator range::60 m
Manufacturer / brand::DAHUA
Matrix size::5 Mpx
Objective::2.8 mm
Operating temperature ::-40 °C ... 60 °C
Osd menu::OSD menu available via DAHUA recorder
Power consumption::≤ 5.9 watts
Power::12 VDC / 490 mA
Resolution::2880 x 1620 - 5 Mpx - HD-CVI only: Aspect ratio 16: 9 ,2560 x 1440 - 3.7 Mpx ,1920 x 1080 - 1080p - HD-CVI only, 960 x 576 - 960H, PAL
Scales::0.42 kg
Sealing::IP67
Selected features::WDR - 120 dB - Wide Dynamic Range 2D-DNR, 3D-DNR - Digital Noise Reduction BLC/HLC/HLC-Pro - Background Light / Strong Light ICR Compensation - Mechanical IR Filter DAY/Night Mode AGC - Auto Image Gain Adjustment Automatic White Balance Privacy Zone Mirror - Sharpness Image Mirror - Sharpness Contour Sharpening
Standard::HD-CVI, HD-TVI, AHD, CVBS
Transducer::1/2.7" Progressive Scan CMOS
Video output::AHD / HD-CVI / HD-TVI / CVBS, 1 Vpp / 75 Ω
Viewing angle::111° (manufacturer data) 108° @ HD-CVI, 92 ° @ AHD / HD-TVI (our tests)
Warranty::3 years

Megapixel camera with 1/2.7" CMOS sensor and AHD / HD-CVI / HD-TVI / CVBS interface

The AHD / HD-CVI / HD-TVI interface allows the transmission of analog video signal via coaxial cable in max. 8 Mpx (4K UHD)There are no delays during transmission and the original, high image quality is maintained

In the case of video transmission by means of twisted pair and transformers adjusting the impedance, it is necessary to bear in mind the possibility of signal reflections and the penetration of signals between each otherThe illuminator range given by the manufacturer depends on the environmental conditions (air transparency, environment, wall color, i.e. the so-called scene reflectance)

The camera meets ip67 protection class

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
