AHD CAMERA, HD-CVI, HD-TVI, PAL HAC-HDW1800TL-A-0280B - 8.3 Mpx 2.8 mm DAHUA

Name: AHD CAMERA, HD-CVI, HD-TVI, PAL HAC-HDW1800TL-A-0280B - 8.3 Mpx 2.8 mm DAHUA
Brand: Dahua
SKU: 517716
Price: 52.36 EUR
Availability: InStock

€52.36

Shipping from warehouse: ⁨D4⁩

Estimated shipping: Mon, Nov 25 - Tue, Nov 26

14 days returnUnconditional return policy

Availability:: moderate quantity
Brand:: Dahua
Product code:: HAC-HDW1800TL-A-0280B / 6939554972799

Specification

Analog signal format system:	PAL, NTSC
Angle of rotation:	360°
Audio input channels:	1 channels
Audio::	Built-in microphone, HD-CVI only
Back light compensation (blc):	Yes
Bluetooth:	No
Bnc output ports:	1
Built-in hdd:	No
Built-in microphone:	Yes
Camera pan control:	Yes
Camera shutter speed:	1/25 - 1/100000 s
Camera shutter type:	Electronic
Camera tilt control:	Yes
Case::	Dome, Metal + Plastic
Closest focusing distance:	1 m
Colour::	white
Connectivity technology:	Wired
Day/night mode:	Yes
Dc output voltage:	12
Dc-in jack:	Yes
Detect distance:	74.7 m
Diameter:	9.7 cm
Digital wide dynamic range (dwdr):	Yes

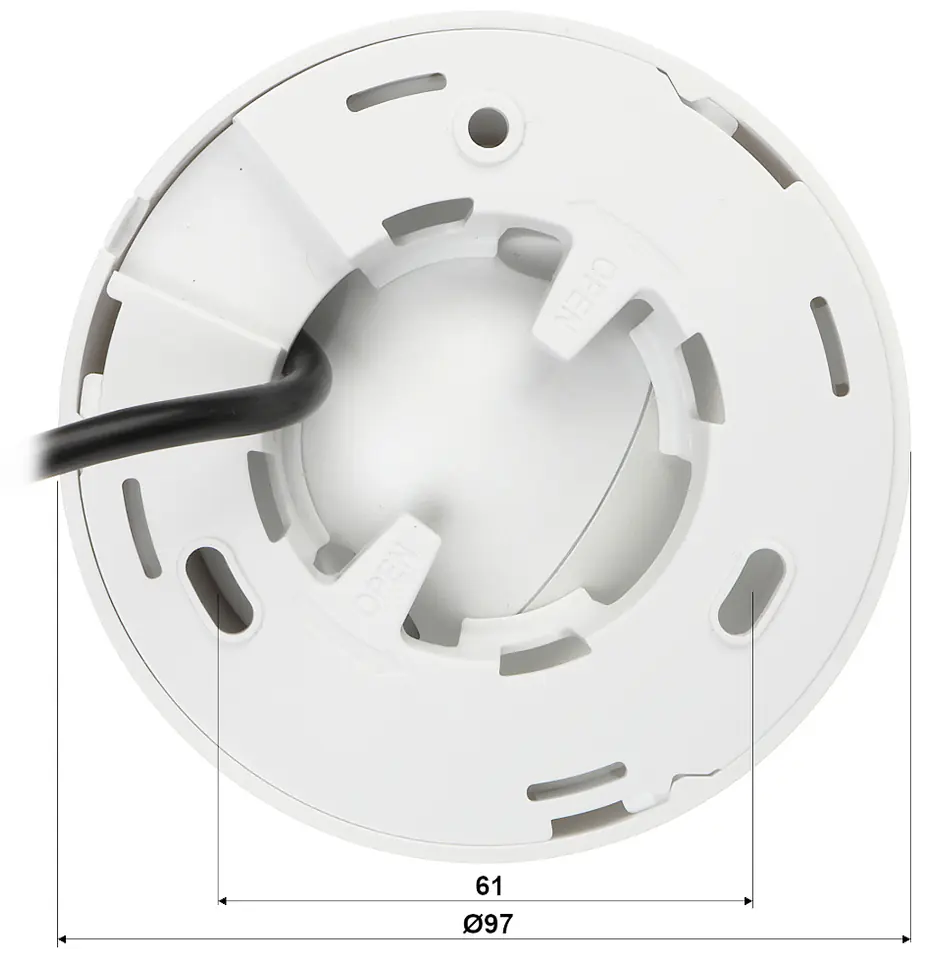

Dimensions::	Ø 97 x 86 mm
Ethernet lan:	No
Field of view (fov) angle:	125°
Fixed focal length:	2.8 mm
Form factor:	Dome
Frame rate:	30 fps
Gain control type:	Auto/Manual
Height:	85.8 mm
Highlight compensation (hlc):	Yes
Housing material:	Metal, Plastic
Identify distance:	7.5 m
International protection (ip) code:	IP67
Ir illuminator power adjustment::	Automatic
Ir illuminator range::	30 m
Lens viewing angle, diagonal:	125°
Lens viewing angle, horizontal:	105°
Lens viewing angle, vertical:	56°
Manual:	Yes
Manufacturer / brand::	DAHUA
Matrix size::	8.3 Mpx
Maximum aperture number:	2
Maximum resolution:	3840 x 2160 pixels
Minimum illumination:	0.03 lx
Mirror:	Yes
Mounting type:	Ceiling/Wall/Pole
Noise reduction:	Yes
Noise reduction technology:	2D noise reduction
Number of cameras:	1
Number of effective pixels (h x v):	3840 x 2160 pixels
Objective::	2.8 mm
Observe distance:	29.9 m
Operating temperature ::	-40 °C ... 60 °C
Operating temperature (t-t):	-40 - 60 °C
Optical sensor size:	25.4 / 2.7 mm (1 / 2.7")
Package weight:	380 g
Pan range:	0 - 360°
Placement supported:	Outdoor
Power consumption (max):	4.3 W
Power consumption::	≤ 4.3 watts
Power source type:	DC
Power::	12 VDC / 360 mA
Product colour:	White
Progressive scan:	Yes
Recognize distance:	14.9 m
Resolution::	3840 x 2160 - 8.3 Mpx @ HD-CVI @ 25 fps , 3840 x 2160 - 8.3 Mpx @ HD-CVI / HD-TVI / AHD @ 15 fps ,2592 x 1944 - 5 Mpx @ HD-CVI @ 20 fps ,2560 x 1440 - 3.7 Mpx @ HD-CVI @ 25 fps ,960 x 576 - 960H @ PAL @ 25 fps
Scales::	0.25 kg
Sealing::	IP67
Selected features::	D-WDR 2D-DNR - Digital Noise Reduction in BLC/HLC Image - Background Light / Strong ICR Light Compensation - Mechanical IR Filter Sharpness - AGC Image Contour Sharpening - Auto Image Gain Adjustment Privacy Mirror Zones - Image Mirror Image Mirror Automatic White Balance
Sensor type:	CMOS
Signal-to-noise ratio (snr):	65 dB
Smart ir:	Yes
Standard::	AHD, HD-CVI, HD-TVI, CVBS
Storage temperature (t-t):	-40 - 60 °C
Supported graphics resolutions:	960 x 576, 3840 x 2160, 2592 x 1944, 2560 x 1440, 960 x 480
Supported video modes:	1440p, 2160p, 576p, 480p, 1944p
Tilt angle range:	0 - 78°
Transducer::	1/2.7" Progressive Scan CMOS
Type:	IP security camera
Video output::	AHD / HD-CVI / HD-TVI / CVBS, 1 Vpp / 75 Ω
Viewing angle::	105° (manufacturer data) 101° (our tests)
Warranty::	3 years
Weight:	300 g
White balance:	Manual, Auto
Wi-fi:	No
Wide dynamic range (wdr):	Yes

Megapixel camera with 1/2.7" CMOS sensor and AHD / HD-CVI / HD-TVI / PAL interface

The AHD / HD-CVI / HD-TVI interface allows the transmission of analog video signal via coaxial cable in max. 8 Mpx (4K UHD)There are no delays during transmission and the original, high image quality is maintained

In the case of video transmission by means of twisted pair and transformers adjusting the impedance, it is important to bear in mind the possibility of signal reflections and the penetration of signals between each otherThe illuminator range given by the manufacturer depends on the environmental conditions (air transparency, environment, wall color, i.e. the so-called scene reflectance)The camera meets the IP67 tightness class

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
