AHD CAMERA, HD-CVI, HD-TVI, PAL HAC-B1A51-0360B 5 Mpx 3.6 mm DAHUA

€22.10
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
Dahua
Product code:
HAC-B1A51-0360B / 6939554970344

Specification

Case::Compact, Plastic
Colour::White + Black

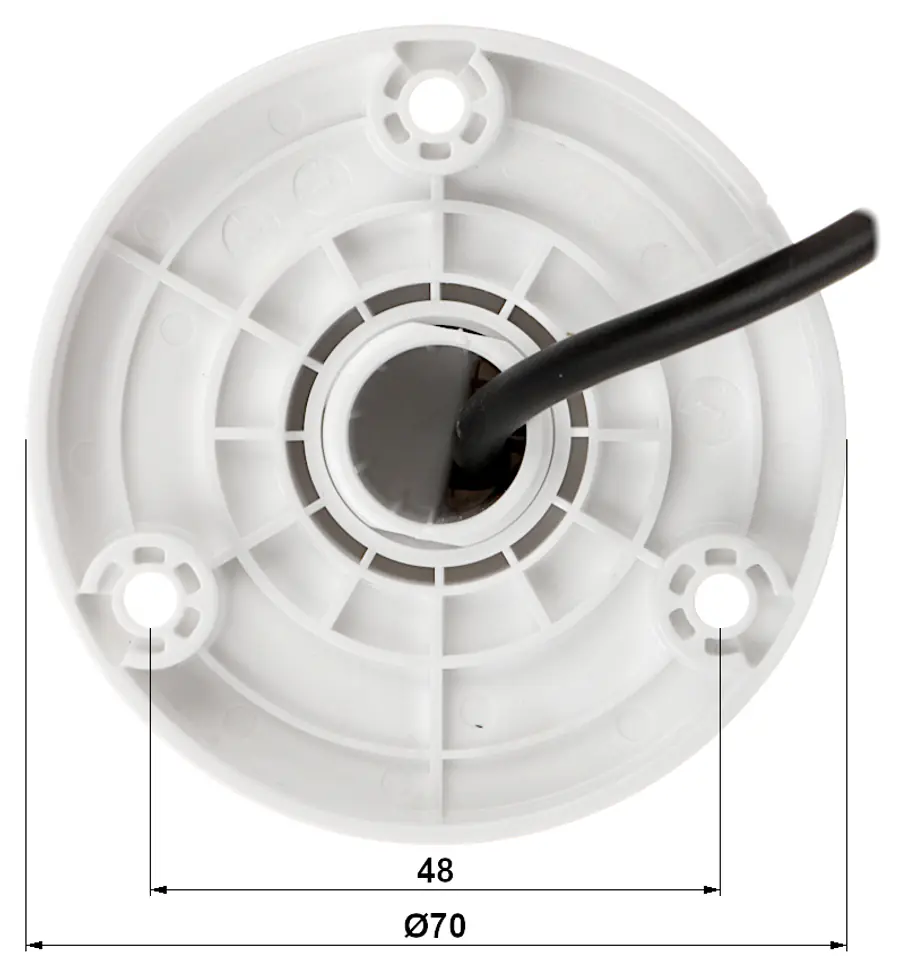

Dimensions::149 x 70 x 70 mm
Ir illuminator power adjustment::Automatic
Ir illuminator range::20 m
Manufacturer / brand::DAHUA
Matrix size::5 Mpx
Objective::3.6 mm
Operating temperature ::-40 °C ... 60 °C
Osd menu::OSD menu available via DAHUA recorder
Power consumption::3.7 watts ≤
Power::12 VDC / 310 mA
Resolution::HD-CVI: 2880 x 1620 - 4.7 Mpx, 2560 x 1440 - 3.7 Mpx, 1920 x 1080 - 1080p ; AHD / HD-TVI: 2560 x 1440 - 3.7 Mpx CVBS: 960 x 576 - 960H
S/n ratio::> 65 dB
Scales::0.15 kg
Sealing::IP67
Selected features::D-WDR - Wide Dynamic Range 2D-DNR - Digital Noise Reduction in BLC/HLC Image - Background Light / Strong Light Compensation ICR - Mechanical IR Mirror Filter - AGC Image Mirror - Auto Image Gain Adjustment Auto White Balance Privacy Zones - Max. 8 Sharpness - Sharpening image contours
Standard::AHD, HD-CVI, HD-TVI, PAL
Transducer::1/2.7" Progressive Scan CMOS
Video output::AHD / HD-CVI / HD-TVI / PAL, 1 Vpp / 75 Ω
Viewing angle::88° (manufacturer data) 76° (our tests)
Warranty::3 years

Megapixel camera with 1/2.7" CMOS sensor and AHD / HD-CVI / HD-TVI / PAL interfaceThe DAHUA Cooper series product is designed to reduce costs as much as possible while maintaining high quality and ease of use

The AHD / HD-CVI / HD-TVI interface allows the transmission of analog video signal via coaxial cable in max. 8 Mpx (4K UHD)There are no delays during transmission and the original, high image quality is maintained

In the case of video transmission by twisted pair and impedance matching transformers, it is important to bear in mind the possibility of signal reflections and signal penetration between each other

Remark! The camera is set in HD-CVI by default Changes in the standard can be made using the recorder - by going to the OSD menu of the camera, or using the PFM820 controller

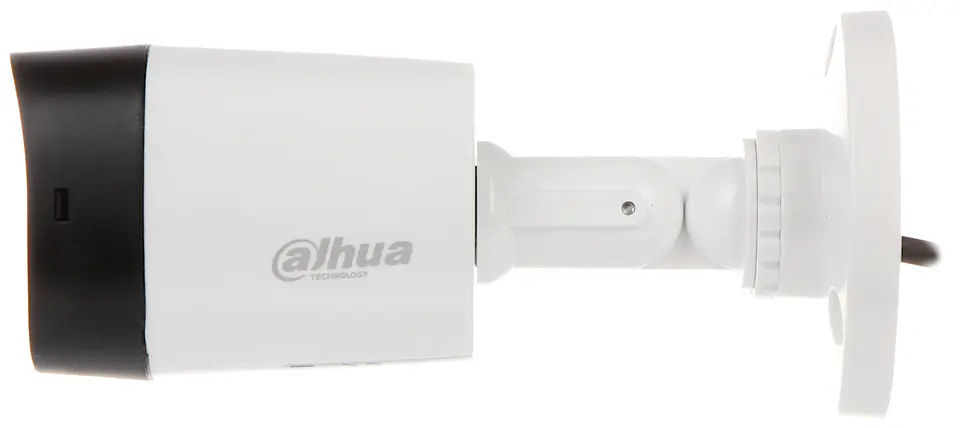

The camera meets IP67 protection classIntegrated 3-Axis camera mount, is adjustable in all three planes and allows the camera to rotate in any direction

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
