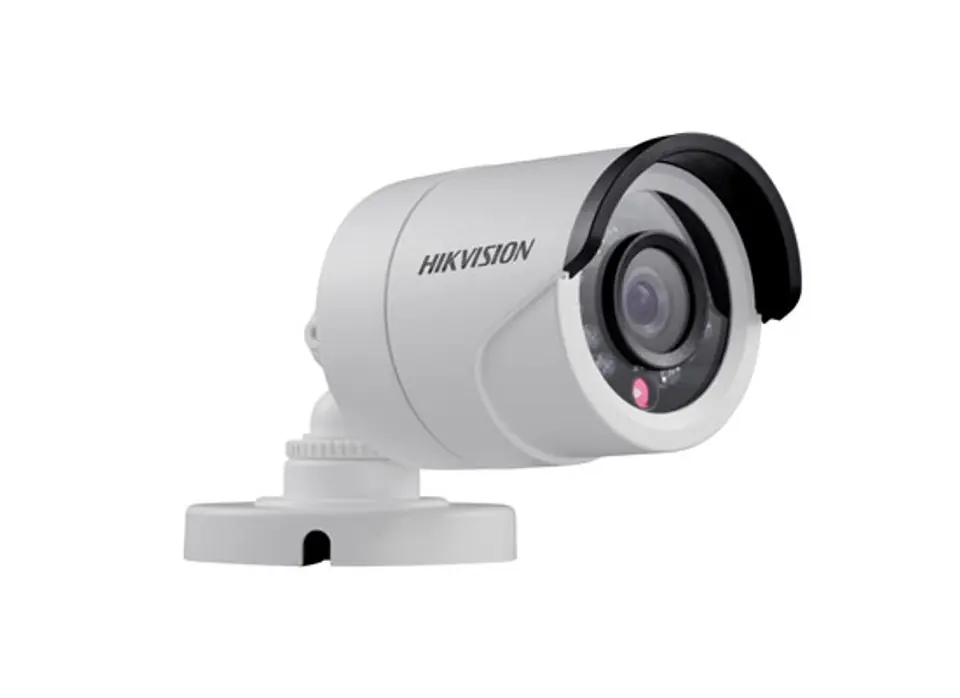

AHD CAMERA, HD-CVI, HD-TVI, PAL DS-2CE16D0T-IRF(2.8mm)(C) - 1080p Hikvision

Name: AHD CAMERA, HD-CVI, HD-TVI, PAL DS-2CE16D0T-IRF(2.8mm)(C) - 1080p Hikvision
Brand: HIKVISION
SKU: 517618
Price: 40.03 EUR
Availability: InStock

€40.03

Shipping from warehouse: ⁨D4⁩

Estimated shipping: Mon, Nov 18 - Tue, Nov 19

14 days returnUnconditional return policy

Availability:: moderate quantity
Brand:
Product code:: DS-2CE16D0T-IRF(2.8mm)(C) / 6954273693930

Specification

Analog signal format system:	PAL, NTSC
Angle of rotation:	360°
Back light compensation (blc):	Yes
Built-in hdd:	No
Camera shutter speed:	1/25 - 1/50000 s
Case::	Compact, Metal
Colour::	white
Connectivity technology:	Wired
Day/night mode:	Yes
Dc output voltage:	12
Dc-in jack:	Yes
Diameter:	7 cm
Digital wide dynamic range (dwdr):	Yes

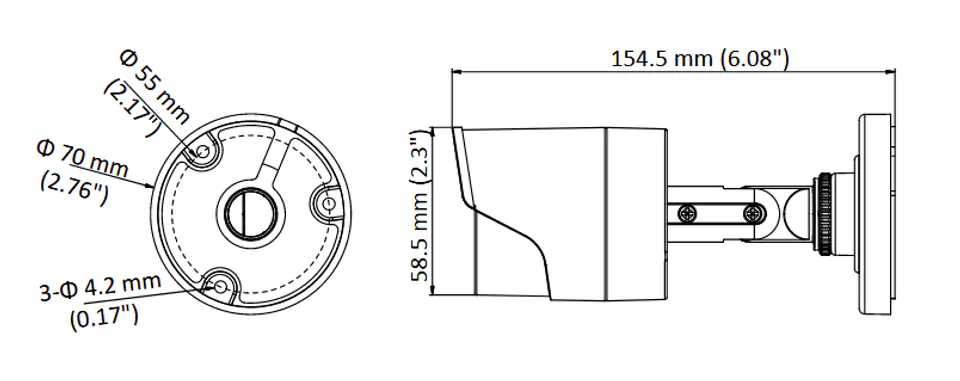

Dimensions::	Ø 70 x 138 mm
Form factor:	Bullet
Frame rate:	30 fps
Full hd:	Yes
Housing material:	Metal
Image quality adjustment:	Sharpness, Brightness
Infrared (ir) cut-off filter:	Yes
International protection (ip) code:	IP66
Ir illuminator power adjustment::	Automatic
Ir illuminator range::	25 m
Languages support:	Simplified Chinese, English
Led type:	IR
Length:	15.4 cm
Lens diameter:	2.8 mm
Lens viewing angle, horizontal:	103°
Manufacturer / brand::	Hikvision
Matrix size::	2.1 Mpx
Maximum resolution:	1920 x 1080 pixels
Minimum illumination:	0.01 lx
Mirror:	Yes
Mounting type:	Wall
Night vision:	Yes
Night vision distance:	20 m
Noise reduction:	Yes
Ntsc resolutions:	1920 x 1080 pixels
Number of cameras:	1
Number of languages:	2
Objective::	2.8 mm
Operating modes:	AHD, CVI, TVI, CVBS
Operating relative humidity (h-h):	0 - 90%
Operating temperature ::	-40 °C ... 60 °C
Operating temperature (t-t):	-40 - 60 °C
Pal resolutions:	1920 x 1080 pixels
Pan range:	0 - 360°
Placement supported:	External / Internal
Power consumption (max):	4 W
Power consumption::	≤ 3 W
Power source type:	DC
Power::	12 VDC / 250 mA
Product colour:	White
Resolution::	1920 x 1080 - 1080p @ AHD / HD-CVI / HD-TVI960 x 576 @ PAL
Sap code::	300511939
Scales::	0.26 kg
Sealing::	IP67
Selected features::	D-WDR - Wide Dynamic Range 2D-DNR - Digital BLC/HLC Image Noise Reduction - Background Light / Strong Light Compensation ICR Illuminator Optimization - AGC Mechanical IR Filter - Automatic Image Gain Adjustment Automatic White Balance Day/Night Mode Sharpness - Sharpen image contours
Sensor type:	CMOS
Signal-to-noise ratio (snr):	62 dB
Standard::	AHD / HD-CVI / HD-TVI / PAL
Supported graphics resolutions:	1920 x 1080 (HD 1080)
Supported languages::	Polish, English
Supported video modes:	1080p
Tilt angle range:	0 - 180°
Total megapixels:	2 MP
Transducer::	Progressive Scan CMOS
Type:	CCTV security camera
Video output::	1 Vpp / 75 Ω - AHD / HD-CVI / HD-TVI / PAL, BNC socket
Viewing angle::	106° (manufacturer data) 100° (our tests)
Warranty::	3 years
Weatherproof:	Yes
Weight:	400 g

Megapixel camera with Progressive scan CMOS sensor and AHD / HD-CVI / HD-TVI / PAL interface

The AHD / HD-CVI / HD-TVI interface allows the transmission of analog video signal via coaxial cable in max. 8 Mpx (4K)There are no delays during transmission and the original, high image quality is preserved

In the case of video transmission by twisted pair and impedance matching transformers, it is important to bear in mind the possibility of signal reflections and signal penetration between each other

Integrated 3-Axis camera mount, adjustable in all three planes and allows the camera to rotate in any directionThe camera meets the IP67 protection class

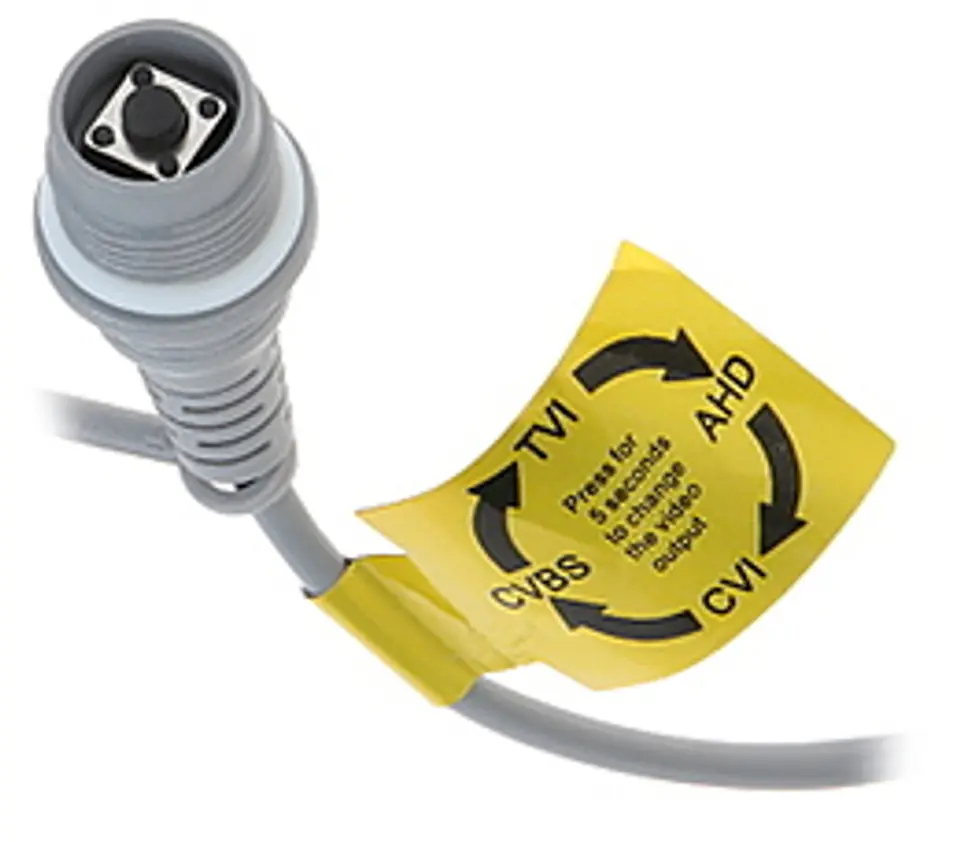

Changing the AHD / HD-CVI / HD-TVI / PAL standard is done by holding the button for approx. 5 s

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
