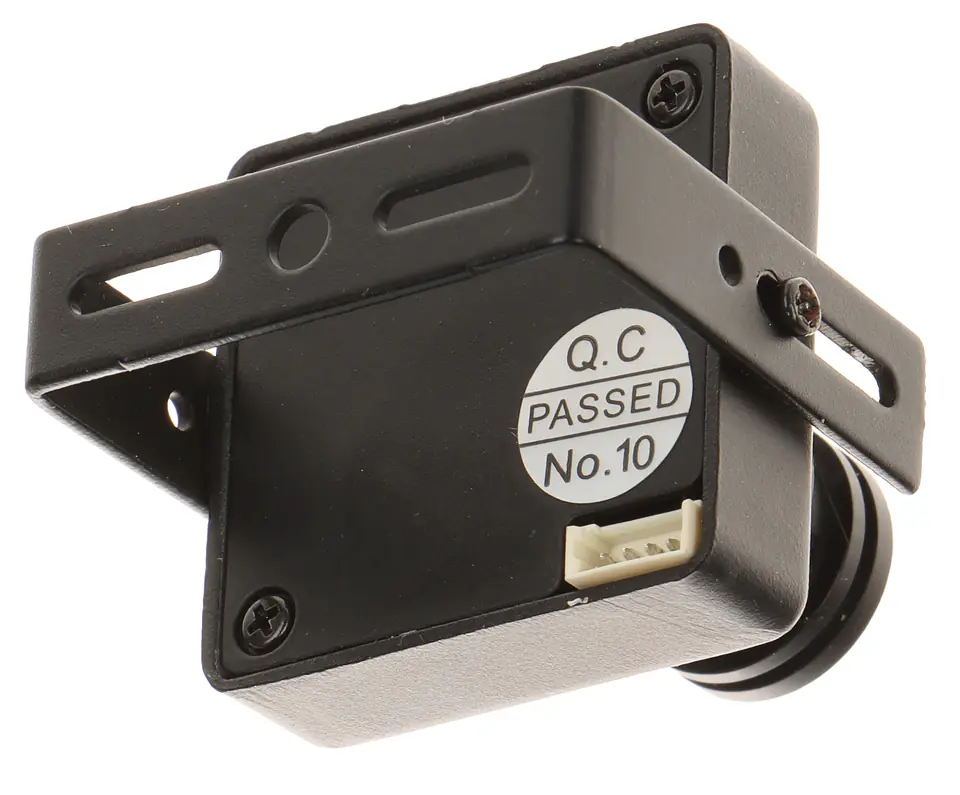

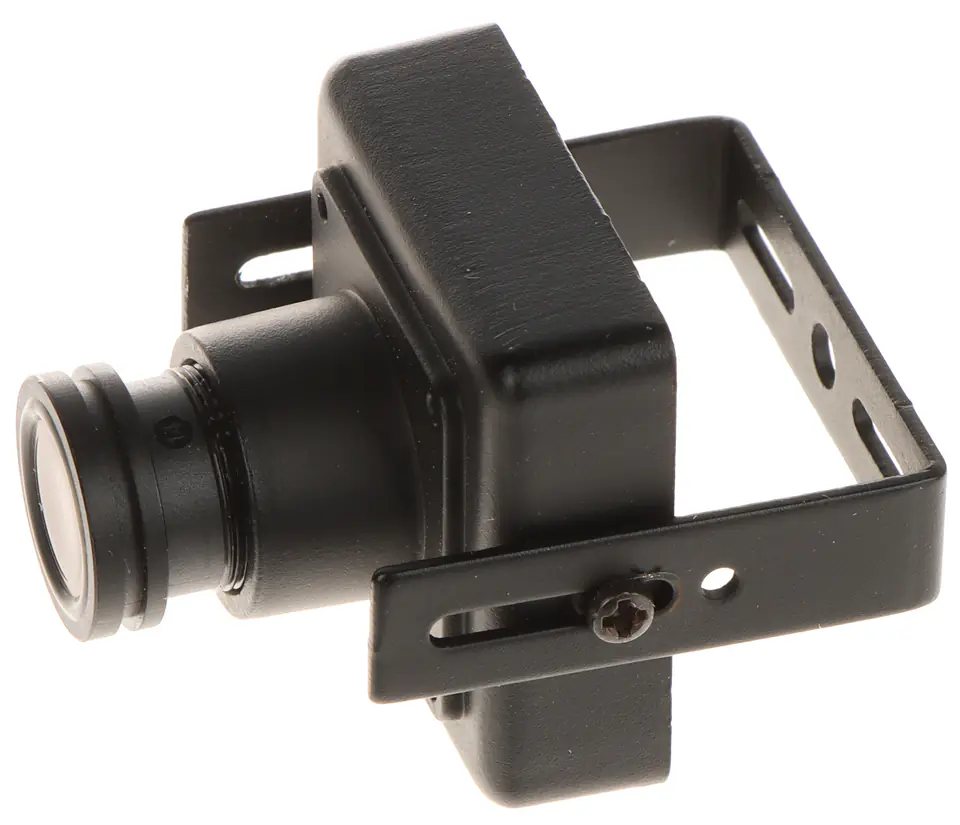

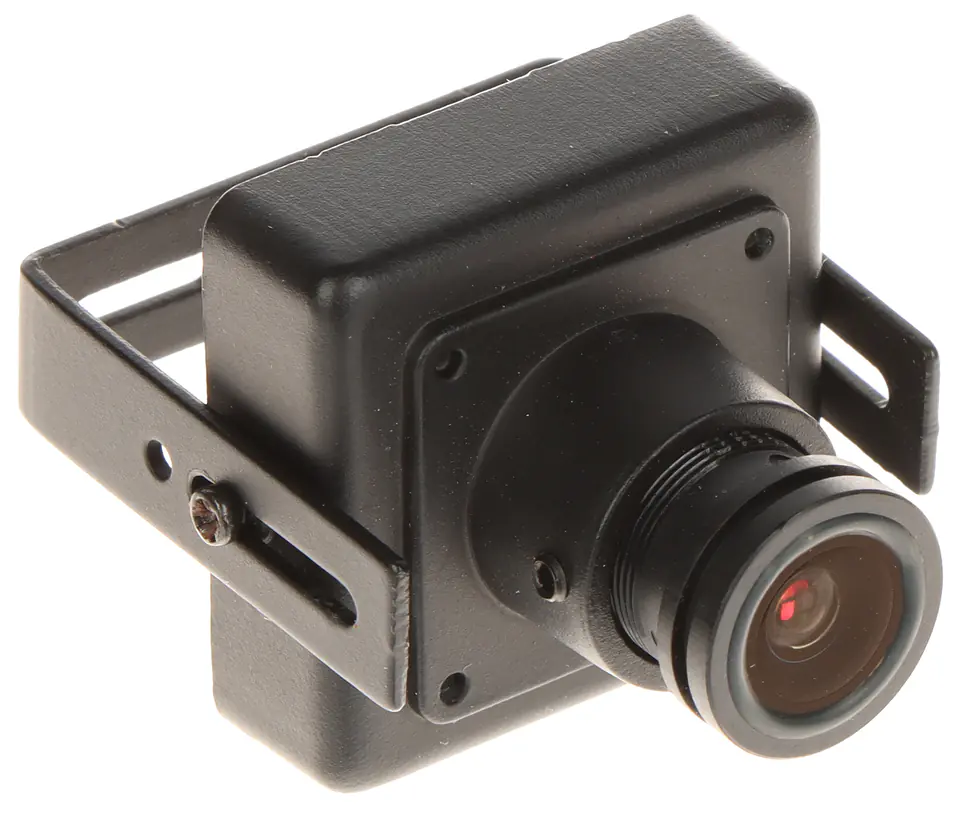

AHD CAMERA, HD-CVI, HD-TVI, PAL APTI-H24M-36 - 1080p 4 mm

€38.90
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
APTI
Product code:
APTI-H24M-36 / 5902887018336

Specification

Case::Mini, Metal
Colour::Black
Dimensions::30 x 30 x 29 mm (without handle)
Manufacturer / brand::APTI
Matrix size::2.1 Mpx
Objective::4 mm
Operating temperature ::-10 °C ... 50 °C
Power::12 VDC / 120 mA
Resolution::1920 x 1080 - 1080p, AHD-H / HD-CVI / HD-TVI, 960 x 576 - 960H, PAL
Scales::0.03 kg
Selected features::WDR - Wide Dynamic Range 3D-DNR - Digital BLC Image Noise Reduction - Configurable Backlight Compensation White Balance - ATW/Manual AGC - Automatic Sharpness Gain Adjustment - Day/Night Mode (Color/b&w/auto)
Sensitivity::0.001 Lux
Standard::AHD / HD-CVI / HD-TVI / PAL
Supported languages::Polish, English, French, Italian, Japanese, Portuguese, Russian, Spanish
Transducer::1/2.8" Sony CMOS - STARVIS Back-illuminated
Use::The camera is designed for indoor use, due to the possibility of condensation of water vapor.
Video output::1 Vpp / 75 Ω - AHD / HD-CVI / HD-TVI / PAL
Viewing angle::72° (manufacturer data) 80° (our tests)
Warranty::2 years

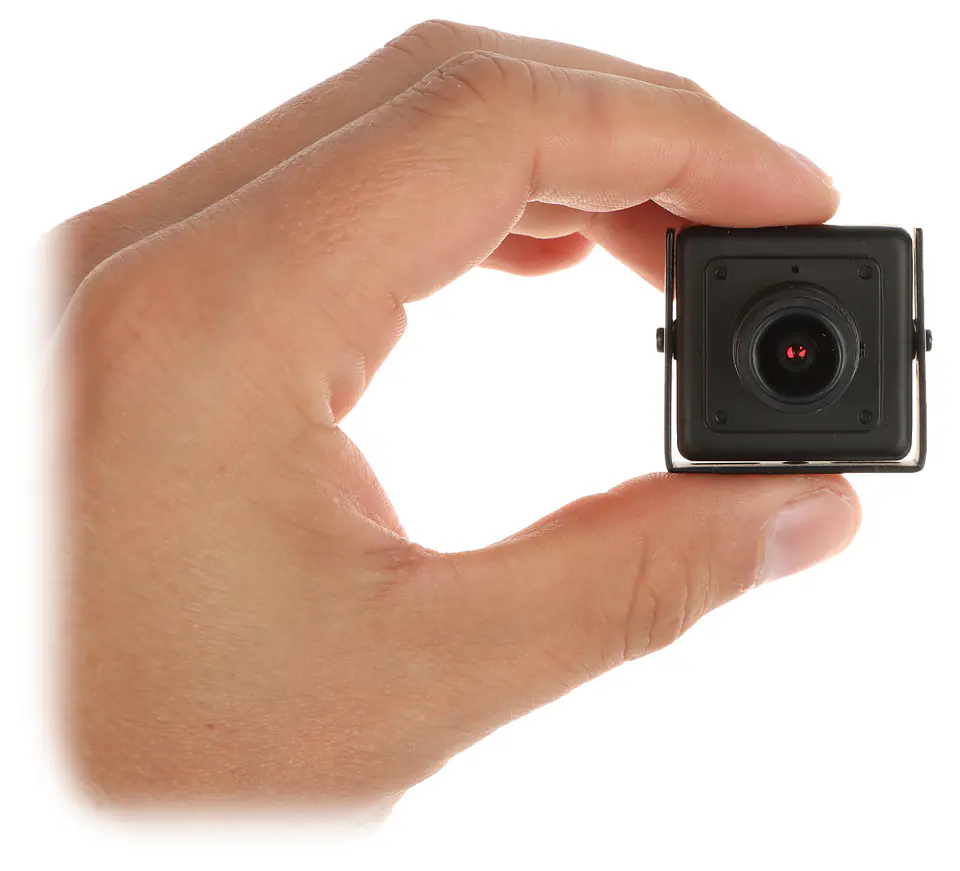

Miniature, internal camera with a very good Sony CMOS sensorLarge resolution of the sensor makes the image very detailed, so the camera can be successfully used, for example, to identify people

AHD / HD-CVI / HD-TVI interface enables the transmission of analog video signal via coaxial cable in 1080p resolutionThanks it is possible to transmit HD images over a distance of up to 500 m while maintaining low installation costsDuring the transmission there are no delays and the original, high image quality is maintained

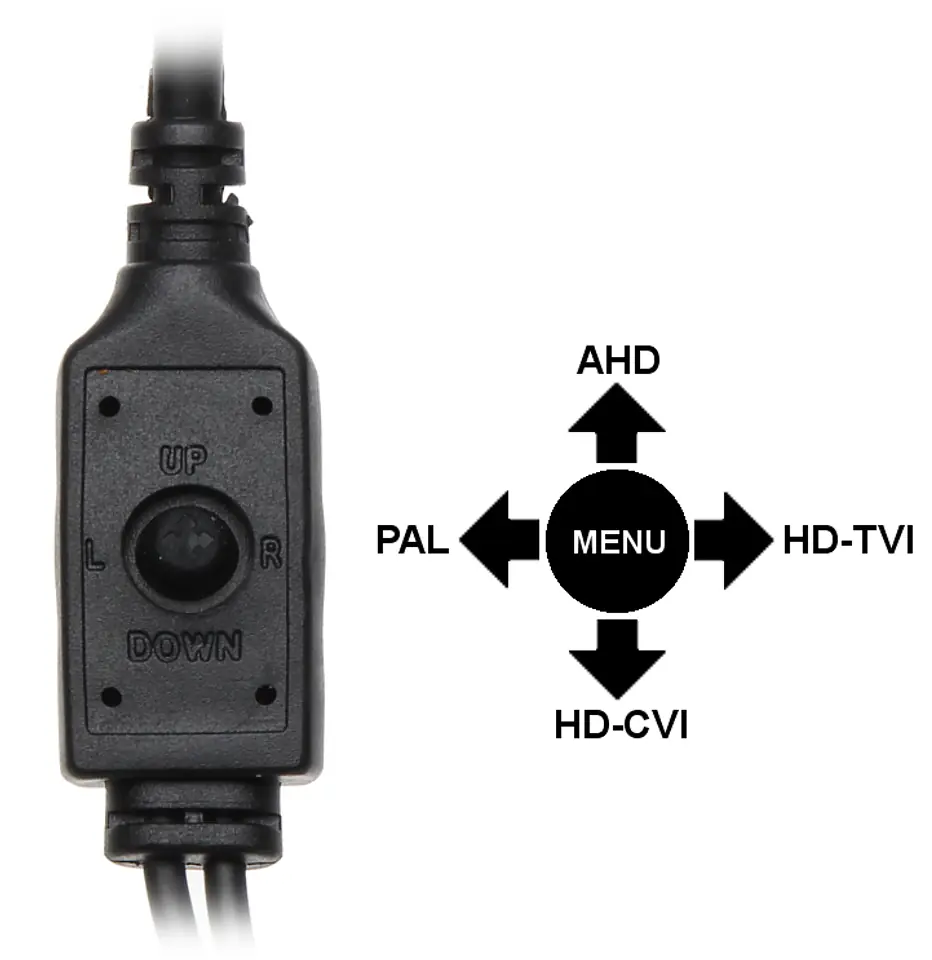

Setting the camera in PAL mode allows you to get an image in 960H resolutionThe selection of the signal format is made by tilting the joystick and holding it for 5 s without entering the OSD menu. Changing the signal format to NTSC in the camera causes the image to fade in the connected AHD/HD-CVI/HD-TVI recorder

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
