AHD CAMERA, HD-CVI, HD-TVI, CVBS HIGH-SPEED OUTDOOR OMEGA-PTZ-22H4-4 - 1080p 2.8 ... 12 mm

€116.16

Shipping from warehouse: ⁨D4⁩

Estimated shipping: Tue, Nov 26 - Fri, Nov 29

14 days returnUnconditional return policy

Availability:: moderate quantity
Product code:: OMEGA-PTZ-22H4-4 / 5902887055263

Specification

Case::	Speed Dome, Plastic
Colour::	white
Control::	Via RS-485 interface, Default address : 1, 2400 bit/s
Digital zoom::	x 16

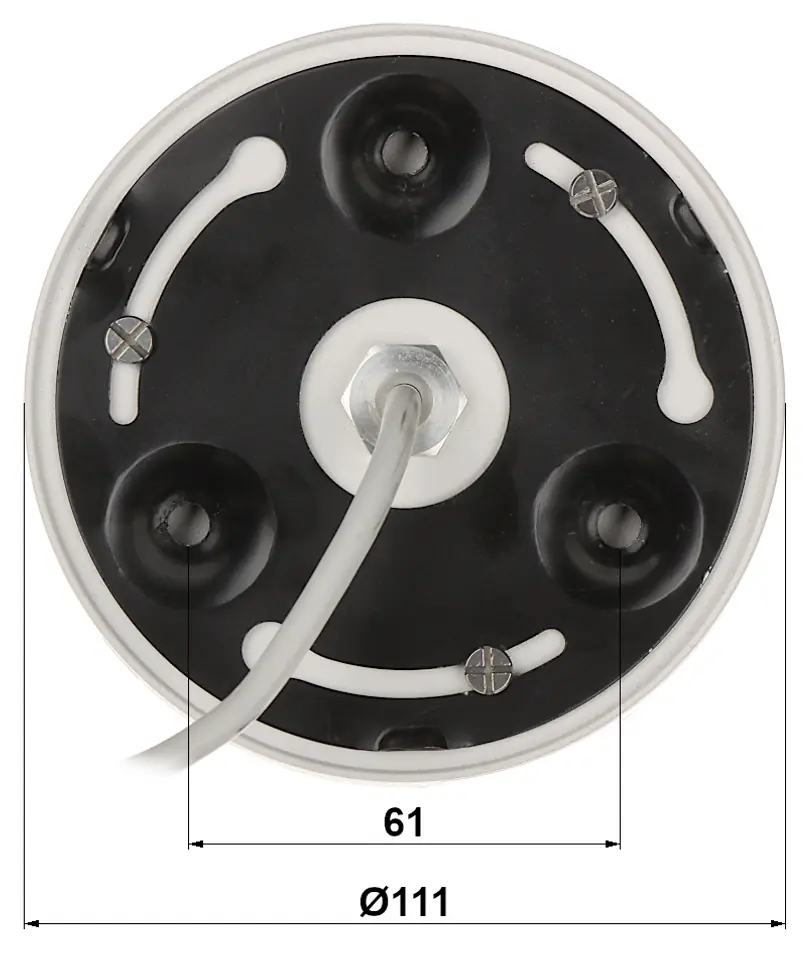

Dimensions::	Ø 111 x 102 mm
Horizontal rotation range::	0 ° ... 355 ° - The rotation of the head is limited by the limit
Ir illuminator range::	45 m
Matrix size::	2.1 Mpx
Number of presets::	220
Objective::	2.8 ... 12 mm - Motozoom
Operating temperature ::	-40 °C ... 60 °C
Optical zoom::	x 4
Parking (park action)::	Calling the preset position after a specified period of inactivity
Power consumption::	≤ 11.3 watts
Power::	12 VDC / 940 mA
Protocols::	Pelco-D, Pelco-P (auto detection)
Resolution::	AHD, HD-CVI, HD-TVI: 1920 x 1080 px - 1080p CVBS: 960 x 576 px - 960H
Rotational speed (manual control)::	25 °/s (horizontal), 20 °/s (vertical)
Rotational speed at presets::	25 °/s (horizontal)20 °/s (vertical)
S/n ratio::	> 50 dB
Scales::	0.57 kg
Sealing::	IP66
Selected features::	ICR - Mechanical 3D-DNR Filter - AGC Digital Image Noise Reduction - Automatic Image Gain Adjustment Automatic White Balance Sharpness - Sharpening Image Contours
Set traffic routes::	8
Standard::	AHD, HD-CVI, HD-TVI, CVBS
Supported languages::	English
Transducer::	1/2.9" Sony CMOS
Vertical rotation range::	0 ° ... 70 °
Video output::	AHD / HD-CVI / HD-TVI / CVBS, 1 Vpp 75 Ω
Viewing angle::	91 ° ... 28° (manufacturer data) 76° ... 30° (our tests)
Warranty::	2 years

Very small, outdoor PTZ camera with motozoom lens

AHD / HD-CVI / HD-TVI interface allows analog video signal transmission via coaxial cable in 1080p resolutionDuring the transmission there are no delays and the original, high image quality is preserved

The range of the illuminator given by the manufacturer depends on the environmental conditions (air transparency, environment, wall color, i.e. the so-called scene reflectance)The camera meets the IP66 protection class

Remark!

In order to change the standard via RS-485 (using the keyboard or from the DVR) it is necessary to:
2x call preset 137 to change to AHD
2x call preset 138 to change to TVI
2x call preset 139 to change to CVI
2x call preset 140 to change to CVBS

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
