AHD CAMERA, HD-CVI, HD-TVI, CVBS HAC-HFW1239TLM-A-LED-0360B-S2 Full-Color - 1080p 3.6 mm DAHUA

€36.75
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Thu, Nov 14 - Mon, Nov 18
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
Dahua
Product code:
HAC-HFW1239TLM-A-LED-0360B-S2 / 6923172506115

Specification

Analog signal format system:NTSC, PAL
Angle of rotation:360°
Audio input channels:1 channels
Audio::Built-in Microphone, Support audio via coaxial cable - HD-CVI only
Back light compensation (blc):Yes
Bluetooth:No
Bnc output ports:1
Built-in hdd:No
Built-in microphone:Yes
Camera pan control:Yes
Camera shutter speed:PAL: 1/25 - 1/100000; NTSC: 1/30 - 1/100000
Camera tilt control:Yes
Case::Dome, Metal + Plastic
Closest focusing distance:1.2 m
Colour::White + Black
Connectivity technology:Wired
Day/night mode:Yes
Dc output voltage:12
Dc-in jack:Yes
Depth:80.2 mm
Detect distance:55.2 m
Digital wide dynamic range (dwdr):Yes
Digital zoom:16x

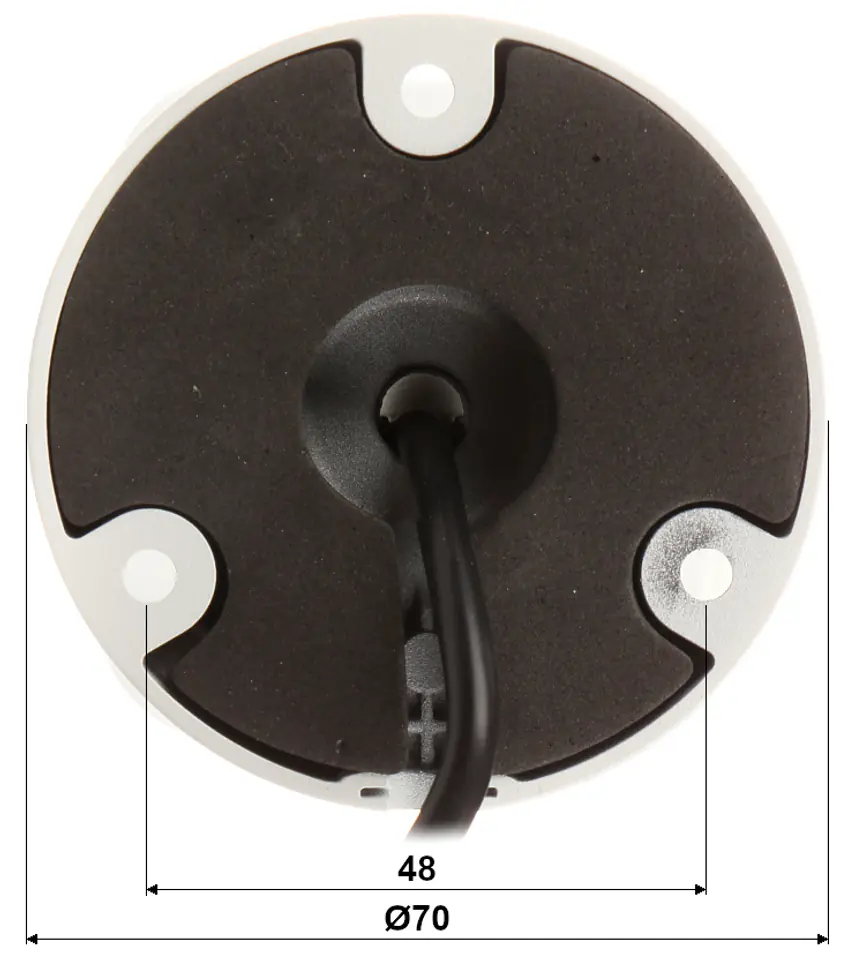

Dimensions::198 x 80 x 76 mm
Display language:Polish, English, Chinese, French, German, Spanish, Portuguese, Italian, Korean, Japanese, Russian
Ethernet lan:No
Fixed focal length:3.6 mm
Flip & mirror:Yes
Form factor:Bullet
Frame rate:30 fps
Gain control type:Auto/Manual
Height:76.2 mm
Highlight compensation (hlc):Yes
Housing material:Metal, Plastic
Identify distance:5.5 m
International protection (ip) code:IP67
Languages support:Multi
Length:198.4 mm
Lens viewing angle, diagonal:101°
Lens viewing angle, horizontal:86°
Lens viewing angle, vertical:46°
Manual:Yes
Manufacturer / brand::DAHUA
Matrix size::2.1 Mpx
Maximum aperture number:1.6
Maximum resolution:1920 x 1080 pixels
Minimum illumination:0.005 lx
Mirror:Yes

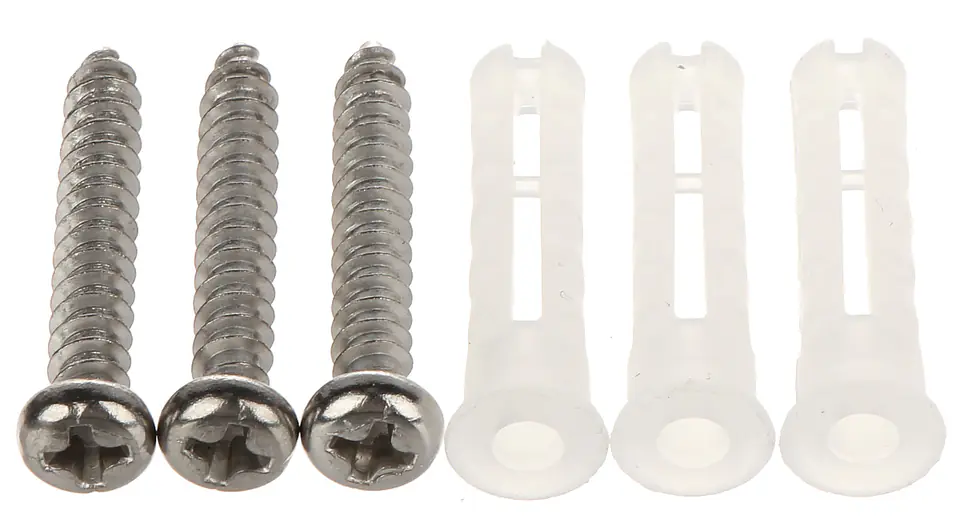

Mounting kit:Yes
Mounting type:Ceiling/Wall/Pole
Night vision:Yes
Night vision distance:40 m
Noise reduction:Yes
Noise reduction technology:3D noise reduction
Number of cameras:1
Number of effective pixels (h x v):1920 x 1080 pixels
Number of illumination leds:2
Number of lenses:1
Number of sensors:1
Objective::3.6 mm
Observe distance:22.1 m
Operating modes:AHD, CVI, TVI, CVBS
Operating relative humidity (h-h):0 - 95%
Operating temperature ::-40 °C ... 60 °C
Operating temperature (t-t):-40 - 60 °C
Optical sensor size:25.4 / 2.8 mm (1 / 2.8")
Osd menu::OSD menu available via DAHUA recorder
Package weight:430 g
Pan range:0 - 360°
Placement supported:Indoor & outdoor
Power consumption (max):5 W
Power consumption::≤ 4.2 watts
Power source type:DC
Power::12 VDC / 350 mA
Privacy masking:Yes
Product colour:White
Progressive scan:Yes
Recognize distance:11 m
Recording in colour:Yes
Resolution::1920 x 1080 - 1080p ,960 x 576 - 960H, PAL
Scales::0.29 kg
Sealing::IP67
Selected features::WDR LED Illuminator Off - 130 dB - 3D-DNR Wide Dynamic Range - BLC/HLC Digital Image Noise Reduction - Background Light/Strong Light Compensation AGC Auto White Balance - Automatic Image Gain Adjustment Mirror - Sharpness Image Mirror - Image Contour Sharpness Sharpness - Image Contour Sharpness Sharpening Privacy Zones - Max. 8
Sensor type:CMOS
Signal-to-noise ratio (snr):65 dB
Smart ir:N
Standard::AHD, HD-CVI, HD-TVI, CVBS
Storage relative humidity (h-h):0 - 95%
Storage temperature (t-t):-40 - 60 °C
Supported graphics resolutions:704 x 480, 1280 x 720 (HD 720), 704 x 576, 1920 x 1080 (HD 1080)
Supported video modes:720p, 1080p
Tilt angle range:0 - 180°
Total megapixels:2 MP
Transducer::1/2.8" CMOS
Type:CCTV security camera
Video output::AHD / HD-CVI / HD-TVI / CVBS, 1 Vpp / 75 Ω
Viewing angle, diagonal:103.6°
Viewing angle, horizontal:86.9°
Viewing angle, vertical:46.3°
Viewing angle::86° (manufacturer data) 82° (our tests)
Warranty::3 years
Weight:280 g
White balance:Auto, Manual
White light illuminator range (led)::40 m
Wi-fi:No
Wide dynamic range (wdr):Yes
Width:198.4 mm
Zoom capability:Yes

Megapixel camera with 1/2.8" CMOS sensor and AHD / HD-CVI / HD-TVI / CVBS interface

The AHD / HD-CVI / HD-TVI interface allows the transmission of analog video signal via coaxial cable in max. 8 Mpx (4K UHD)There are no delays during transmission and the original, high image quality is maintained

In the case of video transmission by twisted pair and impedance matching transformers, it is important to bear in mind the possibility of signal reflections and signal penetration between each other

The camera meets ip67 protection class

Remark! The Full-color series camera does not have a black and white modeThanking to the camera equipped with a very sensitive sensor and LED illuminator emitting visible light in white, the device allows you to get a clear, color image in all lighting conditions

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
