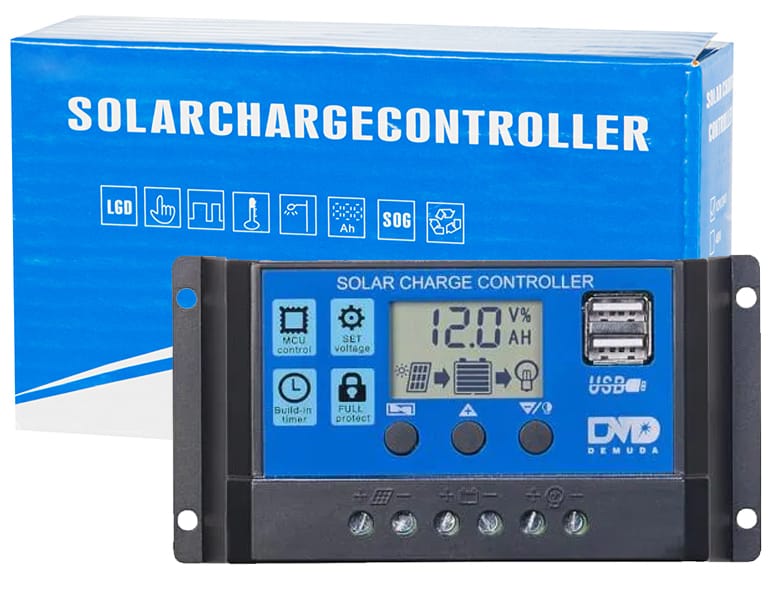

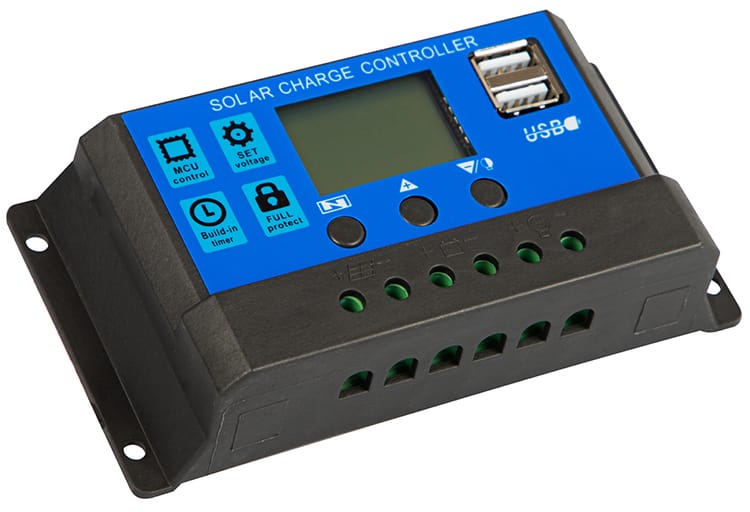

Charge controller for solar panels. It converts the energy generated by the photovoltaic panels into the battery. Allows PWM loading control. Easy installation and ease of use (physical buttons). The backlit LCD display allows you to view the set parameters in real time. It has a timer that allows you to set night lighting.
Product features:
- Charge controller for solar panels.
- It converts the energy generated by photovoltaic panels and enables their easy use.
- Easy-to-read LCD display with backlight, makes it easy to observe the settings.
- It has physical buttons to control and adjust all parameters.
- Simple installation and connection (diagram in the user manual).
- PWM increases the efficiency of battery charging.
- Built-in timer (timer) for setting twilight lighting.
Specification:
- Material: Plastic
- Power supply (input voltage): 12V/24V
- Solar panel voltage: 12V(8-23V)/24V(16-46V)
- Maximum charging current 30A and discharge: 10A
- Maximum current of receivers: 10A
- Standby current consumption: 10mA
- Backlit LCD display
- Operating Mode: PWM
- Physical adjustment buttons
- Timer for setting night lighting
- Selectable battery type (acid, gel, AGM)
- 2x USB Type-A port (2.5A total)
- Dimensions (without attachment): 13.35 cm x 7.00 cm x 3.50 cm
- Weight: 200 g
- Color: As the picture
