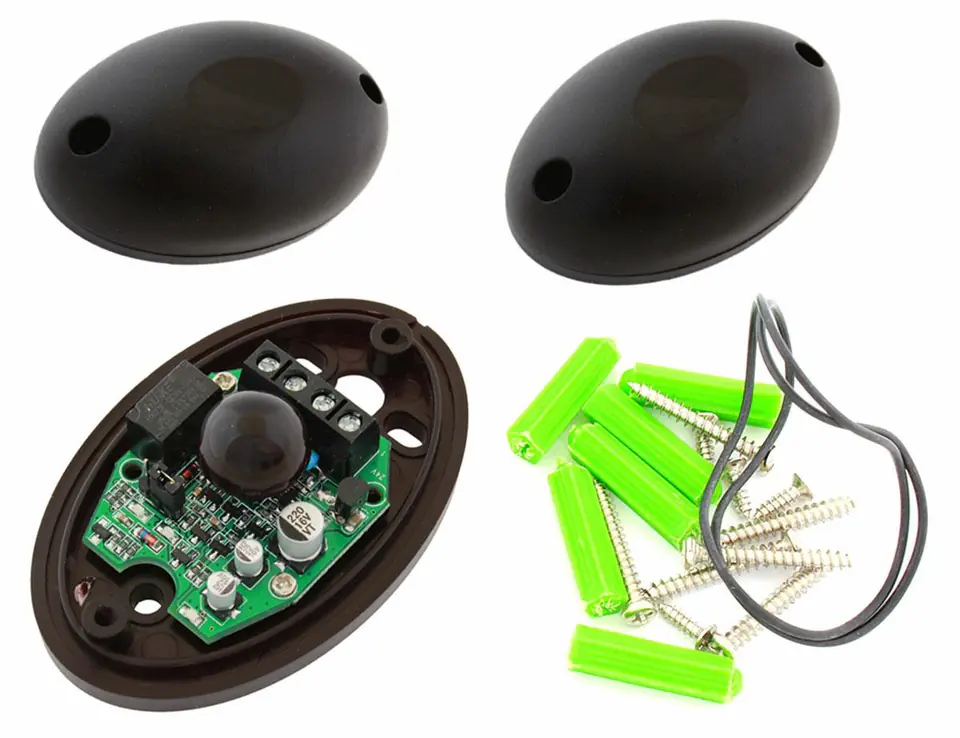

Photocell - infrared barrier consisting of a transmitter and a receiver. It is used in automation for gates or garages (for their closing and opening) and in alarm systems.
Product features:- Brand new, high quality product.
- The simple principle of operation ensures failure-free operation!
- After covering the infrared beam, the receiver relay is activated.
- Small size and aesthetic, universal appearance.
- Very easy to install and use!
- The receiver and transmitter are waterproof! They can successfully work outdoors.
- 2 relay operation modes: NO (normally obtuse) and NC (normally shorted), which can be easily adjusted by jumper.
- Additional mounting pins are also included!
- Packaging: colorful, aesthetic box
- Power supply: 12-24V DC or AC
- Photocell range: up to a maximum of 15 meters (real working range 10-12 m)
- Maximum relay load (receiver): up to 1A 36V
- 2 relay operating modes: NO (normally open) and NC (normally shorted)
- Infrared wavelength: 940nm
- Frequency: 1.92KHz
- Power consumption - transmitter: 15mA
- Power consumption - receiver: 30mA
- Dimensions: 49 x 76 x 22mm
- Color: black
