| 80 plus certification: | 80 PLUS Bronze |
|---|---|
| Ac input frequency: | 50/60 Hz |
| Ac input voltage: | 220 - 240 V |
| Atx power connector (20+4 pin): | Yes |
| Atx version: | 2.4 |
| Cables included: | AC |
| Combined power (-12v): | 3.6 W |
| Combined power (+12v): | 696 W |
| Combined power (+3.3v): | 120 W |
| Combined power (+5v): | 120 W |
| Combined power (+5vsb): | 12.5 W |

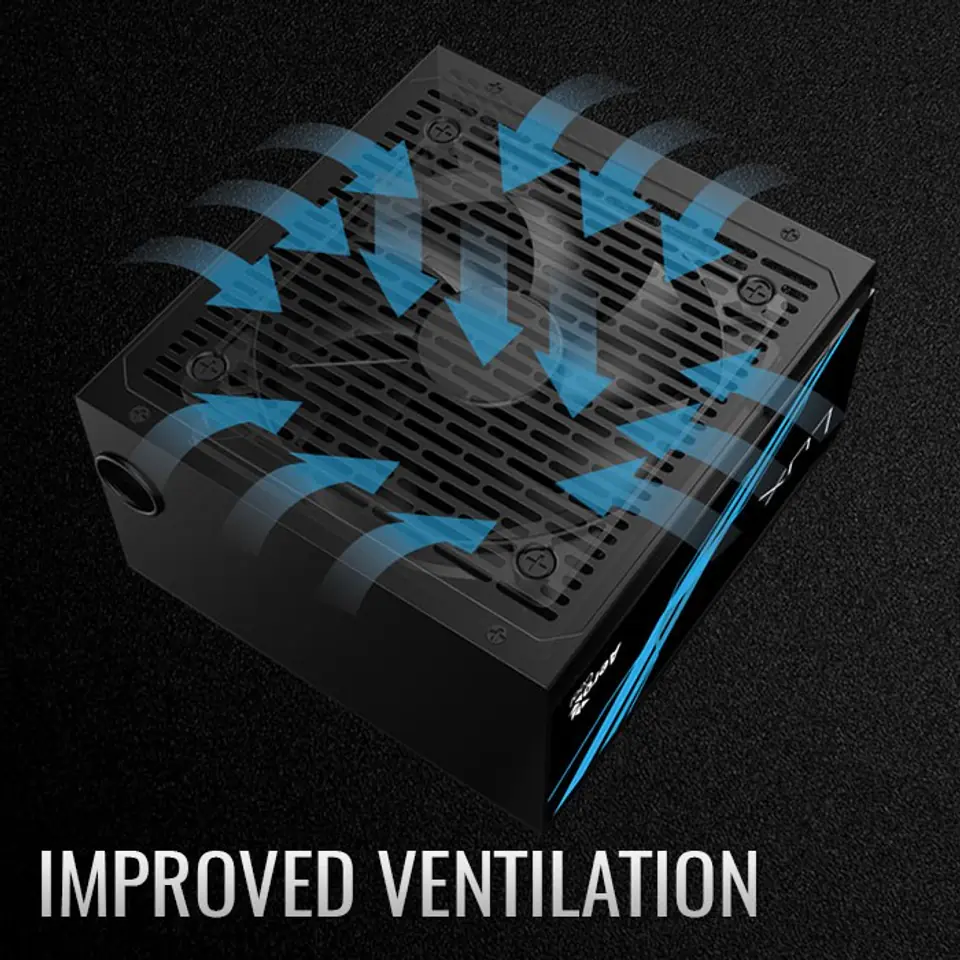

| Cooling type: | Active |
| Cpu power cable length: | 55 cm |
| Cpu power connector (4+4 pin): | Yes |
| Efficiency: | 88% |
| Fan diameter: | 12 cm |
| Input current: | 5 A |
| Manual: | Yes |
| Master (outer) case height: | 215 mm |
| Master (outer) case length: | 495 mm |
| Master (outer) case width: | 250 mm |

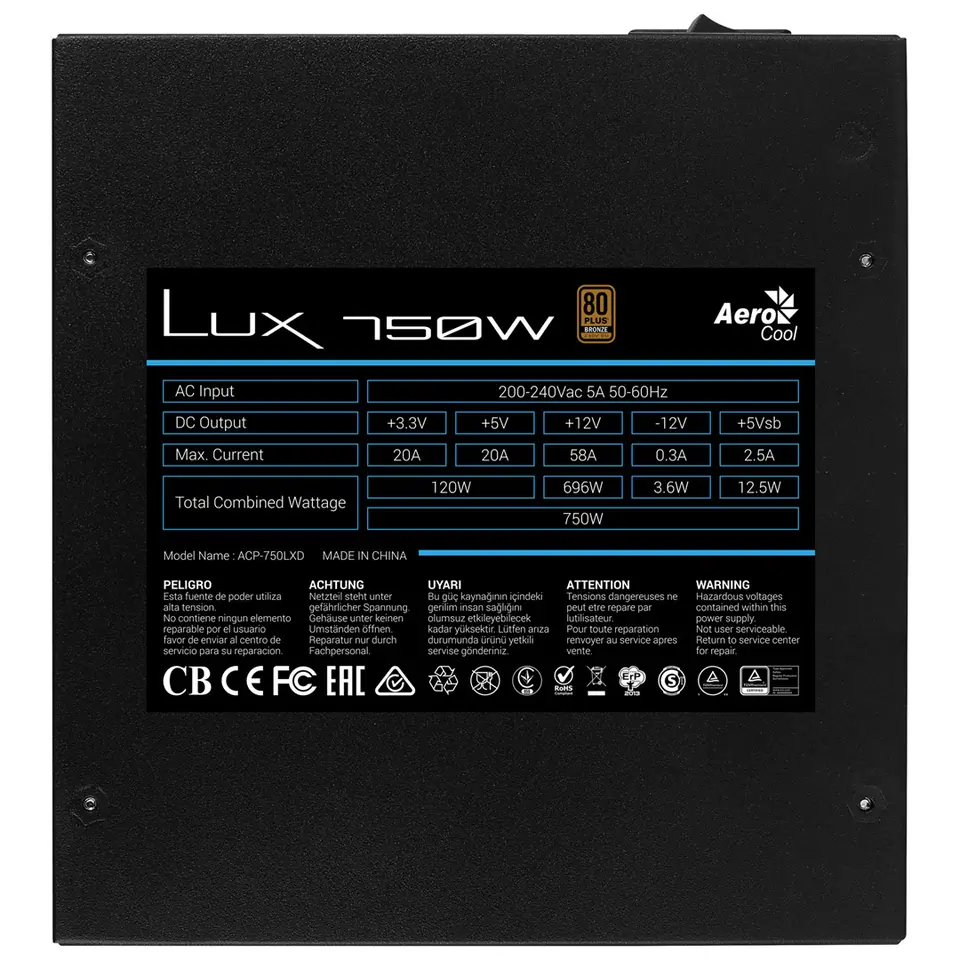

| Max output current (-12v): | 0.3 A |
| Max output current (+12v): | 58 A |
| Max output current (+3.3v): | 20 A |
| Motherboard power cable length: | 50 cm |
| Motherboard power connector: | 20+4 pin ATX |
| Number of fans: | 1 fan(s) |
| Number of pata power connectors: | 3 |
| Number of sata power connectors: | 5 |
| Package depth: | 195 mm |
| Package height: | 95 mm |
| Package type: | Box |
| Package width: | 230 mm |
| Pci express connector: | Yes |
| Pci express power cable length: | 45 cm |
| Pci express power connectors (6+2 pin): | 1 |
| Power factor: | 0.9 |
| Power factor correction (pfc) type: | Active |
| Power supply unit (psu) form factor: | ATX |
| Product colour: | Black |
| Purpose: | PC |
| Sata power cable length: | 700 mm, 850, 550 |
| Total power: | 750 W |

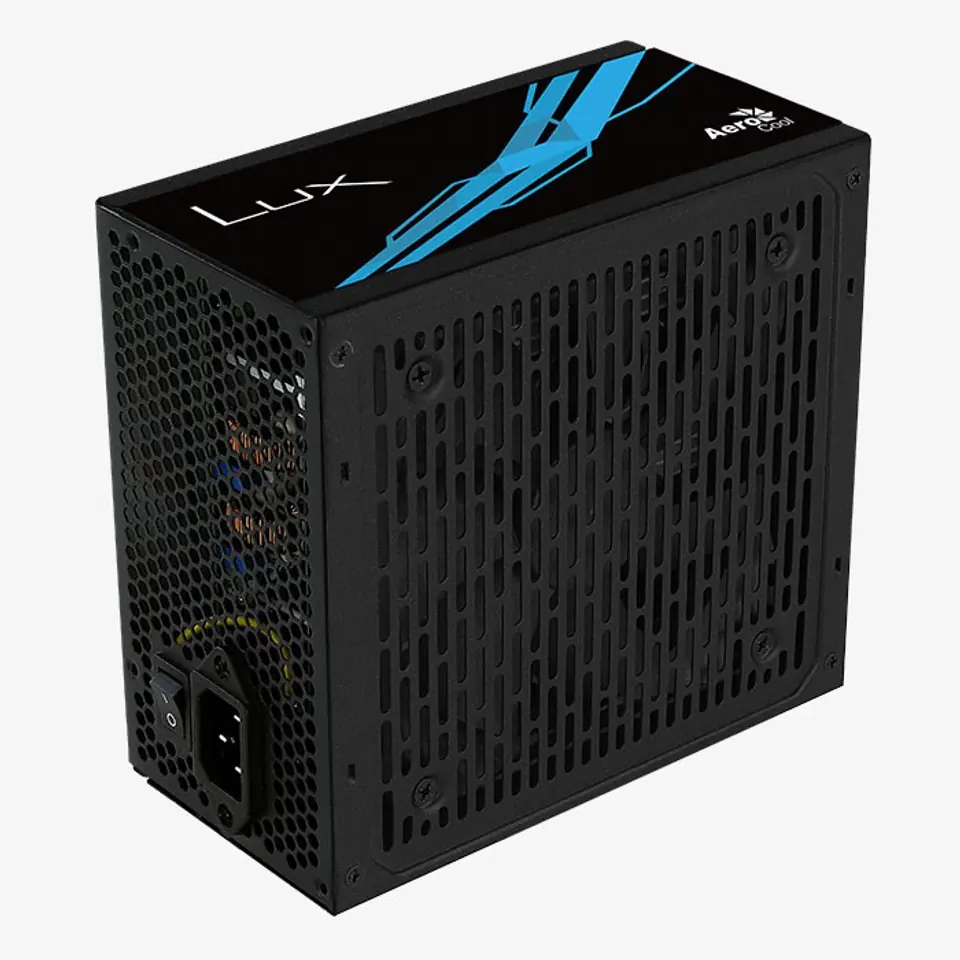

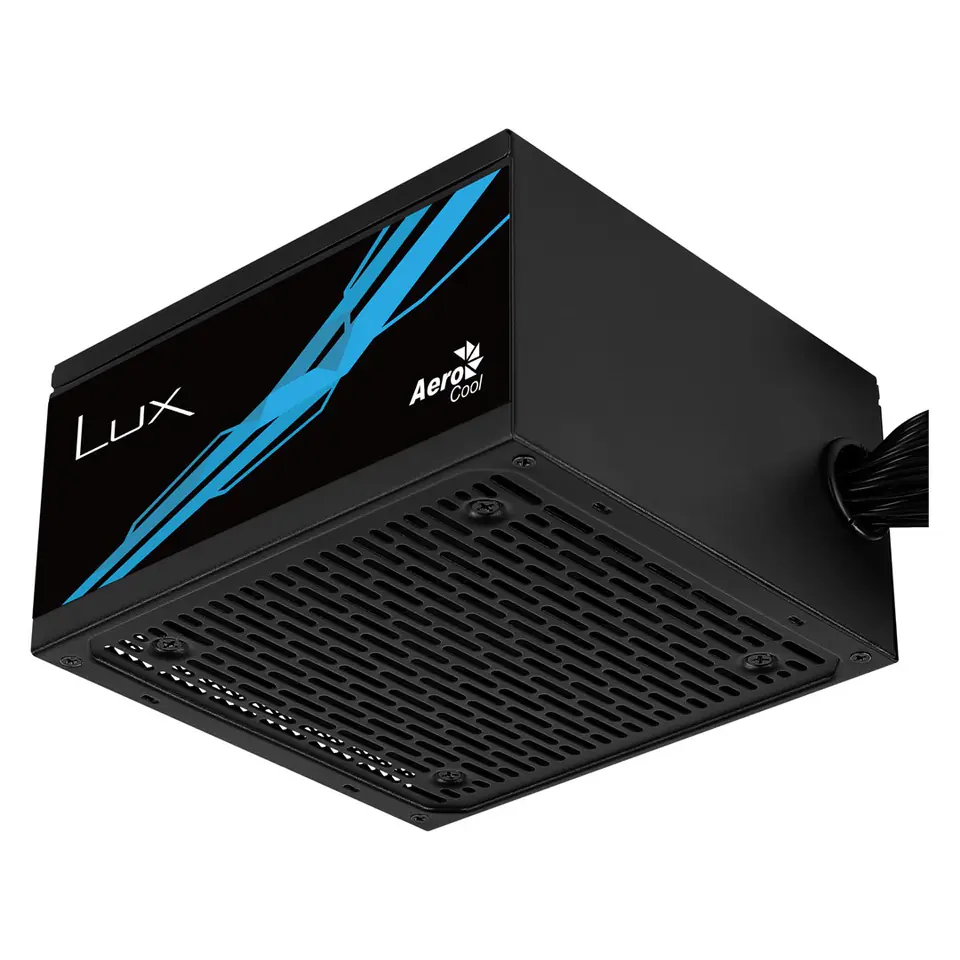

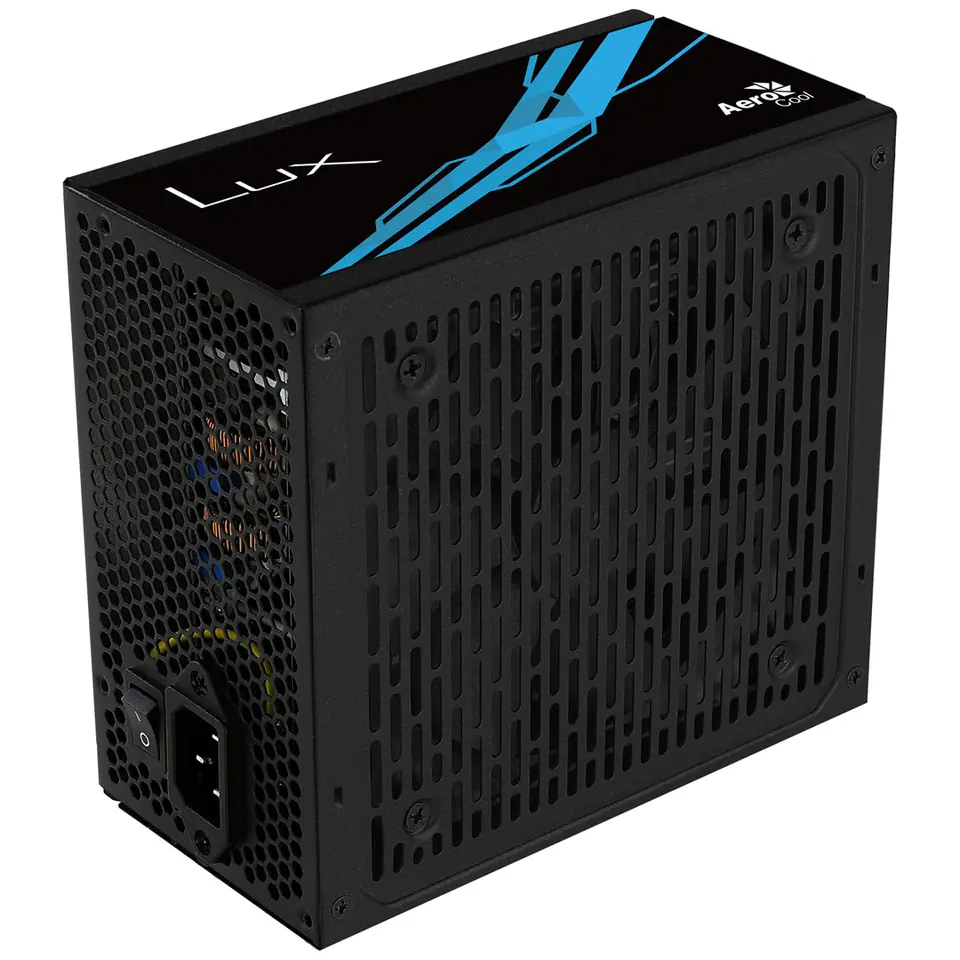

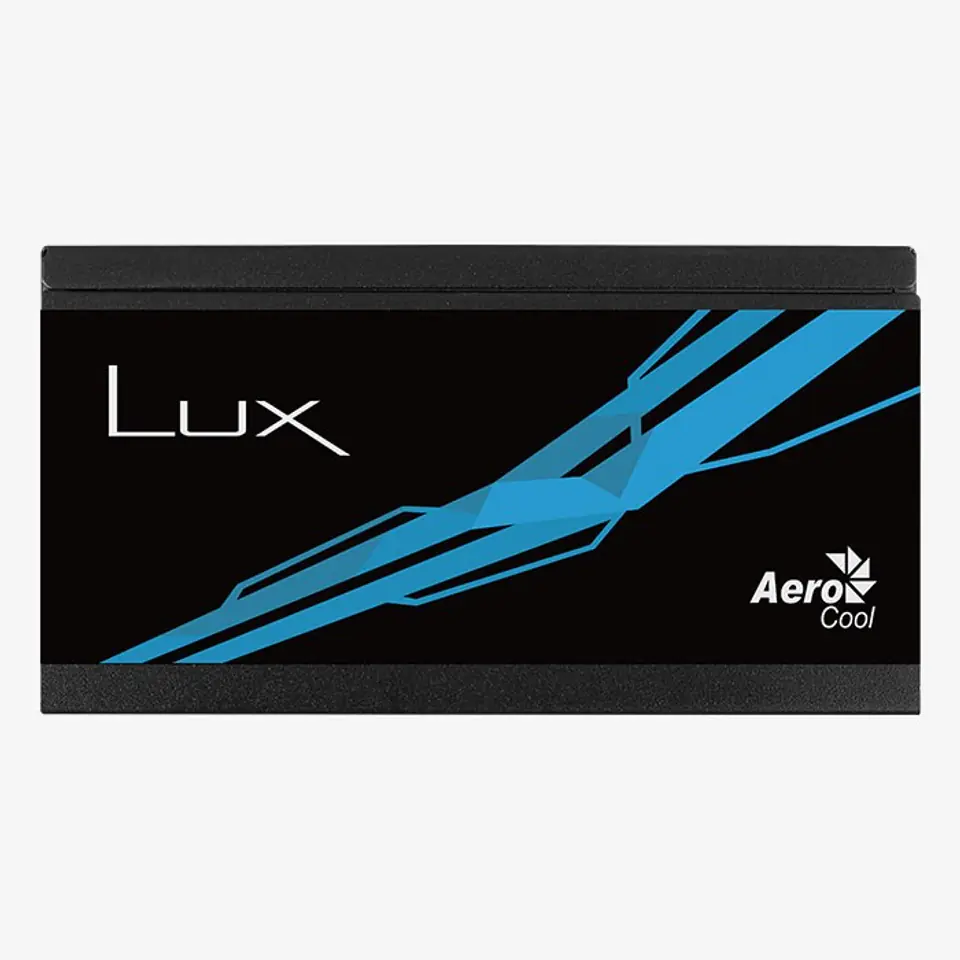

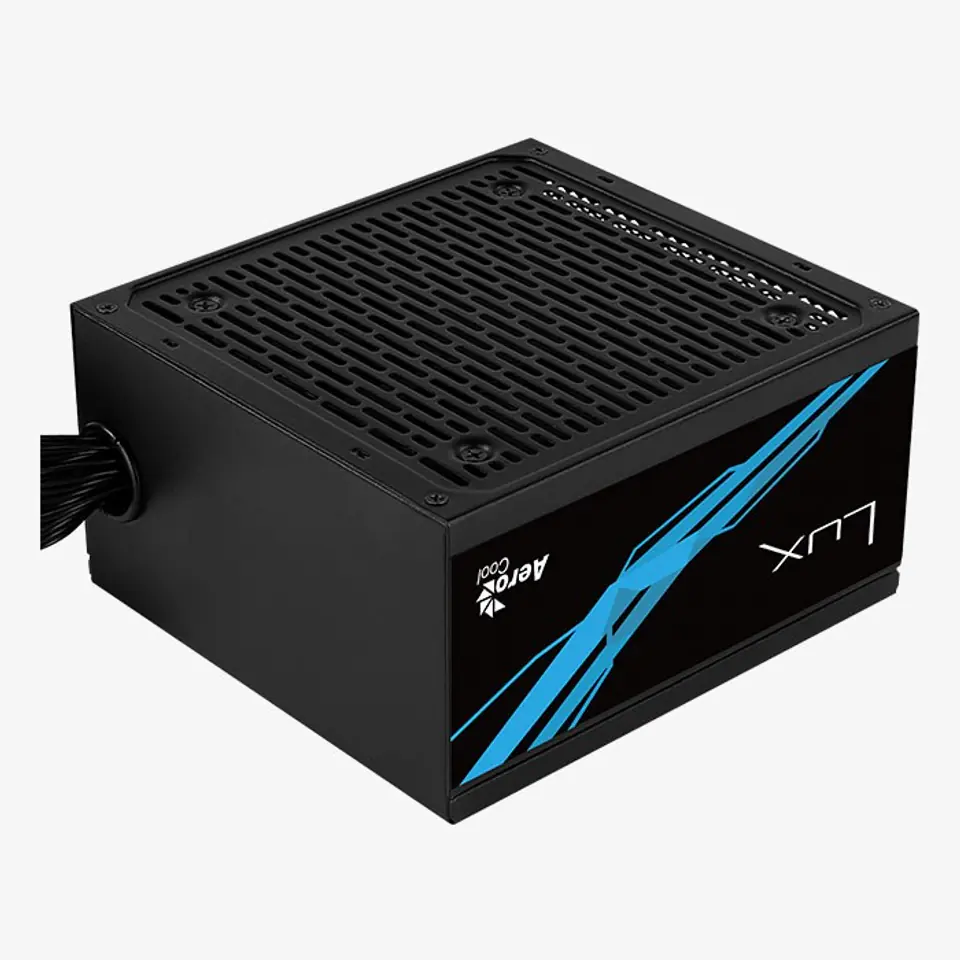

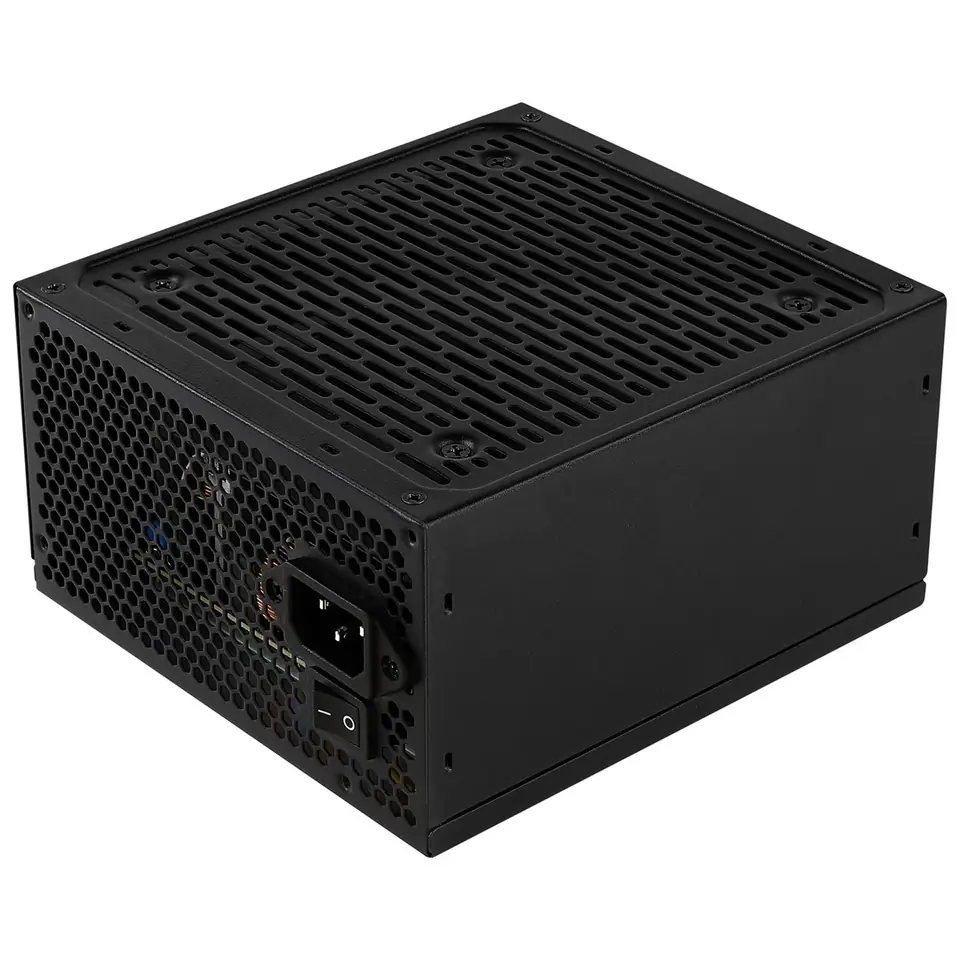

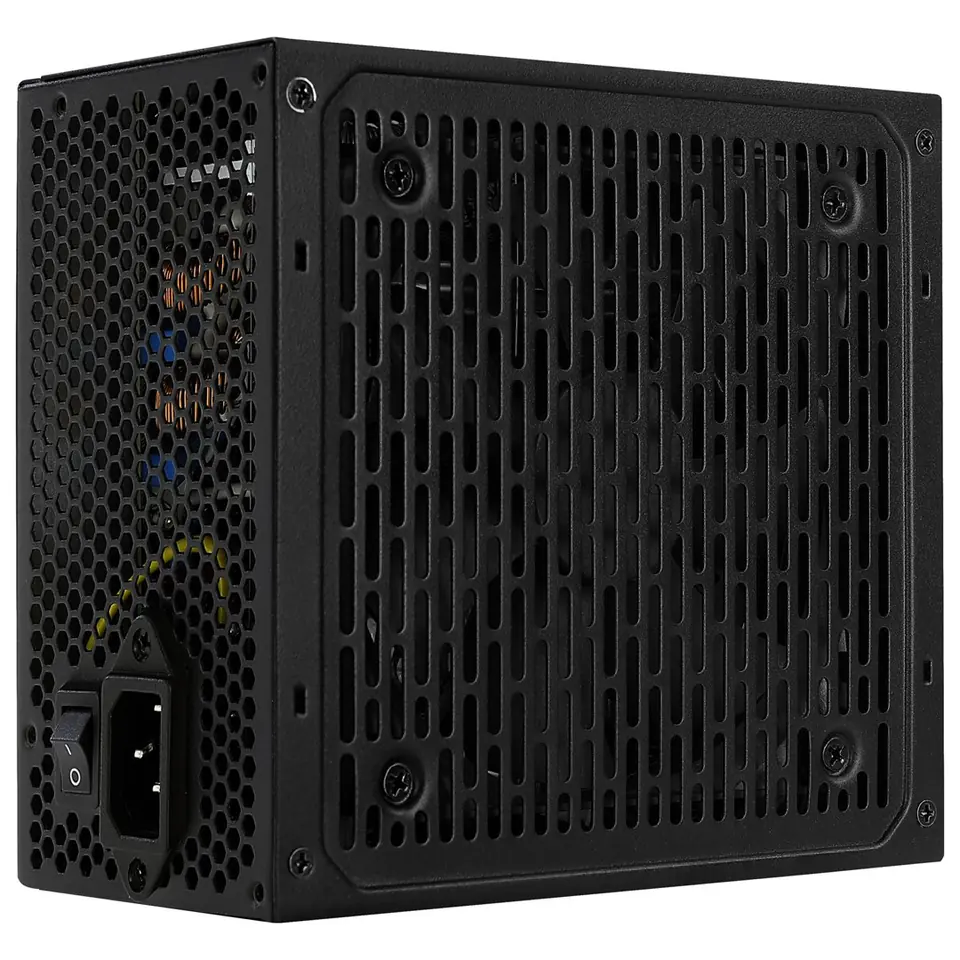

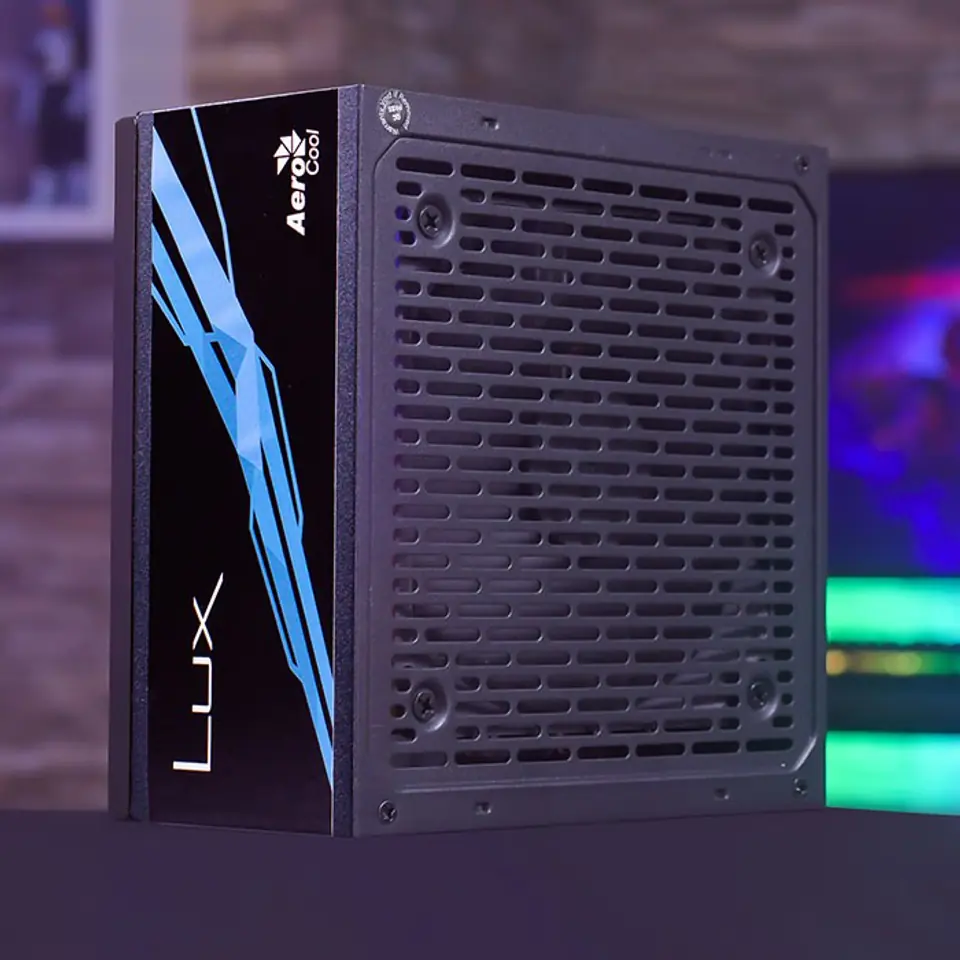

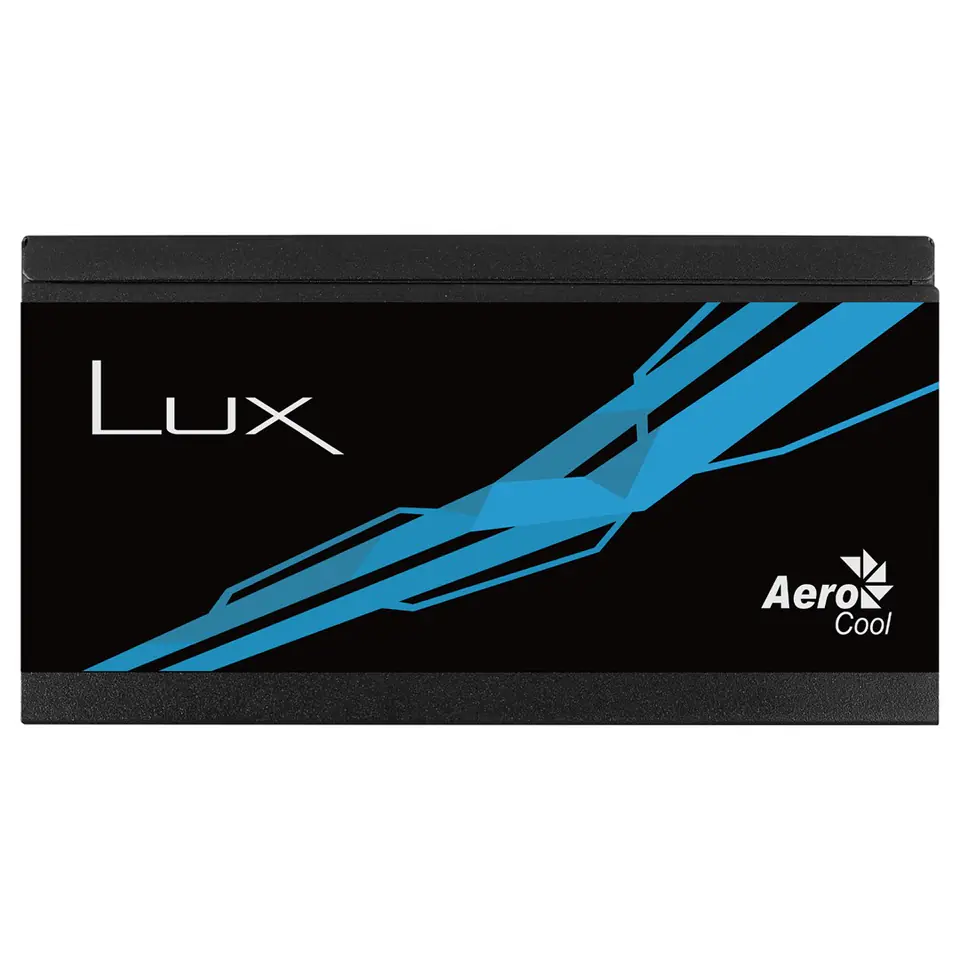

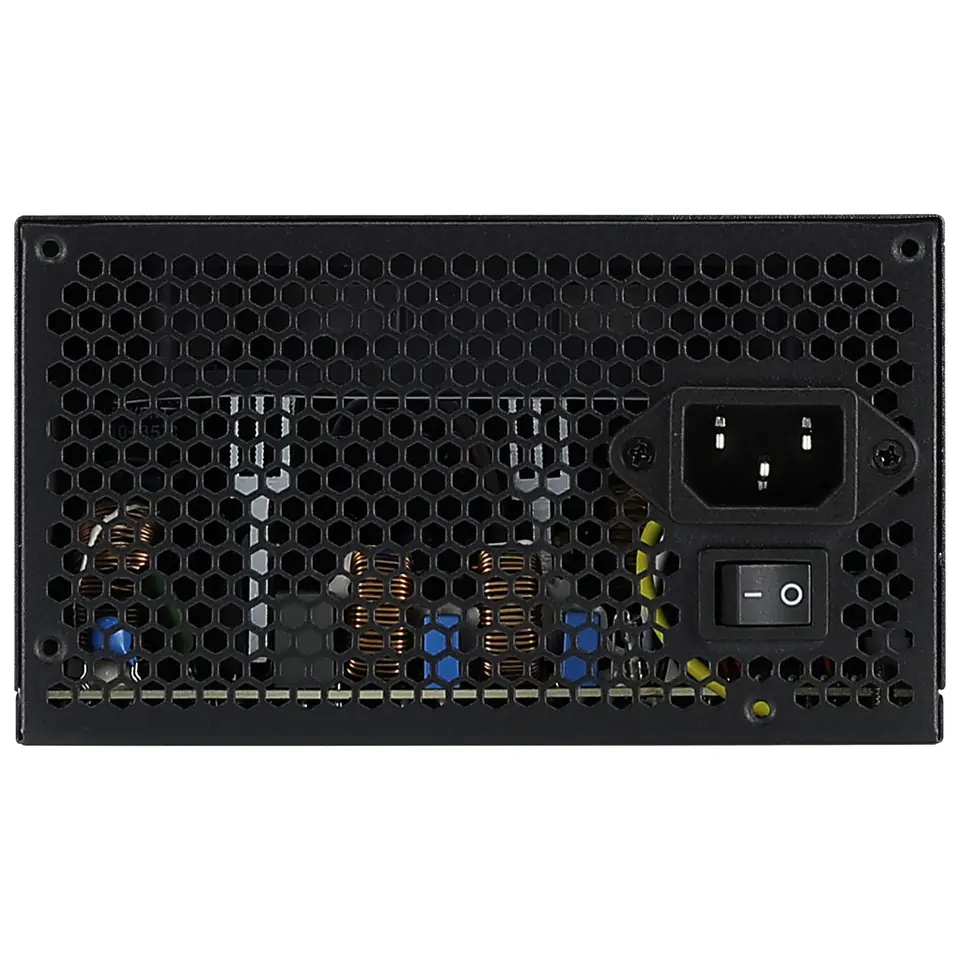

Power supply LUX 750W 80+ Bronze ATX
