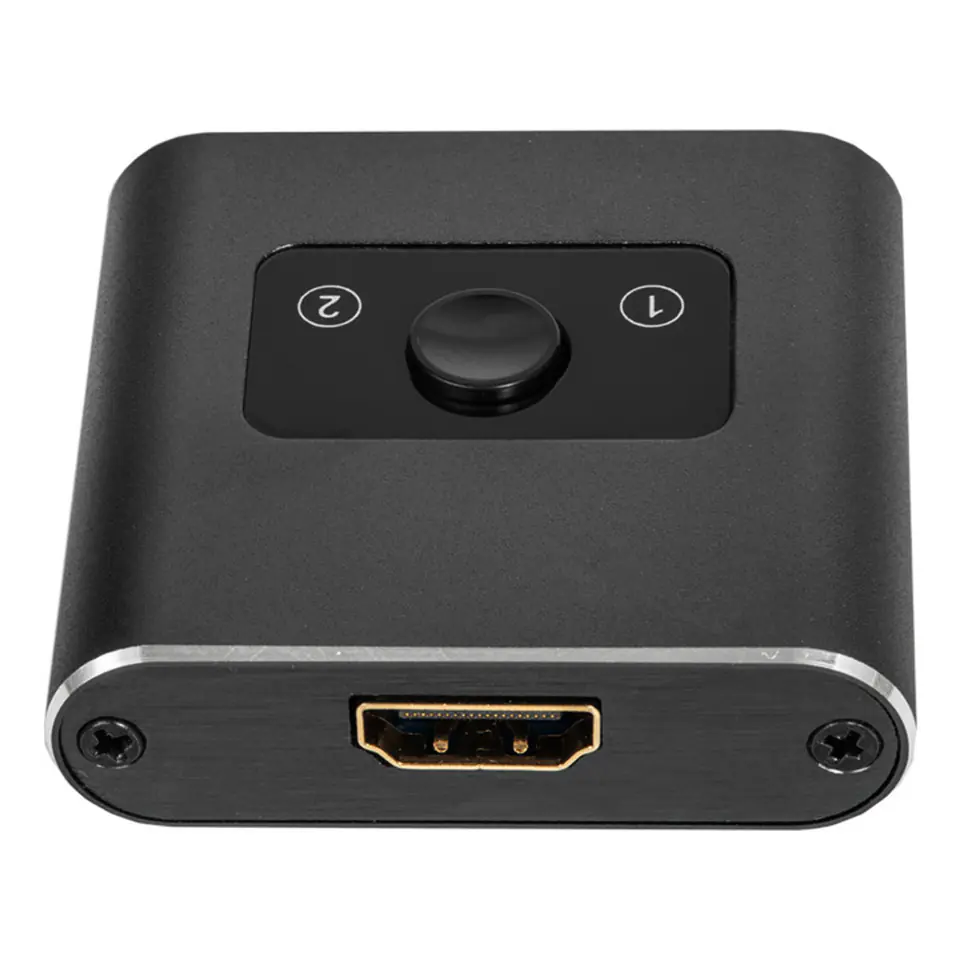

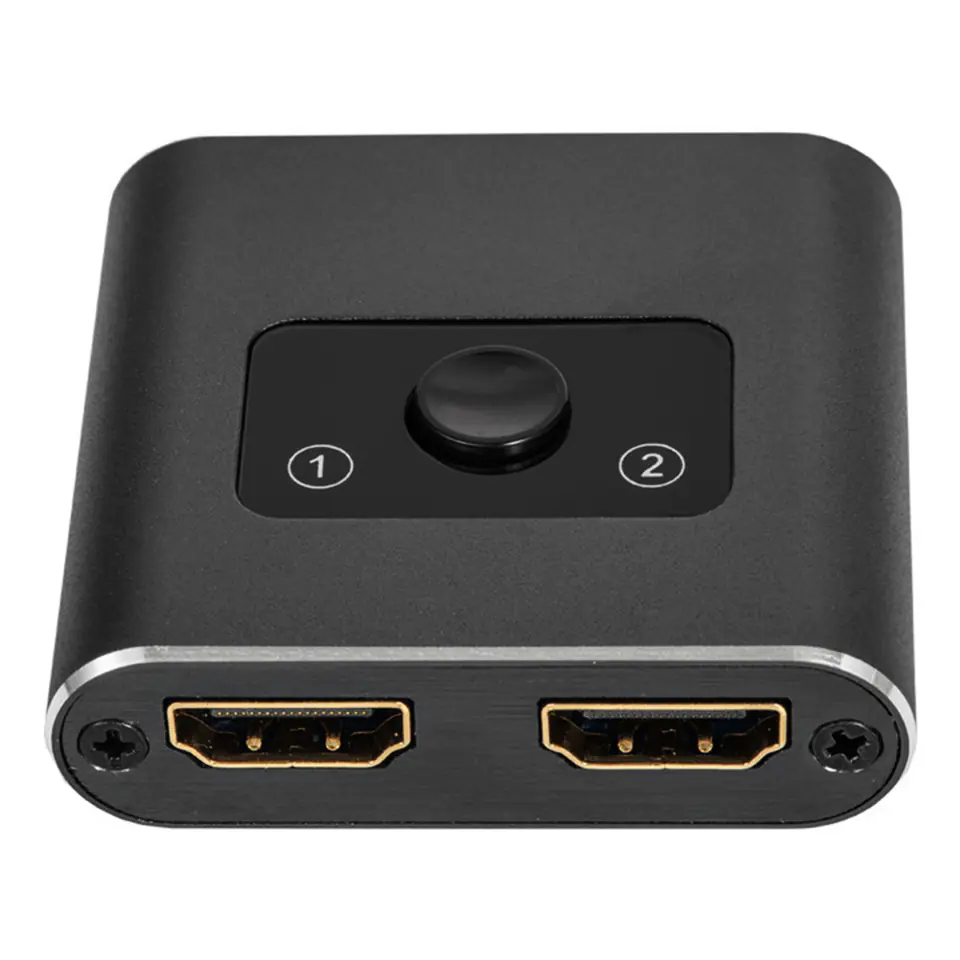

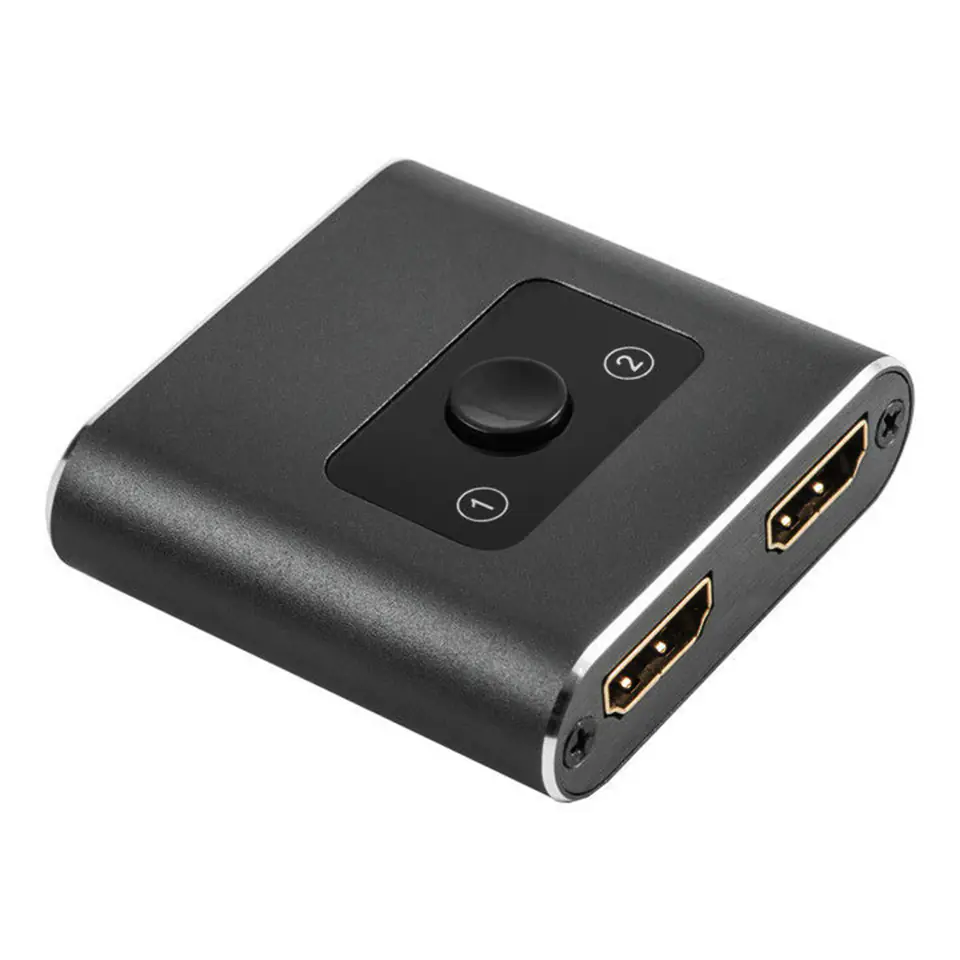

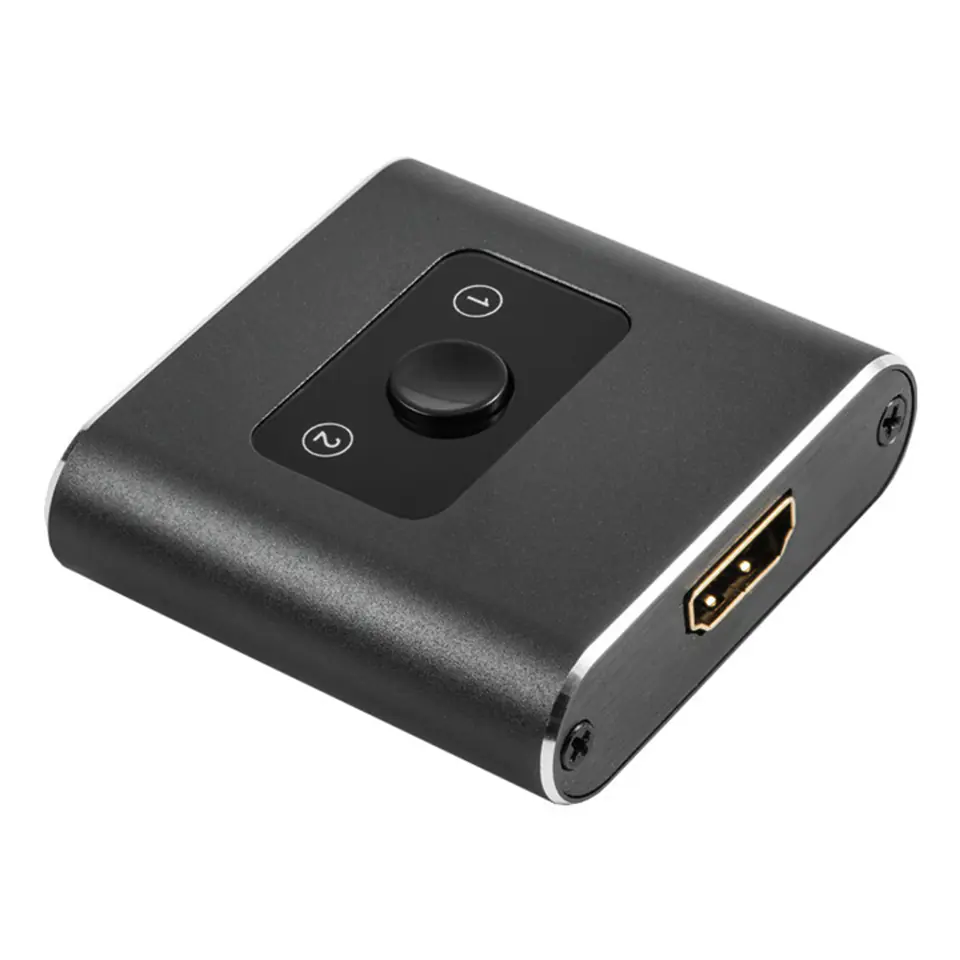

HDMI splitter or adder. A device with a manual change of input when working as an adder, through a switch on the housing. SPH-BIDHD02 can sum up the signal from two HDMI inputs to one output, or work quite the opposite and from one input divide the image into two receivers. The advantage is the compact size of the device and the unnecessary external power supply. Attention! The device displays only one image (selectable via a button on the case)
- Easy installation and use: no external power supply, just plug in HDMI cables, and the device will detect in which mode it should work (splitter / adder);
- Long range: lossless operation on wires up to 5 meters on each side (5m ---> device ---> 5m);
- Quality & Safety: The device meets FCC, ROHS and EMC standards, supports V1.0,V1.1,V1.2,V1.3,V1.4 standard.
- Resolution Support: SPH-BIDHD02 supports 3D, 1080P, 2160P, is compatible with all devices with HDMI connector

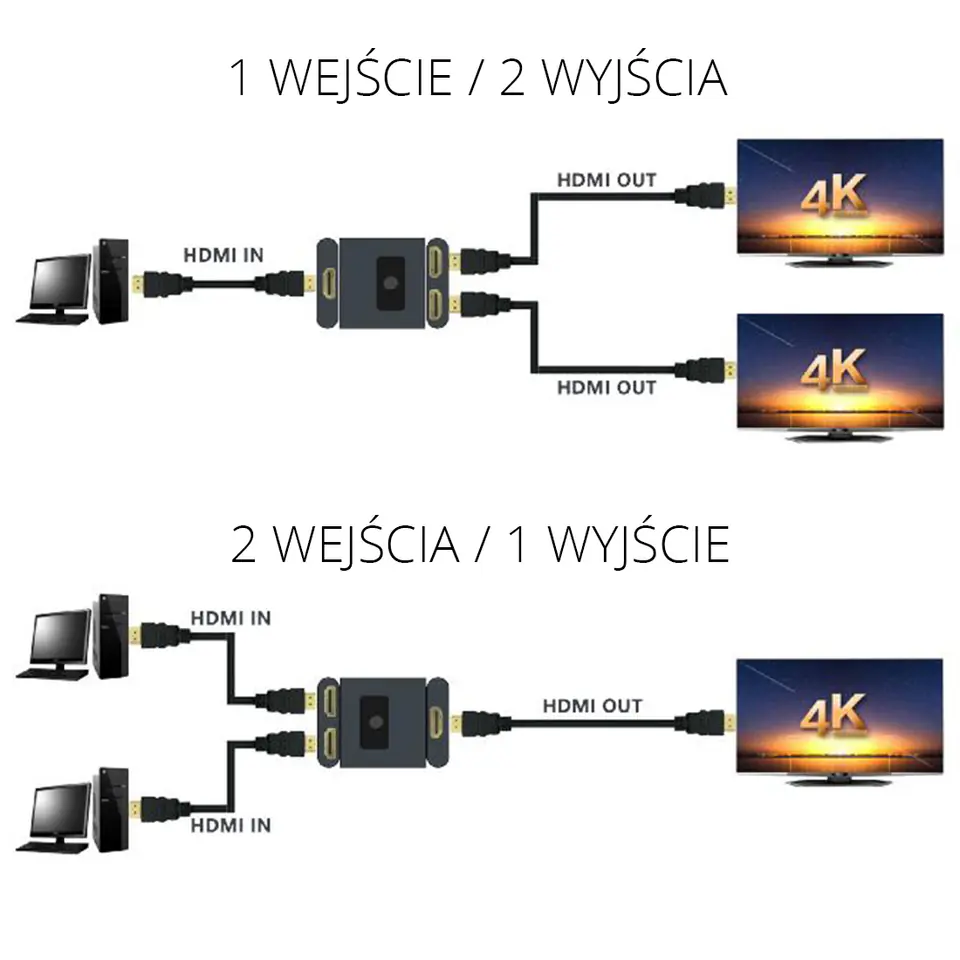

1. Connection 1x Input / 2x Output - We can connect one transmitter to the device, e.g. set-top box, laptop, Apple TV, console or other- We connect two receivers to the device, e.g. two monitors (Attention! the image can be displayed only on one receiver - selectable by button)<>2. Connection 2x Input / 1x Output- We can connect two transmitters to the device, e.g. set-top box, laptop, Apple TV, console or other- We connect one receiver to the device, e.g. a monitor (Attention! We can display only one image on the receiver - to choose from with a button)
Specification:1. 3 HDMI ports type A2. Easily switch between two HDMI video sources to a single HDMI display3. Easily switch a single HDMI video source between two displays (not simultaneously)4. Supports 4k x 2k, 3D, 1080P5 resolution. Supports HDCP pass-through and 12-bit color depth per channel; up to 32 bits on all channels6. It supports LPCM, DTS Digital, Dolby Digital, DTS-HS and Dolby TrueHD7. No power source needed; plug and play function8. Maximum working current: 1500mA9. Manual selection button to switch between modes10. Dual LEDs for status display
