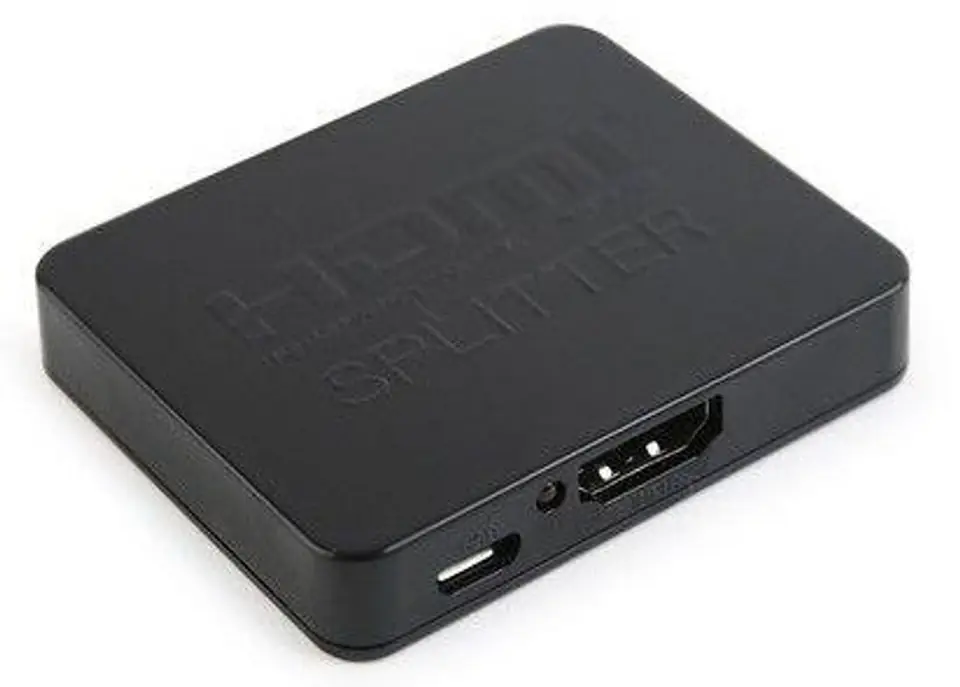

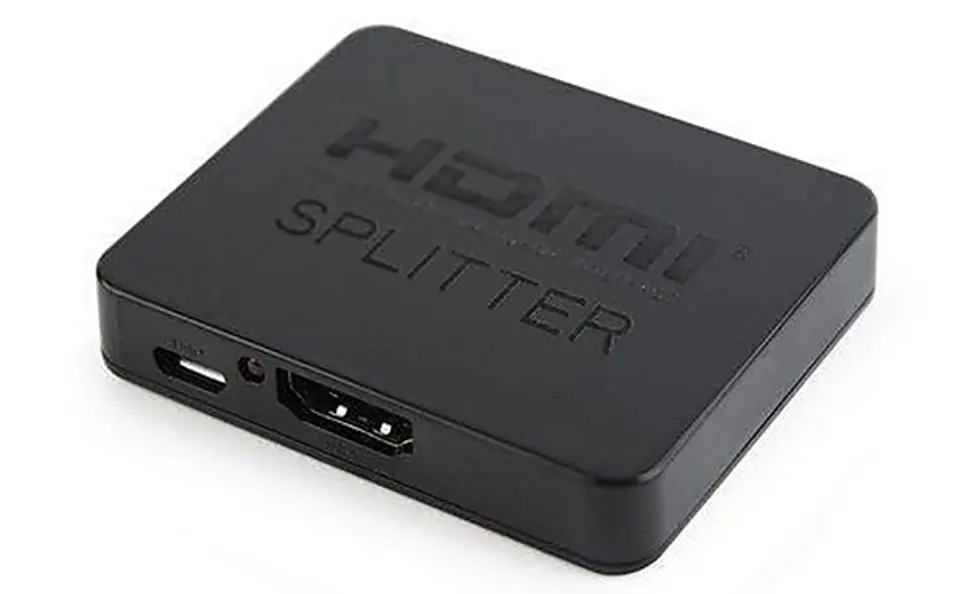

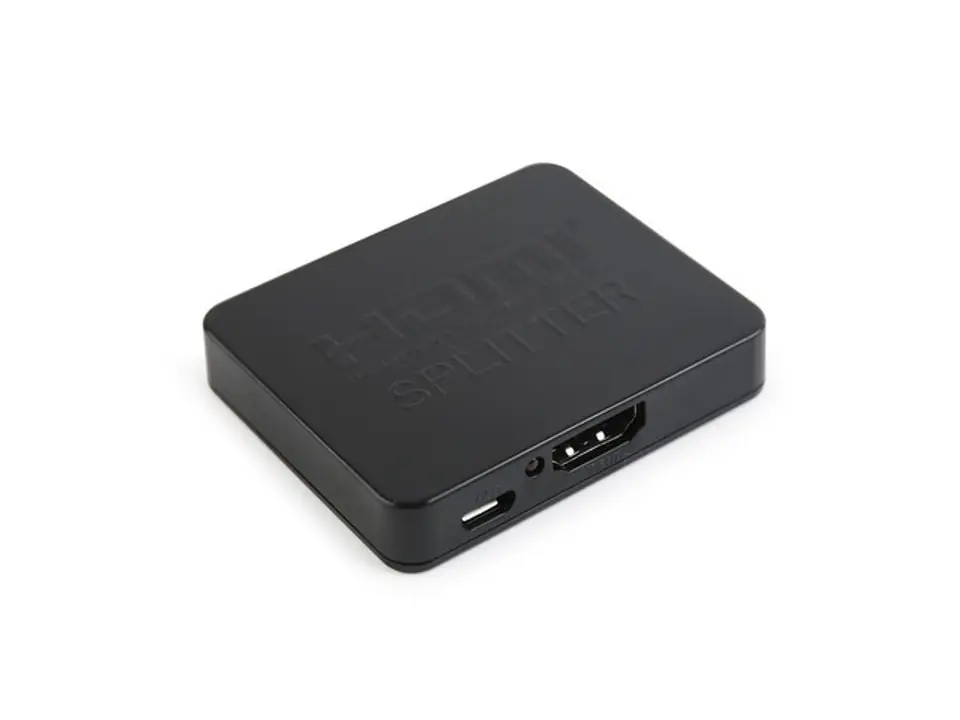

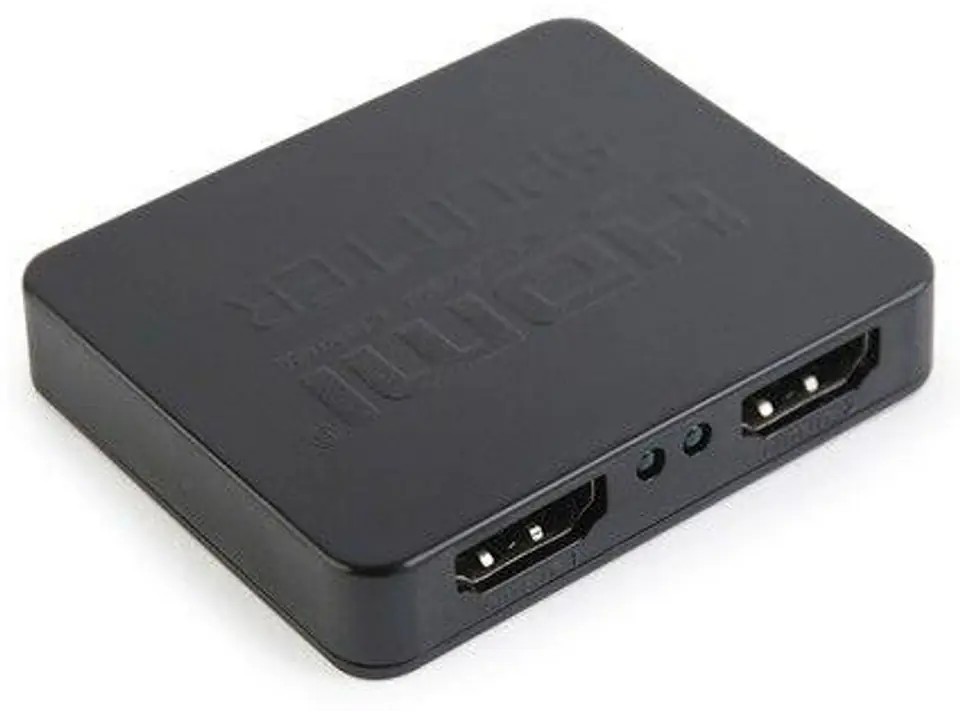

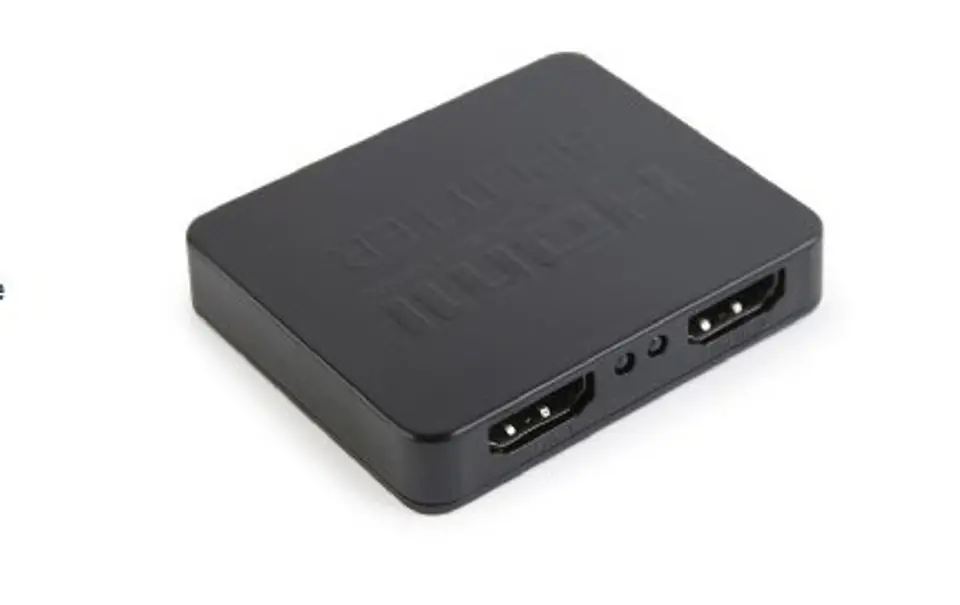

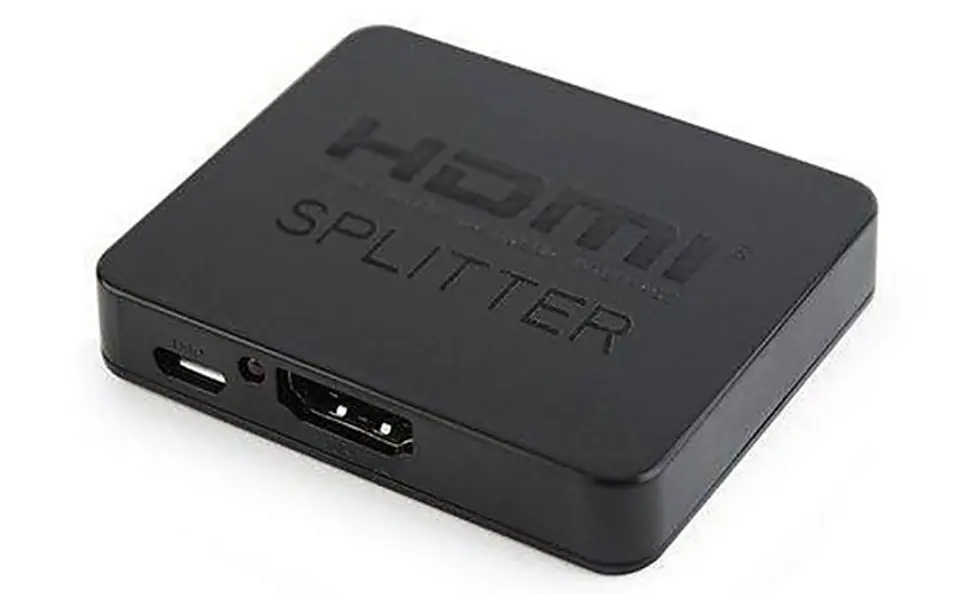

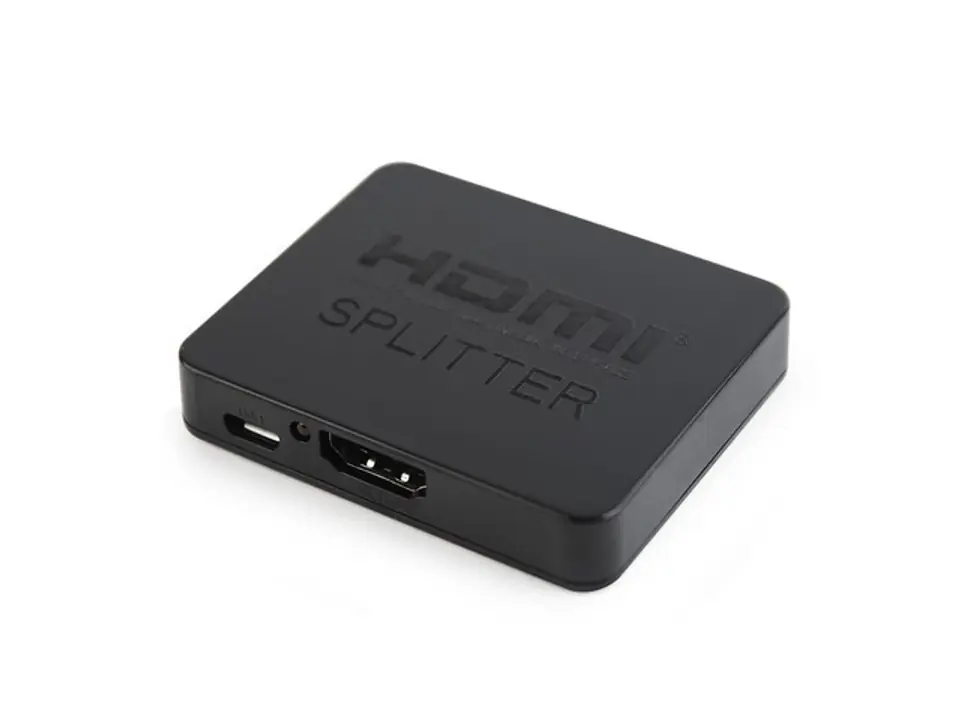

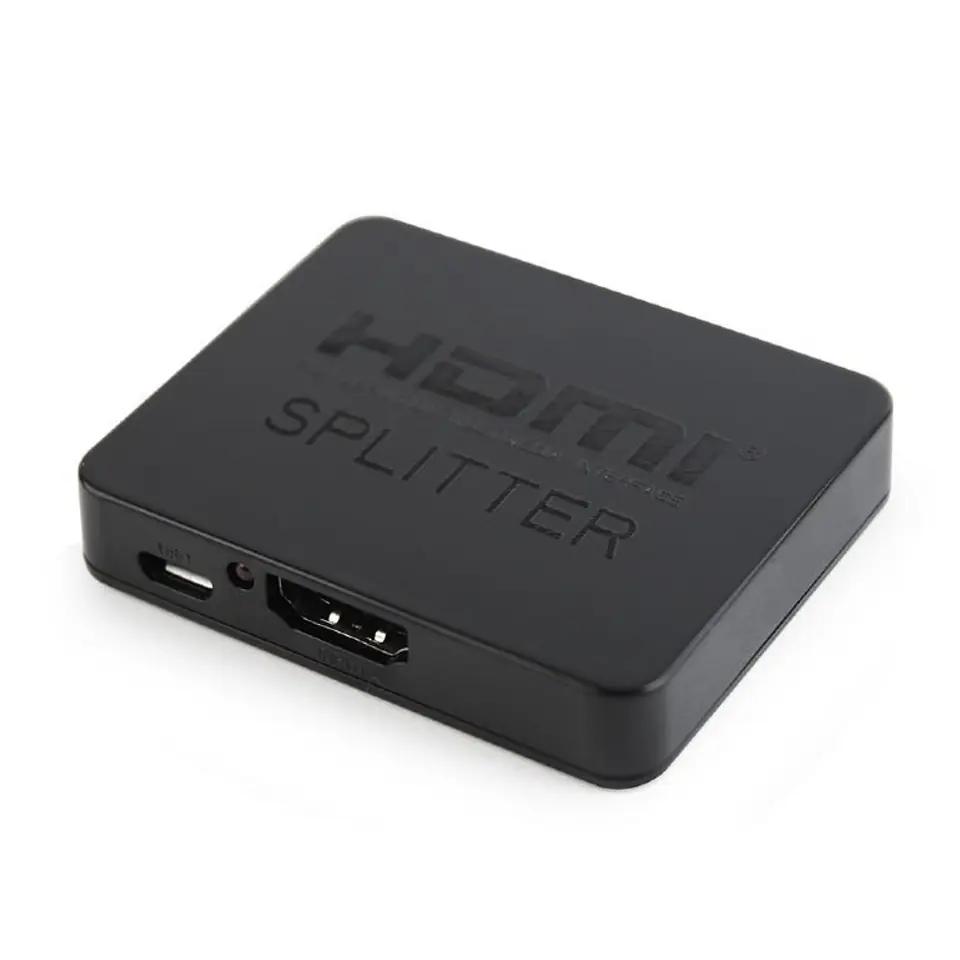

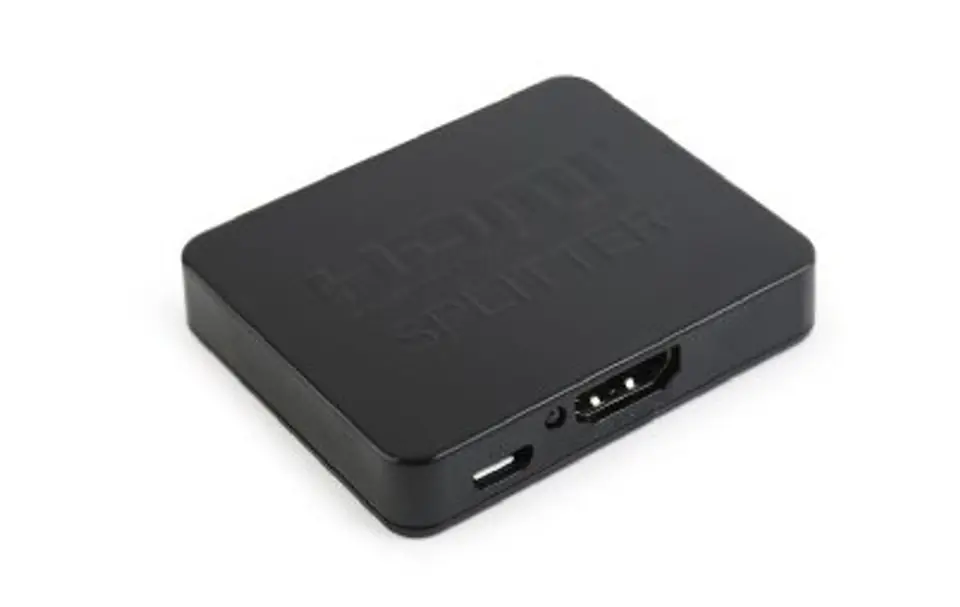

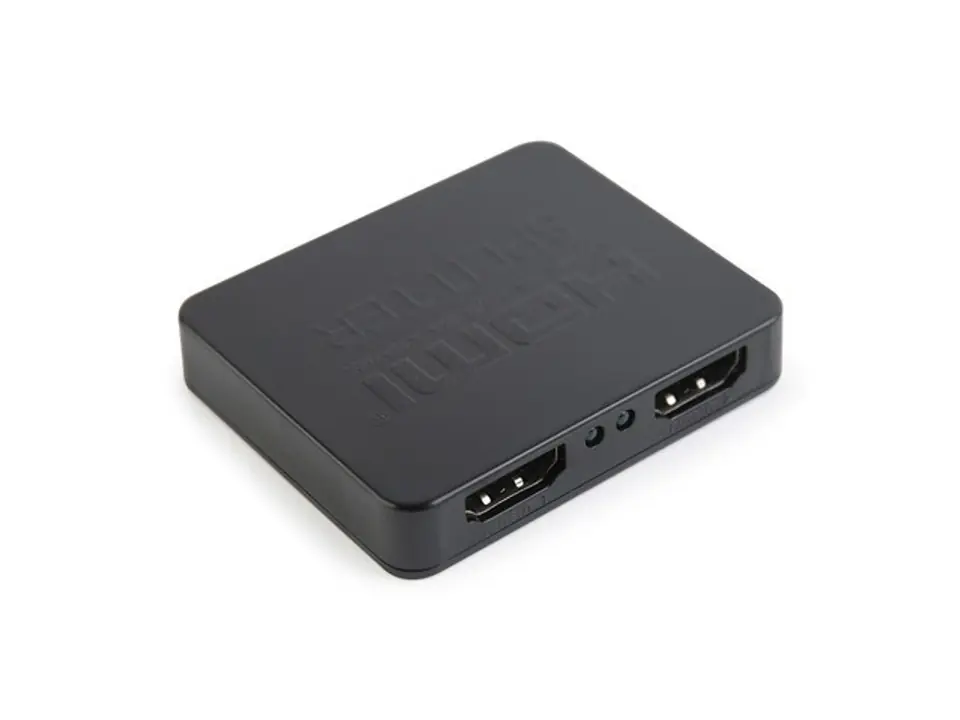

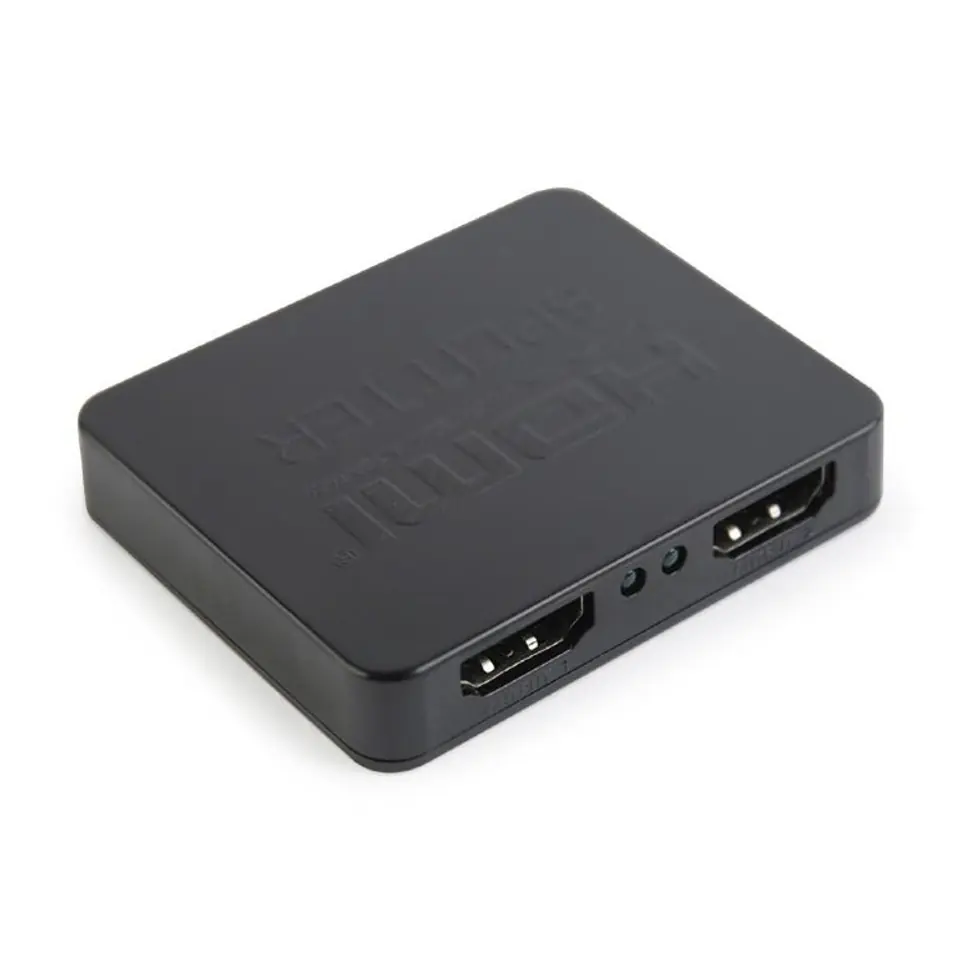

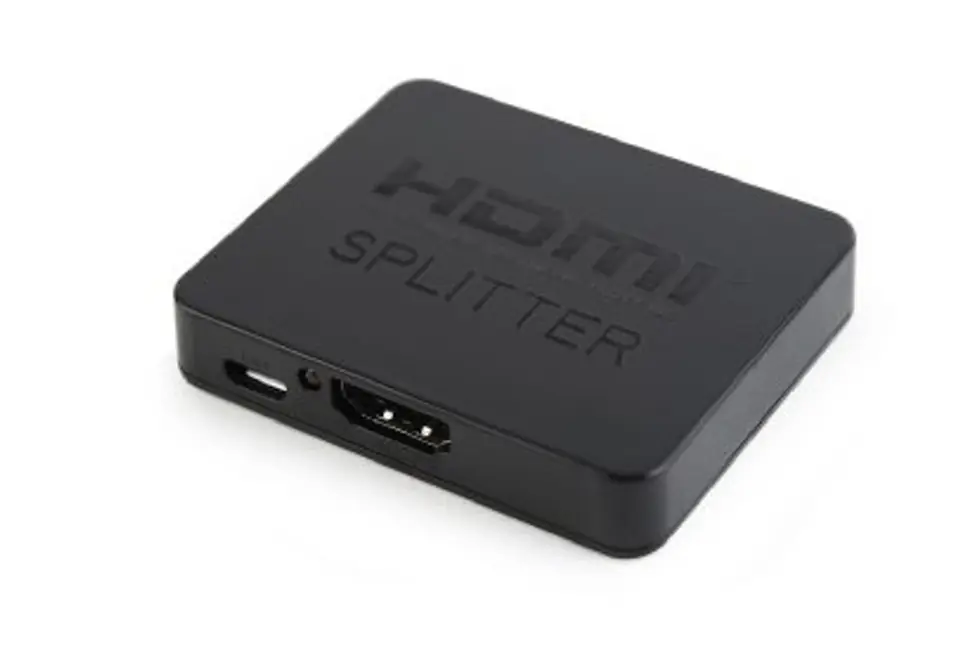

Adapter GEMBIRD DSP-2PH4-03 HDMI; 2x HDMI

€11.36
HDMI; 2x HDMI
Shipping from warehouse: ⁨A1⁩
Estimated shipping: Mon, Dec 30 - Wed, Jan 1
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
Gembird
Product code:
DSP-2PH4-03 / 8716309091442

Specification

Ac input voltage:5 V
Av signal transmission:yes
Bandwidth:225 MHz
Cables:HDMI, HDCP v.1.4, AWG26 HDMI
Colour:Black
Connector type:HDMI
Connectors:1x HDMI (input), 2x HDMI (output)
Dc output socket:yes
Dc-in jack:Yes
Dimensions:70 x 60 x 20 mm
Dimensions (cm):6 x 7 x 2
Full hd:Yes
Further reading:Standard interface: HDMI + HDCP v.1.4 (compatible with all HDMI versions)
Hdcp:Yes
Input current:1 A
Kind:Video transmission system
Manufacturer's warranty:24 months
Mass:0.12 kg
Maximum number of receivers:2
Number of signal sources:1
Number of video ports:2
Open air range (m):20
Other parameters:Support 3D video, Video formats: HDMI (480p/576i/576p/720p/1080i/1080P), Maximum resolution: 1920x1080 pixels, 1080p, Dual-link range: up to 3840x2160 at 30Hz; Color 30bi, Blue-Ray: 24/50/60fs/HD-DVD/xvYCC, DTS-HD, Audio/Dolby TrueHD-/DTS/Dolby-AC3/DSD/HD(HBR), Support Retiming Signal, Port Switching Method: Button
Pilot:no
Power type:Power supply, DC 5 V
Product colour:Black
Range in the building (m):20
Remote control signal transmission:no
Supported graphics resolutions:3840 x 2160, 1920 x 1080 (HD 1080)
Technologies:HDCD, HDMI
Transmission frequency:225 MHz
Transmission of signal from a computer:yes
Type of system:Splitter
Video out:2x HDMI
Video playback interface:2x HDMI
Video port type:HDMI
Video port type:HDMI
Video ports quantity:2
Weight (kg):0.12

HDMI two-port splitter

  • It sends one HDMI signal to two receivers such as: monitor, projector, TV
  • The digital amplifier increases the transmission distance and also improves the signal quality
  • 3D video support
  • Ports: 1 x In, 2 x HDMI Out - 19 pin (A) sockets
  • Standard interface: HDMI + HDCP v.1.4 (compatible with all HDMI versions)
  • Video Formats: HDMI (480p / 576i / 576p / 720p / 1080i / 1080p)
  • Maximum single-link: 1920x1080 pixels, 1080
  • Dual-link range: up to 3840x2160 at 30 Hz; Color: 30bit, 36bit
  • Supports Blue-Ray: 24/50/60fs/HD-DVD/xvYCC, DTS-HD Audio/Dolby TrueHD-/DTS/Dolby-AC3/DSD/HD(HBR)
  • Signal retiming support
  • Working distance: up to 20m for AWG26 HDMI cable (in 4K resolution - 8m input max up to 12m output)
  • Video Amplifier: 0.5 ... 1.0 Vp-p, up to 225 MHz bandwidth, DDC 5 Vp-p
  • Power supply: 5V DC, 1A
