| Case: | Metal |
|---|---|
| Dimensions: | 90 x 45 x 25 mm |
| Input voltage: | .max. 30 VDC |
| Maximum output current: | 11 amps |
| Number of inputs: | 4 pcs. RJ-45 1 pc Power supply - 2.5/5.5 mm DC |
| Operating temperature / relative humidity: | 0 ... 40 °C / 20 ... 80 % |
| Output voltage: | .max. 30 VDC |
| Scales: | 0.1 kg |

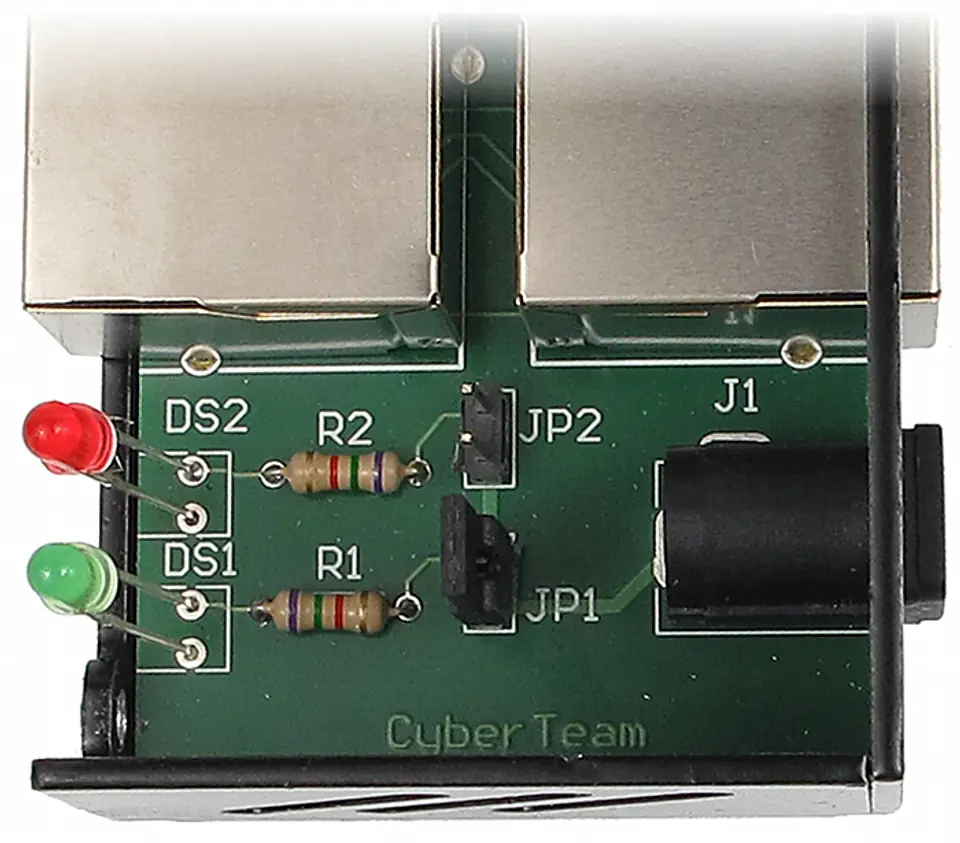

| Selected features: | Jumper for JP1 - Power supply from DC 2.1/5.5 mm Jumper for JP2 - Power supply from LAN1 LAN & PoE ports 4 pcs. RJ-45 connector pin numbers 4, 5 (+) and 7, 8 (-) - Power supply |
| Signalling diodes: | Choosing a power source |
| Warranty: | 2 years |

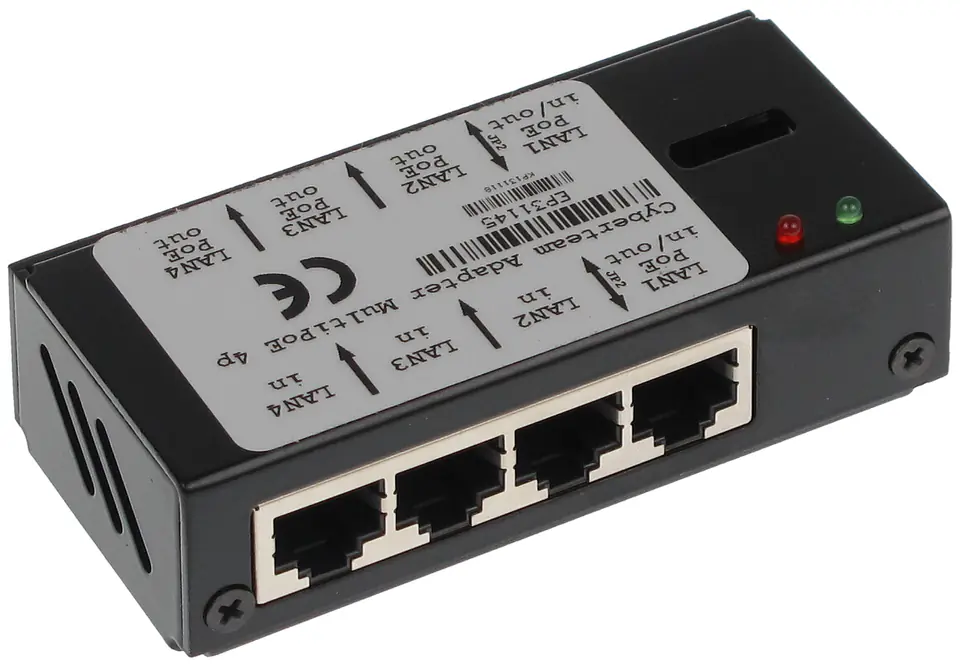

POE-UNI/4 adapter is a device that allows you to easily power up to 4 devices using twisted-pair cable
The device is perfect for cooperation with buffer power supplies, has a DC power socket and a PoE socket (selection of power source by appropriate jumper setting)
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
