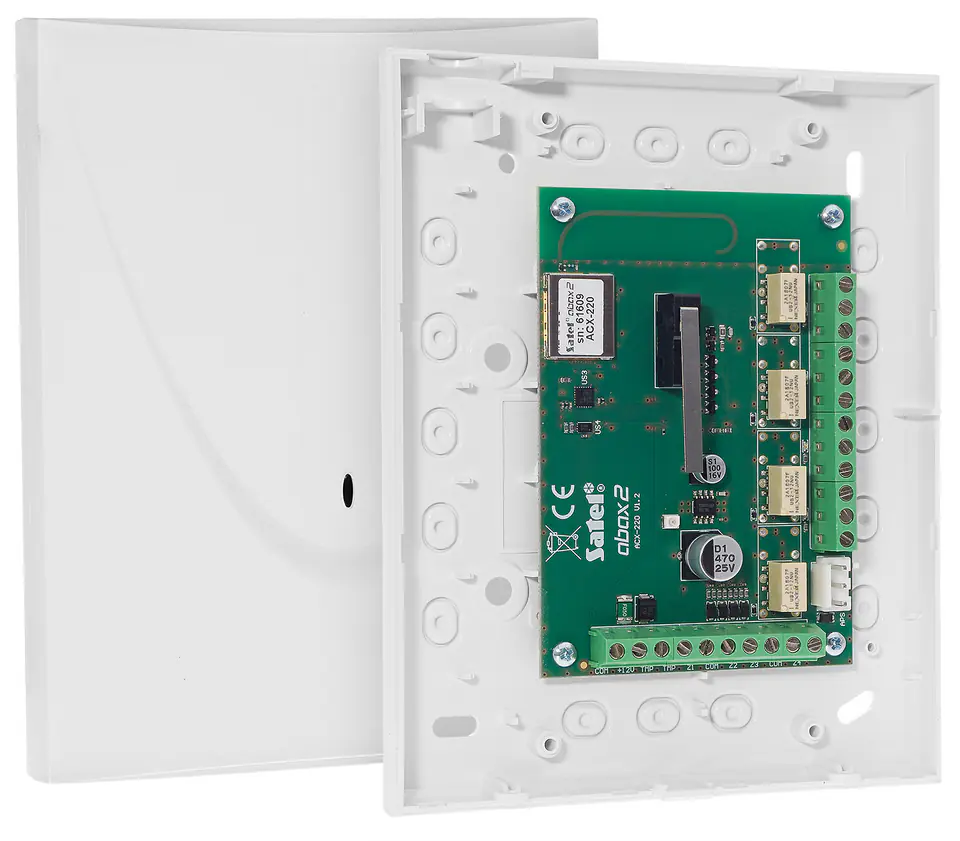

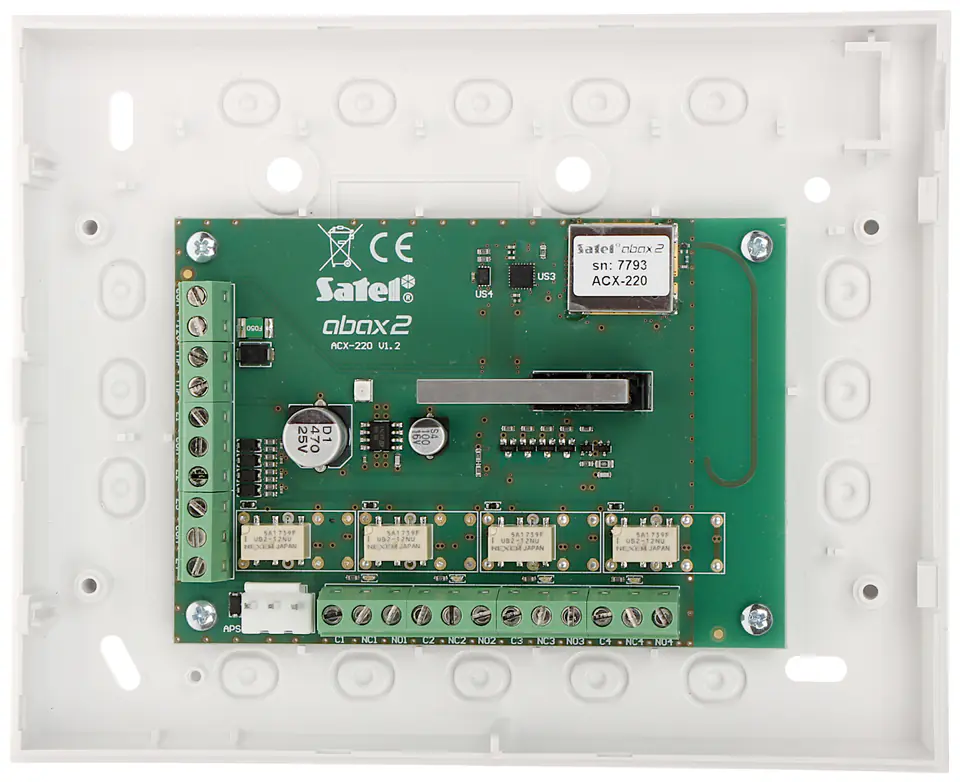

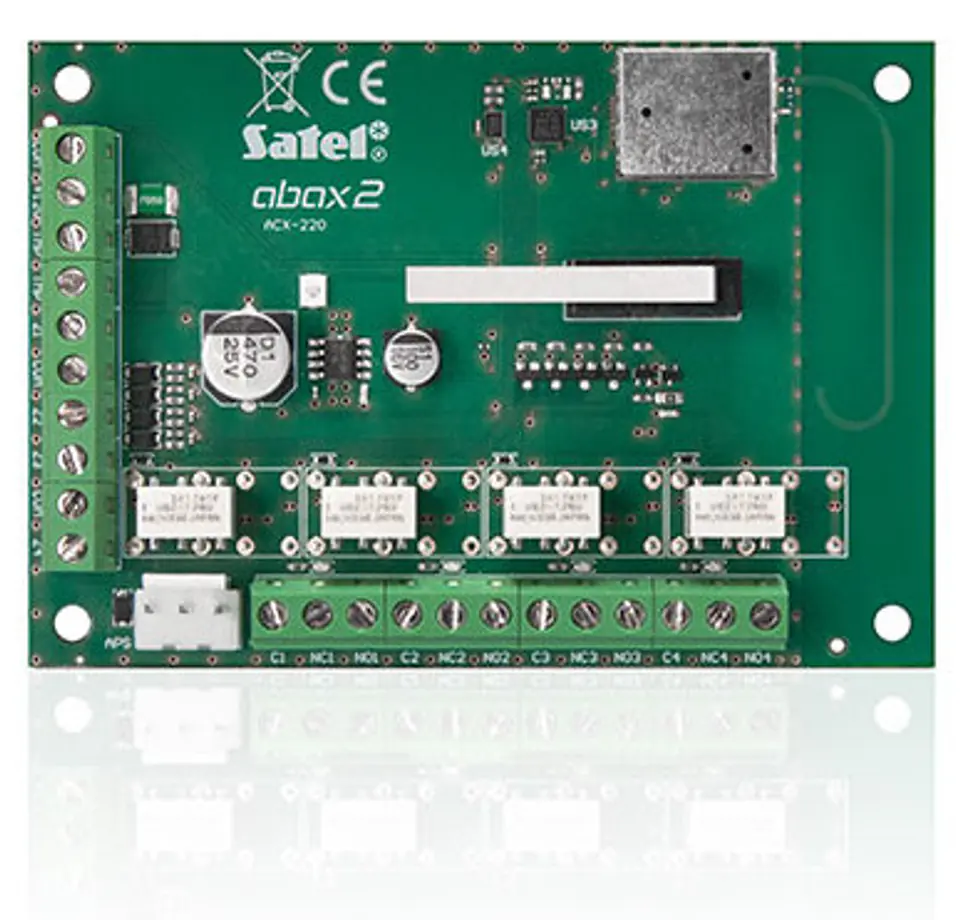

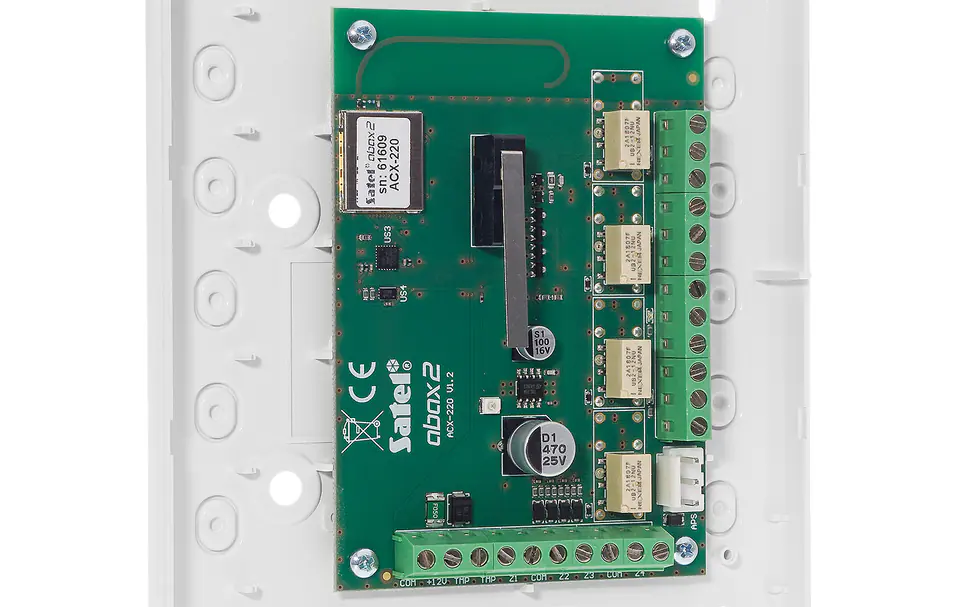

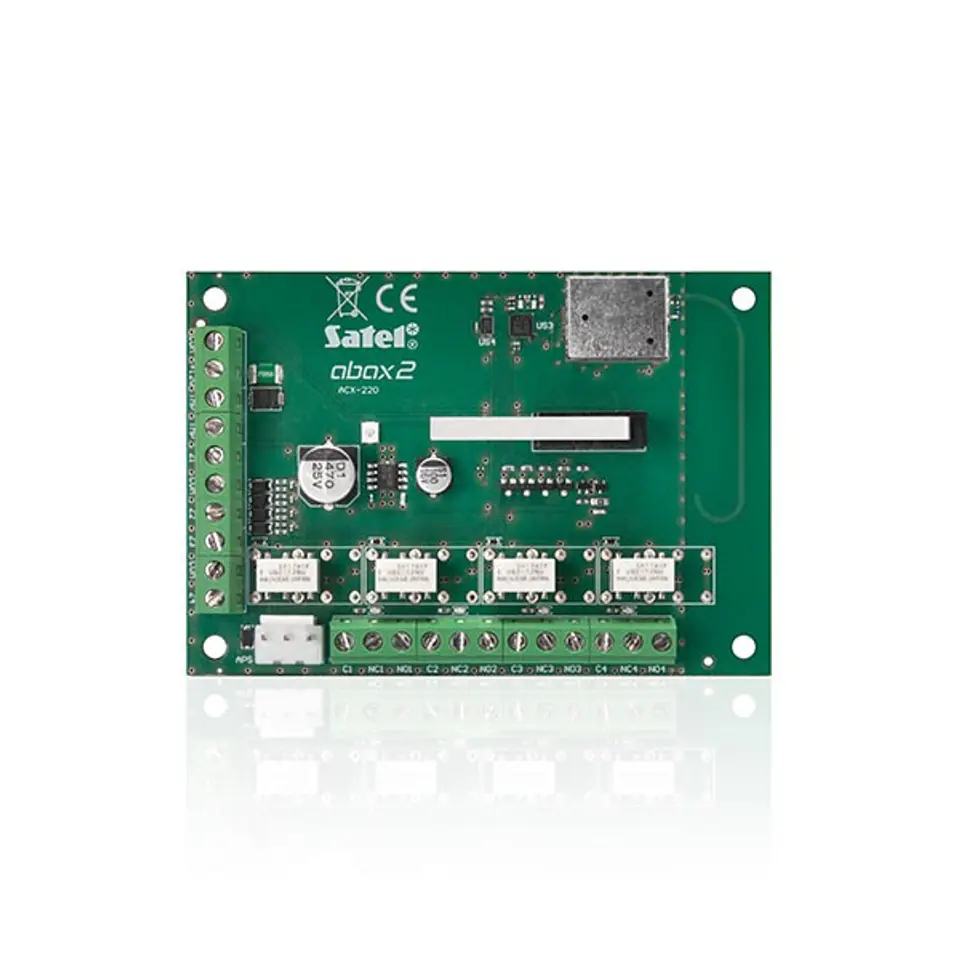

The ACX-220 module enables the use of wired devices (m.in detectors and sirens) in the ABAX 2/ABAX wireless system. It is equipped with 4 programmable inputs supporting NO and NC wired detectors and EOL, 2 EOL configurations as well as 4 programmable relay outputs.
Configuration of settings and updating of the ACX-220 software is done remotely. In the ABAX 2 system, two-way radio communication is encrypted in the AES standard.
The expander is powered by 12 V DC and works with buffer power supplies: APS-412, APS-612, APS-1412.

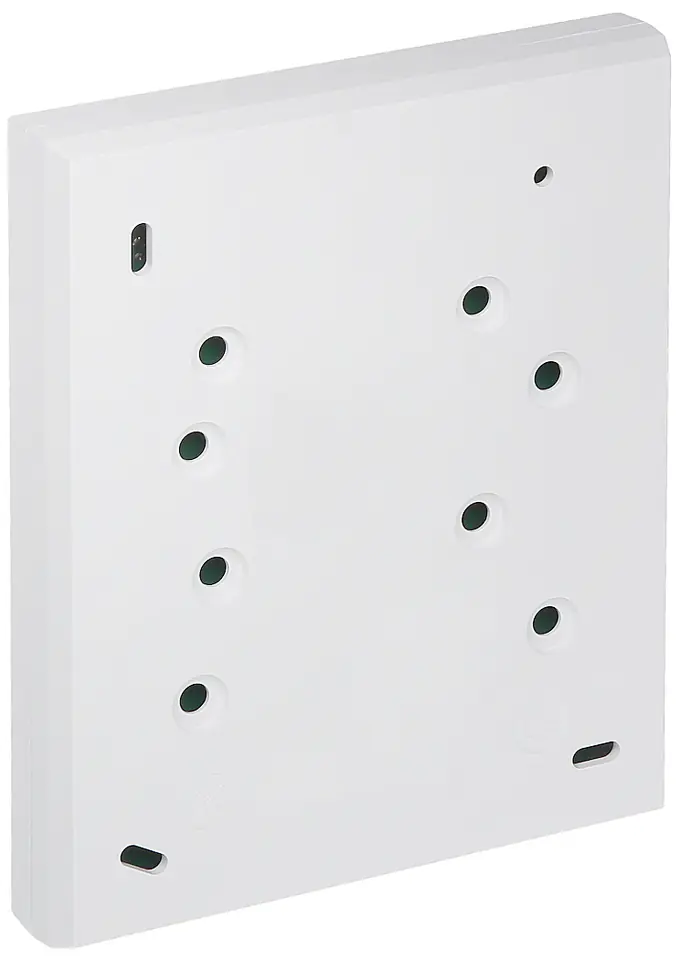

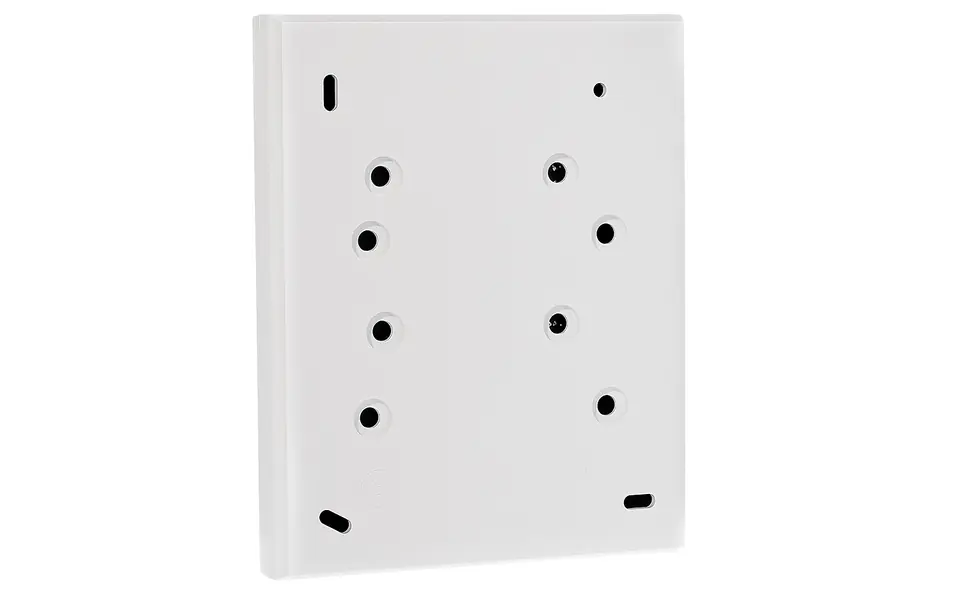

The device has a tamper contact that reacts to the opening of the housing.
Attaching wired devices to an ABAX 2 or ABAX system
Cooperation with:
- ABAX 2 system controllers (ACU-220 and ACU-280) and ARU-200 retransmitter
- ABAX system controllers (ACU-120, ACU-270, ACU-250 and ACU-100 (in version min. 4.04)), INTEGRA 128-WRL control panel and ARU-100 retransmitter - the required version of the device software should be checked in its description on the website
Range of radio communication in open space:
- In ABAX 2: up to 2000 m (with ACU-220) / up to 1600 m (with ACU-280)
- AbAX: up to 500 m

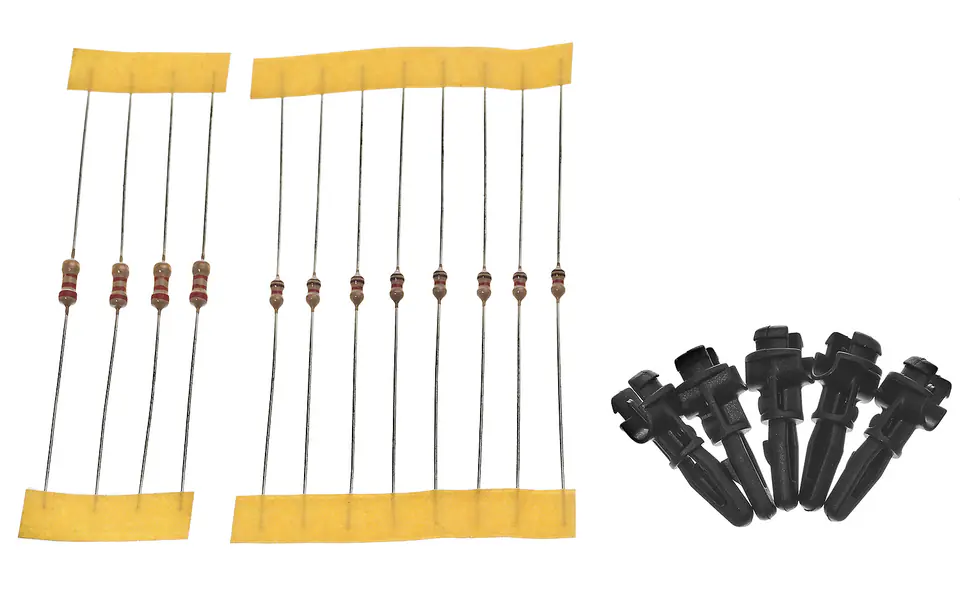

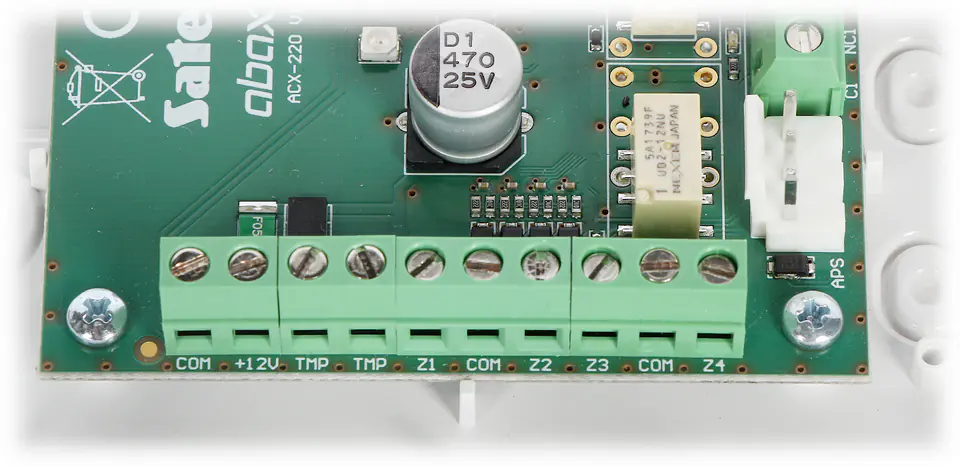

- 4 programmable inputs - support for wired detectors in NO, NC, EOL, 2EOL/NO and 2EOL/NC configurations

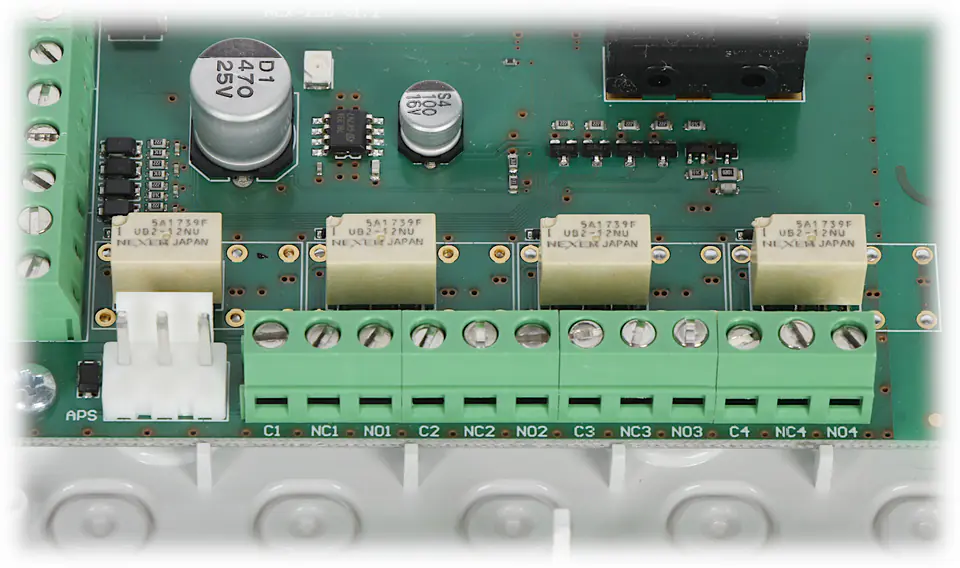

- 4 programmable relay outputs
- Remote configuration and software update
- Tamper protection
- Power supply: 12 V DC, cooperation with power supplies APS-412, APS-612, APS-1412
