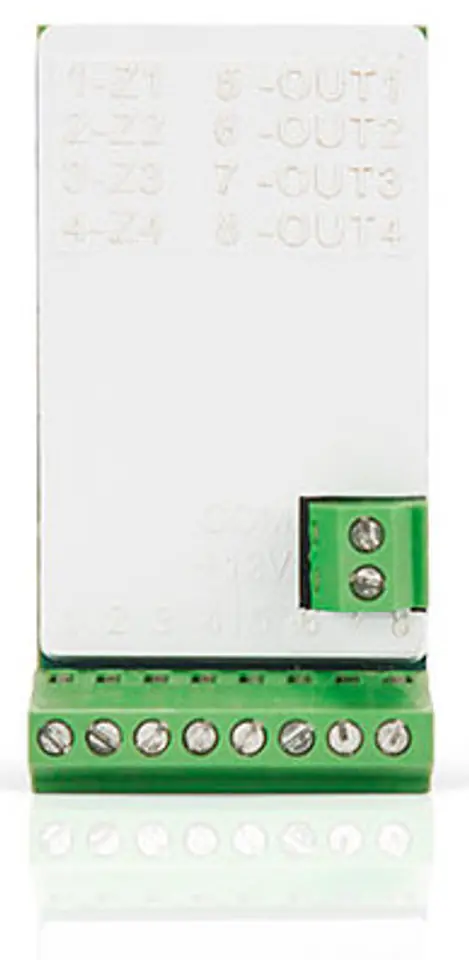

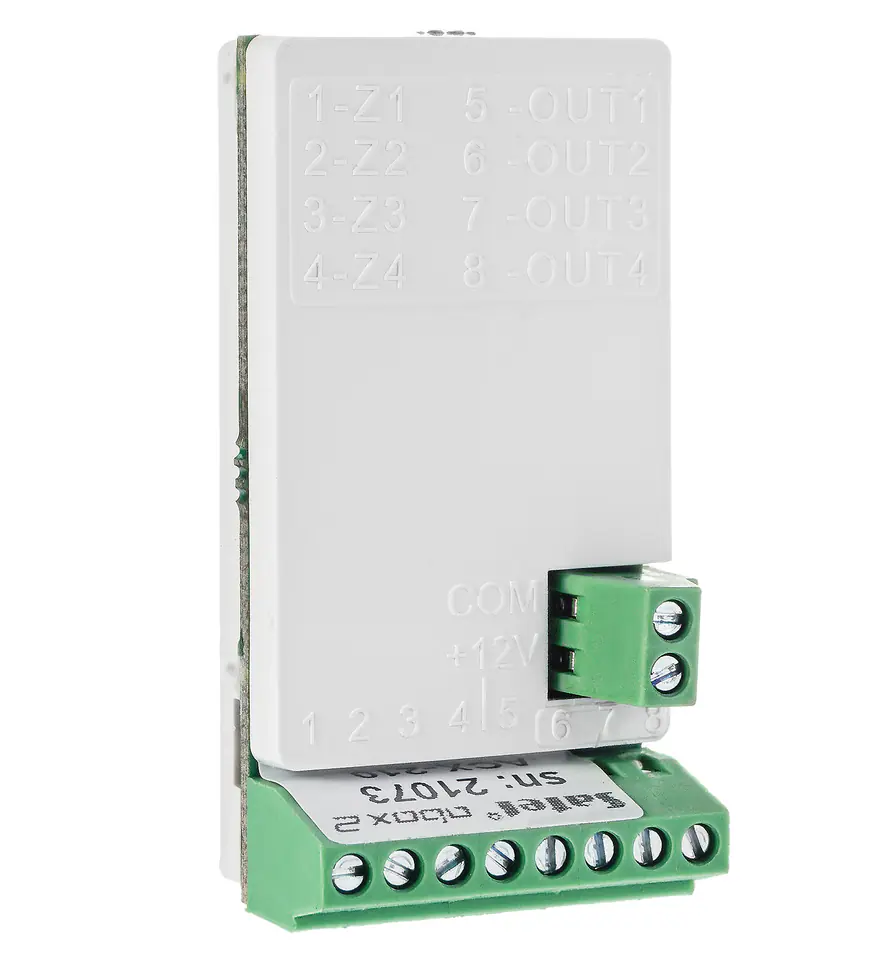

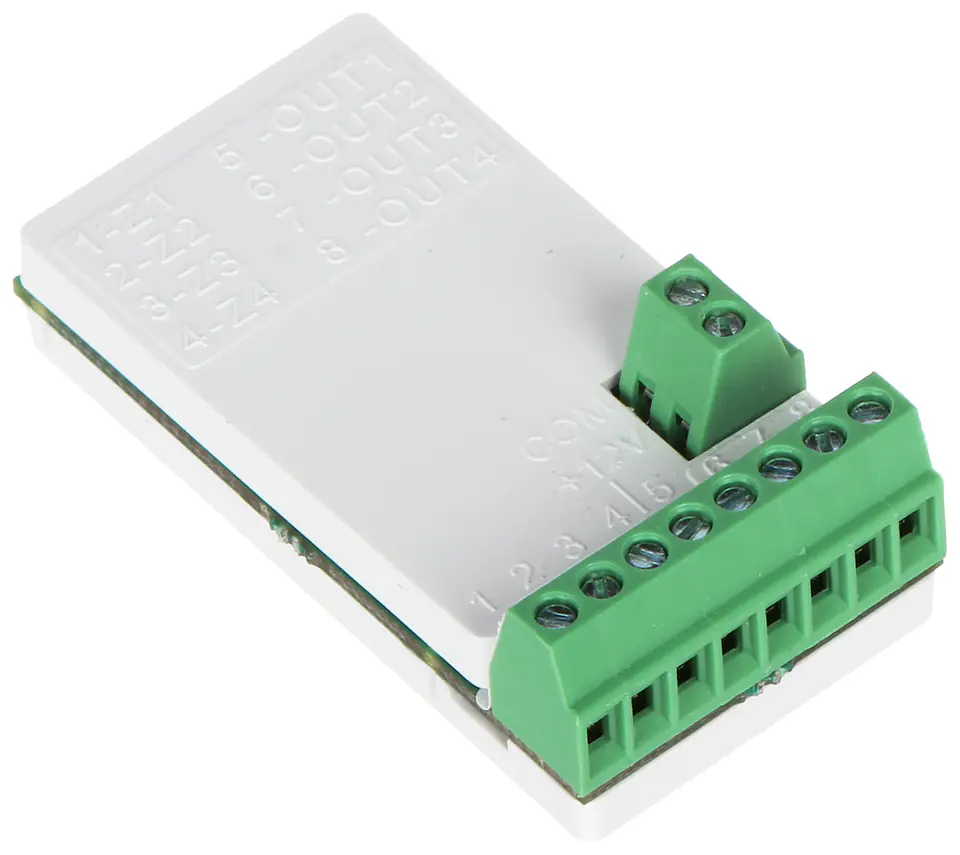

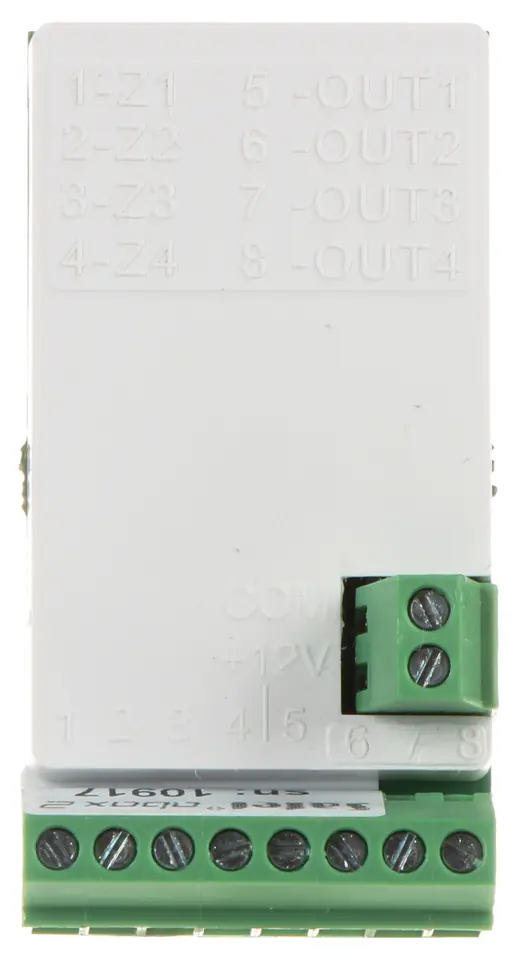

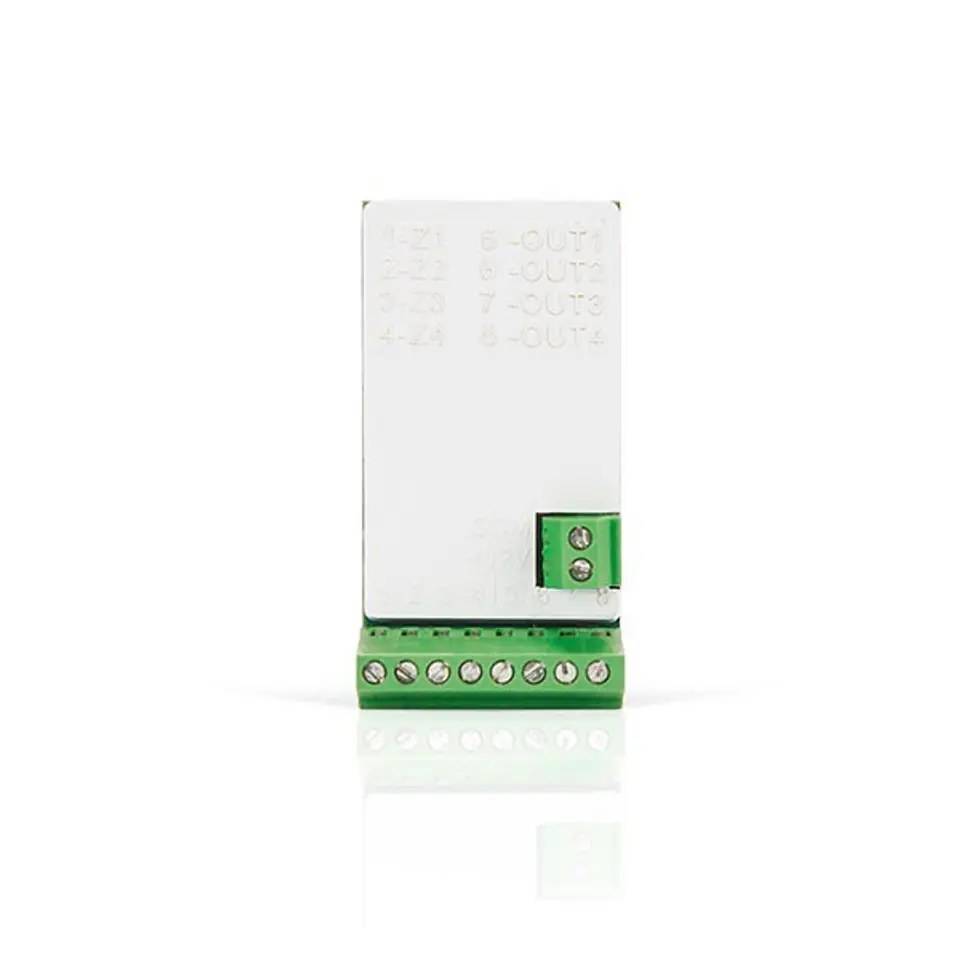

The ACX-210 module enables the use of wired devices (detectors, sirens, etc.) in the ABAX 2/ABAX wireless system. It is equipped with 4 programmable inputs supporting NO and NC type wired detectors and EOL, 2 EOL configurations as well as 4 programmable OC type wired outputs.
It is a miniature expander that requires only a small space for assembly.
The device is powered by a voltage in the range of 4-24 V DC.
Configuration of settings and updating of the ACX-210 software is done remotely. In the ABAX 2 system, two-way radio communication is encrypted in the AES standard.
Attaching wired devices to an ABAX 2 or ABAX system
Cooperation with:
- ABAX 2 system controllers (ACU-220 and ACU-280) and ARU-200 retransmitter
- ABAX system controllers (ACU-120, ACU-270, ACU-250 and ACU-100 (in version min. 4.04)), INTEGRA 128-WRL control panel and ARU-100 retransmitter - the required version of the device software should be checked in its description on the website
Range of radio communication in open space:
- In ABAX 2: up to 2000 m (with ACU-220) / up to 1400 m (with ACU-280)
- AbAX: up to 500 m
- 4 programmable inputs - support for wired detectors in NO, NC, EOL, 2EOL/NO and 2EOL/NC configurations
- 4 programmable OC outputs
- Remote configuration and software update
- Compact dimensions
- Power supply: 4-24 V DC
