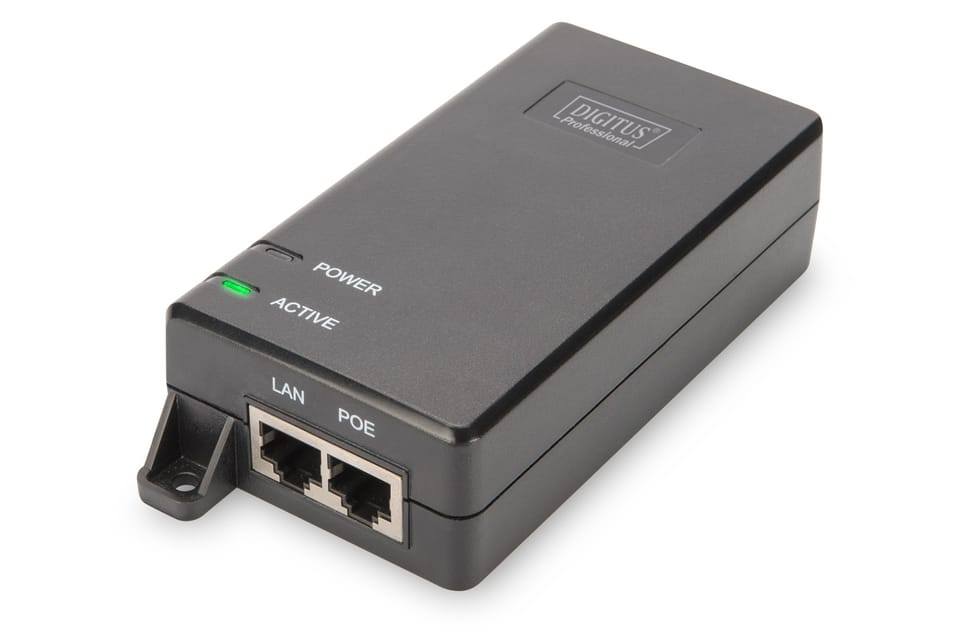

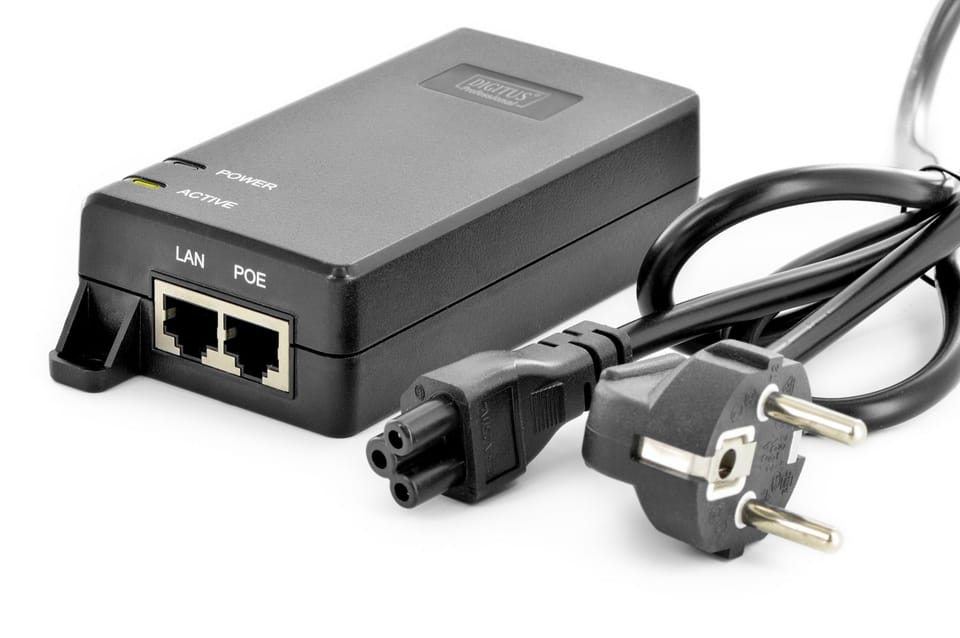

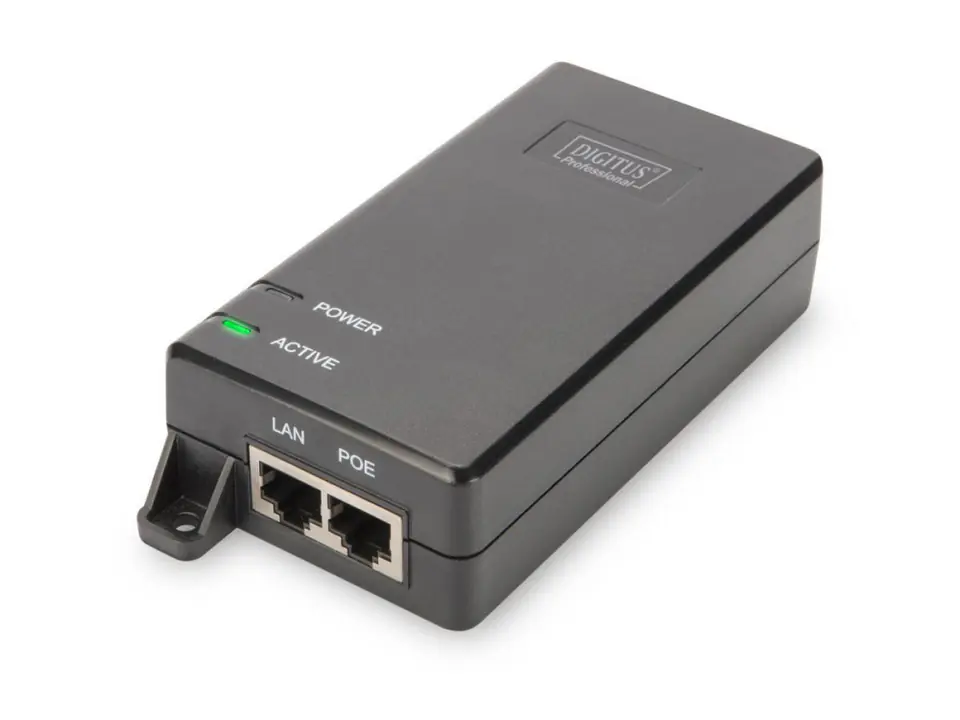

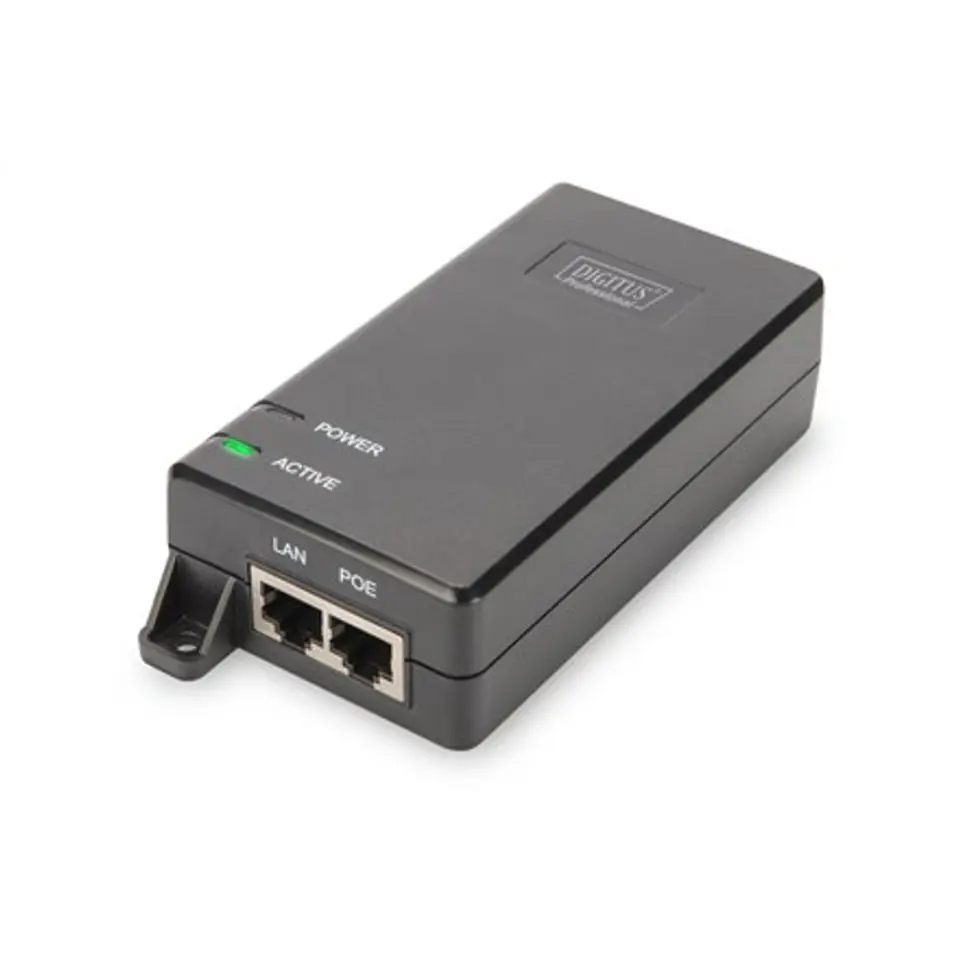

Power supply/PoE + adapter 802.3at, max. 48V 30W Gigabit 10/100/1000Mbps, active

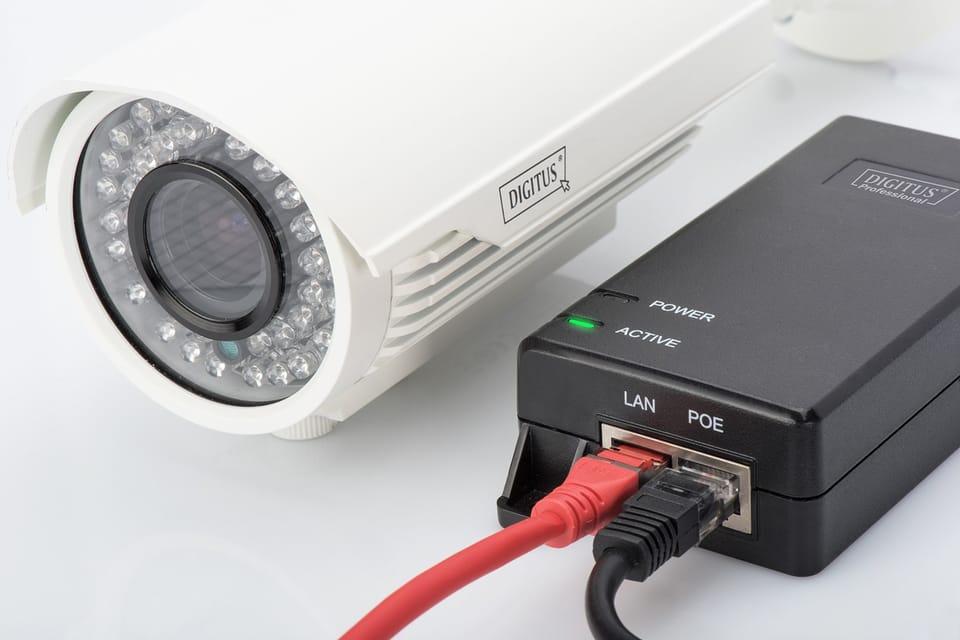

The power supply is used to supply voltage via a twisted pair cable directly to devices that support the PoE+ standard, eg IP cameras, access points, IP telephones.

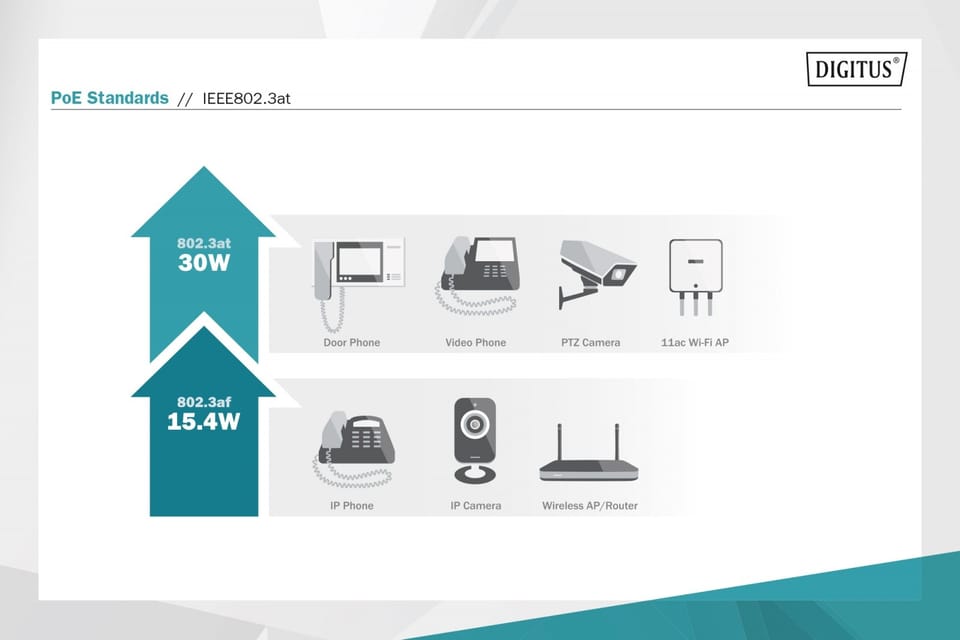

- Compliance with 802.3at PoE+ and 802.3af PoE standards
- There is no need for configuration
- Supports all PoE devices (eg access points, VoIP phones and IP cameras) compatible with IEEE 802.3af
- The transmission range is up to 100 m and with an additional PoE extension cable up to 400 m
- Own consumption (full load): 7.0W max.

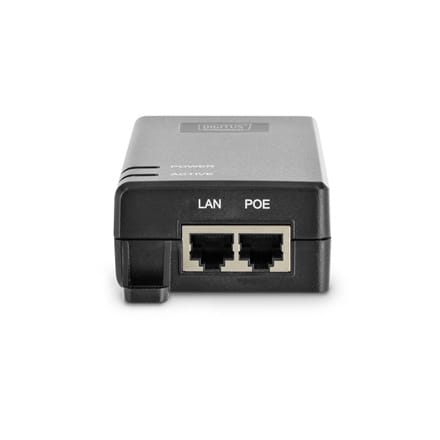

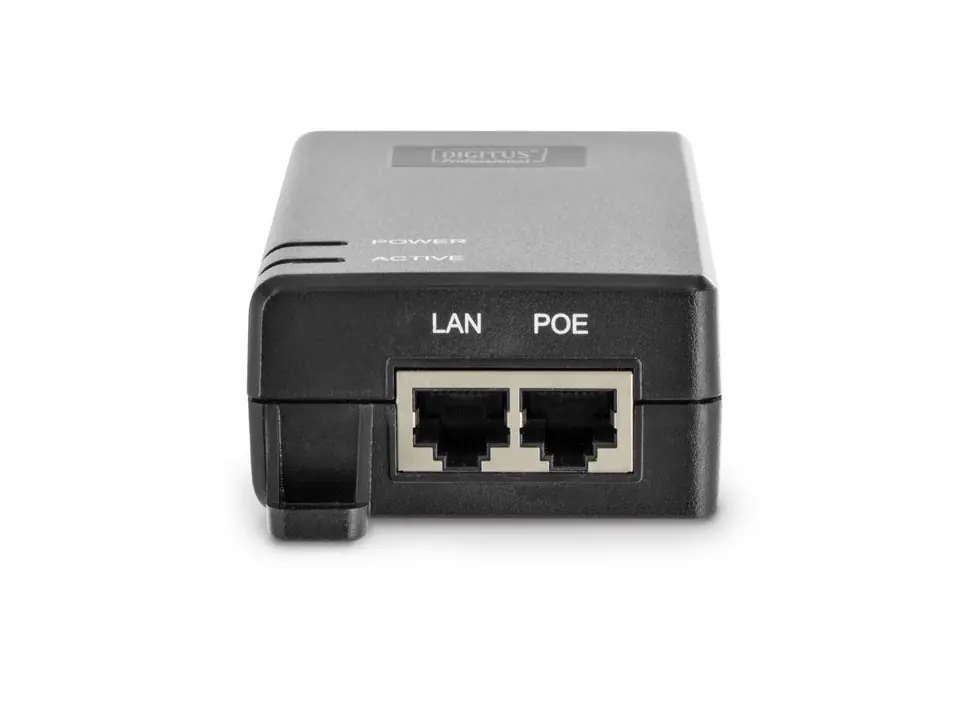

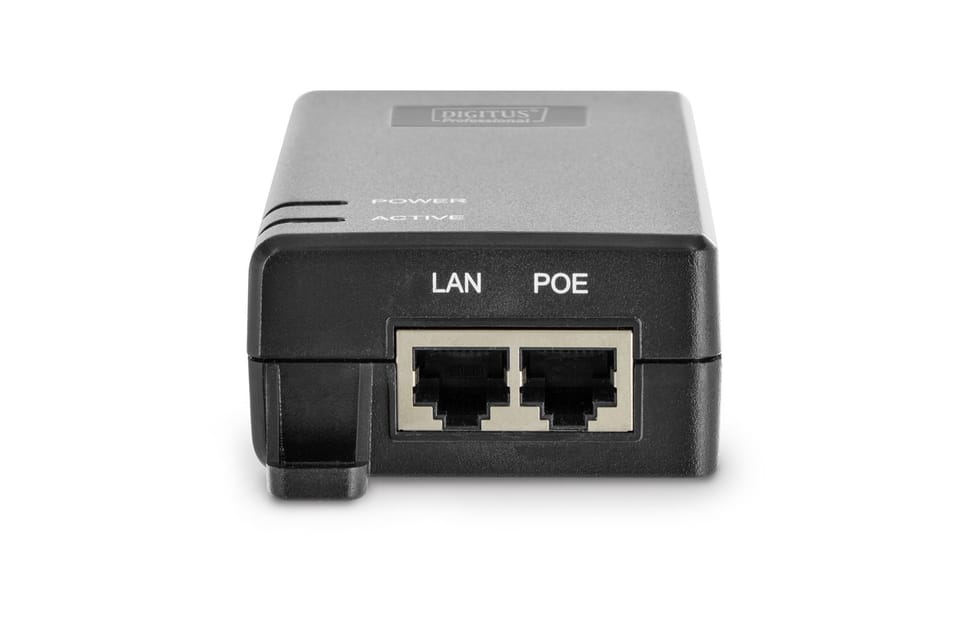

- Input: 1 x RJ-45 (data)
- Output: 1 x RJ-45 (current and data)
- Data output: 100/100/1000 Mbit/s Gigabit
- Output power: 30 watts
- Output voltage: 48 V DC

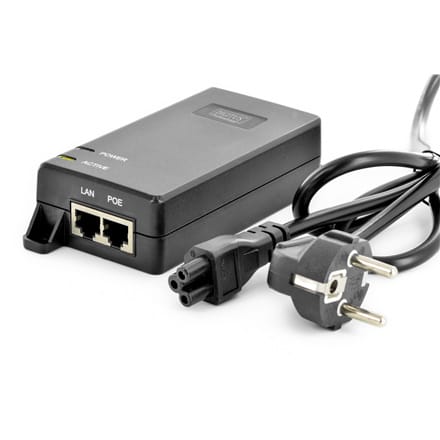

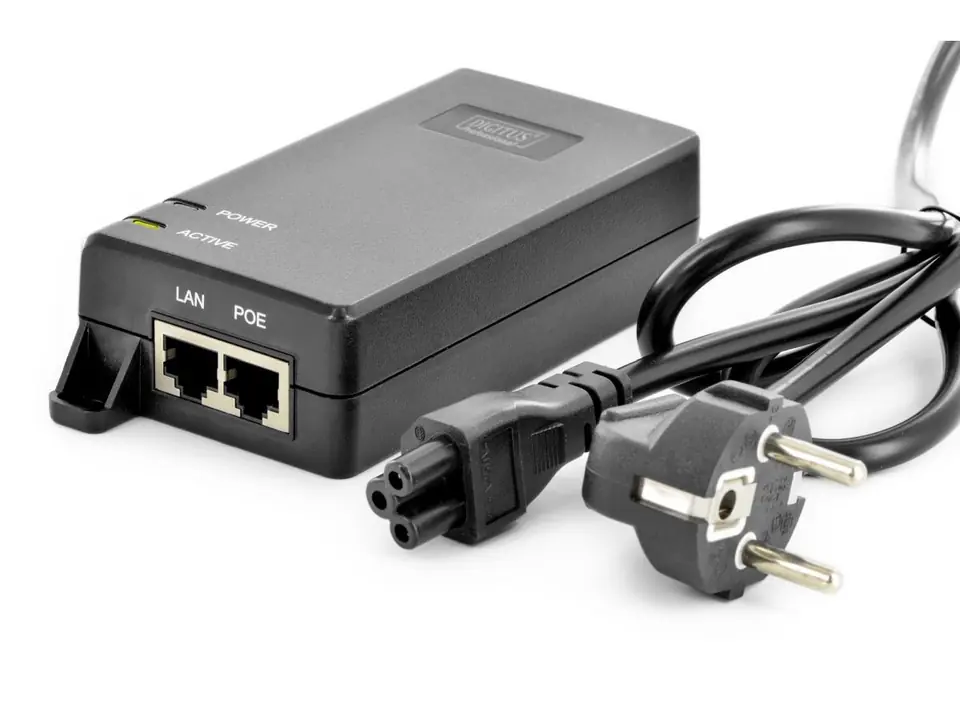

Active PoE + Injector 802.3af 30W Gigabit
€41.31
Shipping from warehouse: M7
Estimated shipping: Tue, Nov 19 - Fri, Nov 22
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Product code:
- DN-95103-2 / 4016032375951
Share this product:
Specification
| Dc-in jack: | Yes |
|---|---|
| Dimensions (wxdxh): | 140 x 63 x 32.5 mm |
| Ethernet interface type: | Gigabit Ethernet |
| Ethernet lan (rj-45) ports: | 2 |
| Ethernet lan data rates: | 10, 100, 1000 Mbit/s |
| Harmonized system (hs) code: | 85044095 |
| Led indicators: | Yes |
| Maximum operating distance: | 400 m |
| Networking standards: | IEEE 802.3at |
| Number of products included: | 1 pc(s) |
| Operating temperature (t-t): | -5 - 40 °C |
| Output power: | 30 W |
| Package depth: | 165 mm |
| Package type: | Box |
| Package volume: | 1138.5 cm³ |
| Package weight: | 425 g |
| Package width: | 138 mm |
| Power consumption (max): | 7 W |
| Power over ethernet (poe): | Yes |
| Power over ethernet (poe) voltage: | 48 V |
| Product colour: | Black |
| Total power over ethernet (poe) budget: | 30 W |
| Uk trade tariff code: | 85176200 |
| Weight: | 200 g |
