ACS Card Reader ACR38F-A2 internal

€10.24
Shipping from warehouse: ⁨N2⁩
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
ACS
Product code:
ACR38F-A2 / 8848357410552

Specification

Dimensions:125 x 101.5 x 25.5 mm
Further reading:Support for ISO 7816 Class A, B and C proximity cards (5V, 3V, 1.8V)
Interface:USB
Manufacturer's warranty:24 months
Mass:140 g
Operating temperature:0°C to 50°C
Tension:5V

ACR38F-A2 Card Reader

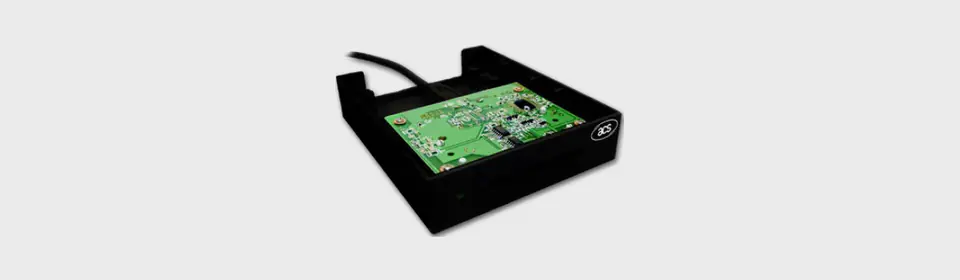

Internal ACS smart card reader. The reader has dimensions similar to a floppy disk drive and is mounted in a free floppy disk slot (3.5") in a desktop computer case. Works with Windows, Linux, Mac OS, Android operating systems. EN60950/IEC 60950, ISO 7816, USB Full Speed, EMV™ Level 1 (Contact), PC/SC, CCID, CE, FCC, UL, RoHS 2, REACH - Microsoft® WHQL certified. The card interface supports PC/SC and CT-API.

Supports cards:

  • ISO 7816 Class A, B and C cards (5 V, 3 V, 1.8 V)
  • Microprocessor cards with T=0 or T=1 protocol
  • Memory cards:
  • Cards that use the I2C bus include:
  • § Atmel: AT24C01 / 02 / 04 / 08 / 16 / 32 / 64 / 128 / 256 / 512 / 1024
  • § SGS-Thomson: ST14C02C, ST14C04C
  • § Gemplus: GFM1K, GFM2K, GFM4K, GFM8K
  • Smart cards 256 EEPROM entities, protection against card recording, including: SLE4432, SLE4442, SLE5532, SLE5542
  • Smart 1kB EEPROM cards with recording protection, including: SLE4418, SLE4428, SLE5518, SLE5528
  • EEPROM type '104' cards, among others: SLE4406, SLE4436, SLE5536, SLE6636
  • Cards with secured IC memory with password and authorization, including: AT88SC153, AT88SC1608
  • 416-Bit EEPROM smart cards with PIN, including: SLE4404
  • Cards with logical memory, including: AT88SC101, AT88SC102, AT88SC1003
  • PPS (Protocol and Parameters Selection)
ACS Card Reader ACR38F-A2 (internal)
