The sensor signals an alarm if it registers a low-frequency signal (impact sound) and a high-frequency signal (broken glass sound)A low-frequency sound wave caused by an impact causes the sensor to start analyzing the high-frequency channel

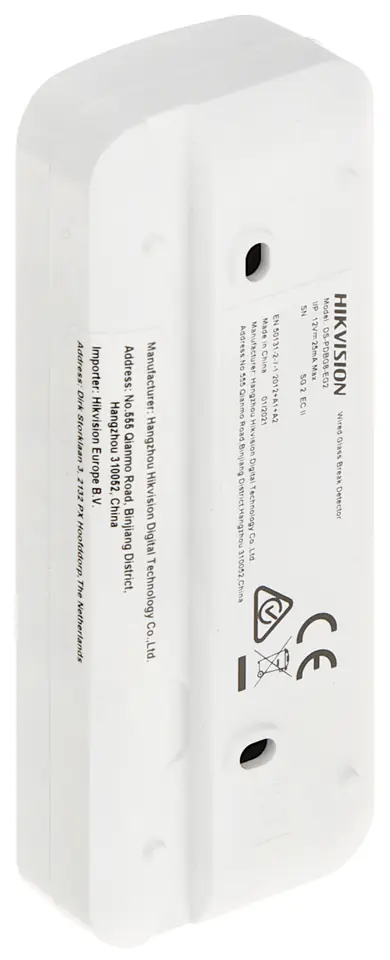

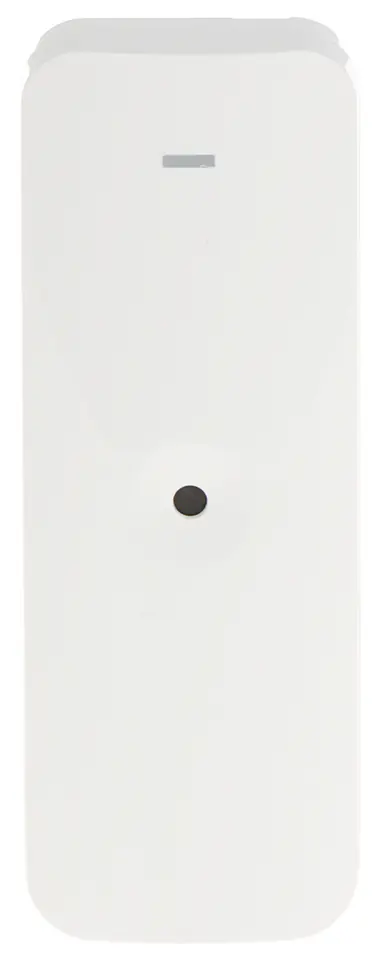

ACOUSTIC GLASS BREAK DETECTOR DS-PDBG8-EG2 Hikvision
€22.05
Shipping from warehouse: D4
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Product code:
- DS-PDBG8-EG2 / 6941264082187
Share this product:
Specification
| Alarm output:: | NC |
|---|---|
| Alarm signaling:: | LEDs :- Red - High frequency detection- Green - Low frequency detection- Blue - Alarm signaling, Signal to alarm control panel |
| Colour:: | white |
| Detection angle:: | 120 ° |
| Detection:: | Glass break sensor |
| Dimensions:: | 23 x 107 x 39 mm |
| Environmental class:: | II |
| Manufacturer / brand:: | Hikvision |
| Operating temperature:: | -10 °C ... 55 °C |
| Power:: | 9 ... 16 V DC / 25 mA @ 12 V (max) |
| Range:: | Max. 8 m |
| Sap code:: | 314300154 |
| Scales:: | 0.05 kg |
| Selected features:: | detection of breakage of ordinary, tempered and laminated glass Glass thickness: 2.4mm ... 6.4 mm Glass pane size: 0.3 m x 0.3 m ... 3m x 3m Digital Detector Infinitely Adjustable Sensitivity Tamper Detection - Enclosure Opening |
| Warranty:: | 2 years |
