ACOUSTIC GLASS BREAK DETECTOR AD800-AM ALARMTECH

€168.81
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
ALARMTECH
Product code:
AD800-AM / 5901508451903

Specification

Alarm signaling::LED, Signal for alarm control panel
Case::Plastic (ABS)
Colour::white
Current consumption::12 mA @ 12 V DC7.3 mA @ 24 V DC
Detection::Glass break sensor
Dimensions::68 x 109 x 40 mm
Environmental class::And
Manufacturer / brand::ALARMTECH
Operating temperature::5 °C ... 40 °C
Permissible load on relay contacts (resistive)::50 mA / 50 V DC
Power::7  ... 30 VDC

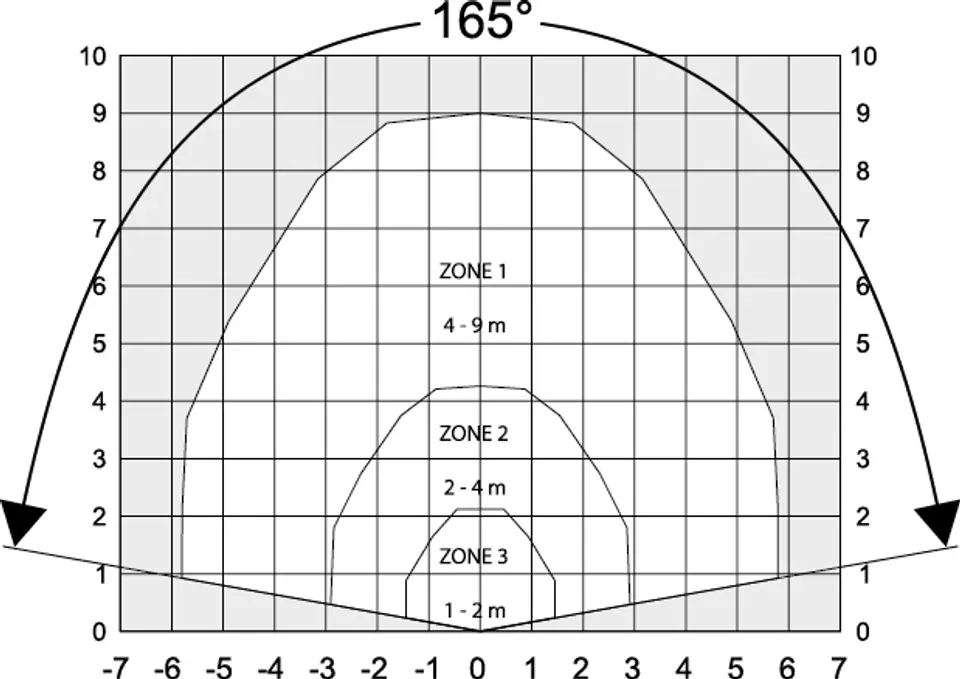

Range::9 m / 165 °
Safety class::EN 50131-2-7-1:2013 Grade 3
Scales::0.1 kg
Sealing::IP31
Selected features::detection of breaking of ordinary, tempered and laminated glass - Glass thickness : max. 4 mm, laminated P2, P4 : 4 + 4 mm, Glass pane size max. 6 x 6 m DRC - Digital Room Acoustic Compensation Patented Active "Anti-Masking" Technology
Warranty::2 years

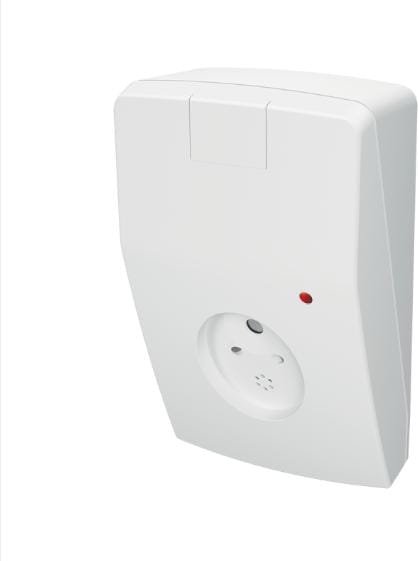

AD800-AM is a modern detector with the function of active anti-masking, detecting any attempts to break through windows or glazed elements of walls and doorsThe detector is built on the basis of the latest technology in the field of microcontrollers with software that takes into account many factors related to room acoustics (digital compensation of drc room acoustics), which allows precise distinction between the sound of breaking glass from other sounds

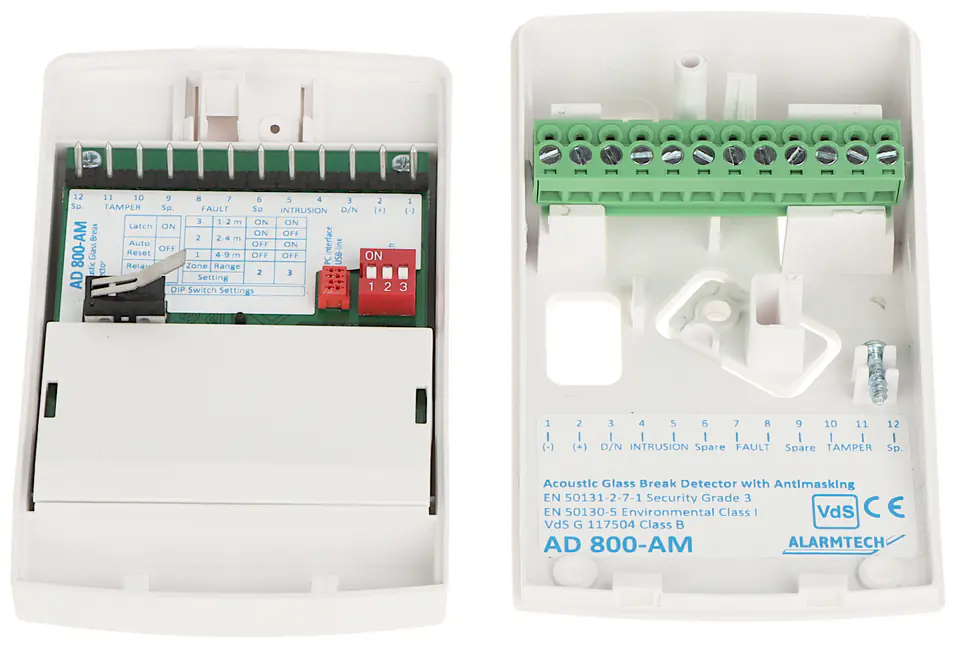

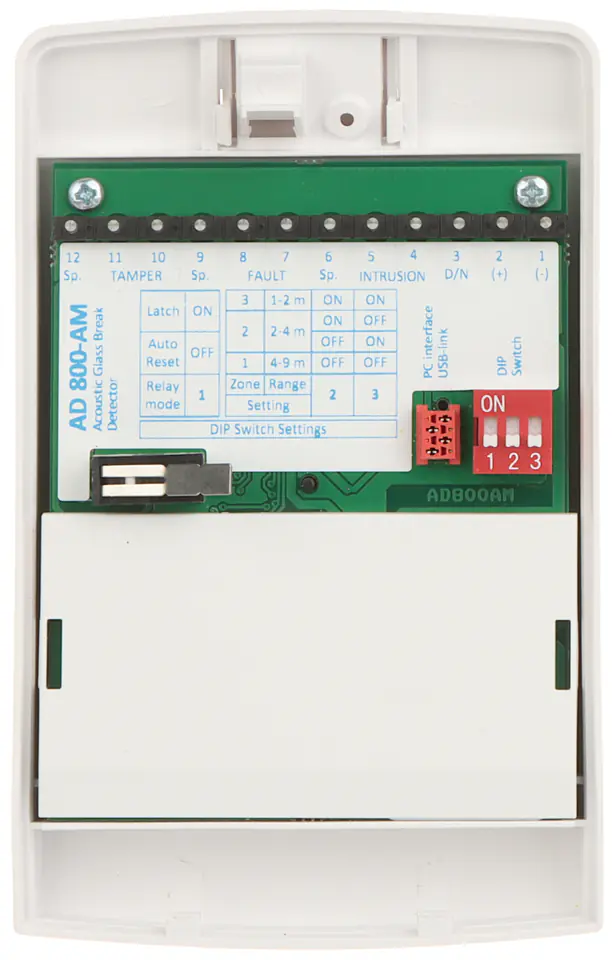

It is equipped with two independent relays for intrusion and fault detection it has a two-channel microphone tamper detection system: am acoustic channel, operating at completely inaudible frequencies and IR infrared channel, which detects objects in the immediate vicinity of the microphone
