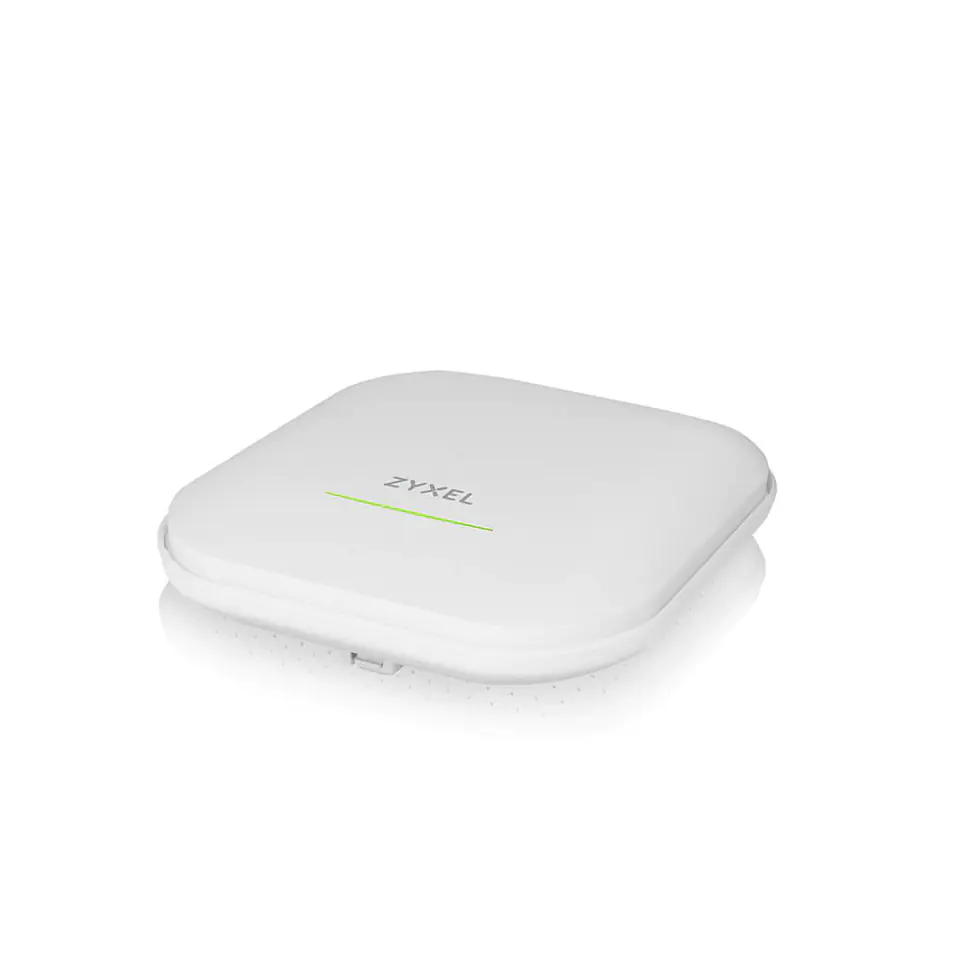

Access Point NWA220AX-6E-EU0101F

€264.95
Shipping from warehouse: ⁨M7⁩
Estimated shipping: Tue, Feb 25 - Fri, Feb 28
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
Zyxel
Product code:
NWA220AX-6E-EU0101F / 4718937628643

Specification

2.4 ghz:Yes
5 ghz:Yes
Additional connectors:no
Antenna:6 dBi
Antenna gain level (max):6 dBi
Antenna type:Internal
Auto wireless distribution system (wds):Yes
Band steering:Yes
Bandwidth:0.16 GHz
Colour:white
Configuration and management:Cloud, Application
Depth:180 mm
Depth (mm):42
Energy gain (dbi):6 dBi
Equipment:Documentation
Ethernet lan (rj-45) ports:1
Fast roaming:Yes
Height:42 mm
Height (mm):180
Led indicators:Yes
Mac address filtering:Yes
Maximum data transfer rate:4800 Mbit/s
Maximum data transfer rate (2.4 ghz):575 Mbit/s
Maximum data transfer rate (5 ghz):4800 Mbit/s
Mimo:Yes
Mimo type:Multi User MIMO
Mounting kit:Yes
Network ports:1x 10/100/1000
Networking standards:IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11ax, IEEE 802.11g, IEEE 802.11n
Operating modes:ACCESS POINT
Operating relative humidity (h-h):10 - 95%
Operating temperature (t-t):0 - 50 °C
Other parameters:Antenna Type: 4x4+2x2 Dual Optimized Antenna
Output current:2 A
Output voltage:12 V
Placement:Ceiling
Power over ethernet (poe):Yes
Power supply:21 W
Product colour:White
Receiver sensitivity:-101 dBm
Security algorithms:WPA3, WPA, WPA2-PSK, EAP, WPA3-Enterprise, WEP, 802.1x RADIUS
Security measures applied:WEP, WPA, WPA3
Storage relative humidity (h-h):10 - 95%
Storage temperature (t-t):-40 - 70 °C
Supported network standards:802.11ax
Vlan support:Yes
Warranty:2 years
Weight:650 g
Weight (g):650
Wi-fi multimedia (wmm)/(wme):Yes
Width:180 mm
Width (mm):180

Dizzying speed

WiFi 6E, the new 6GHz band, presents a solution to meet the need for higher bandwidth networks. The BandFlex radio design of the NWA220AX-6E allows the access point to support either the 5GHz or 6GHz band depending on configuration, making it the most cost-effective choice to match existing 5GHz coverage as well as future 6Ghz usage.

The NWA220AX-6E is an excellent choice for:

  • High-density environments such as offices, campuses, shopping malls, convention centres or transport hubs to reduce WiFi congestion, reduce congestion and increase user experience.
  • New technologies such as VR/AR, 8K video streaming or online gaming that promise ultra-fast speeds without lag.

The device incorporates all the benefits of WiFi 6 capabilities, such as OFDMA, MU-MIMO, BSS Coloring technologies, and then moves them to the all-new interference-free 6GHz to deliver ultra-fast speeds and low-latency connections.

Flexible BandFlex radio design

The Zyxel NWA220AX-6E is a dual-band access point with a BandFlex radio design that can support either 5GHz or 6GHz depending on configuration. It is the most cost-effective choice to match existing 5 GHz coverage as well as future 6 GHz usage.

6E efficiency boost

The high-gain 4x4 design transmitting from 6GHz helps increase the efficiency of beamforming and receive MIMO to extend coverage and maximise the performance of the new band.

Manage it your way

The NWA220AX-6E access point with NebulaFlex has flexible management options. In addition to management via the local interface, you can also use Nebula's cloud-based management interface.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
