The PR302 controller can work in standalone or network modeThe device allows one-sided or two-sided control of the passage. In the case of two-sided control, an external PRT series access reader or a reader equipped with a Wiegand interface should be attached to the controller.

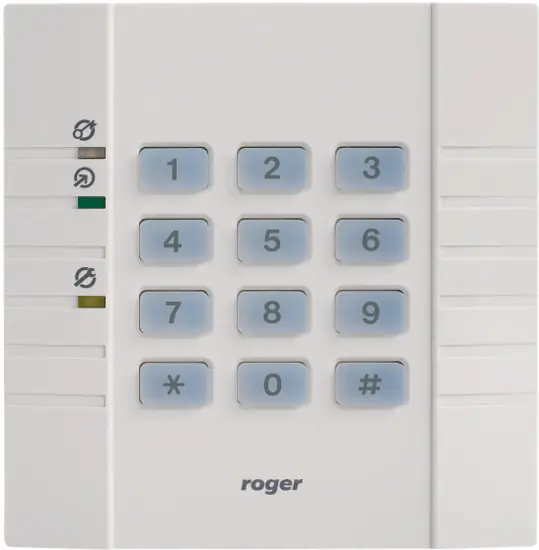

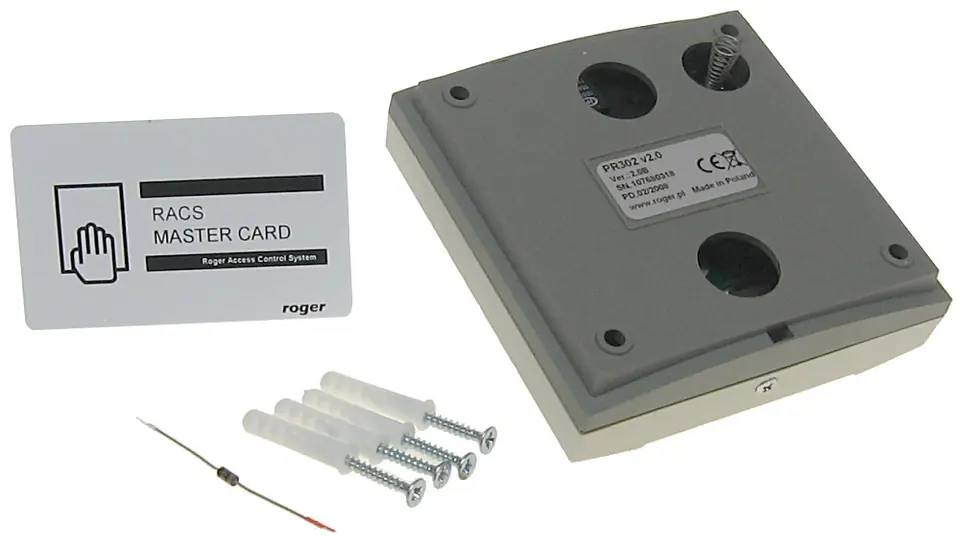

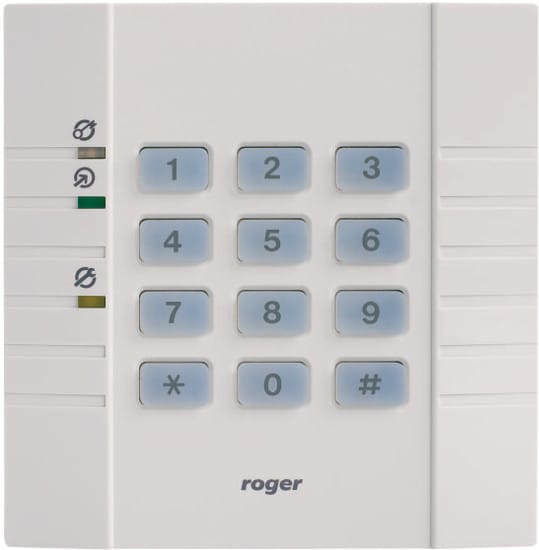

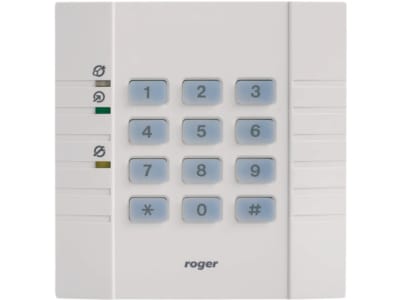

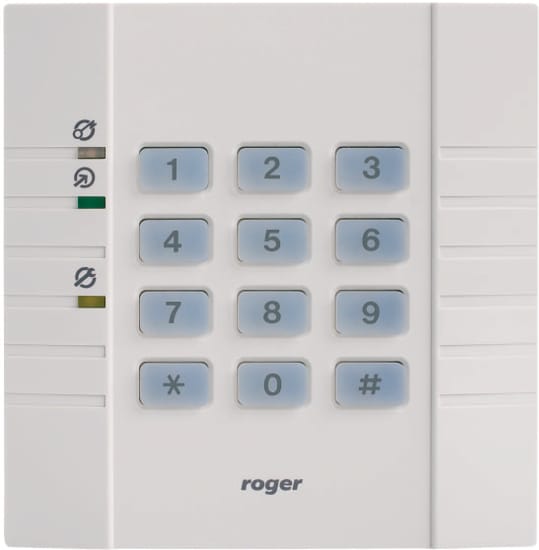

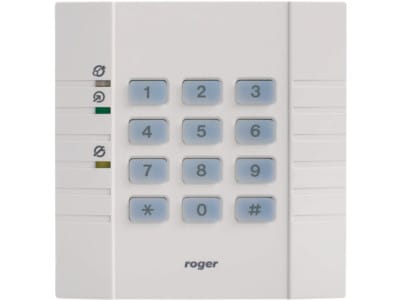

ACCESS CONTROLLER PR302 ROGER
€148.97
Shipping from warehouse: H7
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- ROGER
- Product code:
- PR302 / 5902887031649
Share this product:
Specification
| Card read range: | .max. 12 cm |
|---|---|
| Card support: | Unique EM 125kHz |
| Communication: | RS-485 RACS (Roger) |

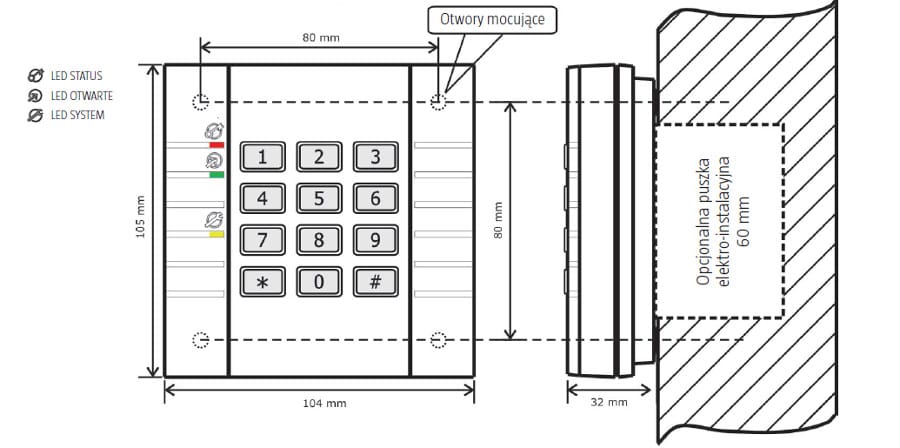

| Dimensions: | 105 x 105 x 31 mm |
| Environmental class: | And |
| Input lines: | 3 NO/NC |
| Operating temperature: | 0 °C ... 55 °C |
| Output lines: | 3 |
| Permissible relative ambient humidity: | 10 ... 95 % (non-condensing) |
| Power: | 10 ... 15 volts DC |
| Producer / brand: | ROGER |
| Relay contact load: | 1.5 A / 30 V |
| Scales: | 0.17 kg |
| Sealing: | IP30 |
| Selected features: | Built-in Unique EM 125kHz proximity reader (EM4100/4102) Identification modes (Card or PIN, Card & PIN, Card Only, PIN Only) Possibility of connecting an additional reader of the PRT series (two-way door control) / Wiegand 3 programmable NO/NC input lines 2 programmable transistor outputs 1A Programmable relay output 1.5A/30V tamper alarm : Tamper - NC 24V/50mA Cooperation with opening sensor and output button Indication of force input and the lack of closing the door Possibility to attach an XM-2 type I/O expander 4000 indexed users 250 access groups 99 time schedules 128 time zones within the schedule Christmas settings Anti-passback Battery backup History of 32000 events Possibility to attach a biometric reader (High Security option) Recording of time and attendance information Integration with the alarm system via the I/O line Remote programming with Computer Software update via RS-485 port Software included ( Windows XP/2003/Vista/7/8 ) Distance between controller and additional access reader : 150 m Maximum distance between controller and computer : 1200 m |
| Warranty: | 3 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
