| Card read range: | .max. 3 cm |
|---|---|
| Card support: | MIFARE 13.56 MHz |
| Case: | Metal + Plastic |
| Colour: | Silver |
| Communication: | RS-485, Wiegand (data output only), LAN, Bluetooth |
| Default administrator login / password: | admin/- |
| Default ip address: | 192.0.0.64 |

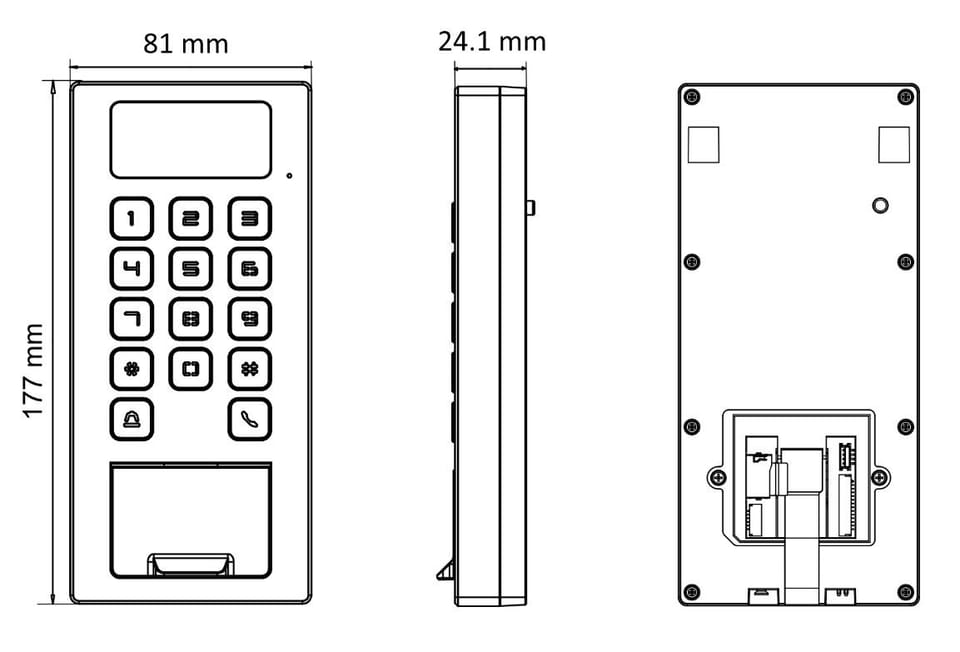

| Dimensions: | 177 x 81 x 24 mm |
| Input lines: | 2 |
| Maximum current consumption: | 1 A |
| Mechanical resistance class: | IK09 |
| Network interface: | RJ-45 - 10/100 Base-T Built-in Wi-Fi |
| Operating temperature: | -40 °C ... 70 °C |
| Output lines: | 1 |
| Power: | 12 volts ... 24 volts DC |
| Producer / brand: | Hikvision |
| Sap code: | 302918805 |
| Scales: | 0.65 kg |
| Sealing: | IP65 |
| Selected features: | Built-in 2 Mpx camera, Camera angle ... 110° Ability to control the transition from the level of the Hik-Connect mobile application 100000 indexed users Micro SD memory card reader Two-way audio support - SIP 2.0 protocol Buzzer LED Indication White button backlight Works with opening sensor and exit button NO/NC output |
| Warranty: | 3 years |

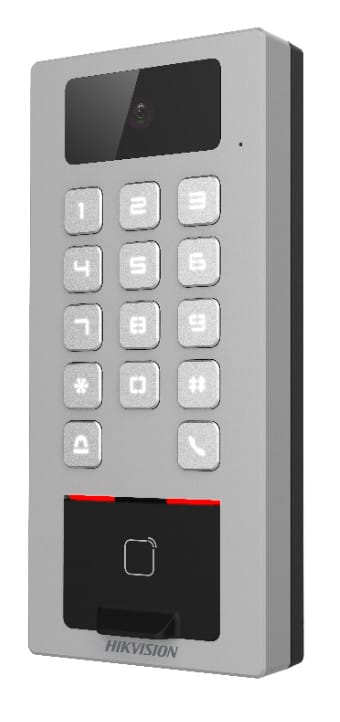

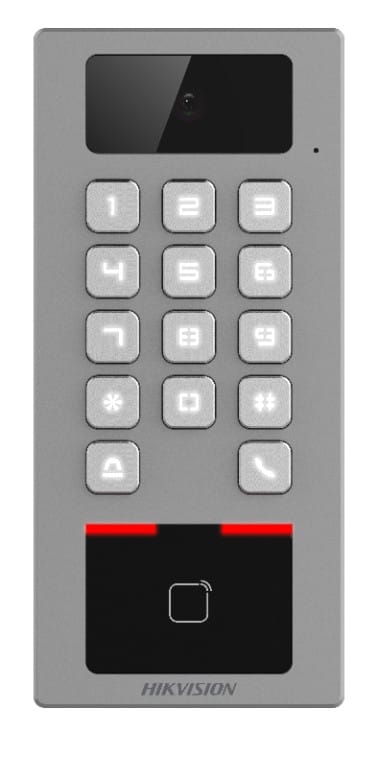

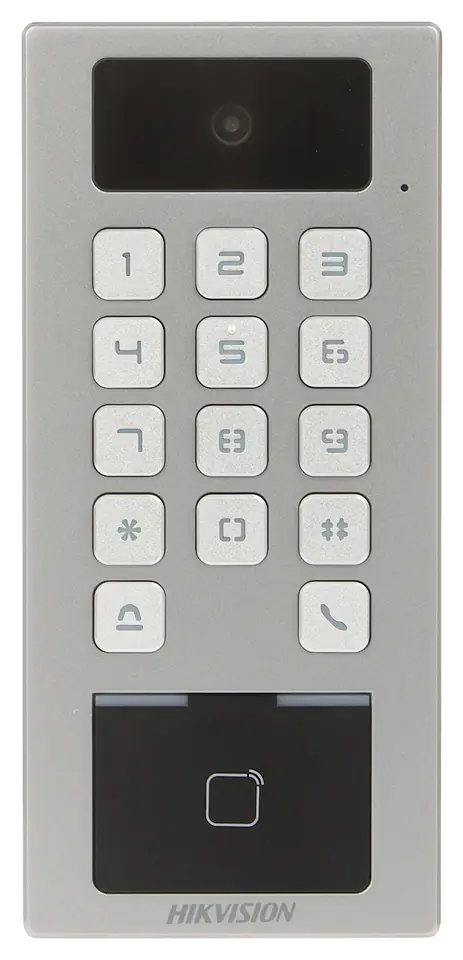

The DS-K1T502DBWX-C controller can operate in standalone or network modeThe device allows one-sided or two-sided control of the passage. In addition, the built-in camera allows you to record photos of logging in people and transmit the camera image directly to the system management computer
Built-in RFID proximity readerSatandard MIFARE 13.56 MHz
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
