| Communication: | RS-485, RACS (Roger) |
|---|---|
| Dimensions: | 105 x 85 x 50 mm |
| Event memory: | Non-volatile memory of the last 250,000 events |
| Inputs: | 8 pcs. - Motherboard inputs max. 32 |
| Operating temperature: | 5 °C ... 40 °C |
| Output: | 4 pcs. - Transistor outputs 2 pcs. - NO/NC relay outputs |
| Output load capacity: | Transistor outputs : 1 A / 15 V DC Relay outputs :REL1 - 1.5 A / 30 V DCREL2 - 5 A / 230 V AC |
| Permissible relative ambient humidity: | 10 % ... 95 % (non-condensing) |
| Power: | 24 V DC 12 V DC 18 V AC |
| Producer / brand: | ROGER |
| Scales: | 0.12 kg |
| Selected features: | Possibility to unlock or lock the zone at a specified time or according to the access calendar, Central management of the access control system, Integration with the SATEL INTEGRA alarm system, History of 250,000 events Electrical protection of all inputs and outputs as well as communication buses mounting on DIN rail, TS-35 |
| Warranty: | 3 years |

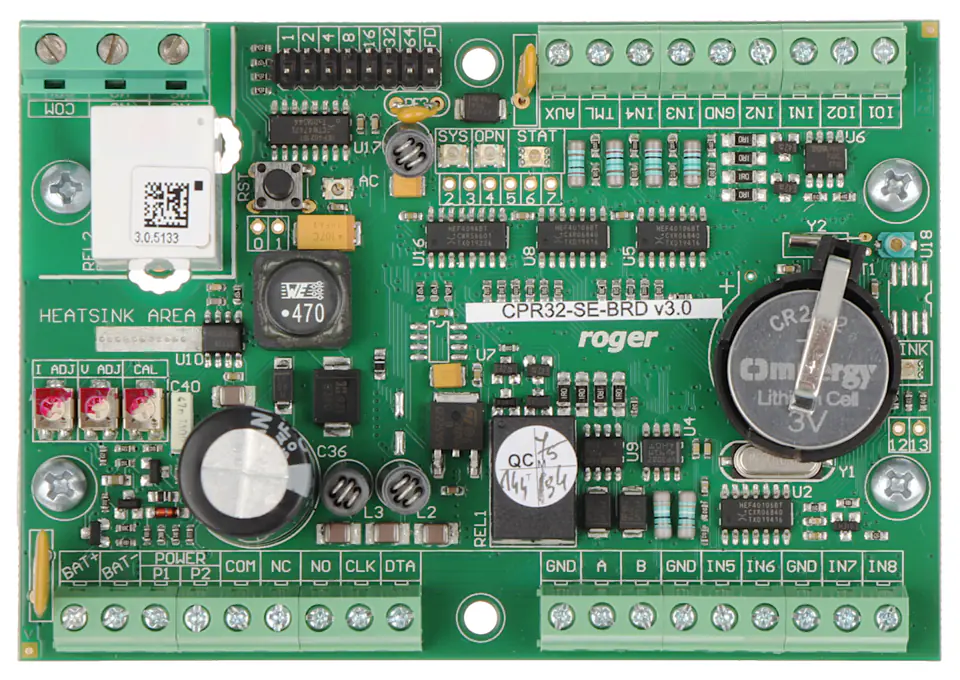

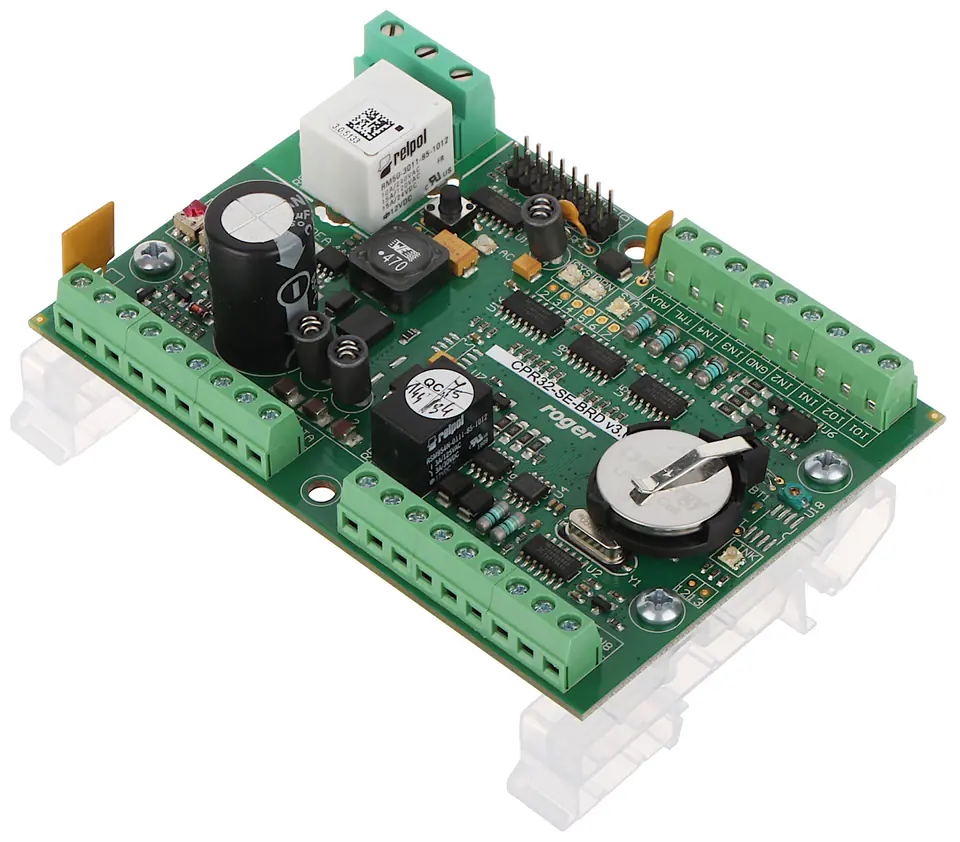

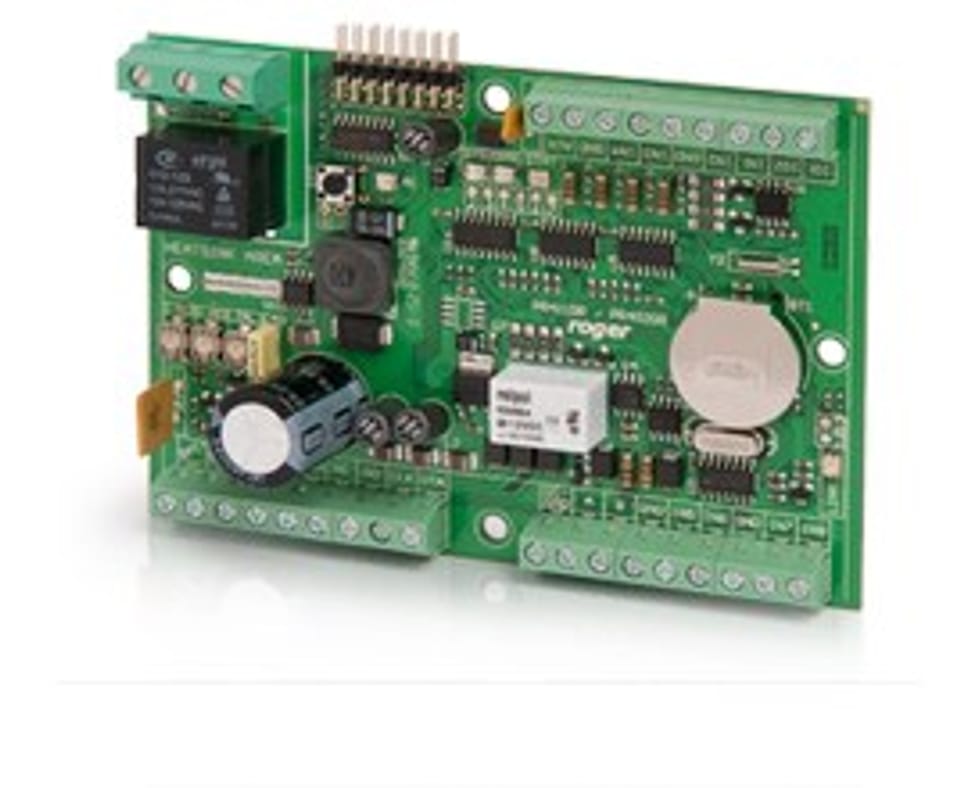

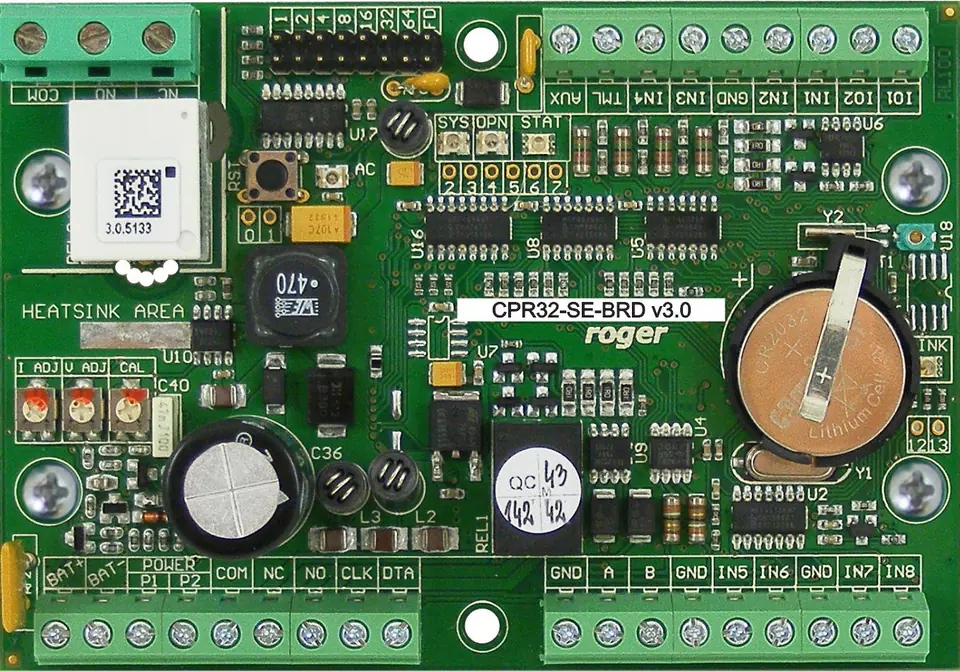

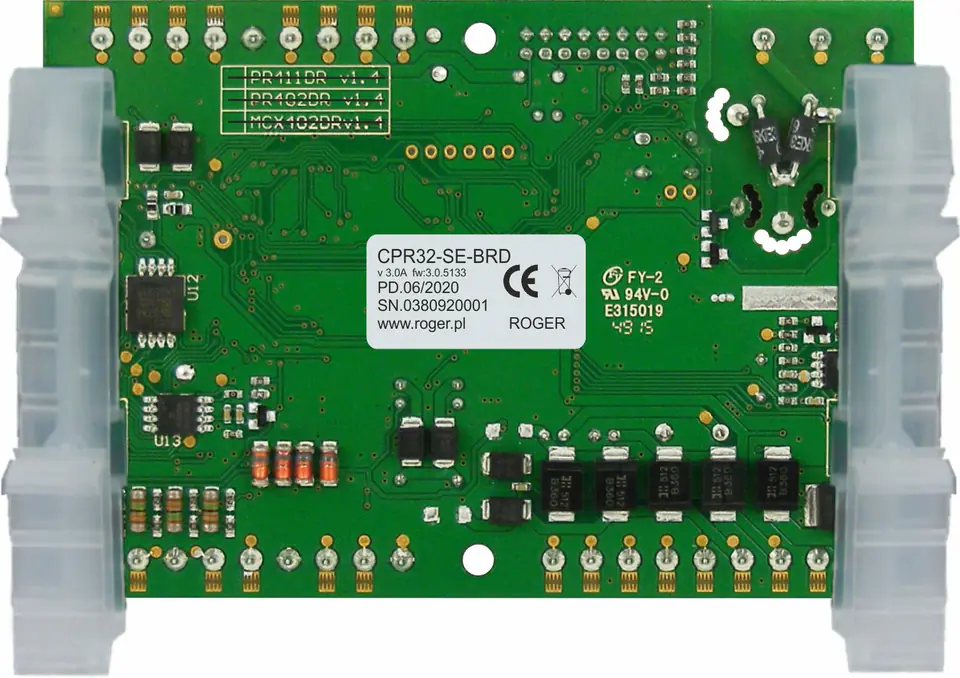

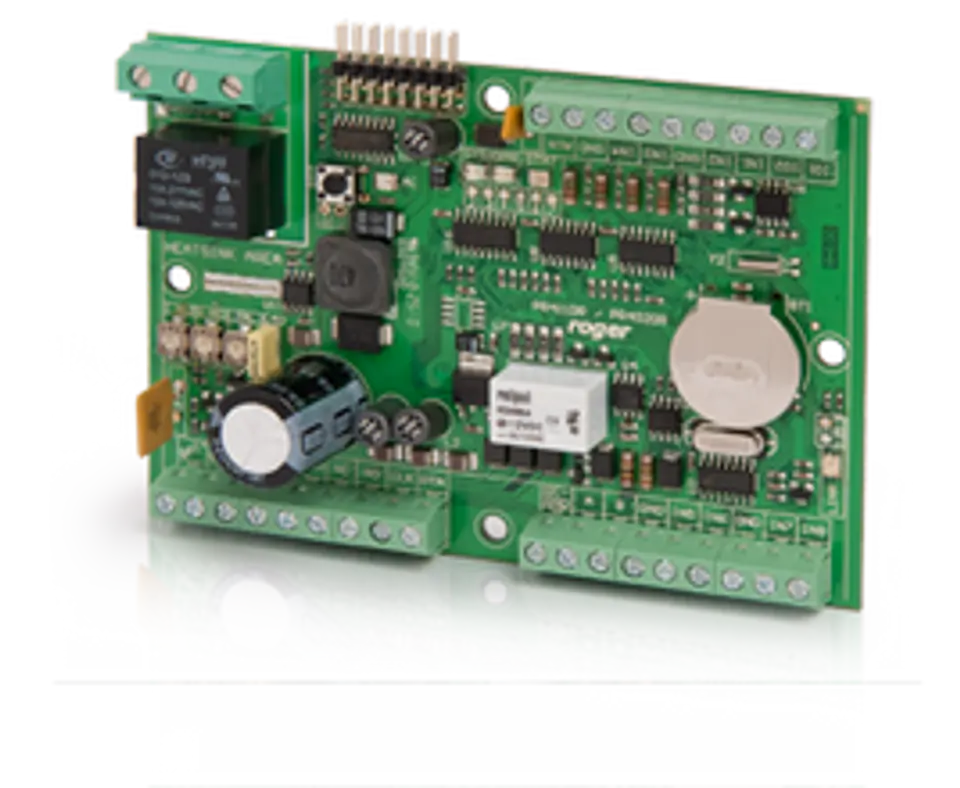

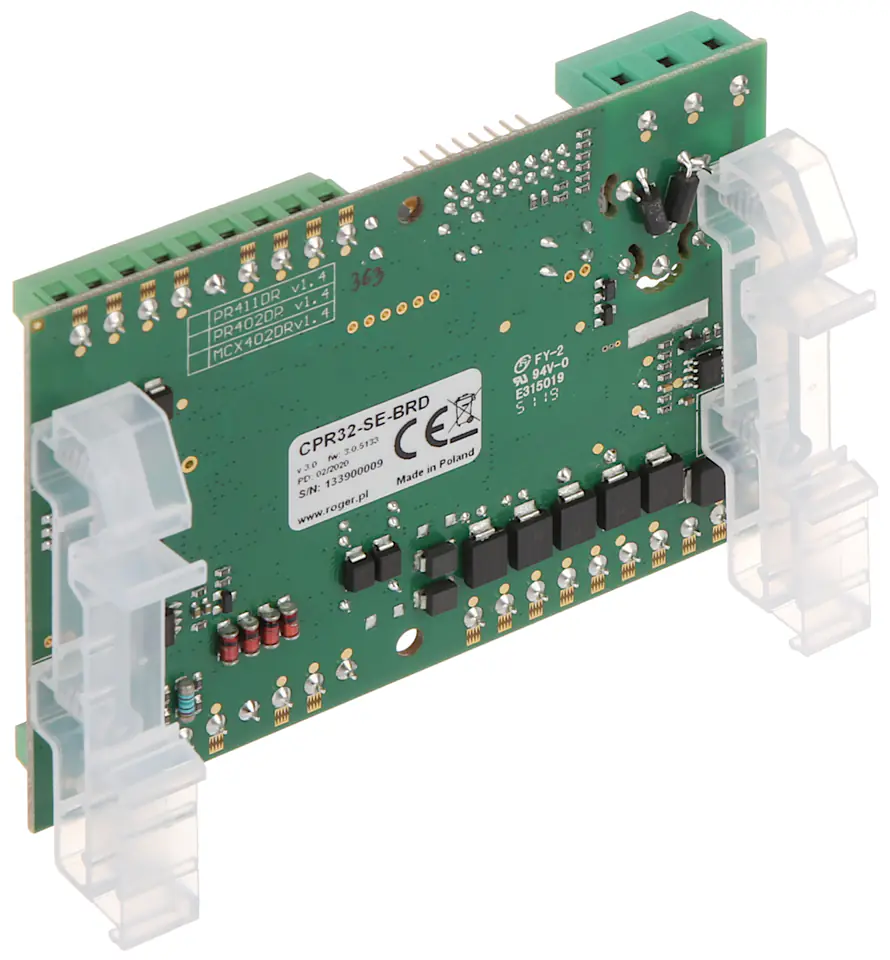

The CPR32-SE-BRD access control panel is an element of the RACS4 access control system
The use of the control panel in the RACS 4 system enables centralized system management, support for the central buffer of events, clock and calendar, the ability to connect individual controllers into concurrently re-equipped alarm zones
