| Current efficiency of the power supply:: | 3.3 A @ 18 V AC, 3 A @ 20 V AC |
|---|---|
| Destiny:: | to power alarm systems for automation to power a low-voltage lighting system |
| Dimensions:: | 124 x 75 x 65 mm |
| Egress:: | 2 pcs. |
| Environmental class:: | II |
| Frequency range:: | 50 Hz |
| Manufacturer / brand:: | PULSAR |
| Output voltage:: | 18 V AC, 20 V AC |
| Power supply type:: | Transformer |
| Power supply:: | 60 VA |
| Scales:: | 1.29 kg |
| Sealing:: | IP43 |
| Supply voltage:: | 230 VAC |
| Warranty:: | 2 years |

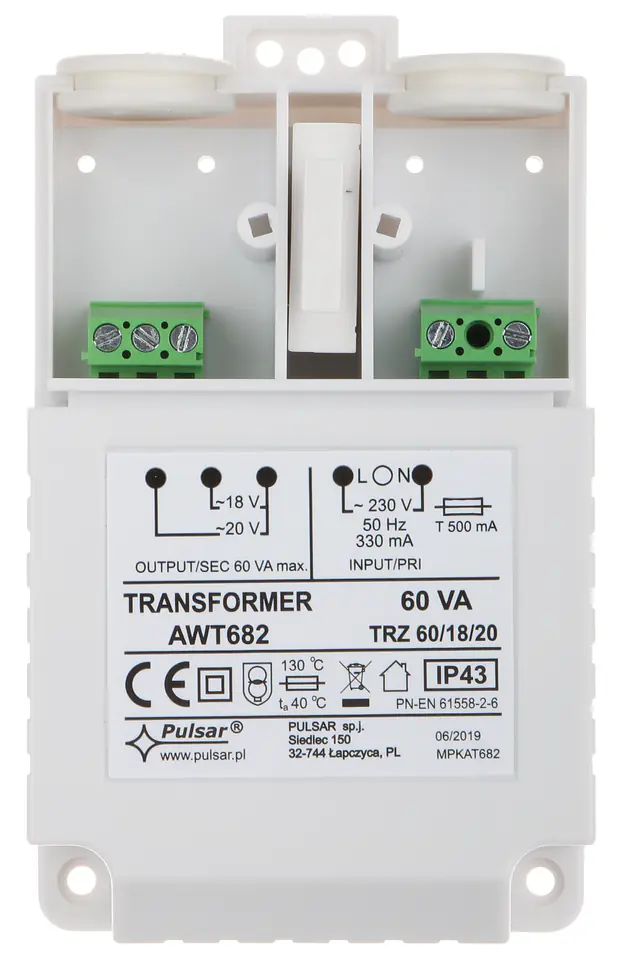

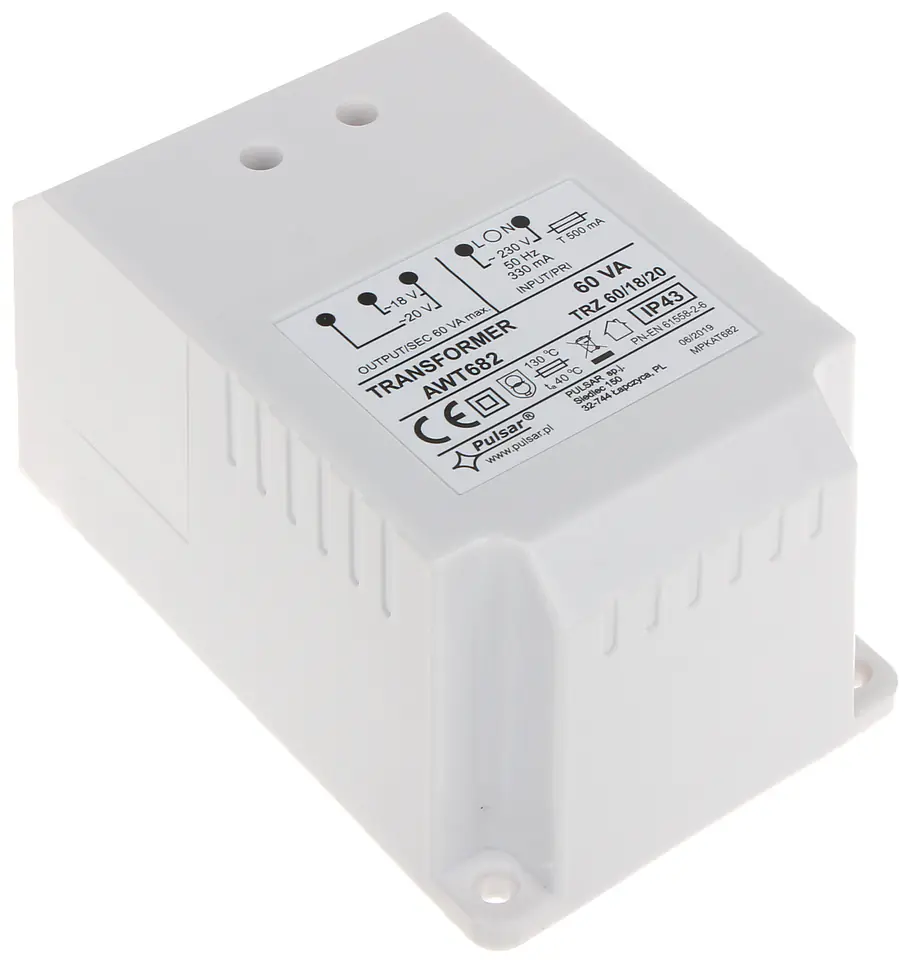

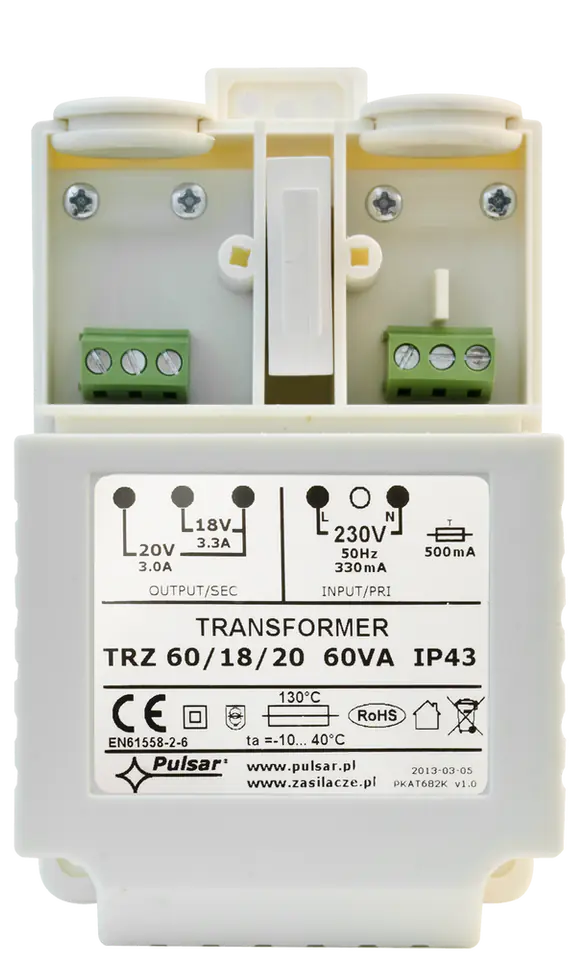

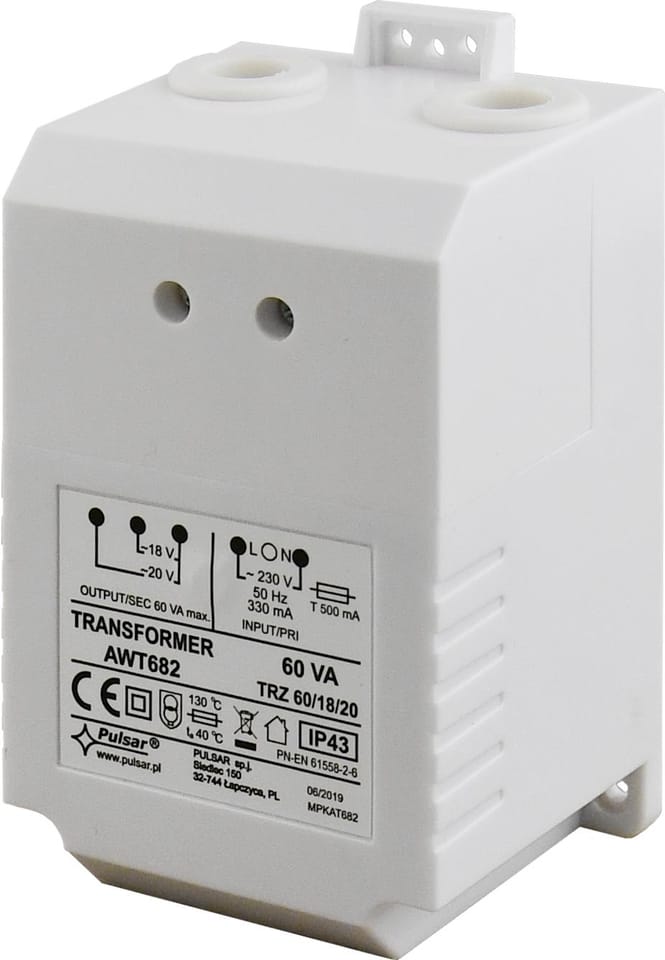

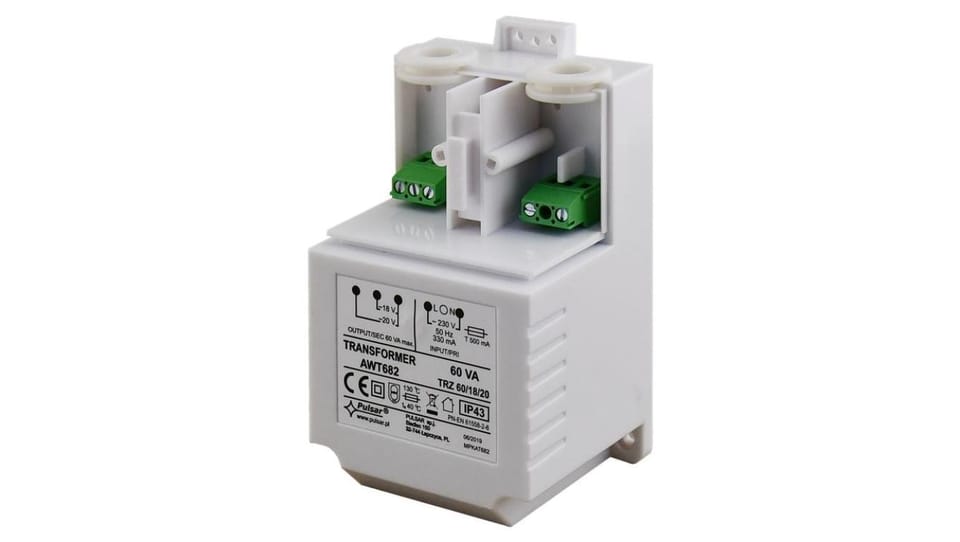

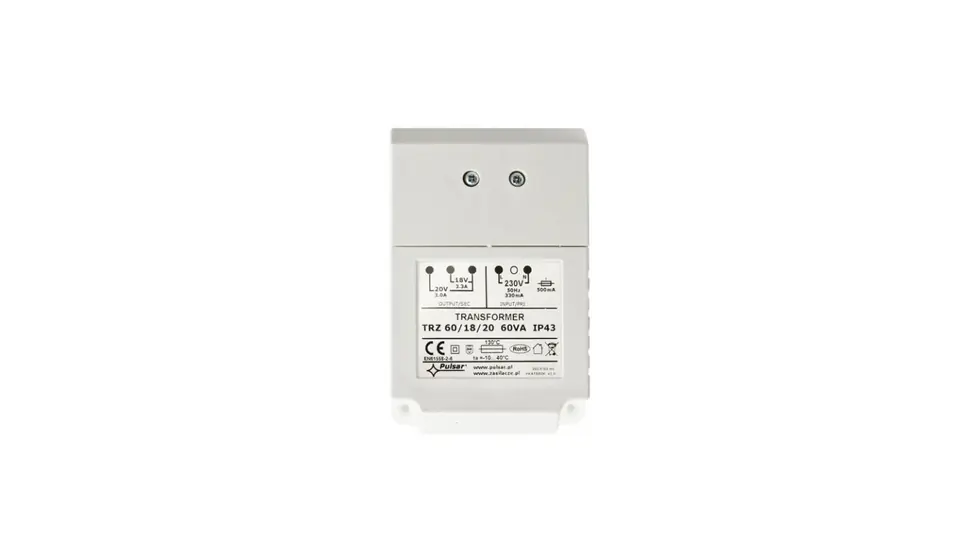

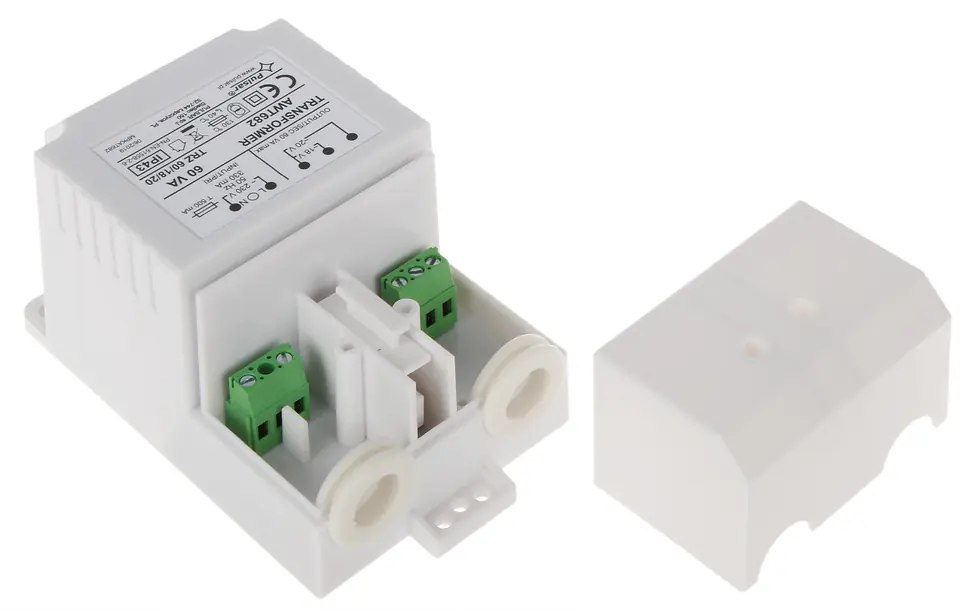

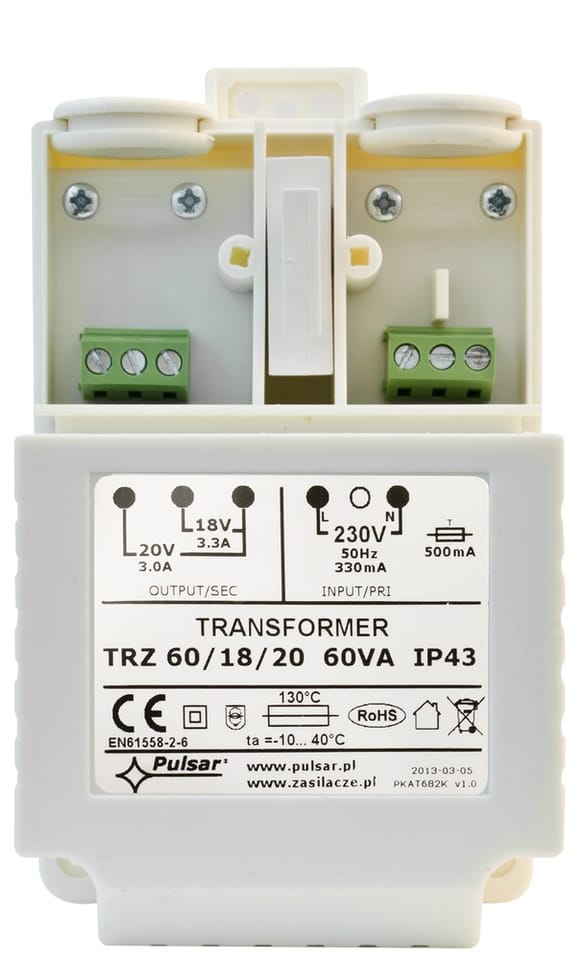

The AWT-682 power supply is designed for devices requiring AC voltage: 18V, 20VThe power of the receivers attached to the terminals of the power supply cannot exceed its rated power
Remark! If the power supply is designed for continuous operation (24H), the rated current of the power supply should not exceed 80% of the maximum currentSpecial attention should be paid to the proper cooling of the power supply during operation!
