AC VOLTAGE POWER SUPPLY PSAC-08246 METAL TRANSFORMER HOUSING

€109.63
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
Pulsar
Product code:
PSAC-08246 / 5906881446584

Specification

Connector type::Cable clamps
Current efficiency (total)::6 A
Dimensions::246 x 215 x 64 mm
Housing type::Metal, wall mounted
Input voltage::230 V @ 50Hz
Manufacturer / brand::PULSAR
Max. single output current::0.75 A
Number of outputs::8
Output protection::1 A Polymer / Fuse
Output voltage adjustment::(step adjustment)
Output voltage::24 / 27 VAC
Power supply type::Transformer
Power::150 VA
Scales::3.0 kg
Security::Short-circuit Overload Thermal Surge Anti-Surge Anti-Tamper
Warranty::2 years

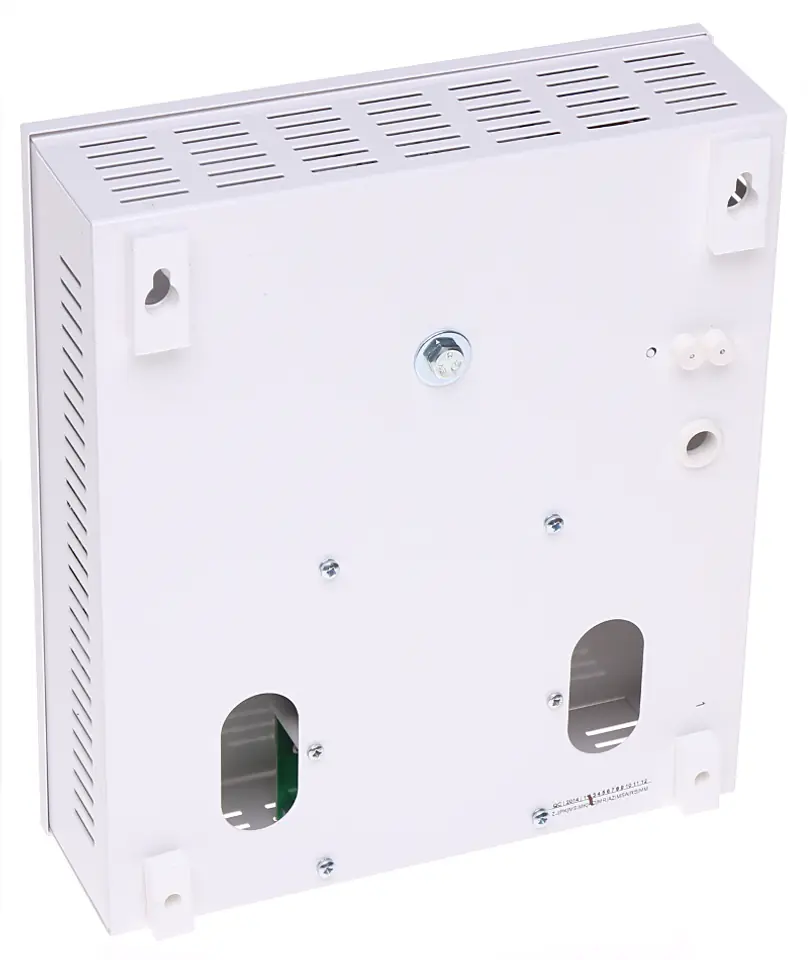

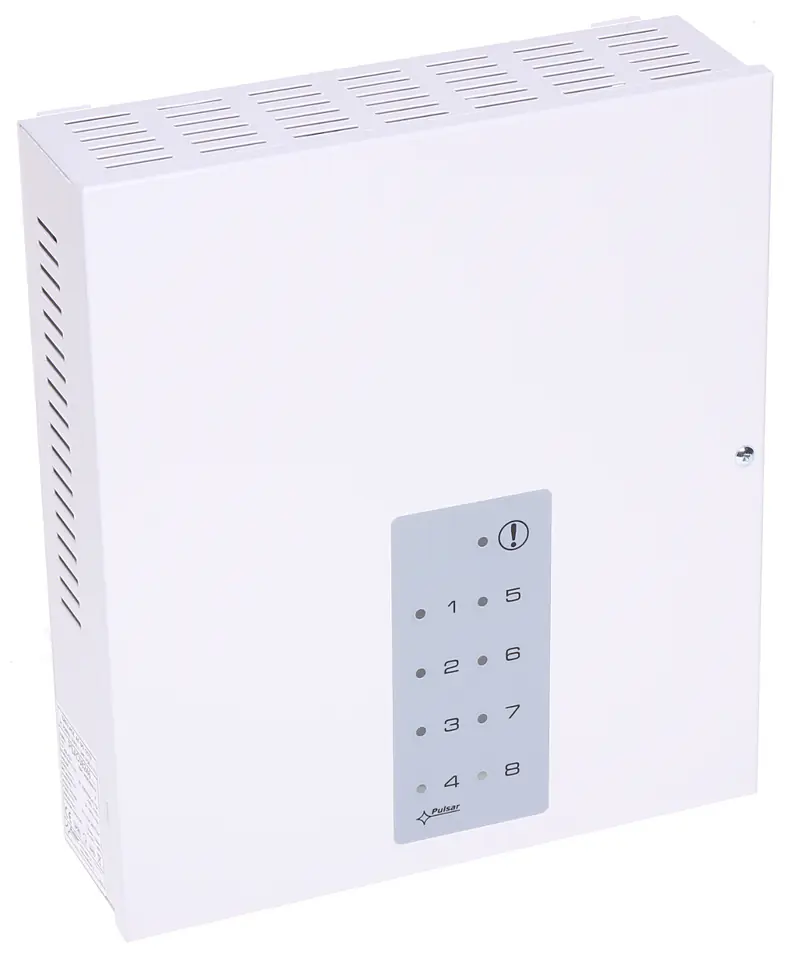

The power supply has an aesthetic, solidly made metal housingThe power supply supplies ac voltage of 24V/27V at the output and supports up to 8 devicesThe maximum load of a single output is 0.75A, but it should be remembered that the total load on all outputs should not exceed 6A Each output is protected independently with a fuse or polymer PTC (jumper choice)

Remark! If the power supply is designed for continuous operation (24H), the rated current of the power supply should not exceed 80% of the maximum currentSpecial attention should be paid to the proper cooling of the power supply during operation!

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
