Manufacturer no: 10030405

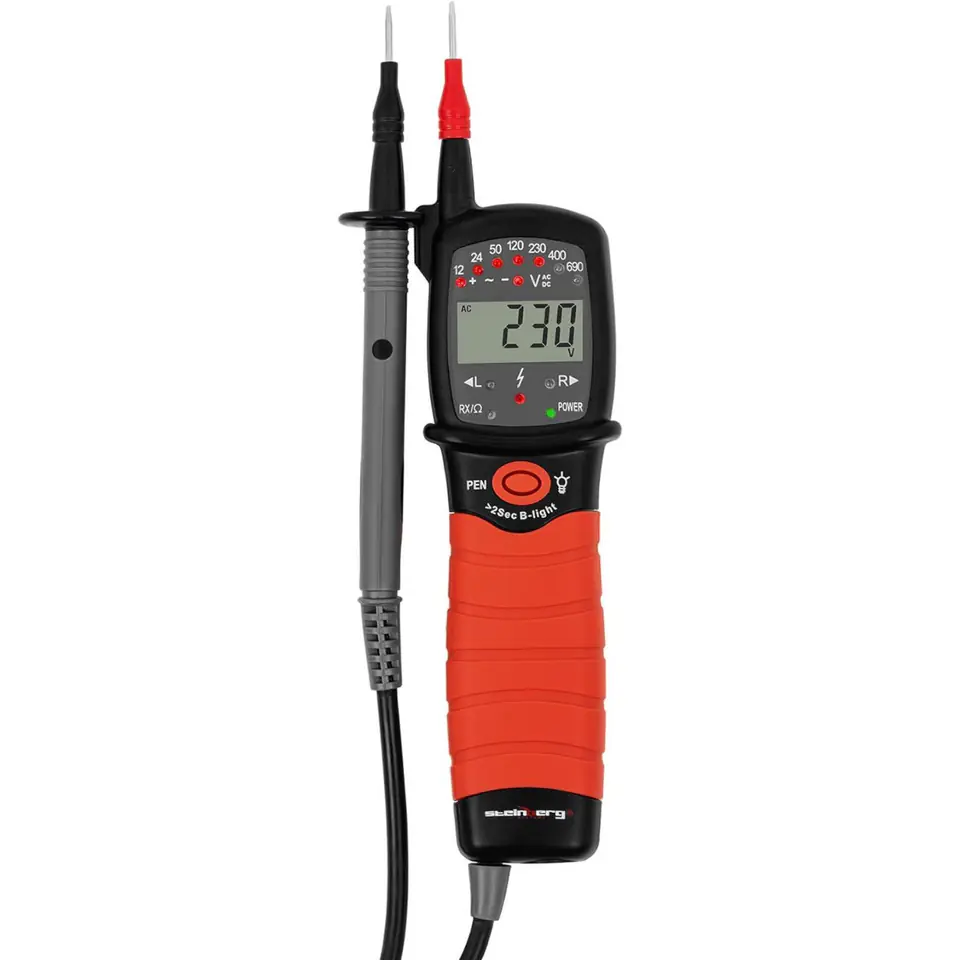

The voltage indicator is a meter from Steinberg Systems used to check voltage, phase sequence test, measure continuity, as well as perform single, quick measurements using a special indicator.
The equipment allows you to measure AC / DC voltage in the range of 12-690 V and read in real time. In the event that the device detects too high voltage, a special LED will light up. Depending on the result obtained, the appropriate number of LED bulbs will also be illuminated, specifying in which range the result was (these are the ranges: 12, 24, 50, 120, 230, 400 and 690 V).

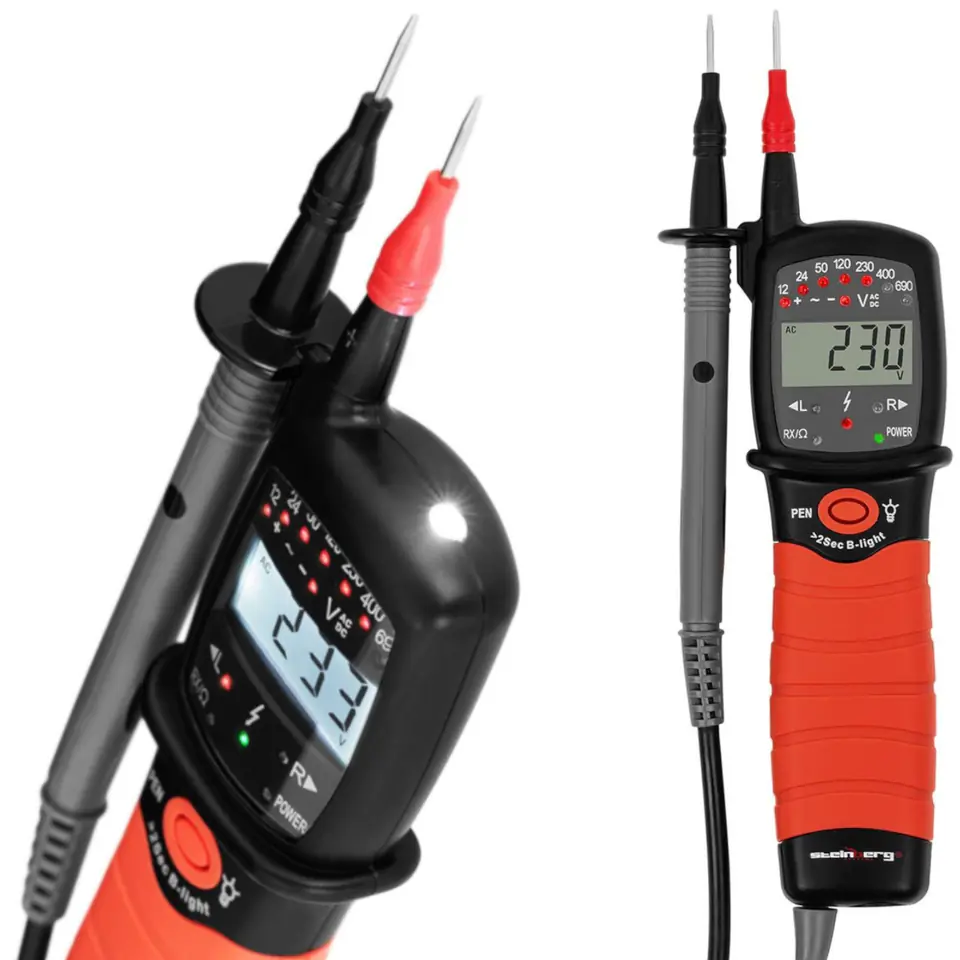

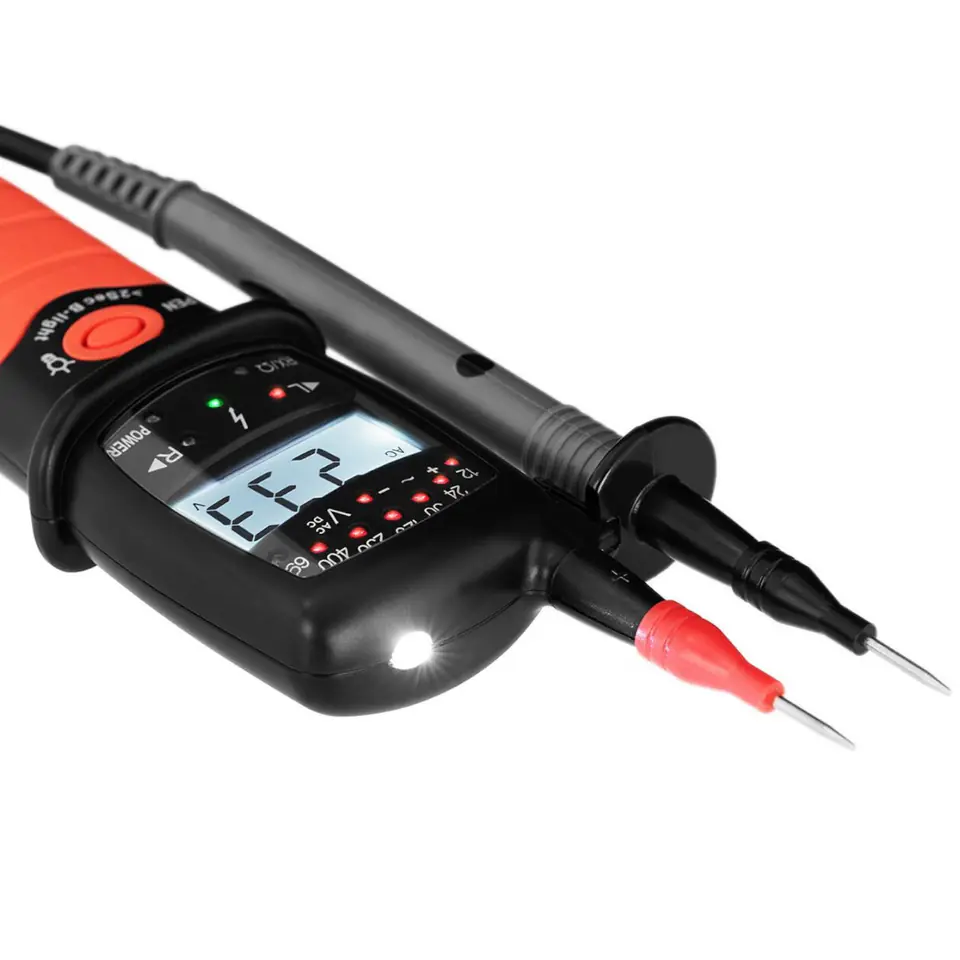

Easy operation is due to the easy-to-read LCD display. All necessary measured values can be read on the screen. Backlighting the screen will come in handy in dark rooms. In addition, when working in limited ambient light, you can use a flashlight located in the upper part of the body. The voltage indicator is powered by two AAA batteries, which ensure a long life of the device. IP64 protection protects the equipment from water and dust.
Product features:
- - AC/DC voltage measurement,
- - Reading range 12-690 V,
- - LED indicates high voltage,
- - LCD screen with backlight,
- - Protection class IP64.
- - Model - SBS-VT-690
- - Catalogue number - 10030405
- - Article status - New
- - Battery type - IEC LR03 1.5 V × 2
- - High voltage indication - Yes
- - Voltage range - 12-690 V AC/DC
- - Protection class - IP64
- - Low battery warning - Yes
- - Auto power off - Yes
- - LED - Yes
- - Test current - Approx. 1.5 μA
- - Detection range - 0-750 kΩ
- - Phase rotation test - Yes
- - Phase range - 120 ± 5 degrees
- - Resolution - 1 V
- - Accuracy - ( 23 ± 5 °C) ± (3% + 3)
- - Continuity test - Yes
- - Dimensions (LxWxH) - 23,5 x 5,5 x 3 cm
- - Weight - 0.2 kg
- - Shipping dimensions (LxWxH) - 27 x 9 x 4 cm
- - Shipping weight - 0,27 kg
- - Voltage indicator,
- -Manual.
