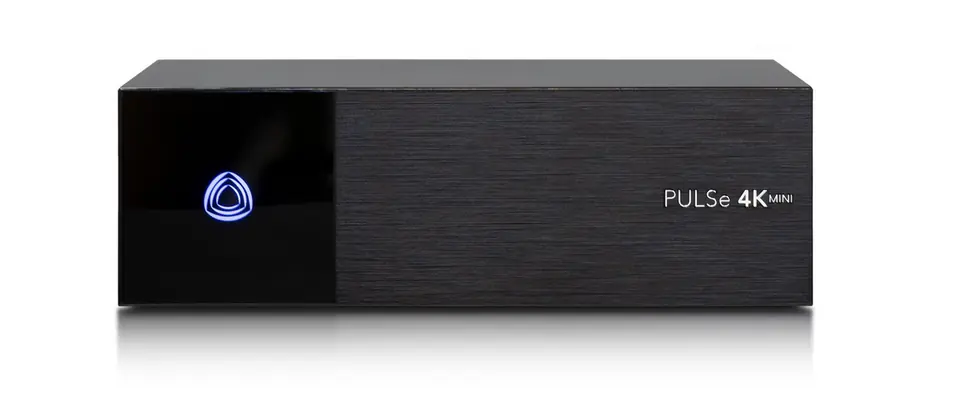

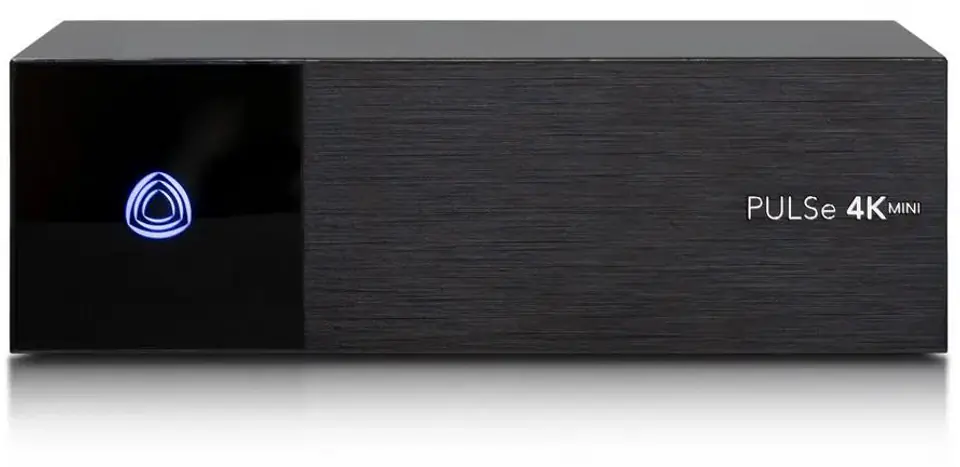

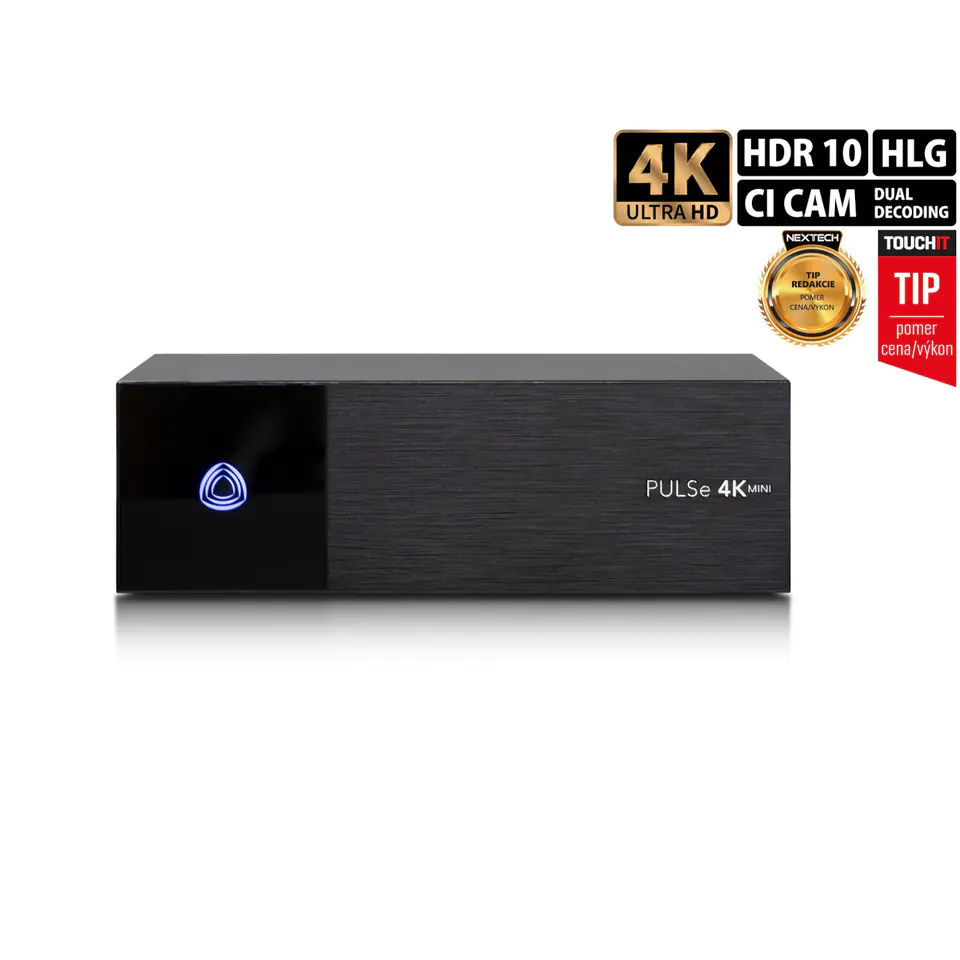

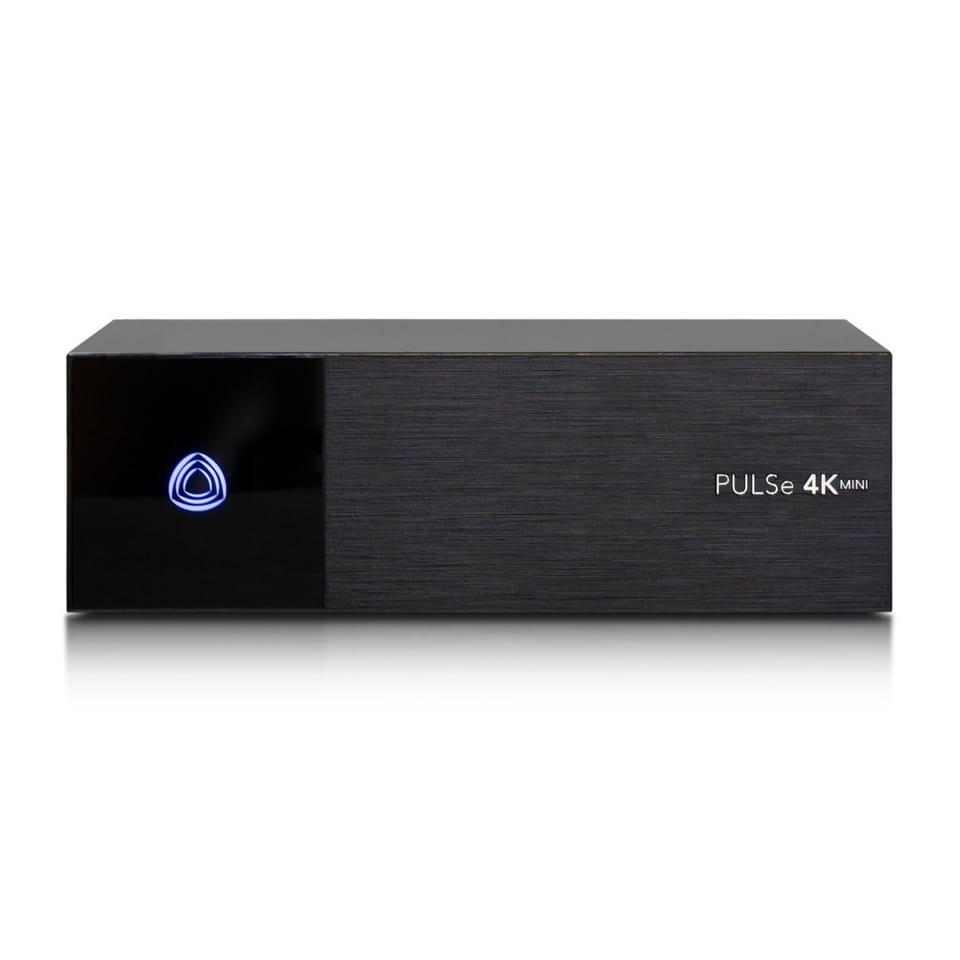

Satellite tuner PULSe 4K MINI DVB-S2X Linux Enigma2

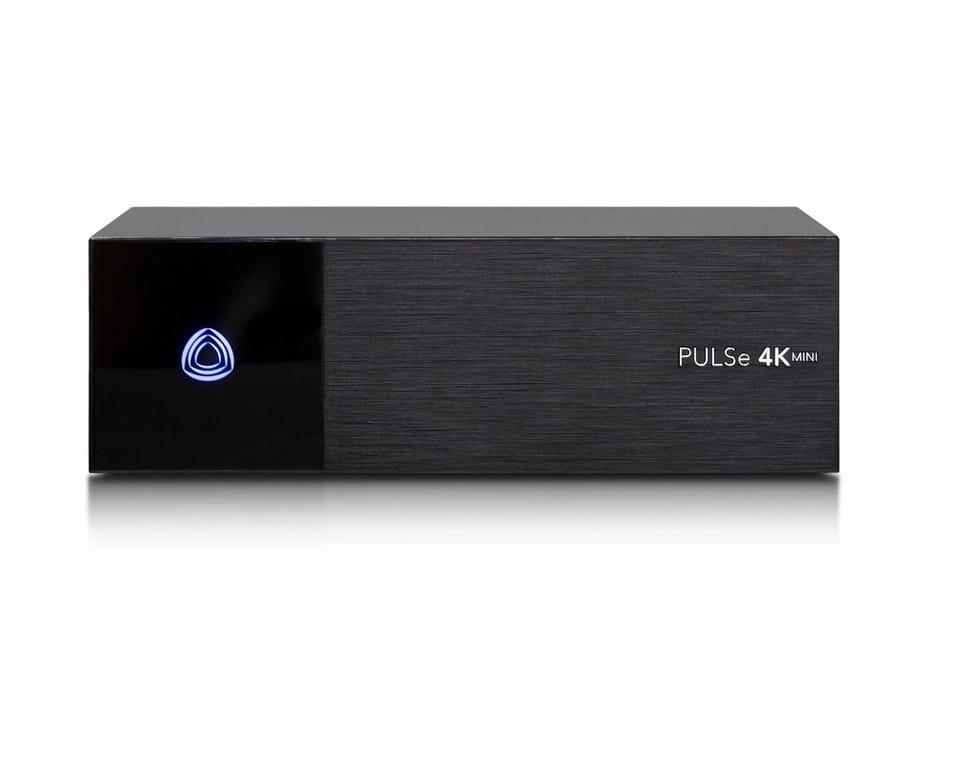

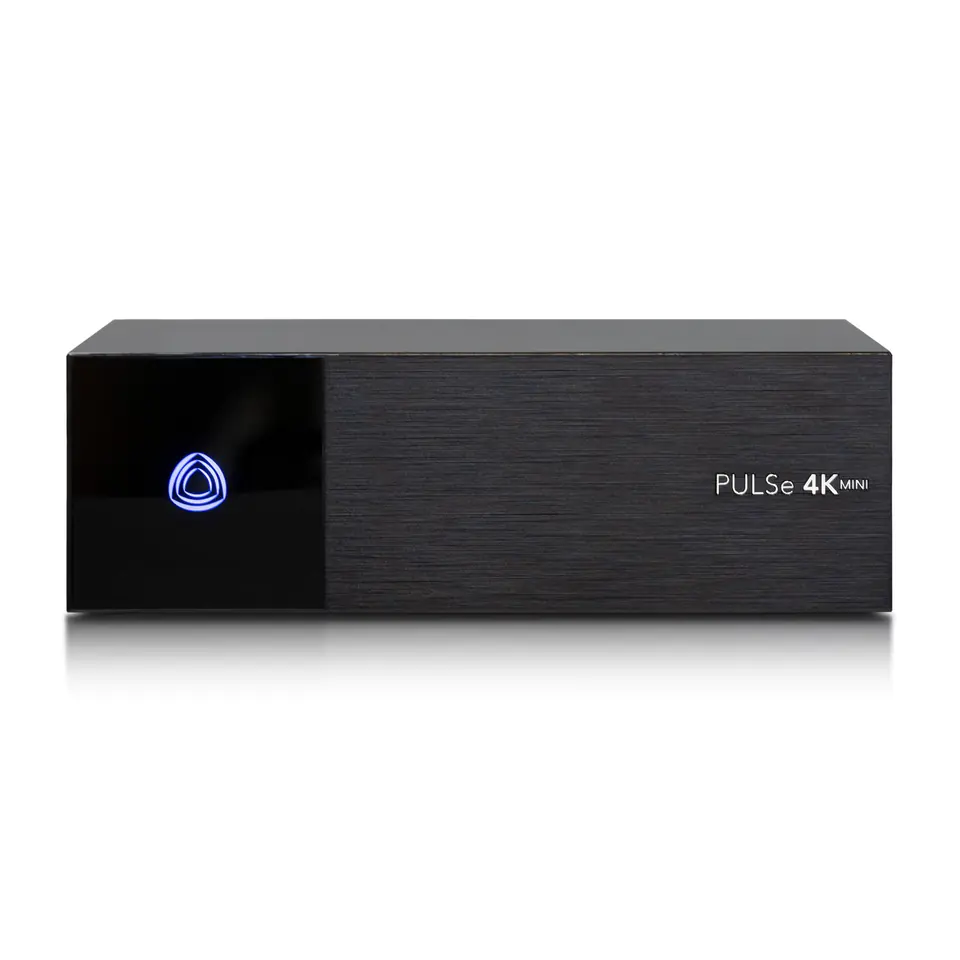

PULSe 4K MINI is a receiver with UHD 4K resolution and Linux ENIGMA 2 operating system. A beautiful image in 4K resolution is of course a matter of course, as are HDR/HDR10 and HLG image standards. Performance and responsiveness will be ensured by a quad-core Hi3798MV200 processor with 15,000 DMIPS, 8 GB of EMMC FLASH memory and 1 GB of DDR4 RAM. The receiver includes a built-in DVB-S2X satellite tuner.
Take advantage of the power of the Linux Enigma2 operating system with plugins to give you a better TV viewing experience. Customize your device's environment to your preferences and watching TV will take on a new dimension.

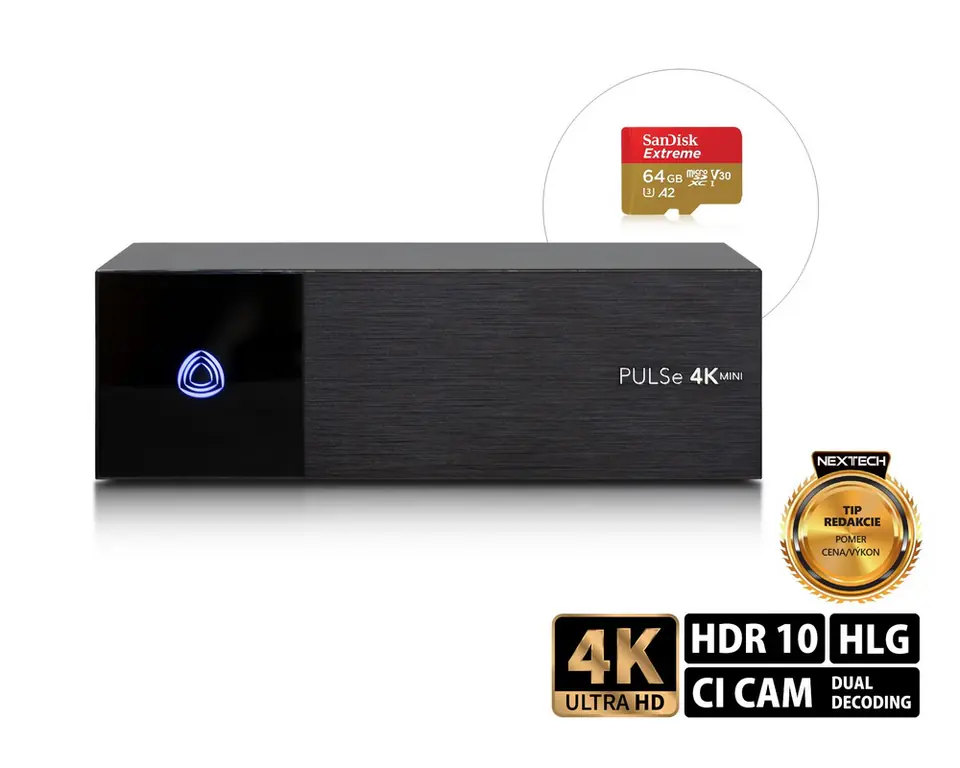

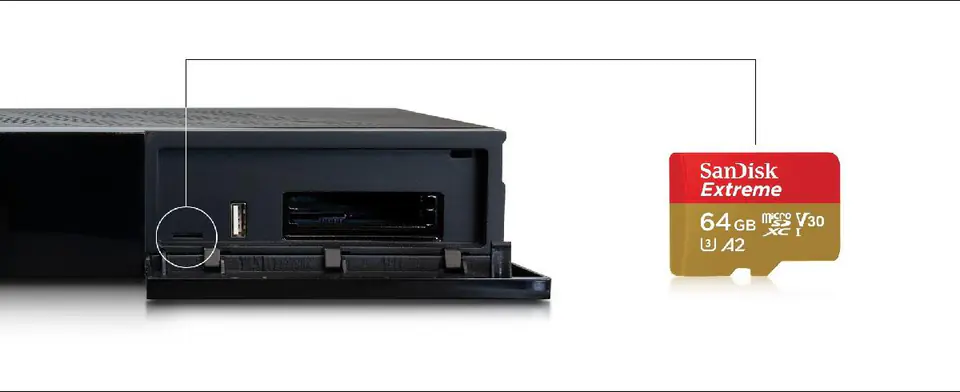

The function of recording channels to an external USB memory (e.g. a portable drive), in addition, you can also choose a more elegant solution, which is a microSD card. The microSD card fully replaces the functions of the internal hard drive and, above all, eliminates unwanted sounds from a standard 2.5" hard drive.
Calculation of microSD card capacity usage:
- a 32 GB microSD card can store about 13 hours of recordings
- a 64 GB microSD card can store approx. 25 hours of recordings
- a 128 GB microSD card can store about 50 hours of recordings
*The data is approximate depending on the bit rate of the program you recorded from, as each program has a different bitrate.

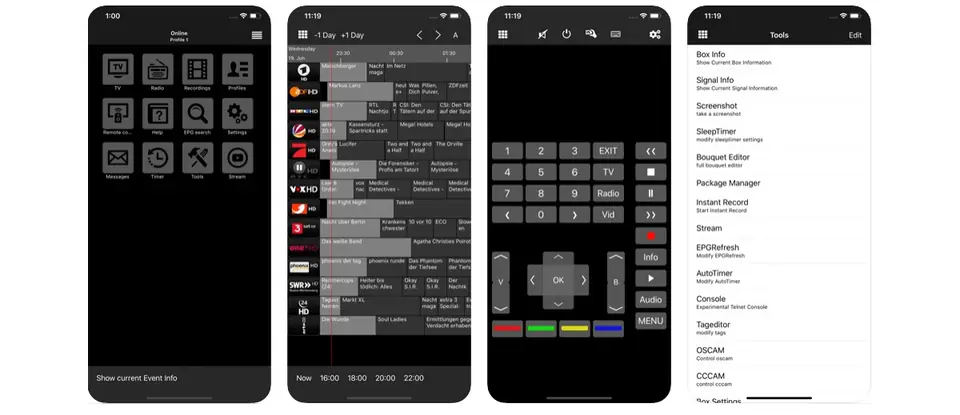

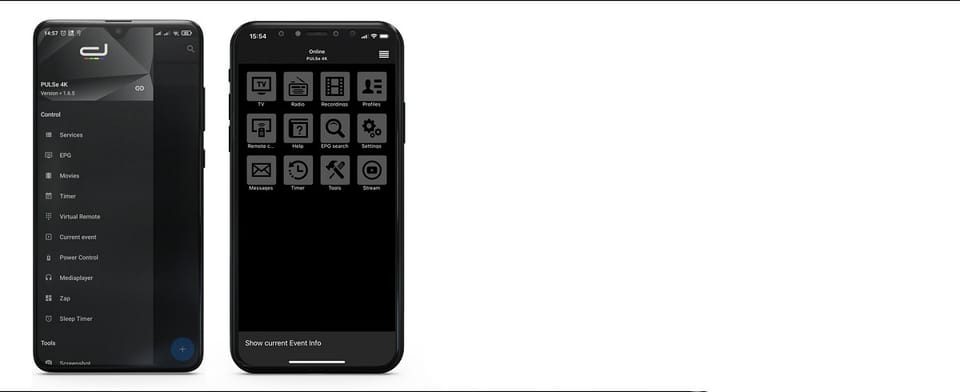

The PULSe 4K MINI receiver can also be controlled via a mobile phone. You can also use your mobile phone or tablet as a remote control. You can see on your phone what is currently broadcast on TV and remotely set what you want your PULSe to do. Want to record a movie or your favorite TV show? With a mobile phone, you get it in just a few clicks. All recordings will be stored on 4K PULSe and you can view them on your mobile phone or tablet at any time when you need them. If you have a recognized TV, but you need to move to another place, there is nothing easier than transferring a TV broadcast to a mobile device.
We recommend the dreamDroid app for Android devices.
We recommend e2Remote Lite for Apple devices.
An external WiFi antenna can also be connected to the receiver, which will provide a wireless internet connection.
Technical specification:
- Quad-core QUAD 15,000 DMIPS processor
- Flash 8 GB EMMC
- RAM 1GB DDR4
- Tuner: 1x DVB-S2X
- Video decoding - 4Kx2K@60 10-bit HDR/HDR10 and HLG decoding
- Transcoding: Multi Transcoding & Multiroom Support
- Card reader - 1x
- CI/CI+ socket - 1x
- USB 2.0 - 1x
- USB 3.0 - 1x
- RJ45 - 1x
- Micro SD card slot - 1x

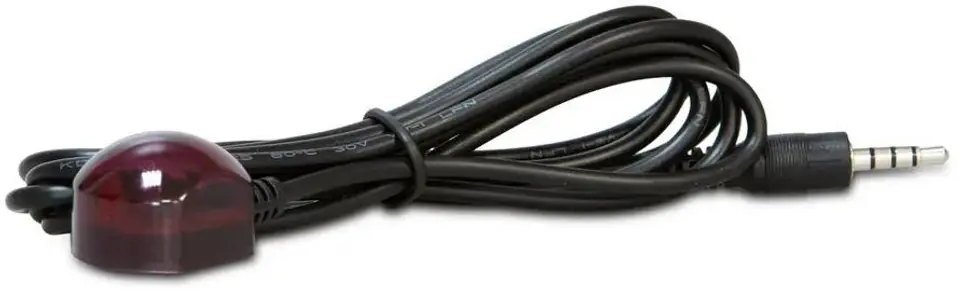

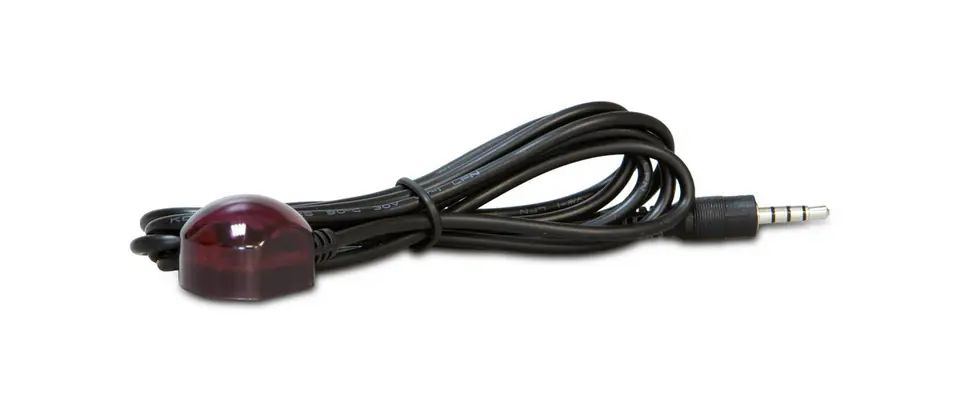

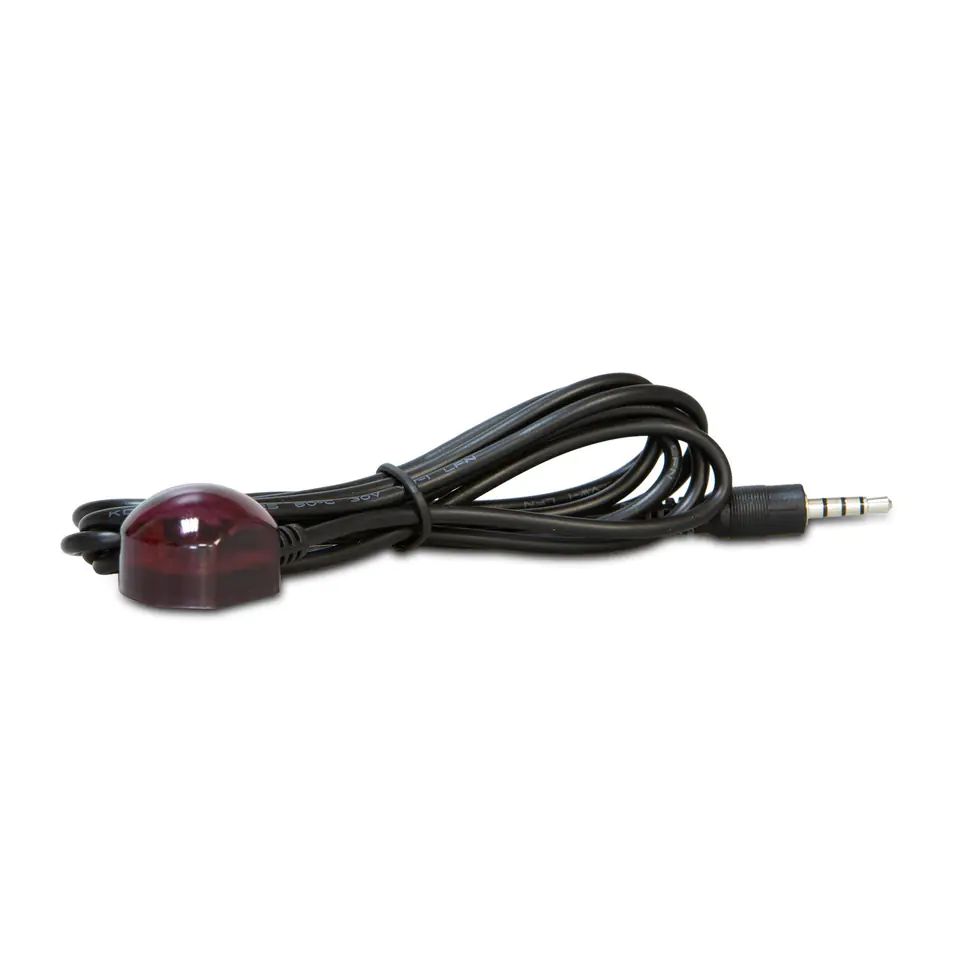

- Infrared extender - 1x
- SPDIF - 1x
Tuner:
- DVB-S/S2/S2X
- MPEG1, MPEG2, H264, H265 HEVC, CAVS, VP8, VP9 video decoding
- Video formats: 4:3 Letter Box, 4:3 widescreen scanning, 16:9
- Video resolutions: 4K x 2K, 1920x1080, 1280 × 720, 720 x 480, 720 x 576
- Audio decoding: MPEG-1 I/II, downmix PCB, IEC958 SPDIF left/right/stereo/mono
- Decoding: 10 bits, HDR/HDR10, HLG
Main system:
- Processor: Hi3798MV200 (multi-core 64-bit) ARM
- Flash memory: 8 GB EMMC
- RAM: 1 GB DDR4

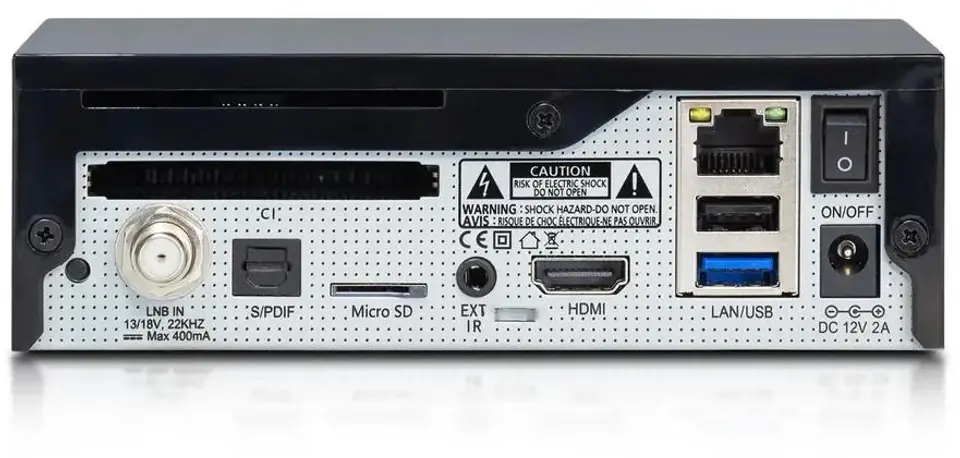

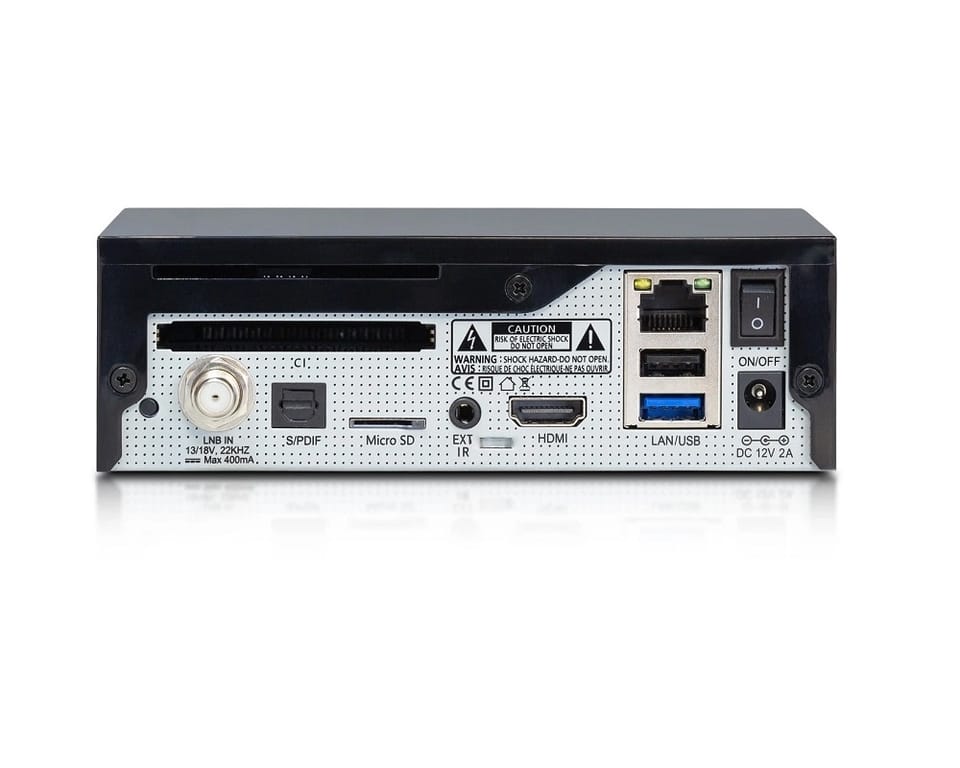

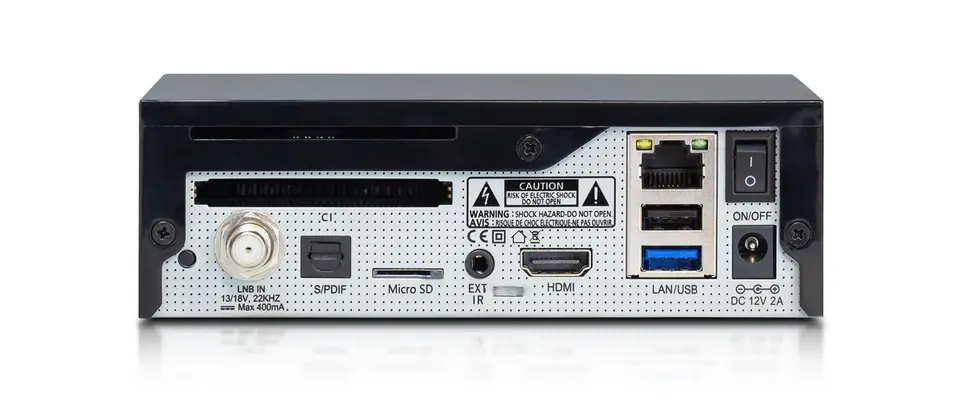

Slots:
- 1x Card Reader
- 1x CI/CI+ socket
- 1x Micro SD Card Reader

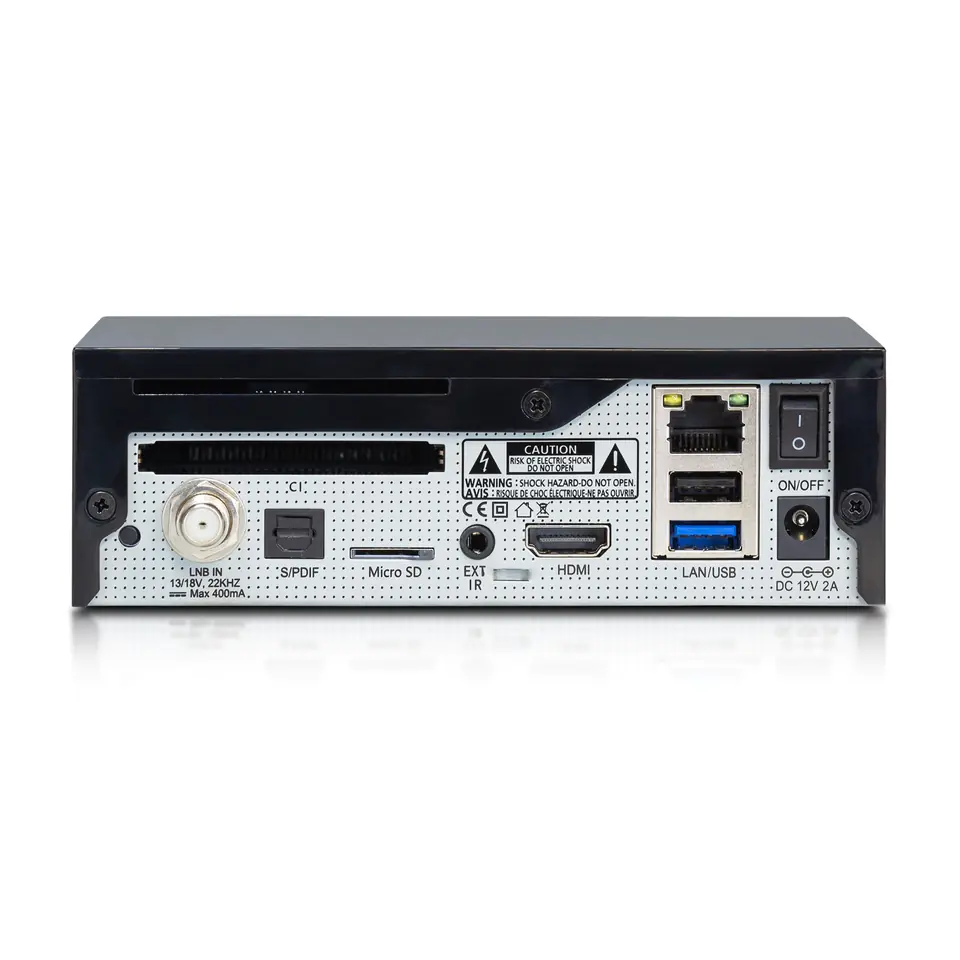

Video audio output:
- 1x IR

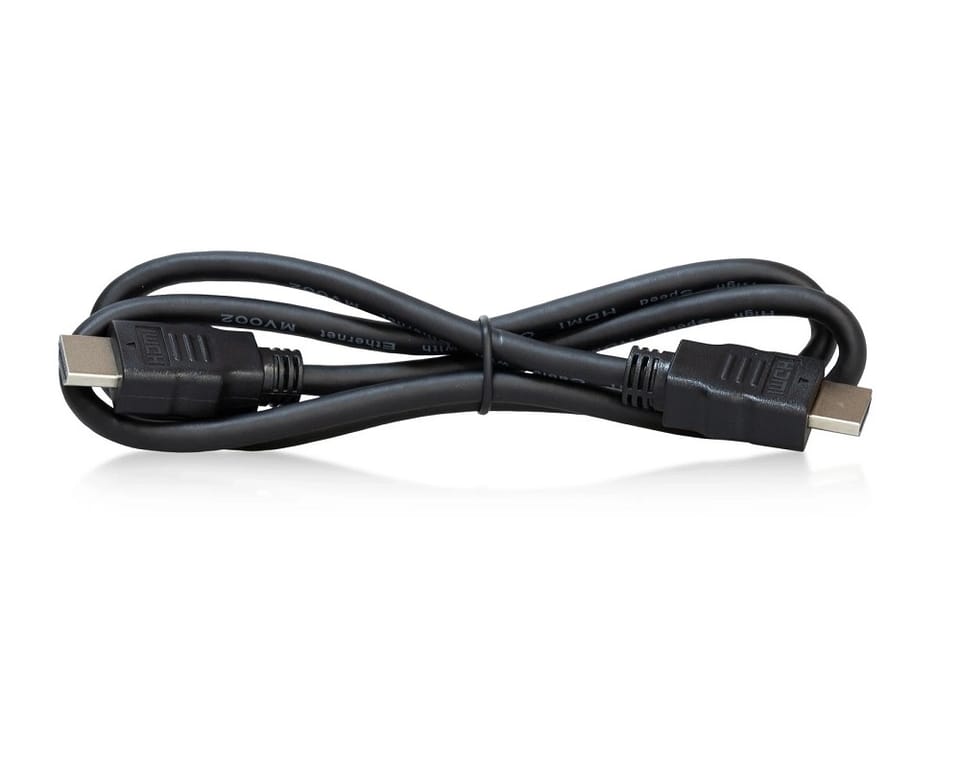

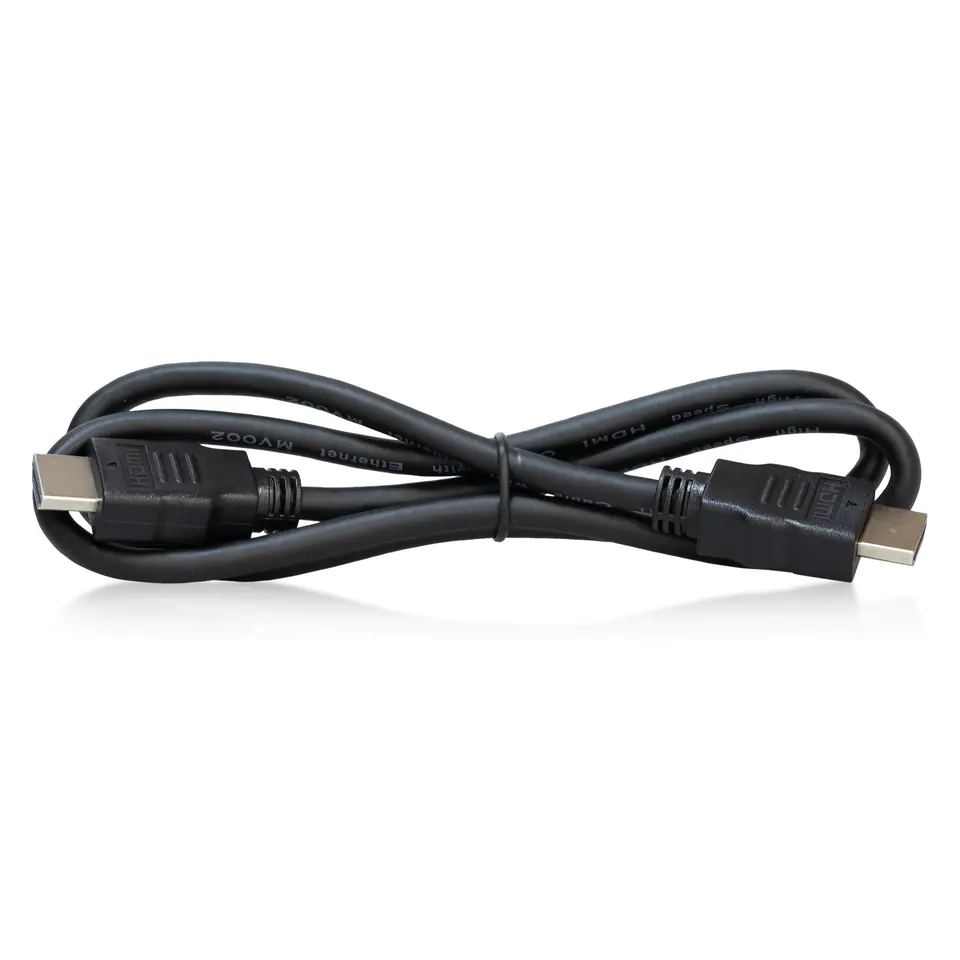

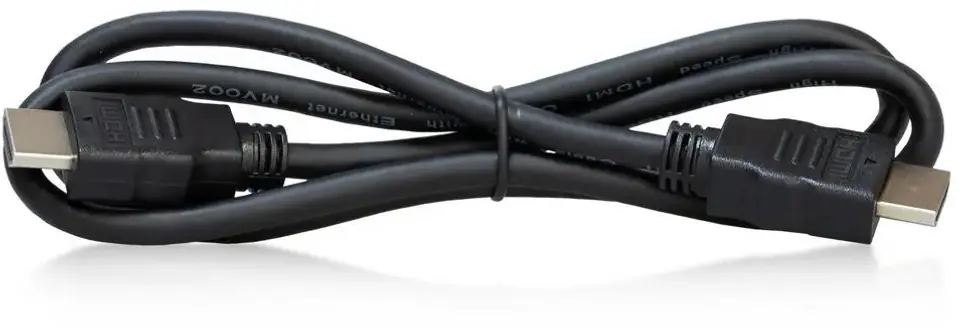

- 1x HDMI
- 1x Optical SPDIF
Input/Output:
- 1x USB 2.0 + 1x USB 3.0
- Micro SD
Internet:
- RJ-45 10/100 Mbps
- WiFi (optional)

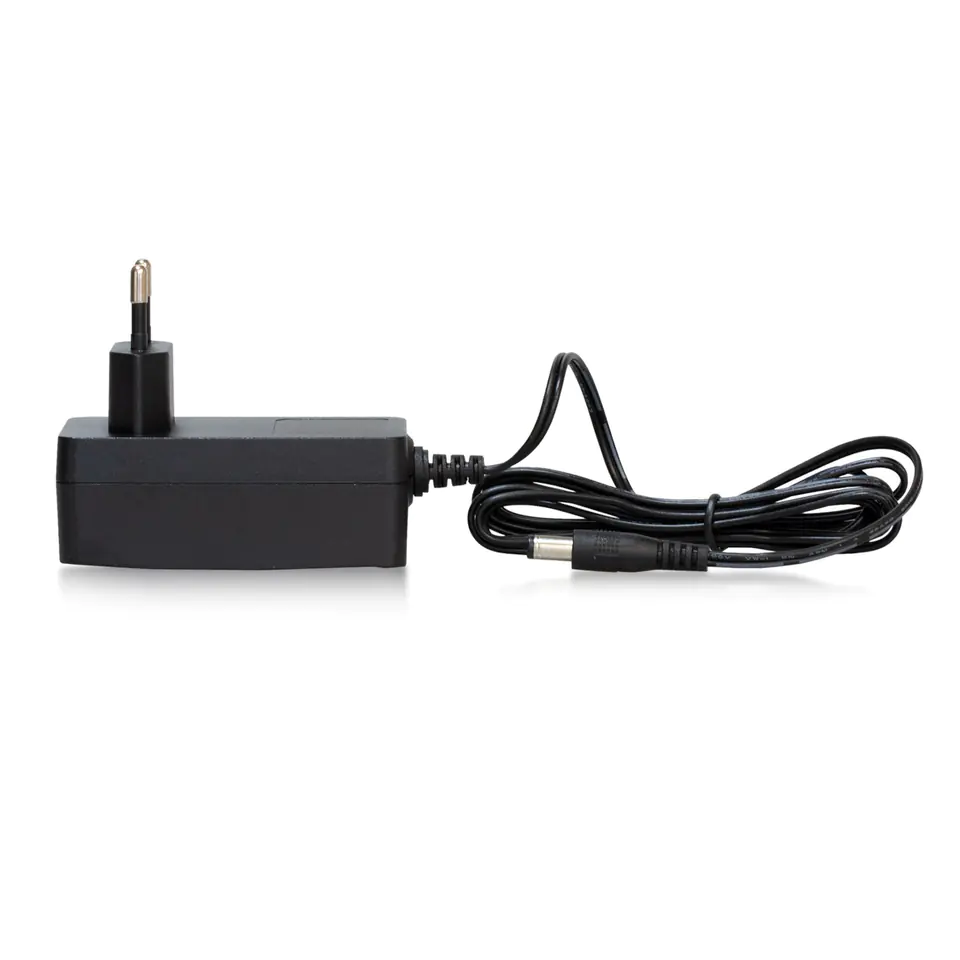

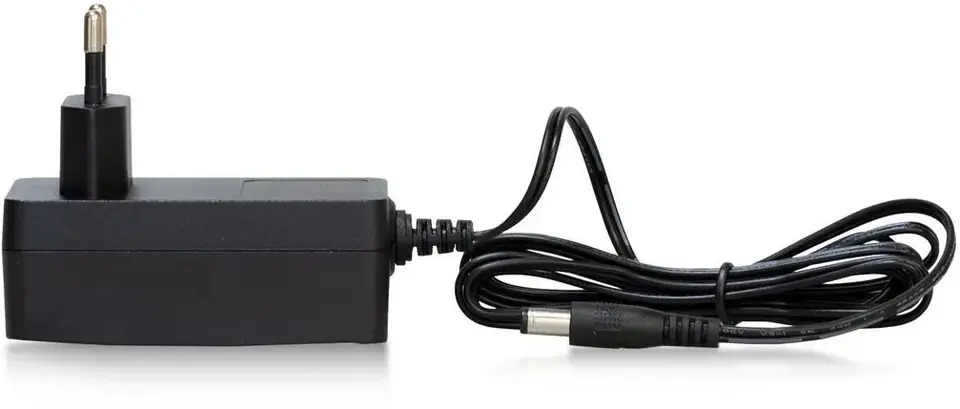

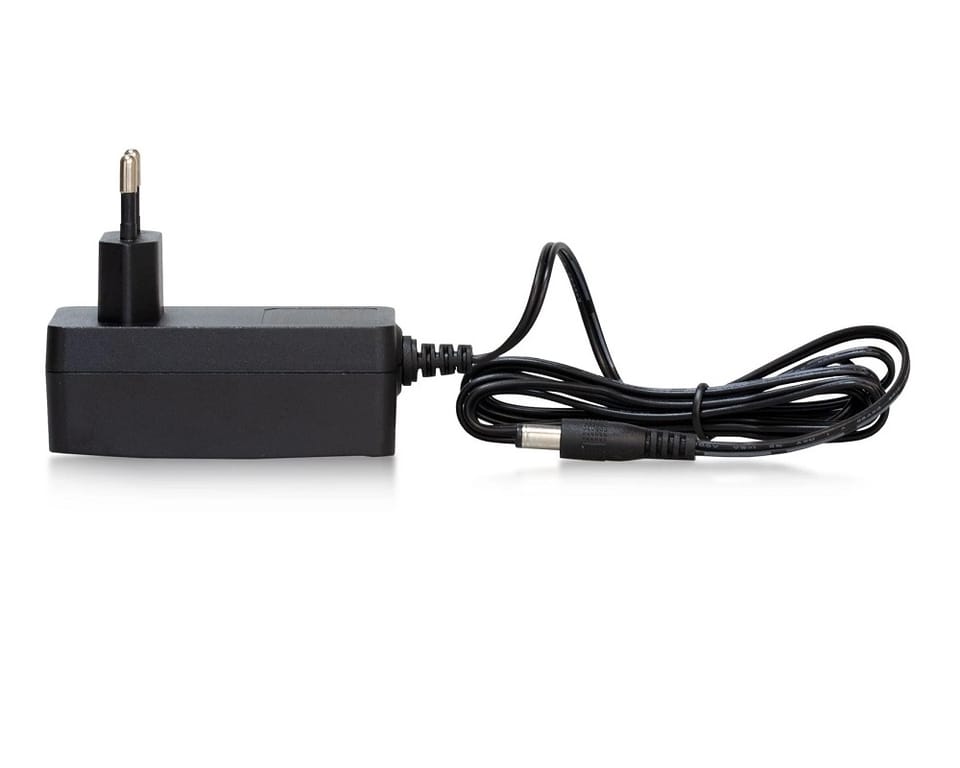

Power supply:
- Input DC 12V-3A
- Power consumption max. 36W
Dimensions:
- 145x110x46 mm
