Satellite tuner PULSe 4K COMBO DVB-S2X + DVB-T2/C Linux Enigma2

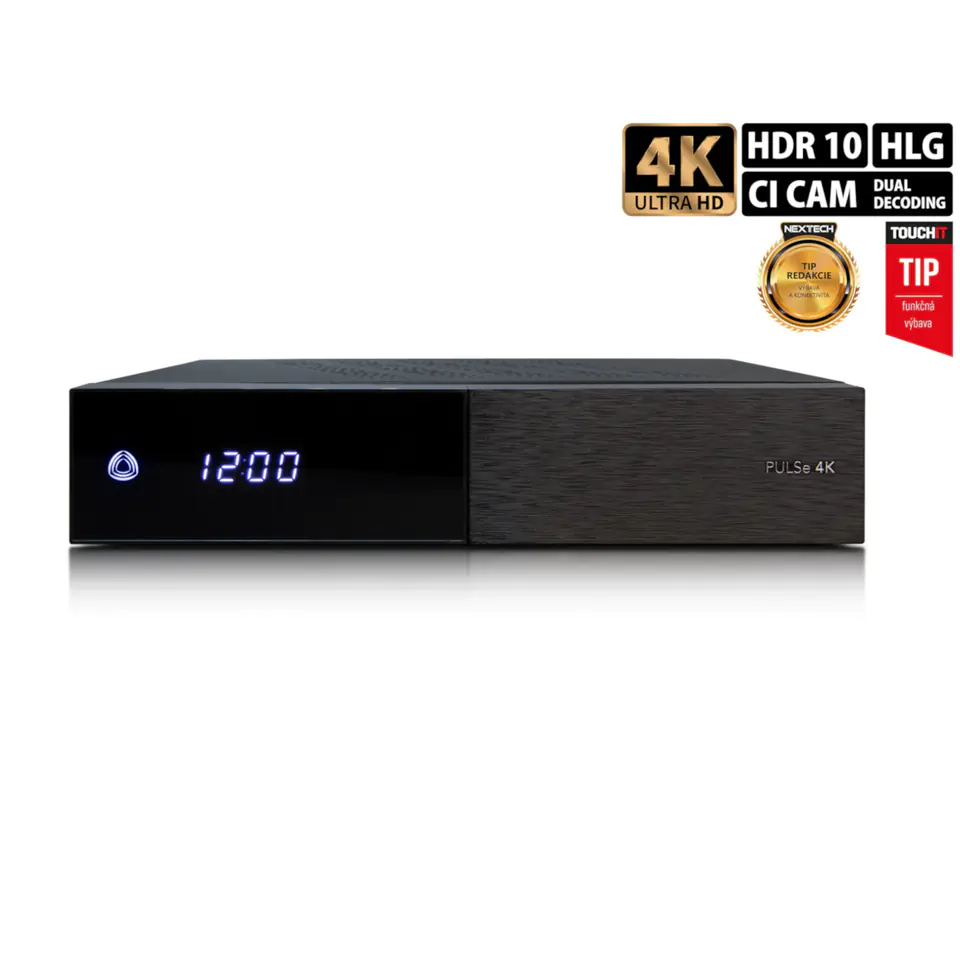

PULSe 4K is a receiver with UHD 4K resolution and Linux ENIGMA 2 operating system. A beautiful image in 4K resolution is of course a matter of course, as are HDR/HDR10 and HLG image standards. Performance and responsiveness will be ensured by a quad-core processor with 15,000 DMIPS, 8 GB of FLASH memory and 2 GB of DDR4 RAM. The receiver includes a built-in DVB-S2X and DVB-C/T2 tuner, thanks to which it is prepared for satellite, terrestrial and cable transmissions of various operators.

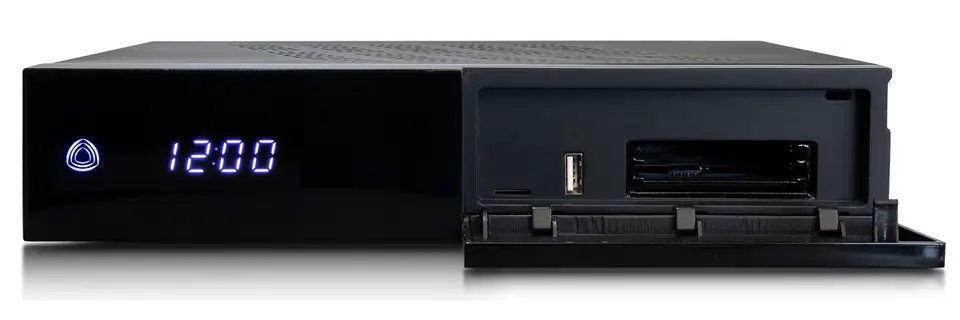

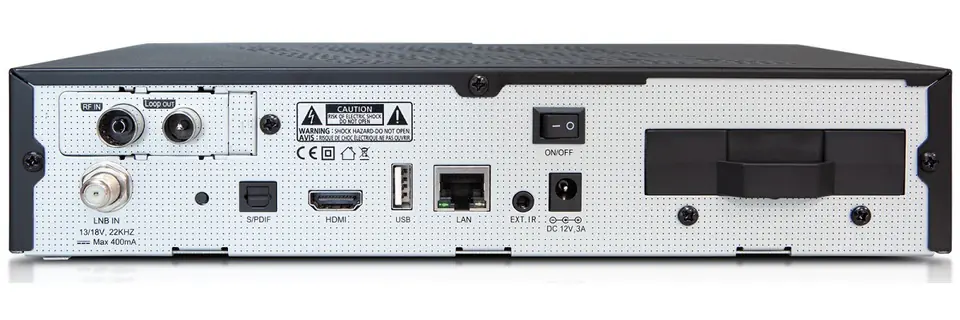

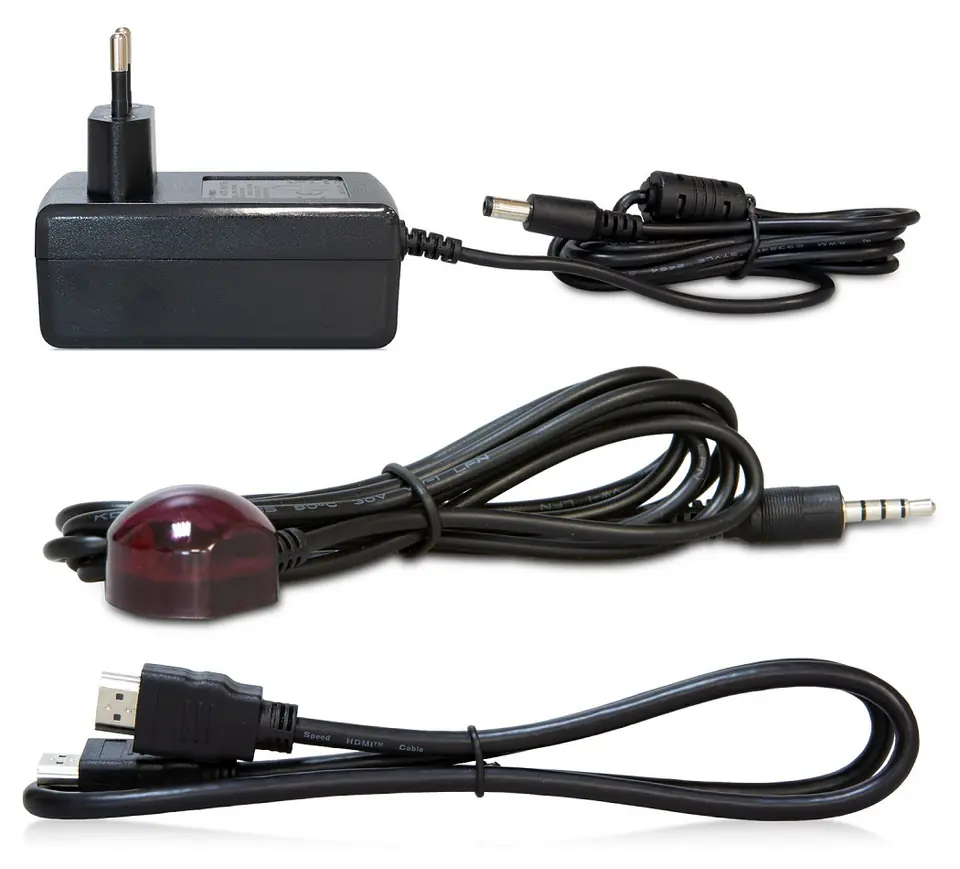

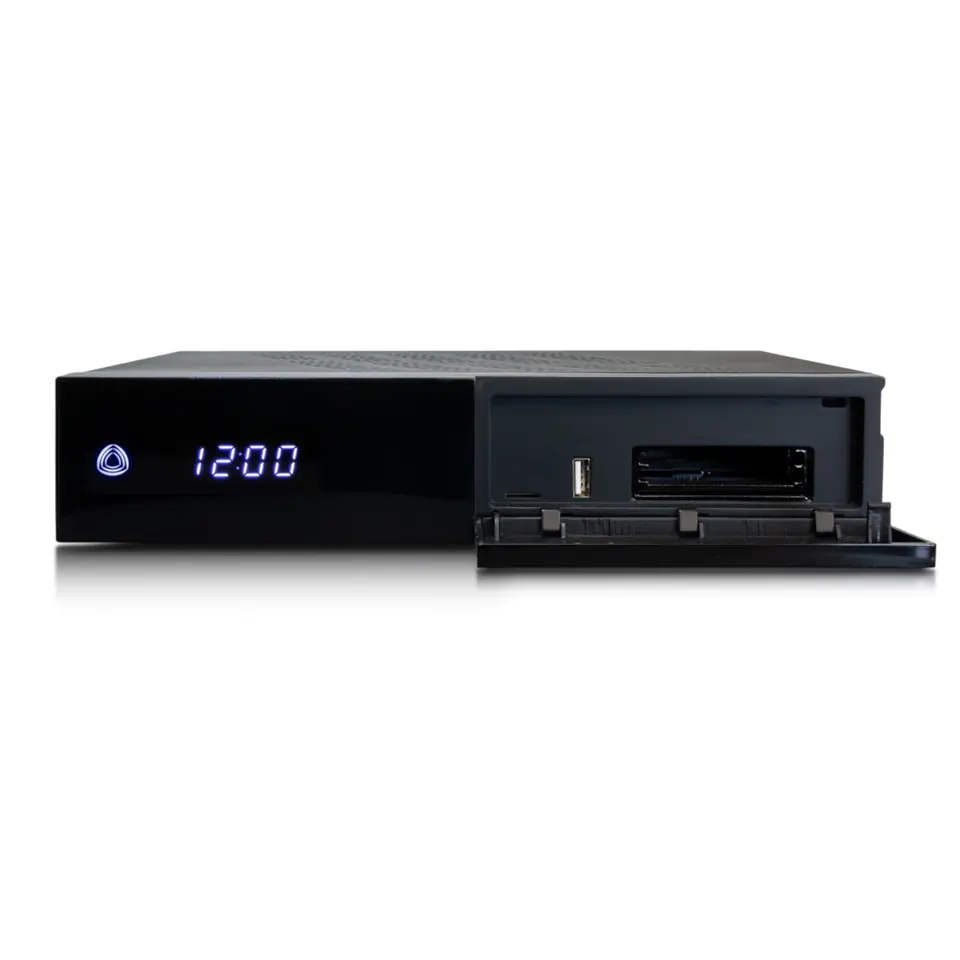

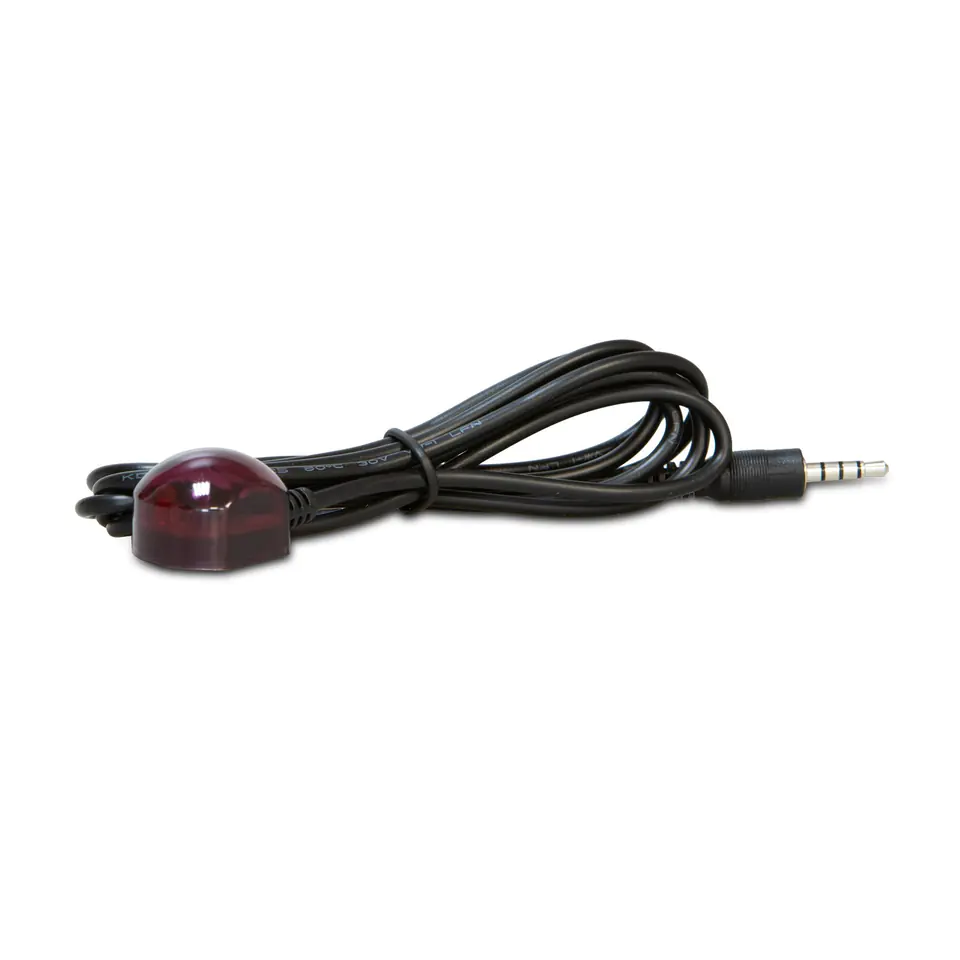

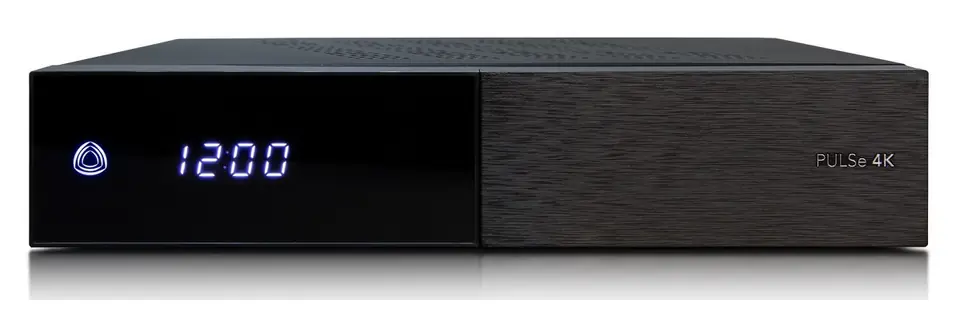

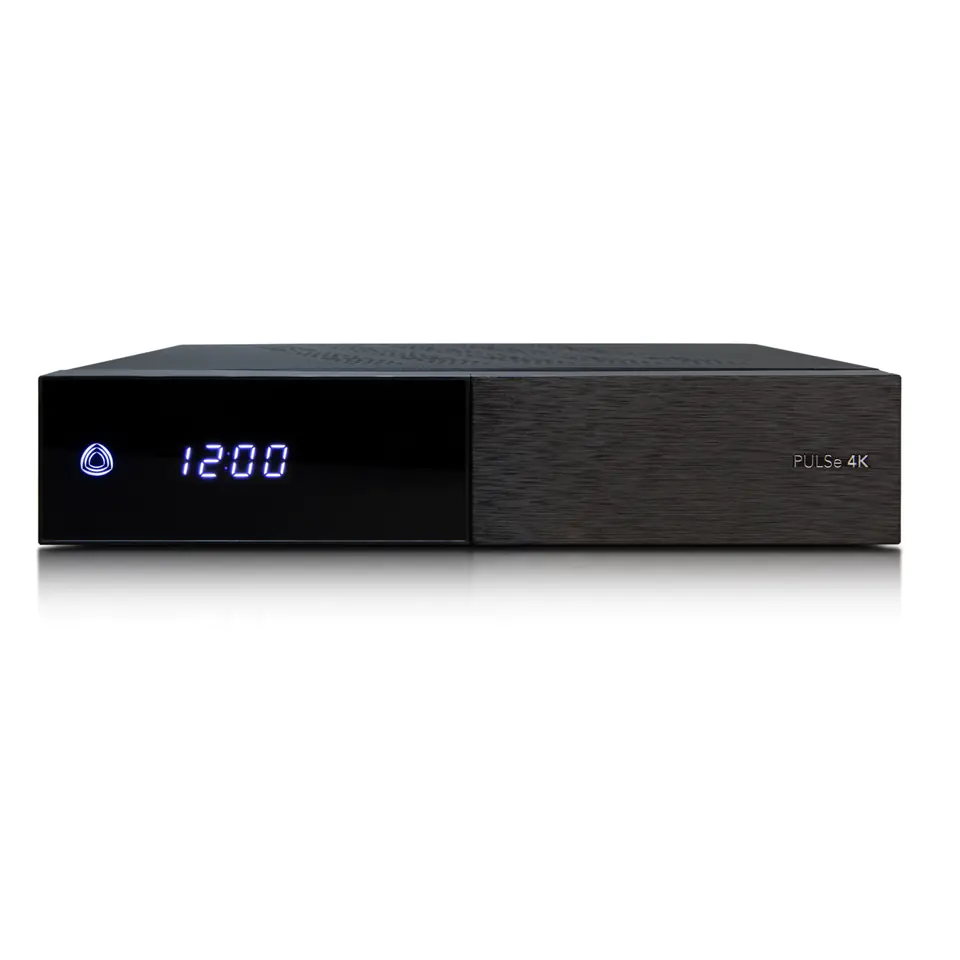

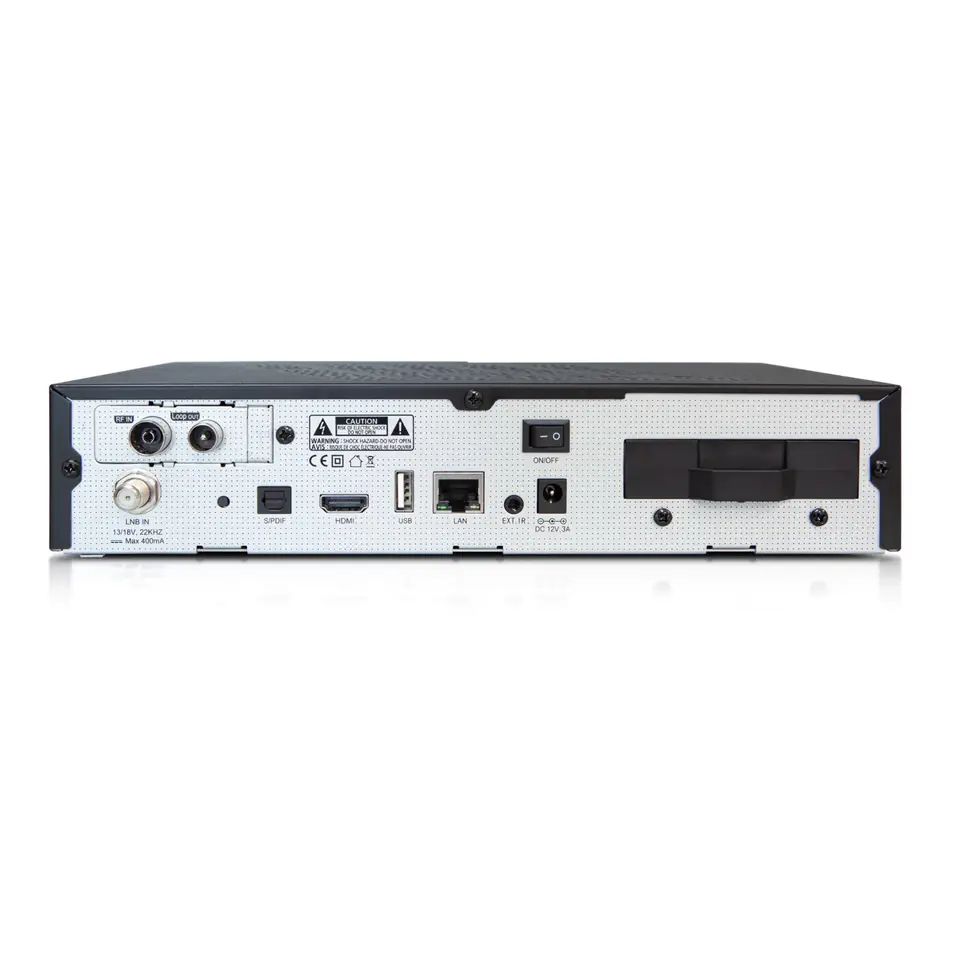

The elegant design of the receiver will fit into any living room. On the front panel there is a 7-segment LED display. Under the flap you will find 1x card reader, 2x ci/CI+ module slot, 1x USB 2.0 and 1x microSD card slot, which you can use as an internal memory for your recordings. On the back panel there is a built-in dual satellite tuner DVB-S2X. In addition to using the microSD card as internal storage, you can easily insert a 2.5" hard drive into the receiver through the HDD drawer system. On the back panel you will also find an optical S/PDIF digital audio output, USB 2.0, Ethernet RJ45, an IR extension jack (included with the receiver), a power switch and an input for an external DC 12V-3A power supply.
Take advantage of the power of the Linux Enigma2 operating system with plugins to give you a better TV viewing experience. Customize your device's environment to your preferences and watching TV will take on a new dimension.
The big advantage of this decoder is the simultaneous decoding of two CI/CI+ modules, i.e. decoding two programs from the CI/CI+ module in real time, which everyone will appreciate when watching a live broadcast and recording another program at the same time.

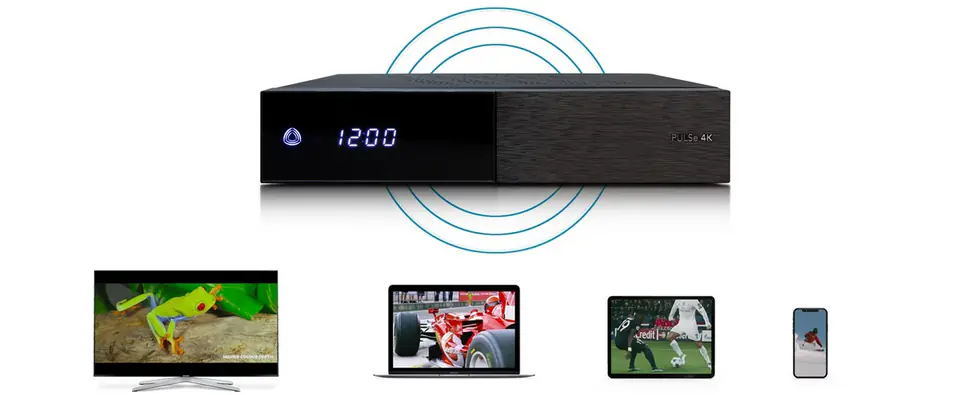

PULSe 4K can provide content distribution for your TV. In addition, you can watch other REAL-time TV broadcasts on the other two mobile devices and one computer.
2 x Mobile Device (Multiple Transcoding)
1 x Personal Computer (Web Interface)
1 x TV (HDMI)

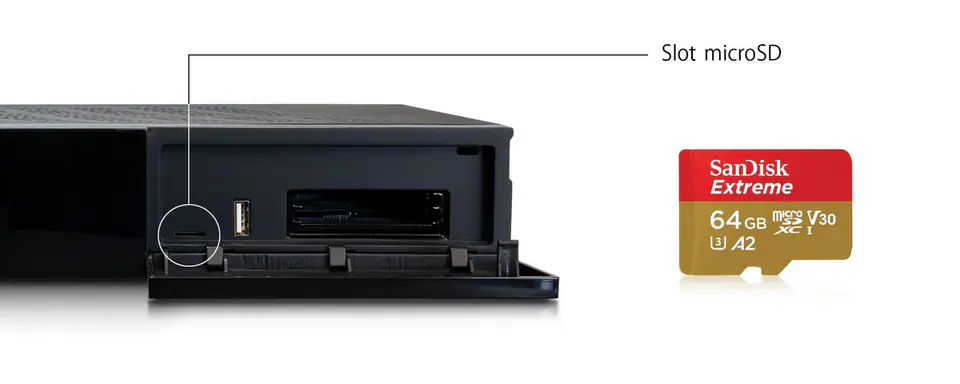

In addition to storing recordings on an internal 2.5-inch hard drive, you can also choose a more elegant solution, which is a microSD card. The microSD card fully replaces the functions of the internal hard drive and, above all, eliminates unwanted sounds from a standard 2.5" hard drive.
Calculation of microSD card capacity usage:
- a 32 GB microSD card can store about 13 hours of recordings
- a 64 GB microSD card can store approx. 25 hours of recordings
- a 128 GB microSD card can store about 50 hours of recordings

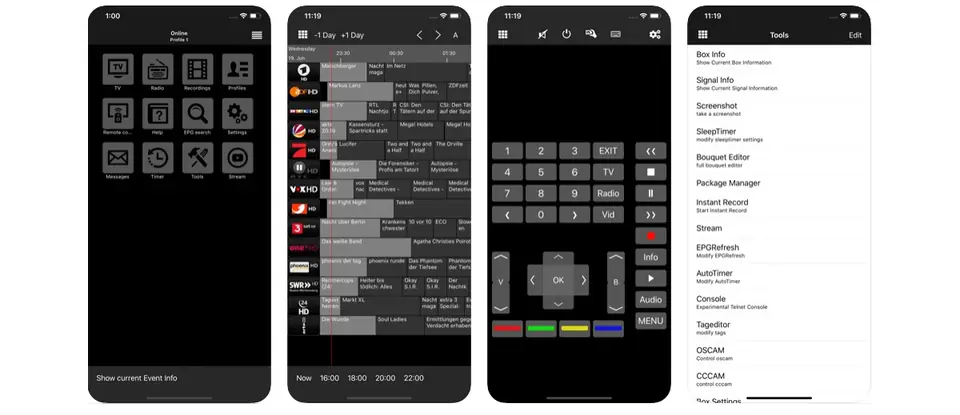

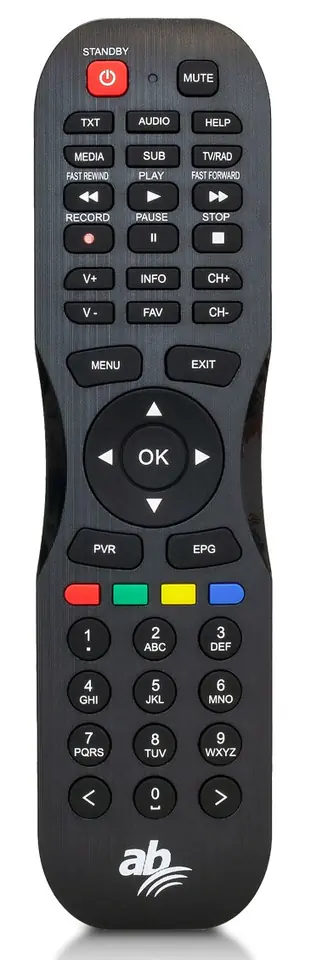

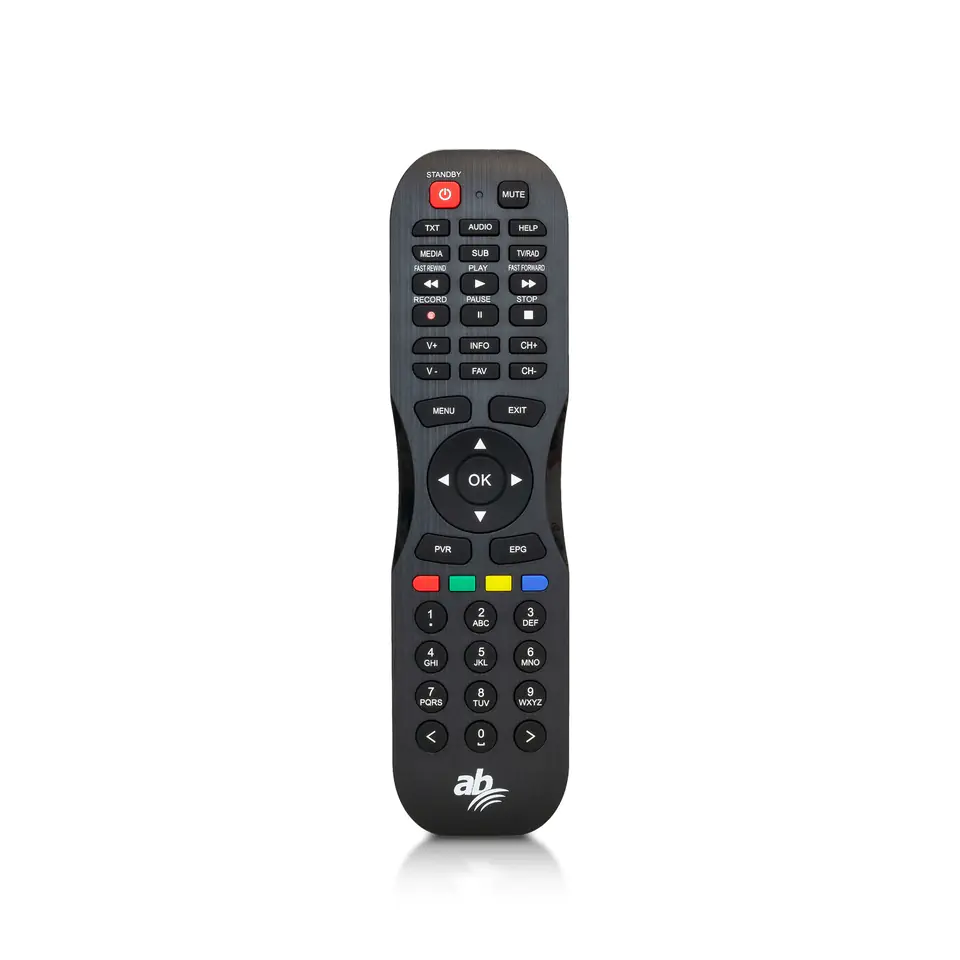

*The data is approximate depending on the bit rate of the program you recorded from, as each program has a different bitrate. The PULSe 4K receiver can also be controlled using a mobile phone. You can also use your mobile phone or tablet as a remote control. You can see on your phone what is currently broadcast on TV and remotely set what you want your PULSe to do. Want to record a movie or your favorite TV show? With a mobile phone, you get it in just a few clicks. All recordings will be stored on 4K PULSe and you can view them on your mobile phone or tablet at any time when you need them. If you have a recognized TV, but you need to move to another place, there is nothing easier than transferring a TV broadcast to a mobile device.
We recommend the dreamDroid app for Android devices.
We recommend e2Remote Lite for Apple devices.
An external WiFi antenna can also be connected to the receiver, which will provide a wireless internet connection. Technical specification:
- Quad-core QUAD 15,000 DMIPS processor
- Flash 8 GB EMMC
- RAM 2GB DDR4
- Tuner: 1x DVB-S2X + 1x Plug & Play
- Video decoding - 4K x 2K @ 60 10-bit HDR/HDR10 and HLG decoding
- Transcoding: Multi Transcoding & Multiroom Support
- HDD slot for 2.5 hdd max. 15 mm
- 7-segment LED display
- Card reader - 1x
- CI/CI+ socket - 2x
- USB - 2x
- RJ45 - 1x
- Micro SD card slot - 1x
- Infrared extender - 1x
- SPDIF - 1x
Tuner:
- DVB-S/S2/S2X
- DVB-T2/C
- MPEG1, MPEG2, H264, H265 HEVC, CAVS, VP8, VP9 video decoding
- Video formats: 4:3 Letter Box, 4:3 widescreen scanning, 16:9
- Video resolutions: 4K x 2K, 1920x1080, 1280 × 720, 720 x 480, 720 x 576
- Audio decoding: MPEG-1 I/II, downmix PCB, IEC958 SPDIF left/right/stereo/mono
- Decoding: 10 bits, HDR/HDR10, HLG
Main system:
- Processor: Hi3798MV200 (multi-core 64-bit) ARM
- Flash memory: 8 GB EMMC
- RAM: 2GB DDR4
Slots:
- 1x Card Reader
- 2x CI/CI+ socket
- 1x Micro SD Card Reader
Video audio output:
- 1x IR
- 1x HDMI
- 1x Optical SPDIF
Input/Output:
- 2 x USB 2.0
- External hard drive connected via HDD slot
- Micro SD
Internet:
- RJ-45 10/100 Mbps
- WiFi (optional)
Power supply:

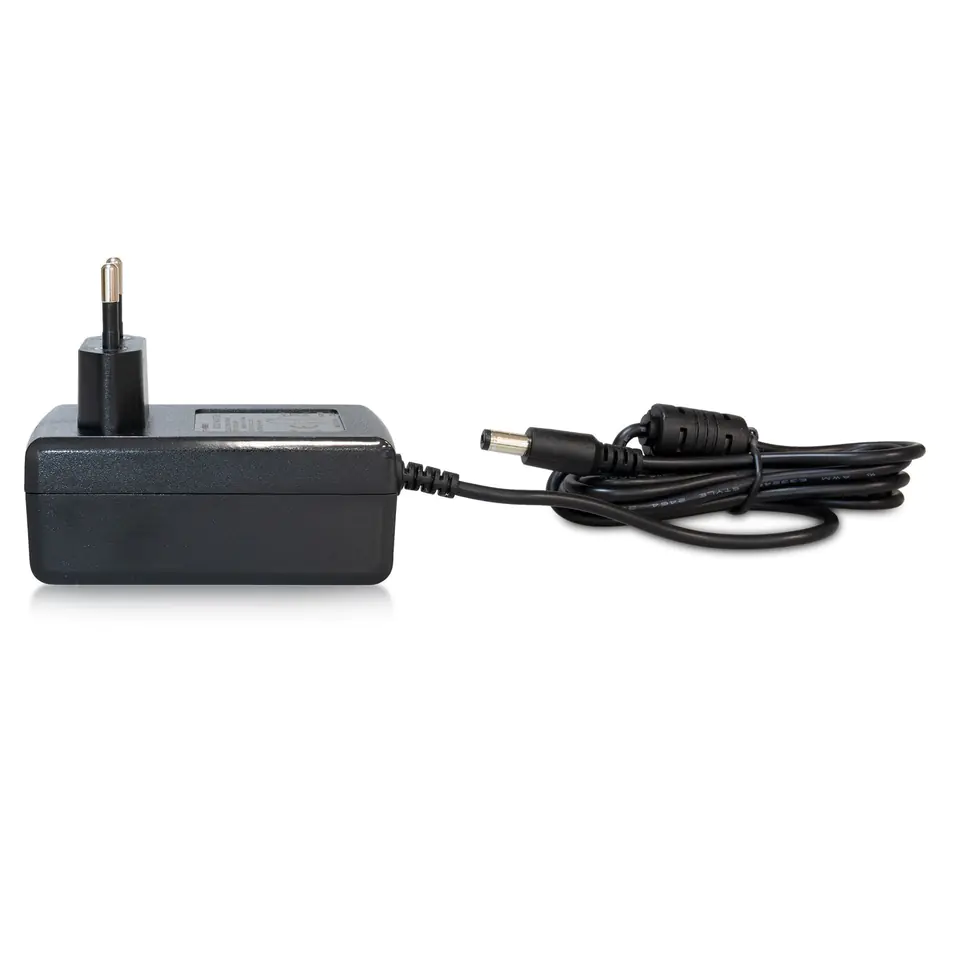

- Input DC 12V-3A
- Power consumption max. 36W
