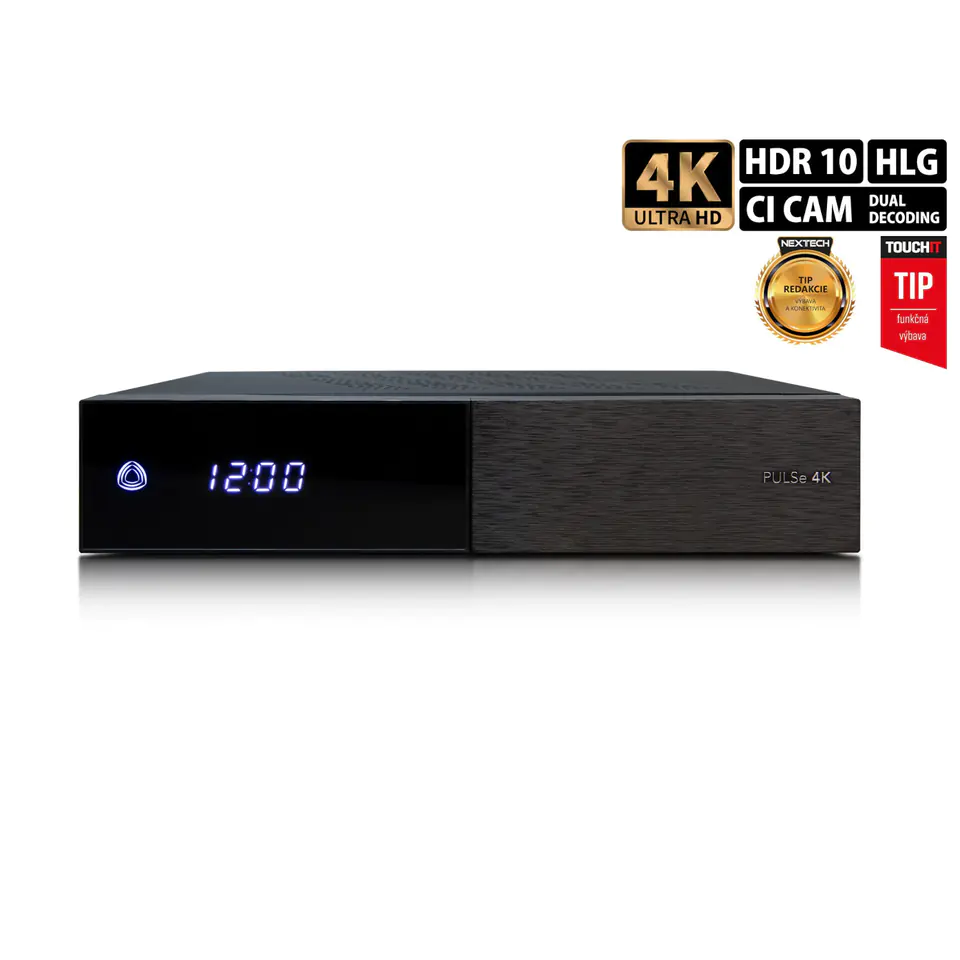

PULSe 4K (version: 1x DVB-S2X tuner) is a receiver with UHD resolution and ENIGMA 2 operating system. The beautiful 4K picture is breathtaking, as are the HDR/HDR10 and HLG picture standards. The performance and speed of image transfer will be ensured by a quad-core processor with 15,000 DMIPS, 8 GB of FLASH memory and 2 GB of DDR4 RAM. The receiver includes a built-in DVB-S2X tuner and a slot for a second Plug & Play DVB-S2X satellite tuner or a DVB-C/T2 terrestrial/cable tuner, making it ready for satellite, terrestrial and cable broadcasting by various operators.

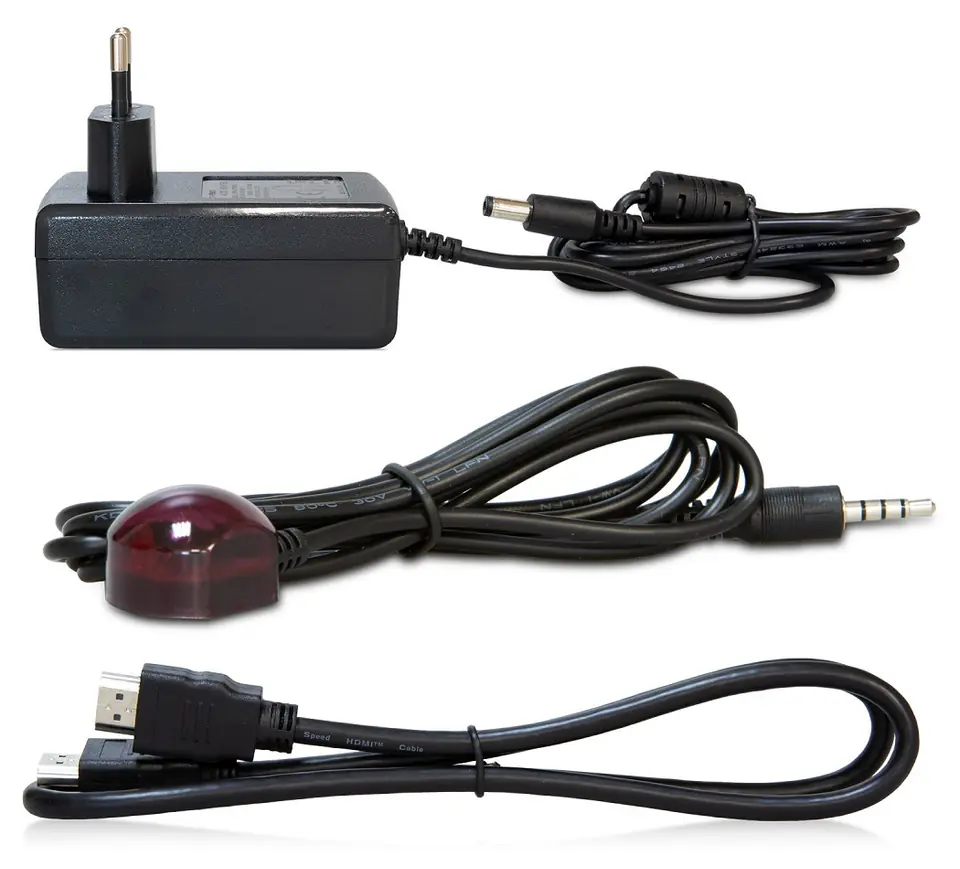

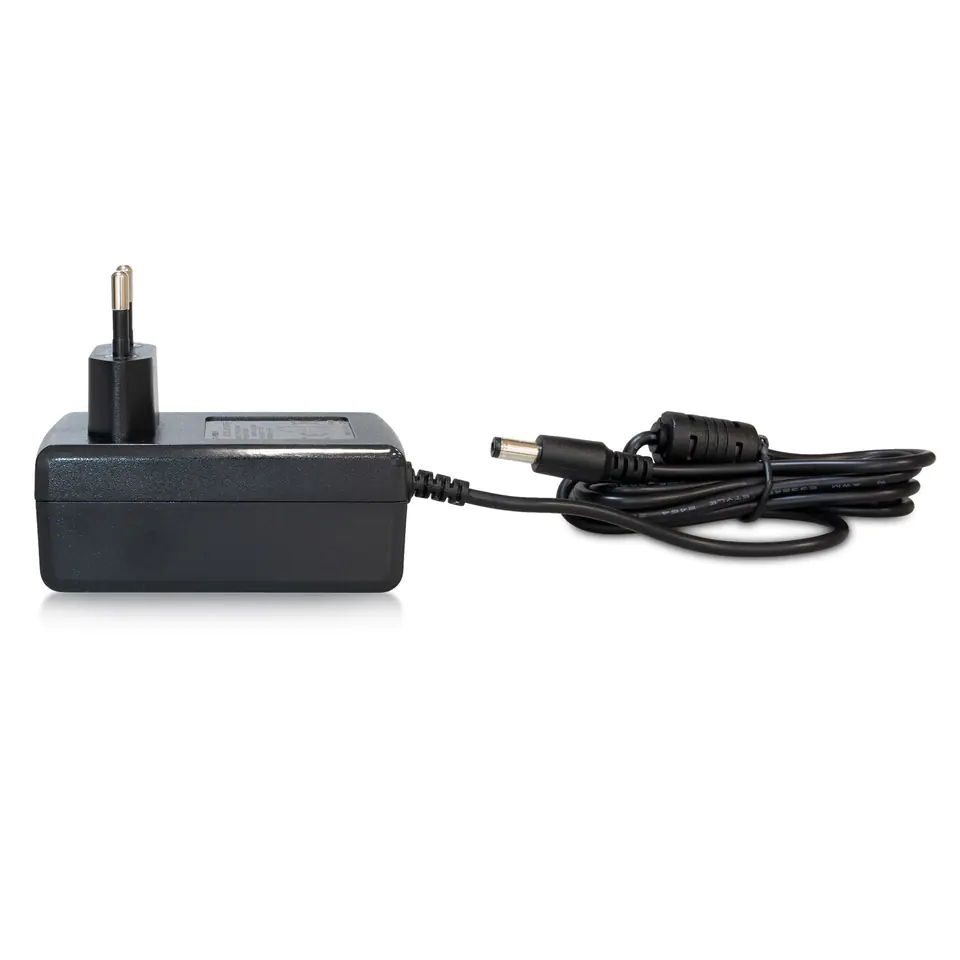

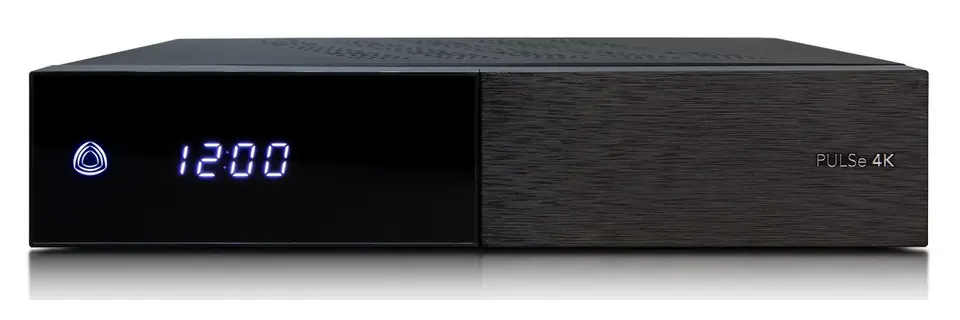

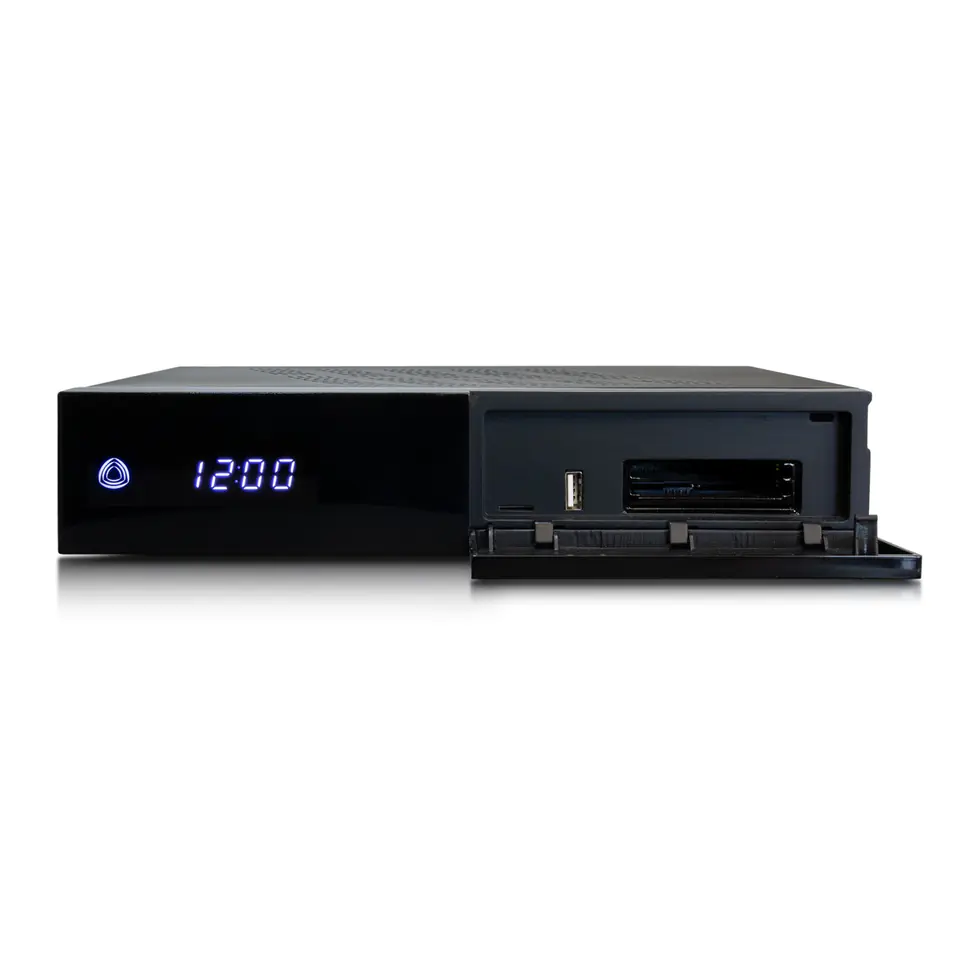

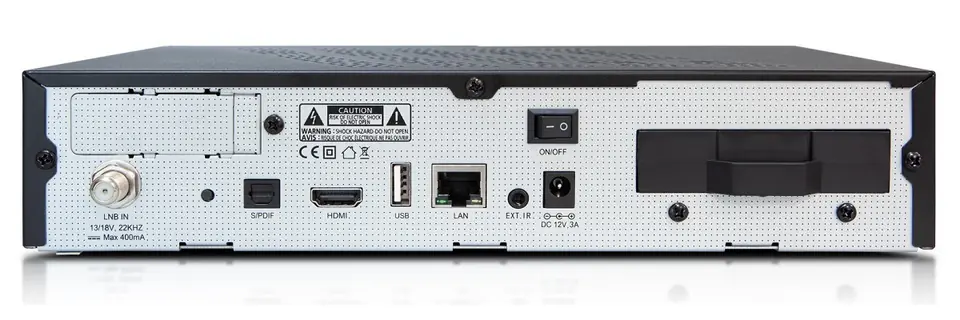

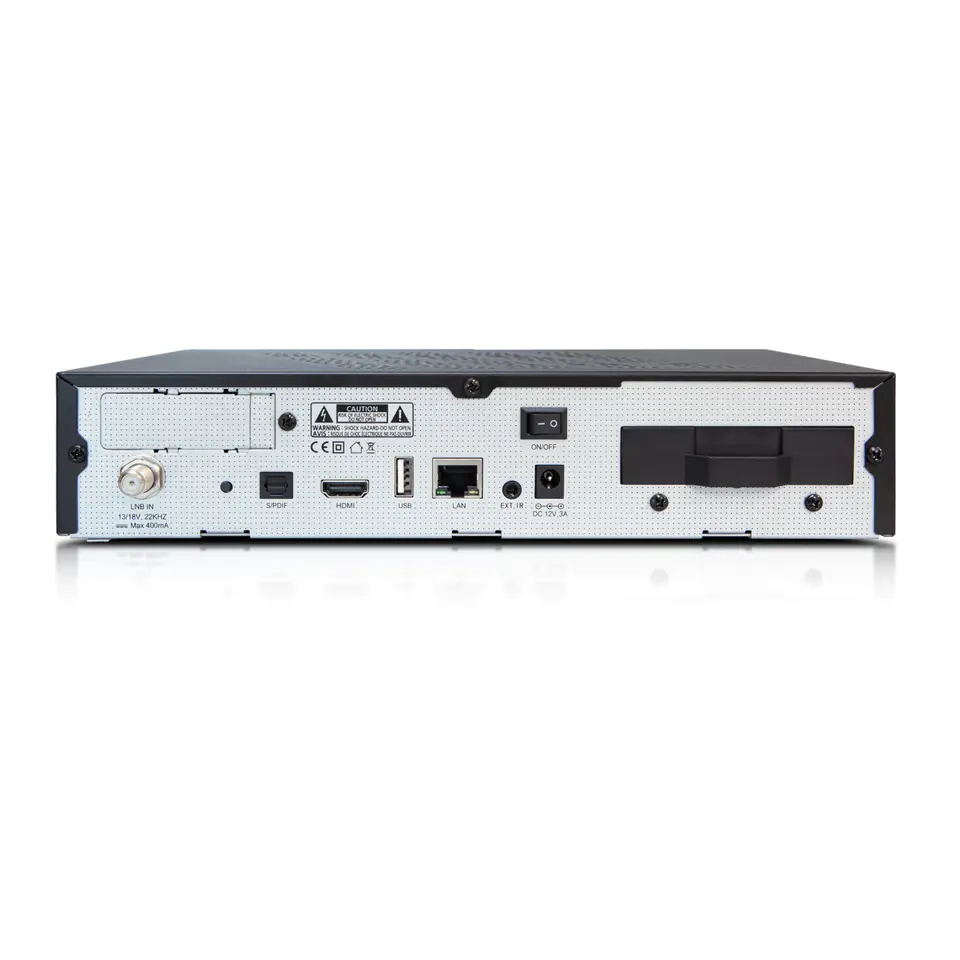

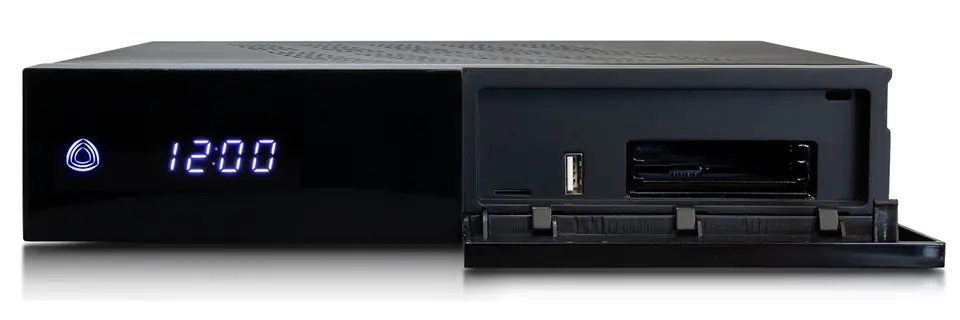

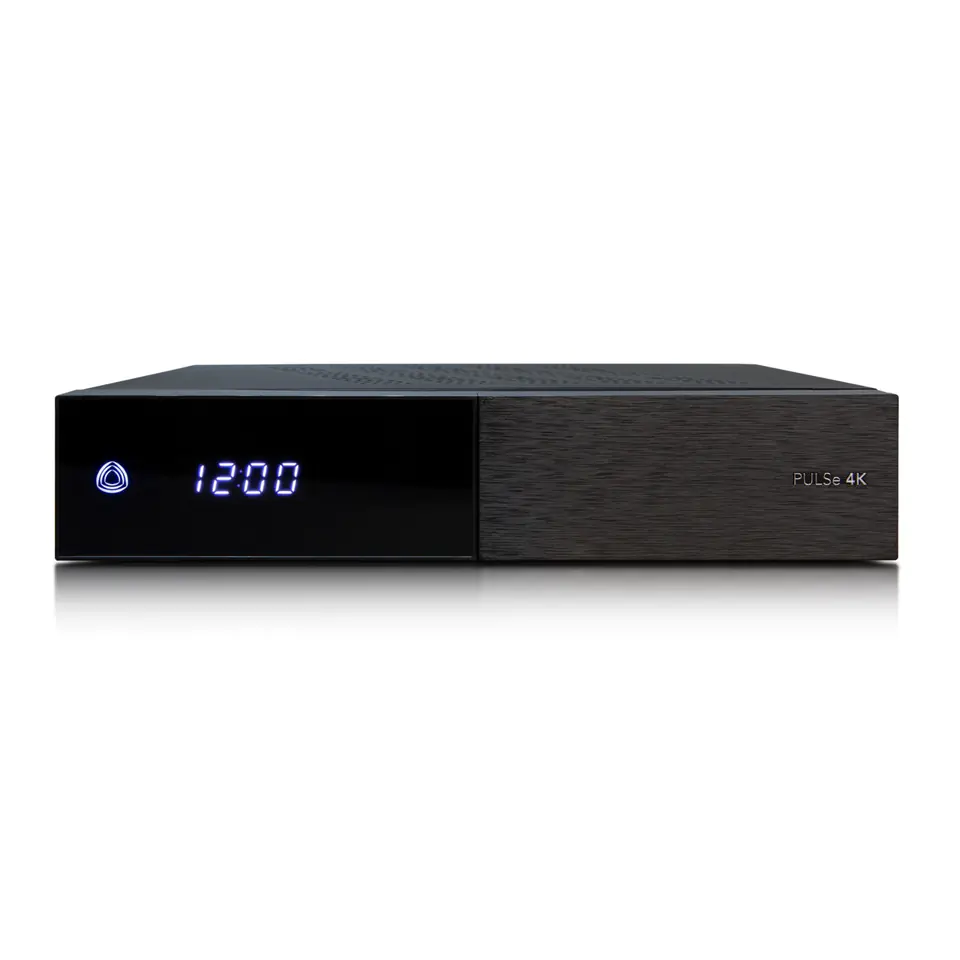

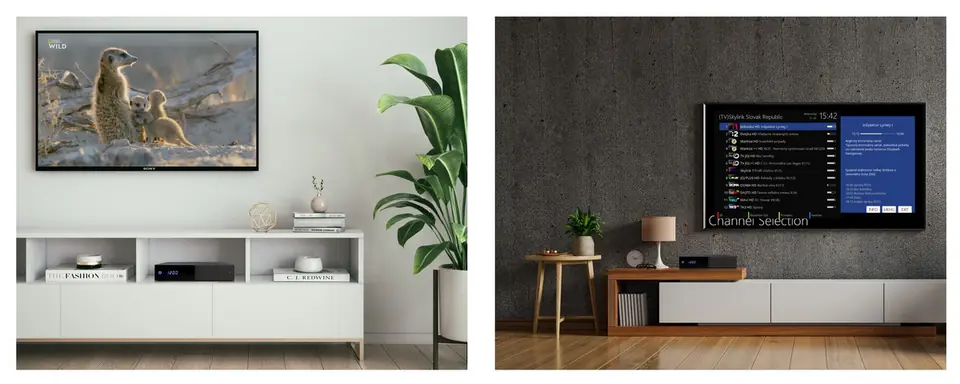

The elegant design of the receiver will fit into any living room. On the front panel there is a 7-segment LED display. On the back you will find 1x card reader, 2x CI module slot, 1x USB 2.0 and 1x microSD card slot that you can use as internal storage for your recordings. On the rear panel there is a built-in DVB-S2X satellite tuner and a socket for a second Plug & Play tuner, which can be equipped with a satellite or terrestrial/cable tuner. In addition to using a microSD card as internal storage, you can easily insert a 2.5" hard drive into the receiver via the drawer system. Next to it you will find an optical digital audio output S/PDIF, USB 2.0, Ethernet RJ45, infrared sensor (in the receiver package) and an input for an external DC 12V-3A power supply.
Why PULSE 4K
PULSE 4K will give you beautiful UHD images with the popular Enigma 2 operating system, which you also know from other HIGH-END receivers.
Take advantage of the possibilities that this operating system offers with plugins, providing a better experience when watching TV. Customize your device's environment to your preferences and watching TV will take on a new dimension.
The big advantage of this receiver is the simultaneous decoding of two CI modules or decoding two programs from the CI module in real time, which everyone will appreciate when watching a live broadcast and recording another program at the same time.

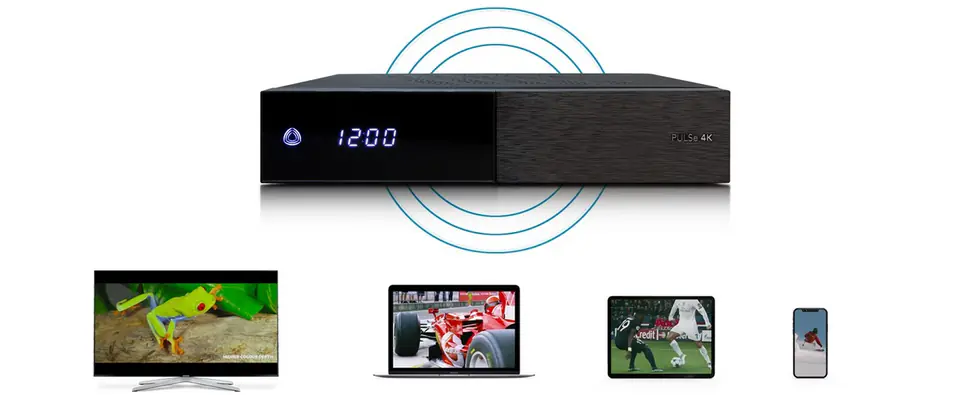

In addition, you can watch another TV broadcast in real time on the other two mobile devices and one computer.
2 x Mobile Device (Multiple Transcoding)
1 x Personal Computer (Web Interface)
1 x TV (HDMI)

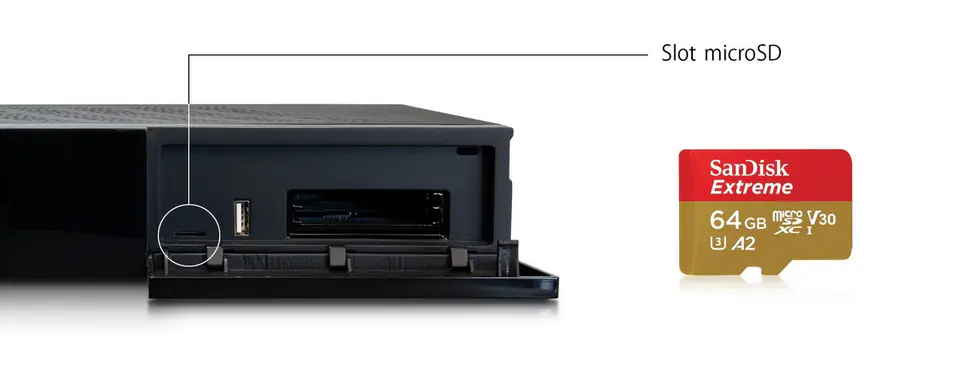

In addition to storing recordings on an internal 2.5" hard drive, you can also choose a more elegant solution, which is a microSD card. The microSD card fully replaces the functions of the internal hard drive and, above all, eliminates unwanted sounds
standard 2.5" hard drive.
Calculating the capacity of a microSD card:
- 32 GB microSD card can store about 13 hours of recordings
- 64 GB microSD card can store about 25 hours of recordings
- on a microSD card with a capacity of 128 GB you can store about 50
hours of recordings
* The data is approximate depending on the bit rate of the program you recorded. Each program has a different bitrate.

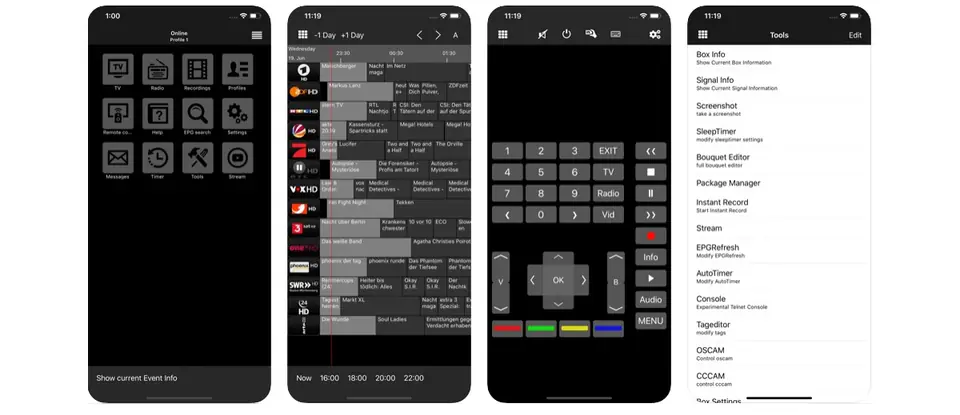

The PULS 4K MINI receiver can also be controlled via a mobile phone. You can also use your mobile phone or tablet as a remote control. You can see on your phone what is currently being broadcast on TV and set the recording in your PULSE. Want to record a movie or your favorite TV show? With a mobile phone you have
A few clicks. All recordings will be stored on the PULS 4K MINI and you can watch them at any time using your mobile phone or tablet whenever you want. If you have connected the TV to the tuner, there is nothing easier than transferring the TV broadcast to your mobile device. We recommend the dreamDroid app for Android devices.
We recommend e2Remote Lite for Apple devices.
An external WiFi antenna can also be connected to the receiver, which will provide a wireless connection to the Internet.
Technical Specifications:
- 1x DVB-S2X tuner
- Processor: QUAD CORE, 15,000 DMIPS
- Flash: 8 GB EMMC
- RAM: 2 GB DDR4
- 1x Card Reader
- 2x CI slot
- 1x HDMI
- 1x microSD card slot
- 2x USB 2.0
- Video decoding: 4K x 2K@60 10-bit decoding, 1920 x 1080, 1280 x 720, 720 x 480, 720 x 576 decoding
- HDR / HDR10 and HLG
- Transcoding: Multi transcoding and Multiroom support
- Display: 7-segment LED
- RJ45 Ethernet: 10/100Mbps
- Drawer system for internal hard drive 2.5"
- Optical digital audio S/PDIF output

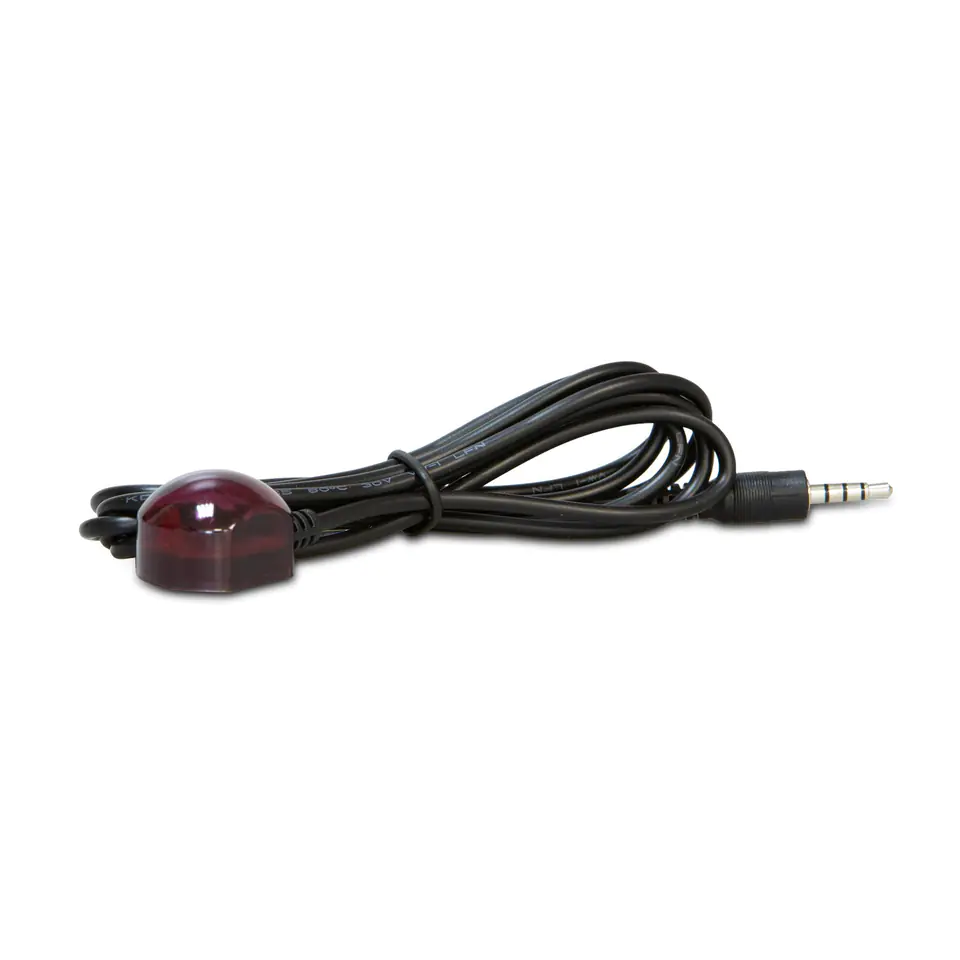

- IR extension cable for IR sensor (included)
- Video format: 4:3 Letter Box, 4:3 Pan Scan, 16:9
- Video decoding: MPEG1, MPEG2, H264, H265 HEVC, CAVS, VP8, VP9
- Audio decoding: MPEG-1 layer I/II, downmix PCB, IEC958 SPDIF left/right/stereo/mono
