8585# Audio nicam f-15b =f-15a

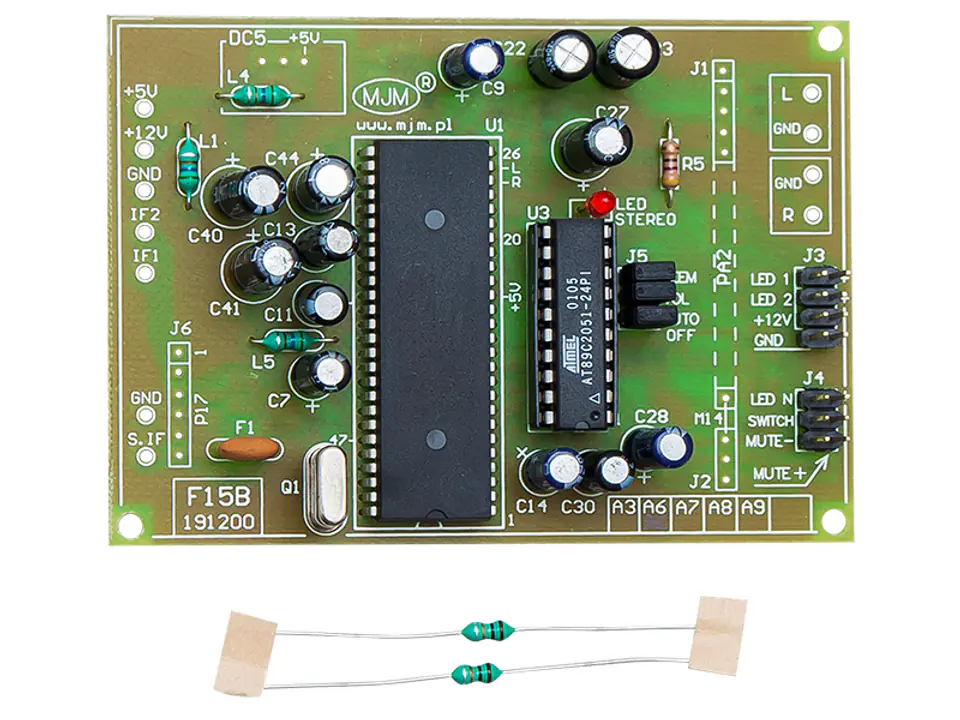

The F15B decoder enables the reception of all audio standards that are broadcast in Poland, including NICAM stereo. The decoder digitally processes the received signal, thanks to which the sound quality is very good. When the set-top box is installed in the TV, it takes over all the functions of the audio path, except for the volume, timbre and balance controls. The decoder is designed to work in two basic configurations:

Configuration I is designed for stereo receivers using the receiver's internal amplifier and speakers. All original receiver functions are retained.

configuration II for mono receivers requires cooperation with external stereo AUDIO equipment. Sound parameters are adjusted by an external amplifier.

The decoder automatically recognizes the standard of the received audio and can signal its type (mono, stereo, two sounds). To make it easier to connect the set-top box to different TV sets, several additional equipment boards have been designed. Using these plates, the set-top box can be connected to most stereo or mono TV sets. The F15B decoder can also be installed in A2 stereo video recorders, extending their capabilities to NICAM reception.

TECHNICAL DATA:
- Received audio standards:
1) CCIR B/G5.5MHzFM1 mono channel
2) OIRT D/K6.5MHzFM1 mono channel
3) CCIR A2 stereo5.5/5.74MHzFM1 stereo channel
4) CCIR two sounds5.5/5.74MHzFM2 independent mono* channels
5) OIRT stereo6.25/6.5MHzFM1 stereo channel
6) OIRT two sounds6.25/6.5MHzFM2 independent mono channels*
7) MIX stereo5.74/6.5MHzFM1 stereo channel
8) NICAM 728 stereo5.85/6.5MHzQPSK/FM1 stereo channel + FM channel
9) NICAM 728 two sounds5.85/6.5MHzQPSK/FM2 mono channels + FM channel*
-Power:
two voltages: 12V / 40mA and 5V / 210mA,
or single voltage from 12V to 18V / 150mA using an additional DC5 converter.
-Input:
audio differential frequency signal from the audio detector output (S.IF), optimal input voltage - 100mVpp - 300mVpp
or indirect video frequency (IF) signal from the output of the w.cz head. TV receiver, using an additional P17 amplifier board
- Audio output signal: typically 0.7V rms
- Dimensions : width 96.5mm x depth 69mm x height: min. 17mm max. 48mm, dependent on accessory plates
