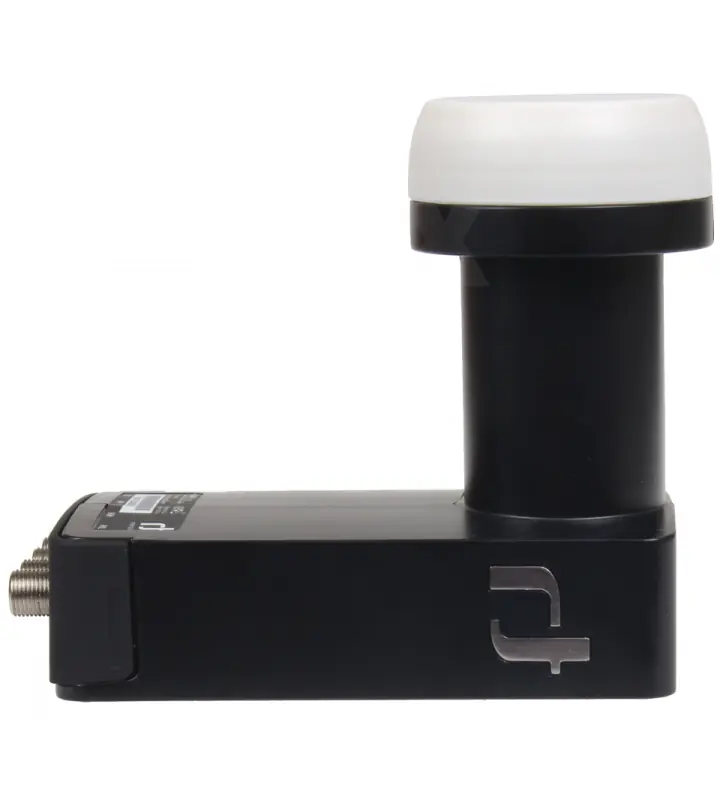

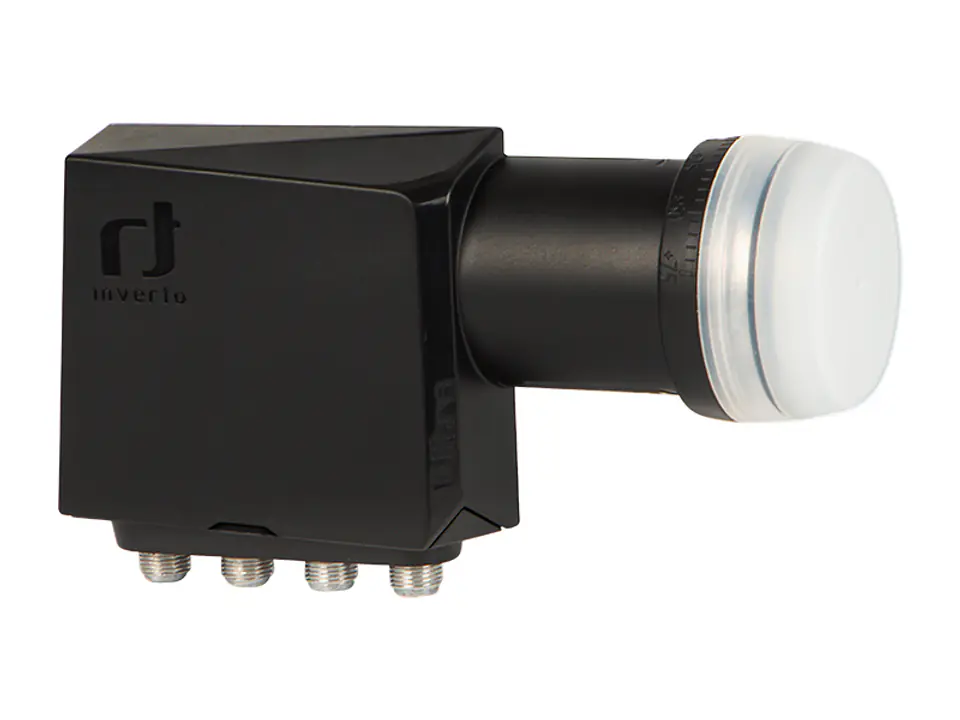

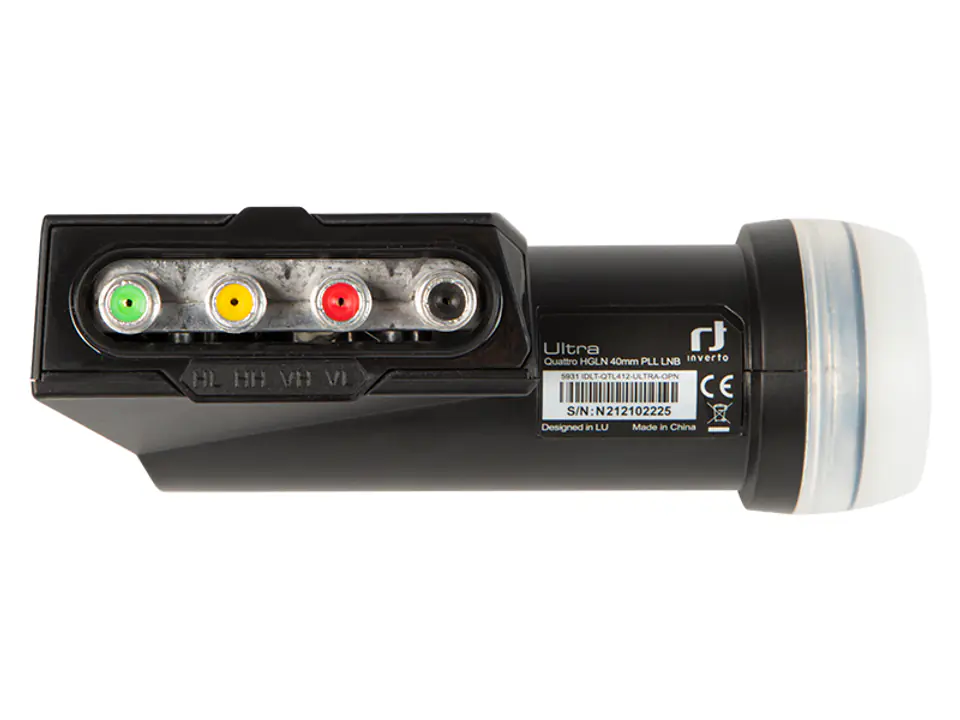

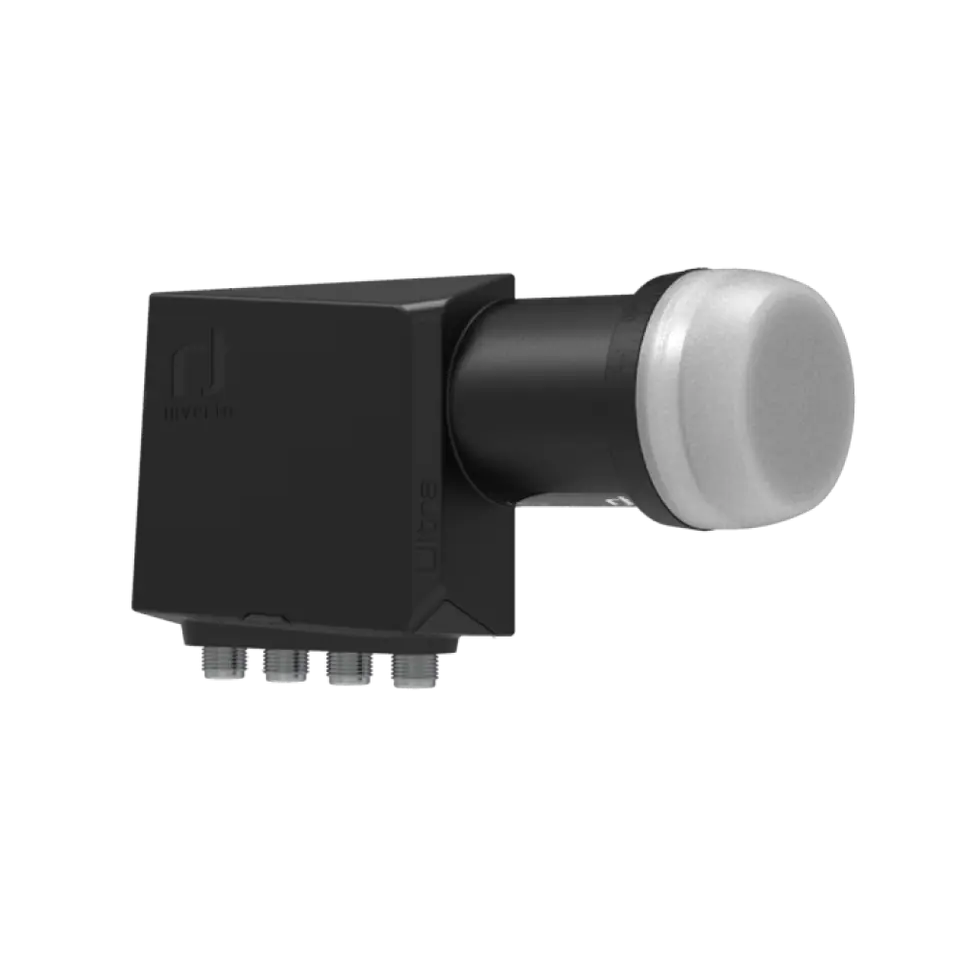

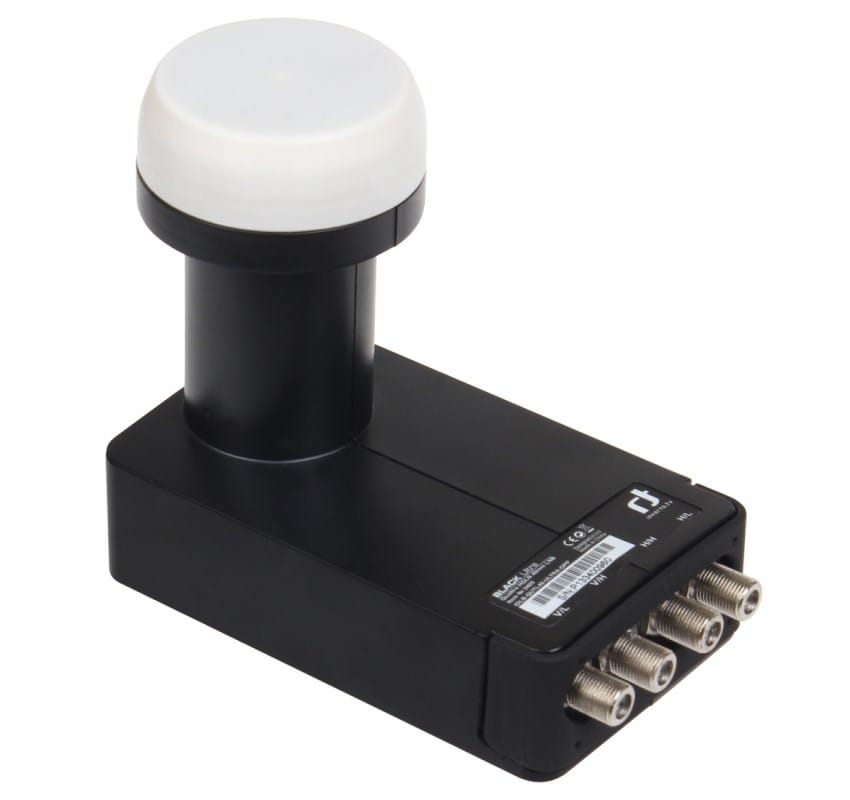

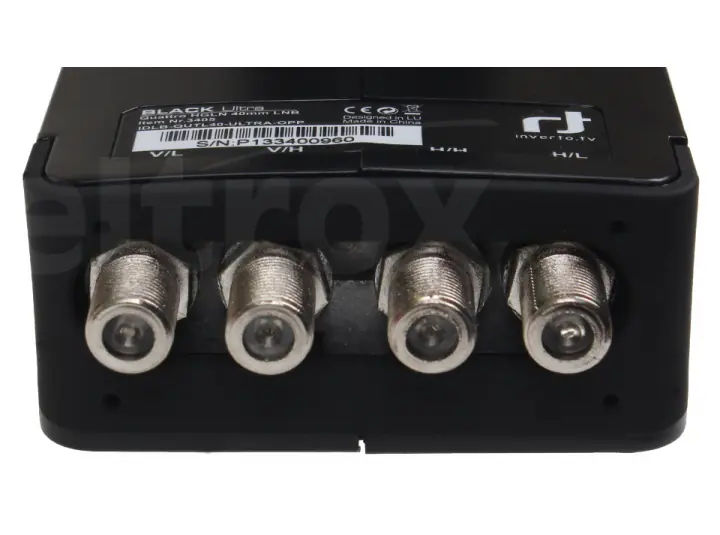

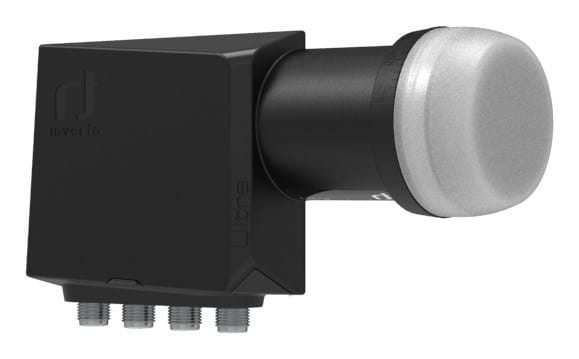

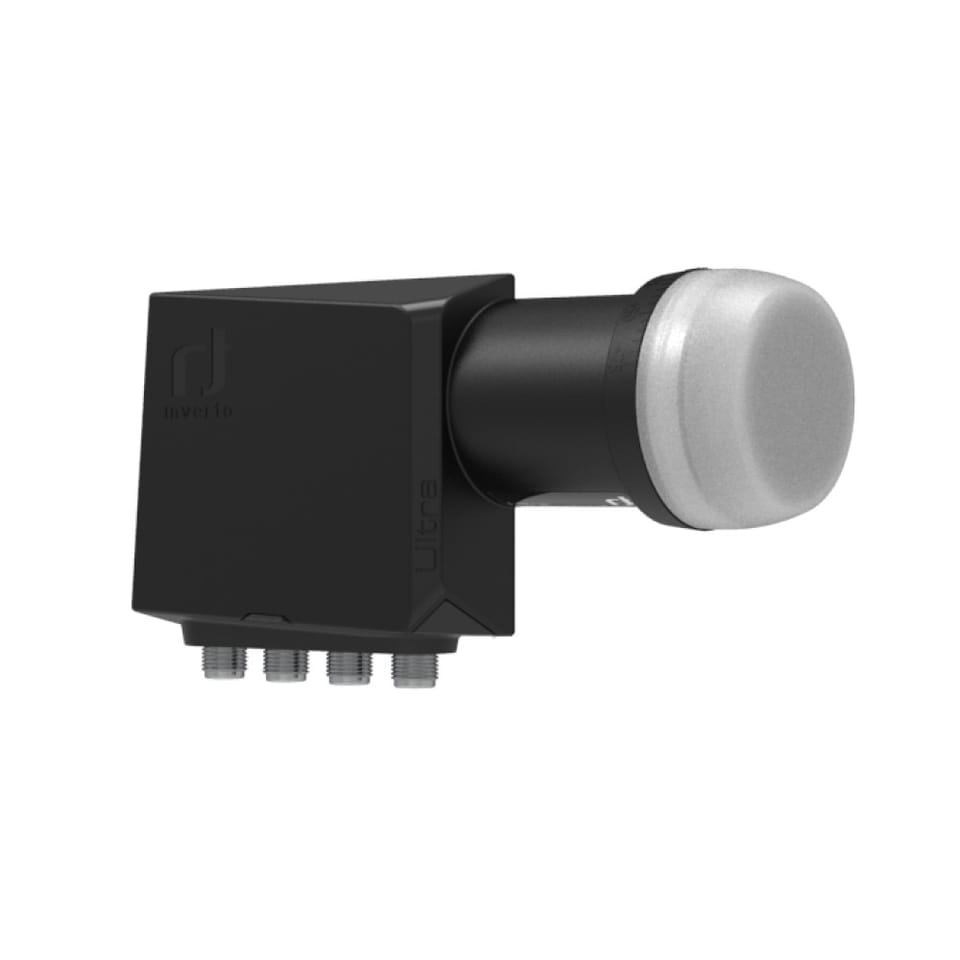

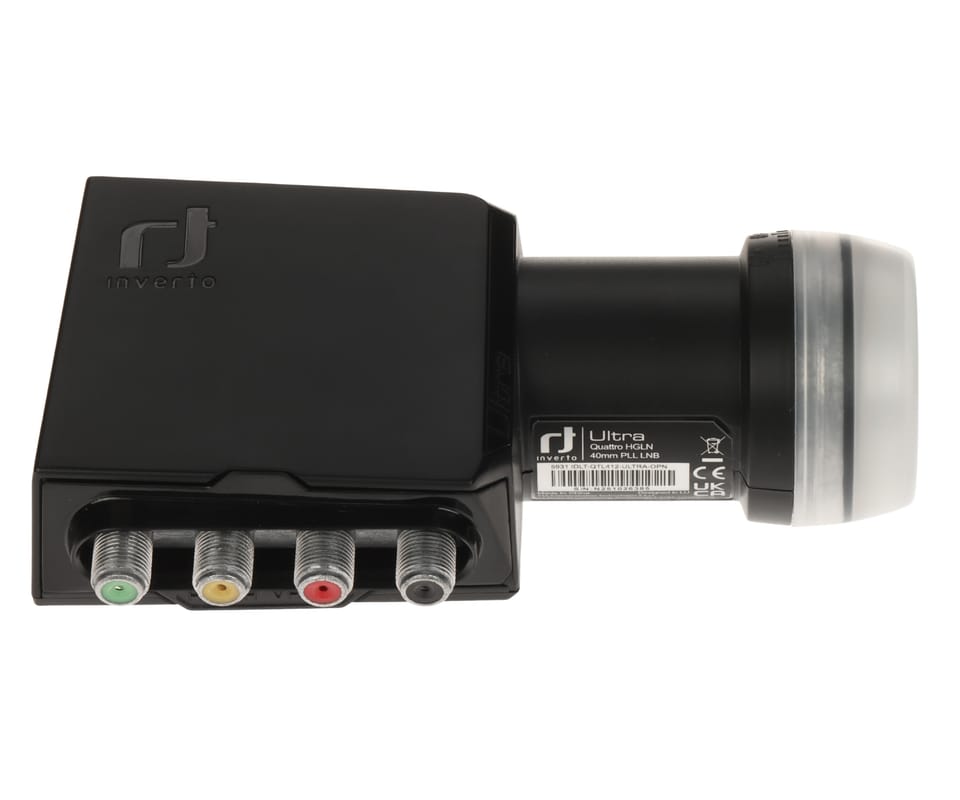

77-177# Converter sat inverto quattro black ultr

€29.52

Shipping from warehouse: ⁨P2⁩

Estimated shipping: Tue, Nov 26 - Fri, Nov 29

14 days returnUnconditional return policy

Availability:: moderate quantity
Brand:: Blow
Product code:: QUATTRO Black Ultra / 5453002615164

Specification

Compliance certificates:	CE, UKCA
Compression point (1 db):	0 dBmW
Conversion gain range:	60 - 70 dB
Cross-polarization isolation:	22 dB
Feedhorn diameter:	4.9 cm
Gain ripple (±):	1 dB
Height:	79 mm
High band input frequency range:	11.7 - 12.75 GHz
High band lo frequency:	10.6 GHz
High band output frequency range:	1100 - 2150 MHz
Image rejection:	50 dBmW
Initial accuracy (±):	1 MHz
Local oscillator (lo) phase noise (10 khz):	-80 dBc/Hz
Low band input frequency range:	10.7 - 11.7 GHz
Low band lo frequency:	9.75 GHz
Low band output frequency range:	950 - 1950 MHz
Noise figure:	0.2 dB
Operating temperature (t-t):	-30 - 60 °C
Output impedance:	75 Ω
Package depth:	86 mm
Package height:	57 mm
Package weight:	306 g
Package width:	148 mm
Power consumption:	230 mA
Product colour:	Black, Grey
Products per pallet:	1800 pc(s)
Quantity:	1

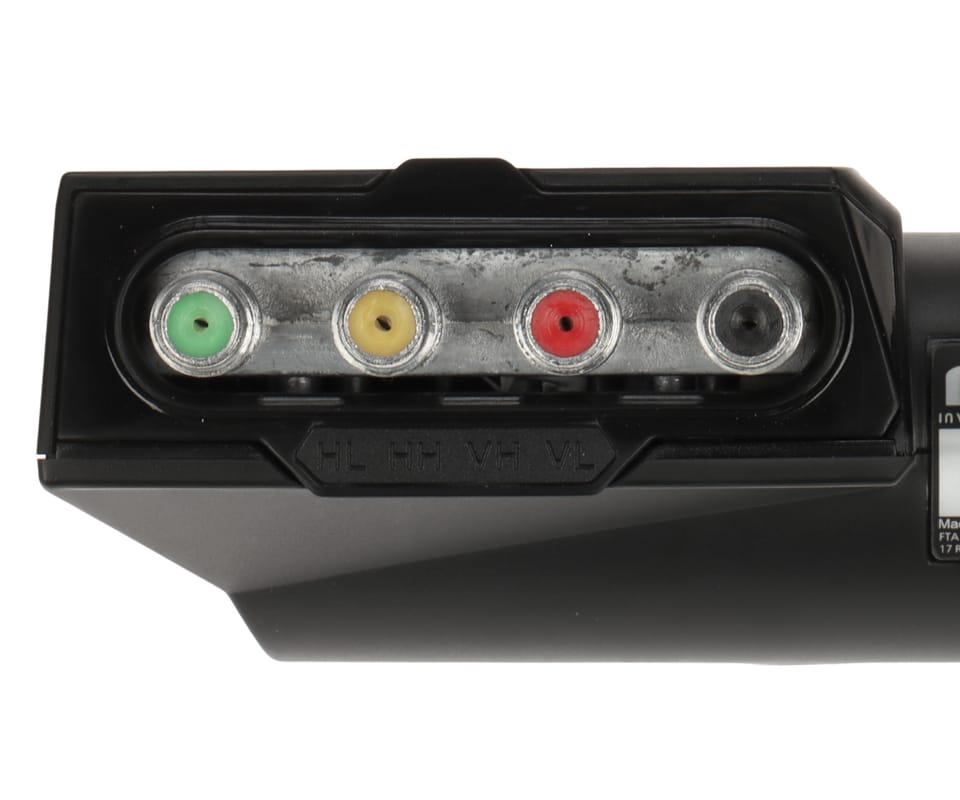

Rf connector type:	F
Temperature drift (±):	2 MHz
Voltage standing wave ratio (vswr):	2.0 : 1 max.
Weight:	177 g
Width:	142 mm

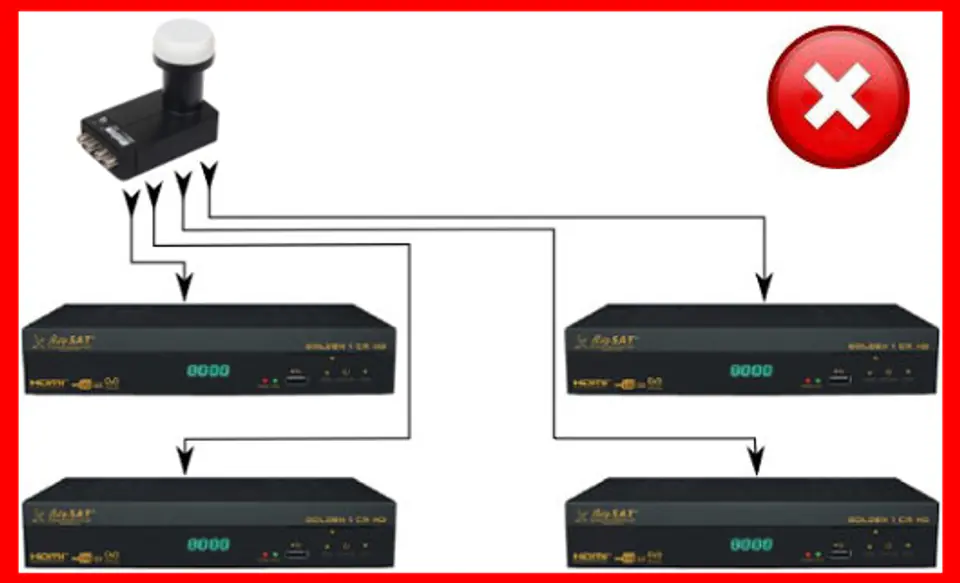

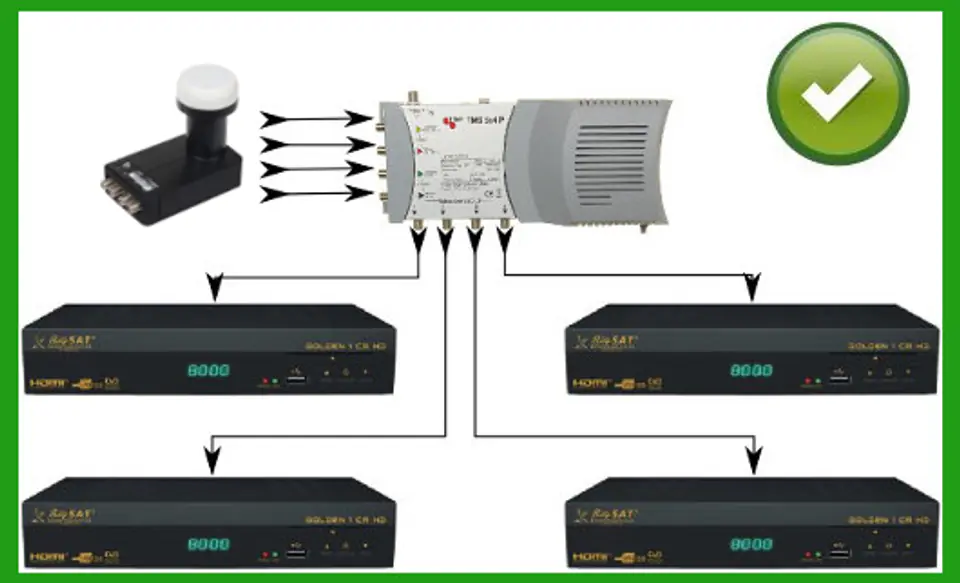

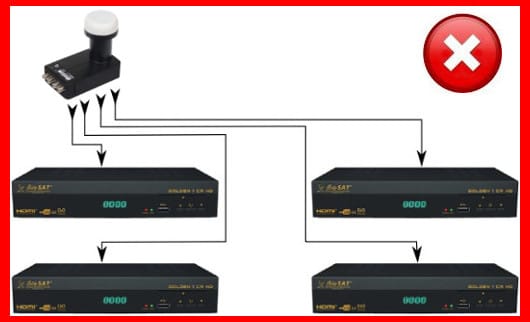

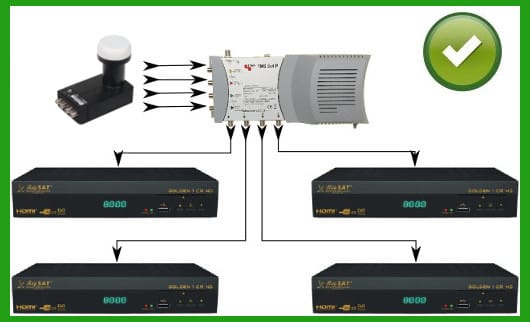

With its innovative design and excellent components, the converter provides a higher conversion gain with the lowest noise ratio and the best phase noise performance while allowing better interference handling, which is a milestone in overall picking performance compared to standard converters. The converter allows you to receive signals from one satellite and distribute it via multi-switch to many set-top boxes in HD quality.

Features:- Low phase noise, compatible with DVB-S2 (HDTV)

- High cross polarization

- Greater profit from conversion

- Highest reliability

Specification:

- Lower band frequency range - input: 10.7~11.7 GHz
- Lower band frequency range - output: 950-1950 MHz
- Lower oscillator frequency: 9.75 GHz
- Upper band frequency range - input: 11.7~12.75 GHz
- Upper band frequency range - output: 1100~2150 MHz
- Top oscillator frequency: 10.6 GHz
- Own noise: 0.2dB Type. (0.7dB Max)
- Initial accuracy: +/-1.0 MHz
- Oscillator temperature drift: +/-3.0 MHz
- Phase noise: -90dBc/Hz
- Gain: 60dB
- VSWR: 2.0:1
- Current consumption: 200mA max (11V DC - 2-V DC)
- Operating temperature: -30°~+60°C
- Weight: 344g

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
