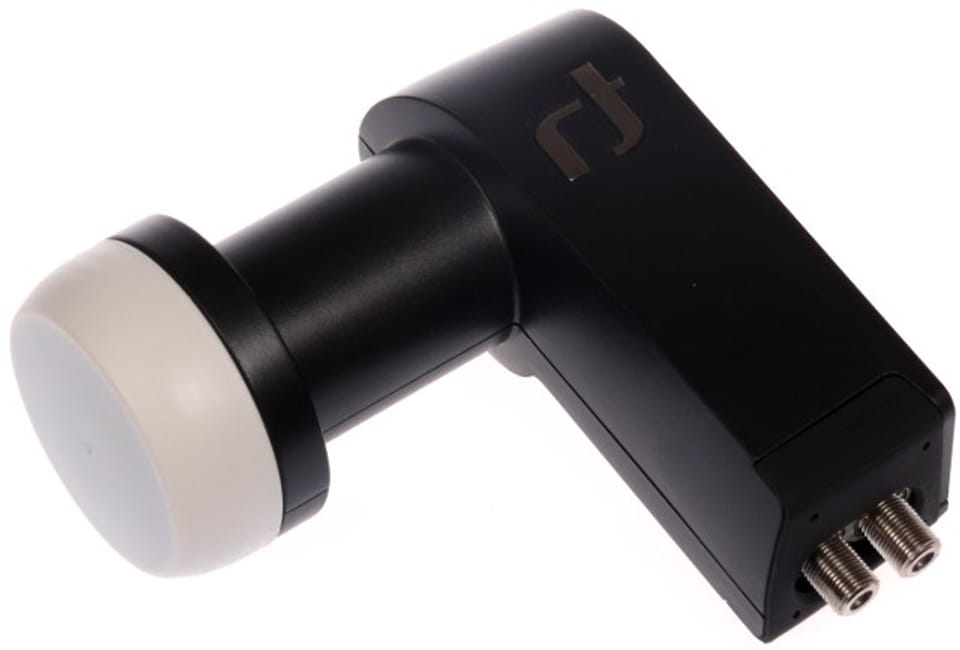

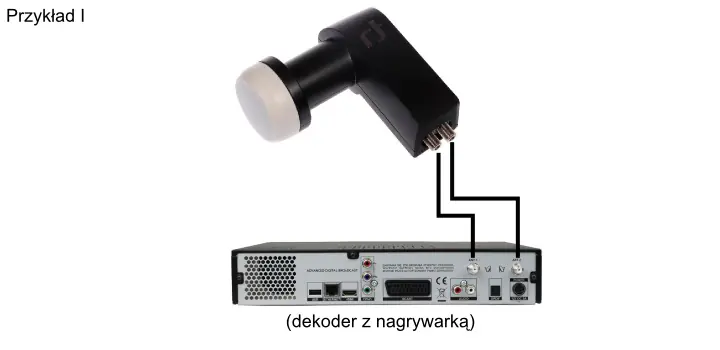

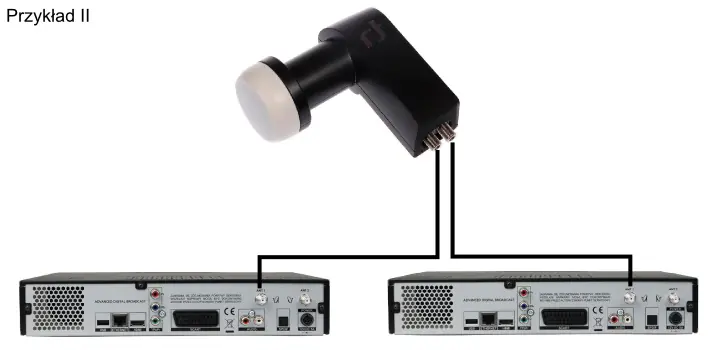

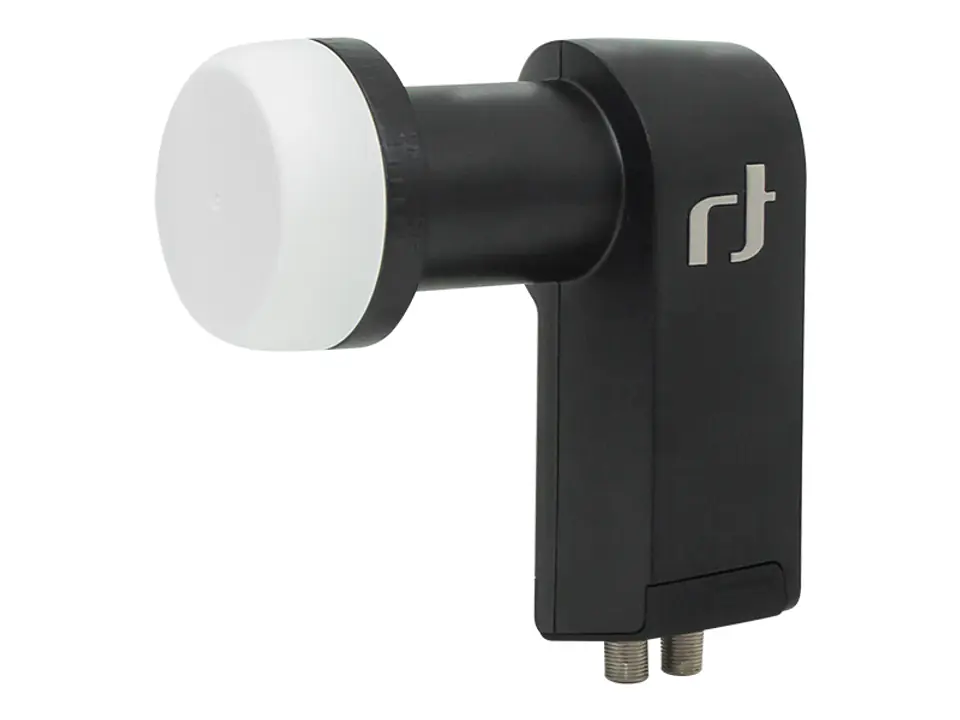

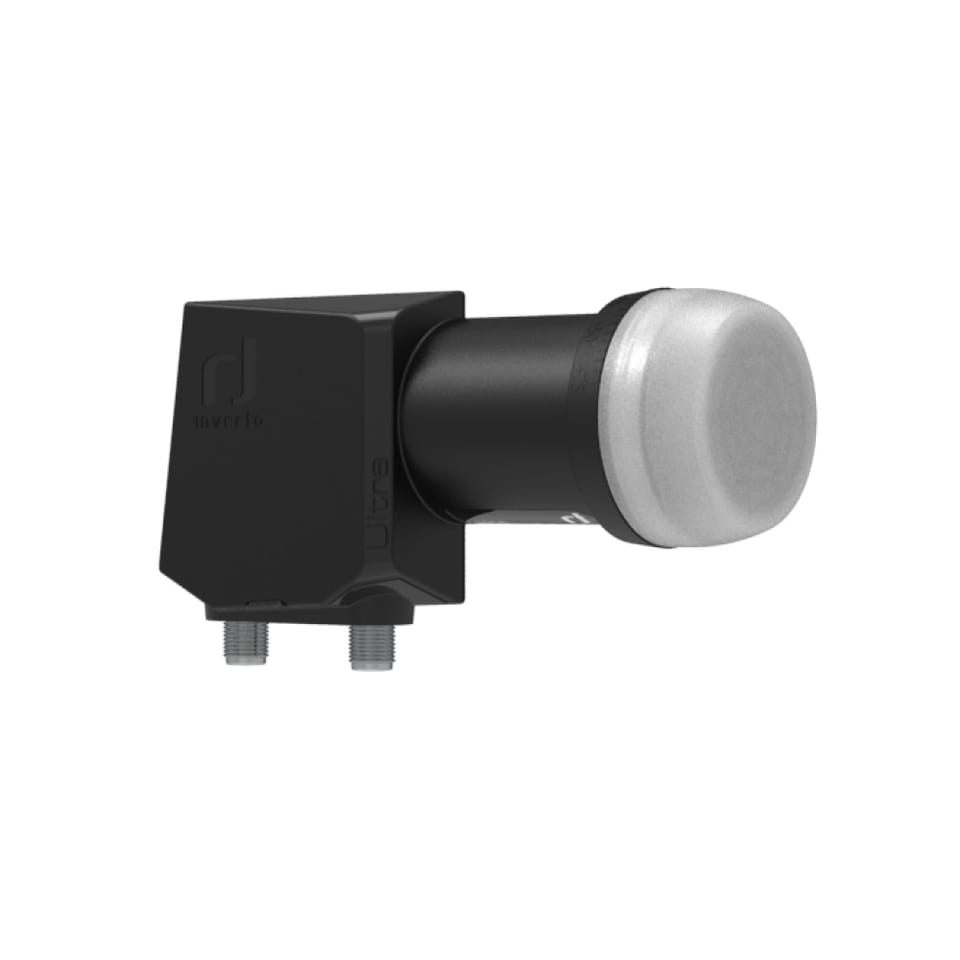

With its innovative design and excellent components, the converter provides a higher conversion gain with the lowest noise ratio and the best phase noise performance while allowing better interference handling, which is a milestone in overall picking performance compared to standard converters. It allows you to receive satellite TV from one satellite and distribute it to 2 set-top boxes (or one with two tuners) without the need for an external multiswitch.
Features:- Low phase noise, compatible with DVB-S2 (HDTV)
- High cross polarization
- Greater profit from conversion
- Highest reliability
Specification:
- Lower band - input: 10.7 GHz ~ 11.7 GHz
- Lower band - output: 950 MHz ~ 1950 MHz
- Bottom oscillator: 9.75 GHz
- Upper band - input: 11.7-12.75 GHz
- Upper band - output: 1100 - 2150 MHz
- Top oscillator: 10.6 GHz
- Own noise: 0.2dB (max. 0.7dB)
- Oscillator temperature drift: ± 3 MHz max.
- Phase noise: -90dBc / Hz. max
- VSWR: 2.0:1
- Current consumption: 180 mA max @ 11V DC - 20V DC
- Operating temperature: -30°~+60°C
- Weight: 181 g
