The set is designed for wireless transmission of video and sound (2 lanes) in professional CCTV installations

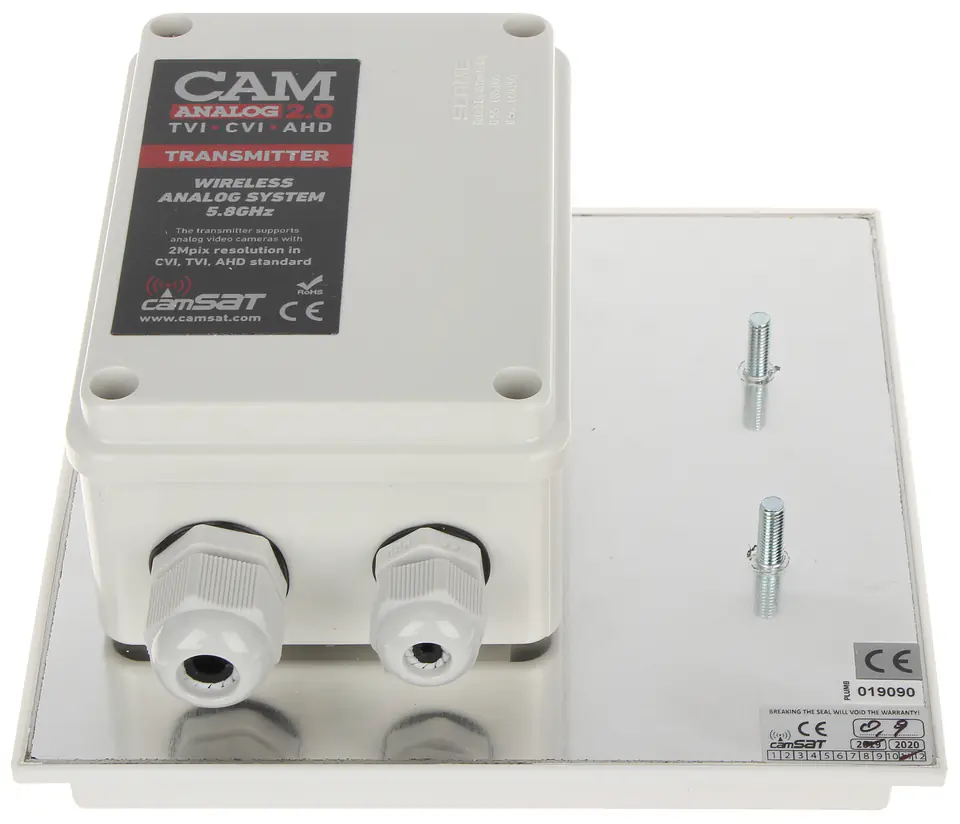

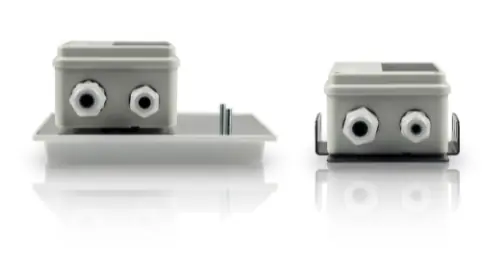

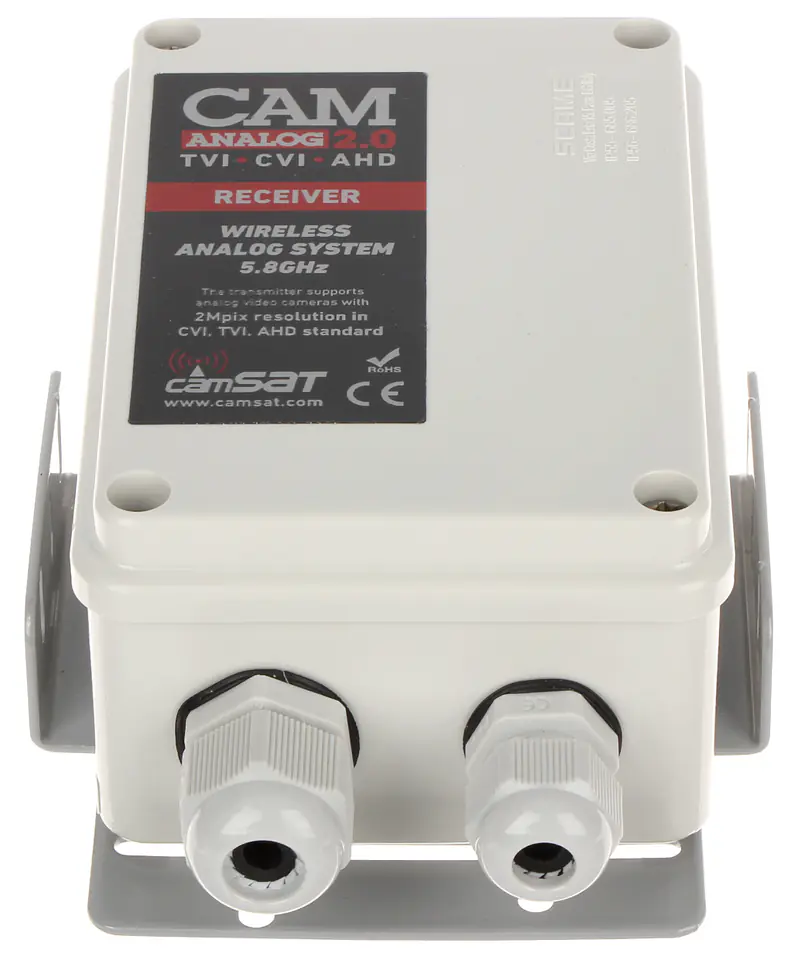

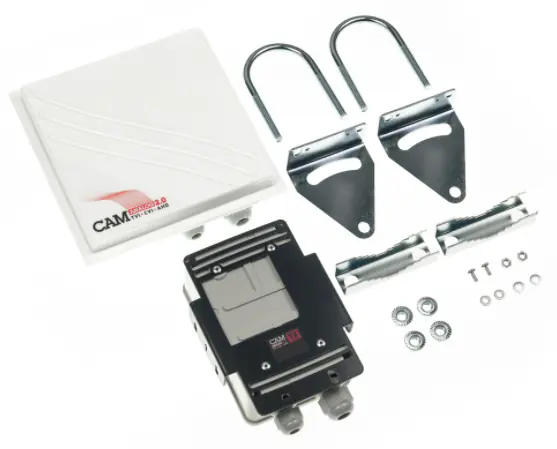

The set includes a video transmitter and receiver operating in the free ISM 5725 band ... 5875 MHz

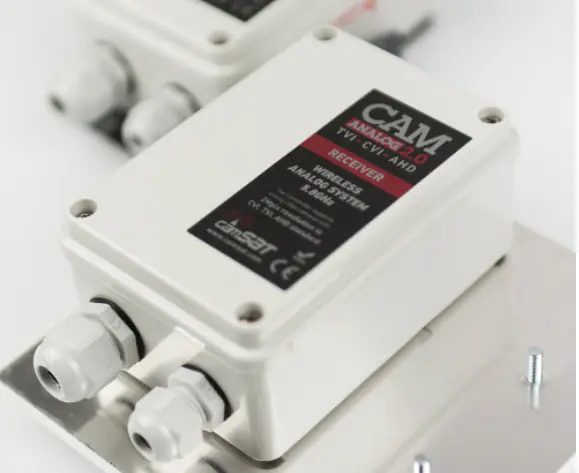

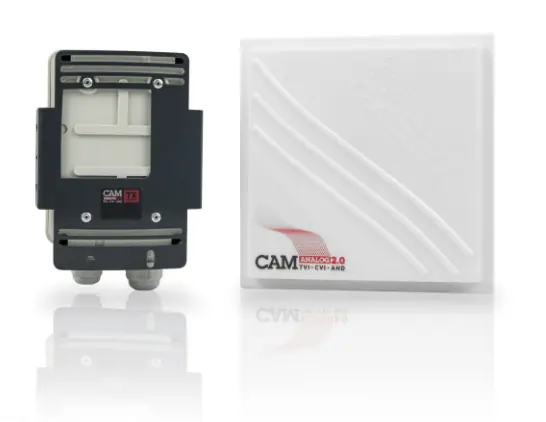

5.8 GHz WIRELESS TRANSMISSION KIT CAM-ANALOG-2.0 SET TXRX
€340.06
Shipping from warehouse: D4
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- CAMSAT
- Product code:
- CAM-ANALOG-2.0 / 5902610350337
Share this product:
Specification
| Antenna viewing angle:: | 45 ° |
|---|---|
| Conditions for correct operation:: | the set (transmitter and receiver) supporting the same camera, must have the same channel set (switch on the same number) on one object, each of the sets used must have a different channel selected, the antenna of the transmitter and receiver should be optically visible to each other (no obstacles between them in the form of buildings, walls, trees, etc.) |

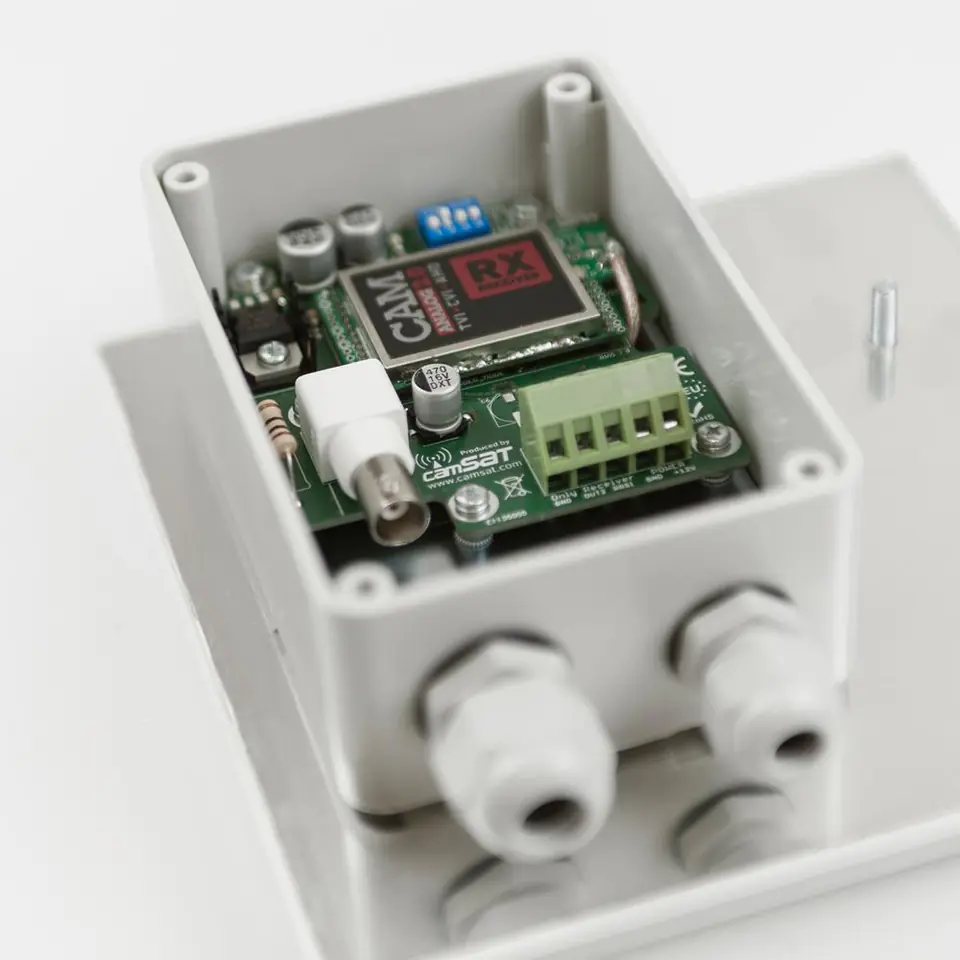

| Connectors:: | BNC Socket : 1 Vpp / 75 Ω |
| Current consumption:: | ≤ 800 mA - Tx ≤ 500 mA - Rx |
| Dimensions:: | 152 x 105 x 60 mm - Tx164 x 164 x 80 mm - Rx |
| Frequency range:: | 5.725 ... 5.875 GHz |
| Manufacturer / brand:: | CAMSAT |

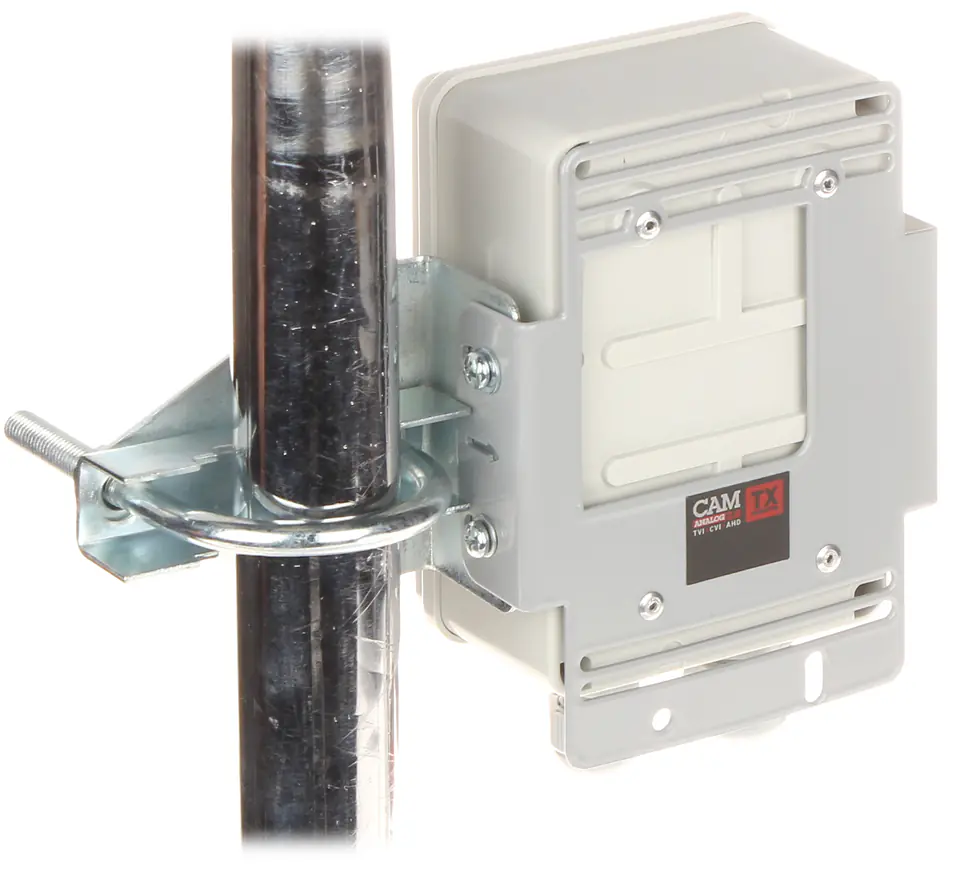

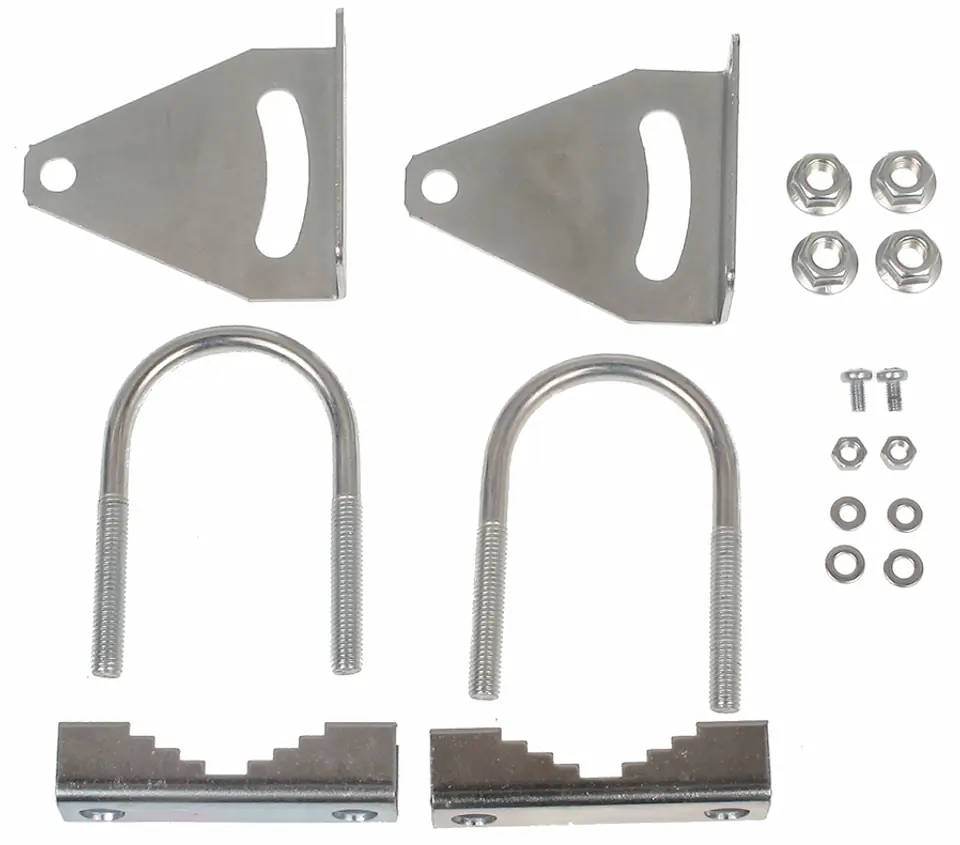

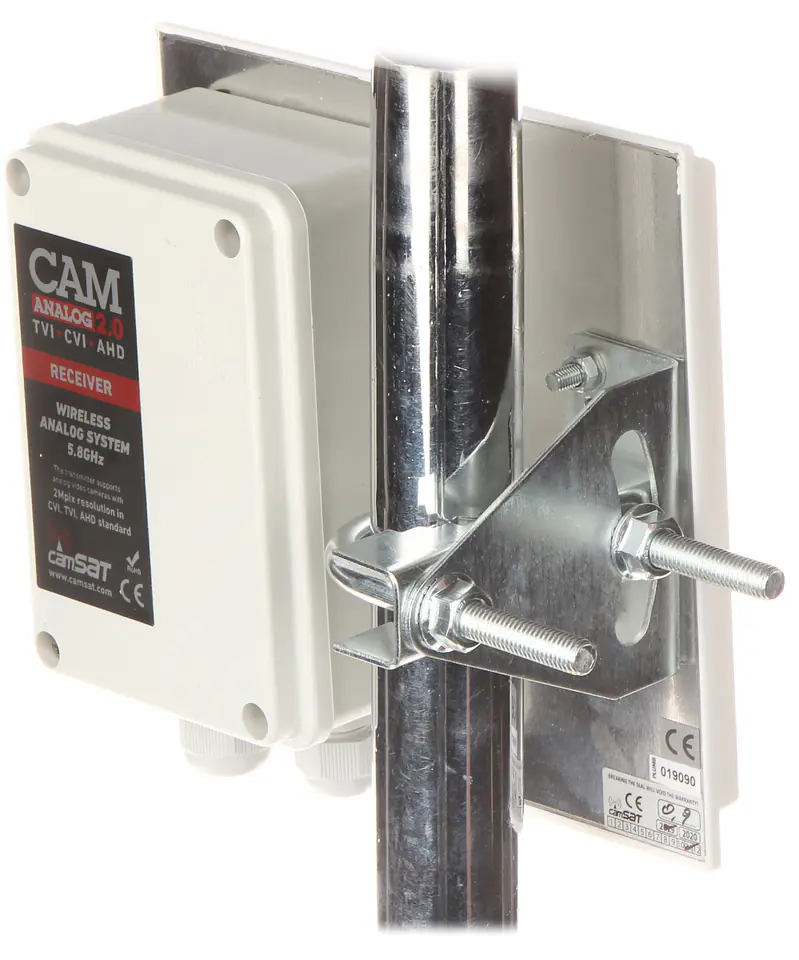

| Maximum mast diameter:: | Ø 50 mm |
| Modulation:: | FM |
| Number of channels:: | 2 |
| Operating temperature:: | -20 °C ... 55 °C |
| Power:: | 9 V ... 16 VDC |
| Radio communication range (in open area):: | Max. 500 m |
| Receiver sensitivity:: | -85 dBm |
| Scales:: | 0.38 kg - Tx 0.48 kg - Rx |
| Sealing:: | IP66 |
| Selected features:: | Real-time transmission without delays and loss of signal quality transmission free from industrial interference, 802.11 Internet networks, Bluetooth, radio telephony, etc. High gain directional antennas for stable operation |
| Transmitter power:: | 25 mW, 14 dBm |
| Video format:: | AHD / HD-CVI / HD-TVI / CVBS : max. 1080p |
| Warranty:: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
