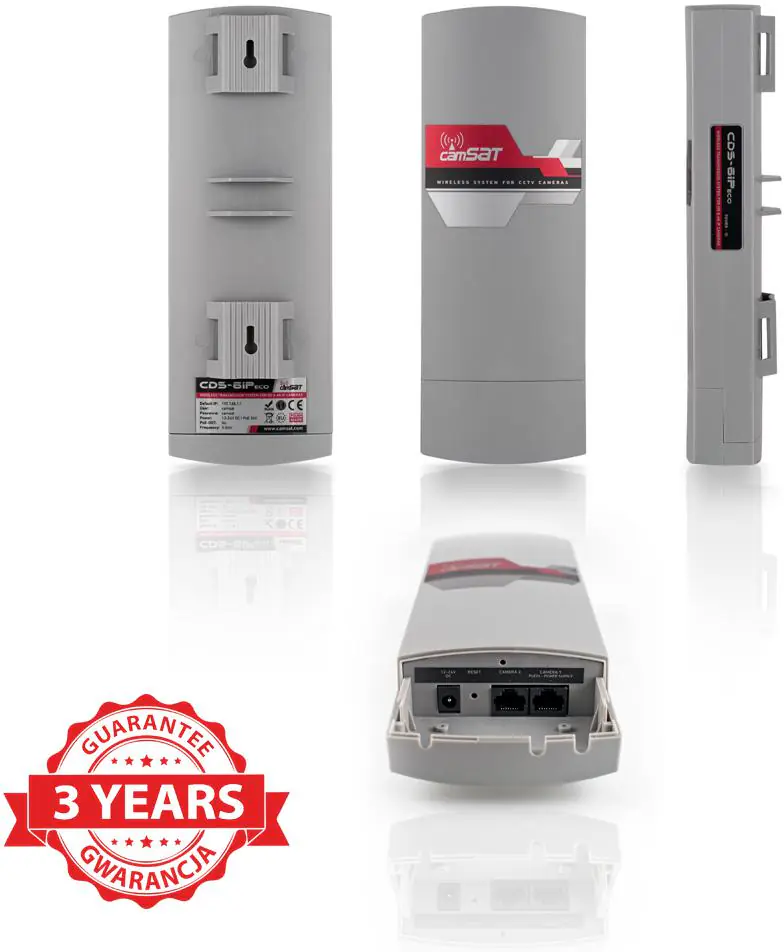

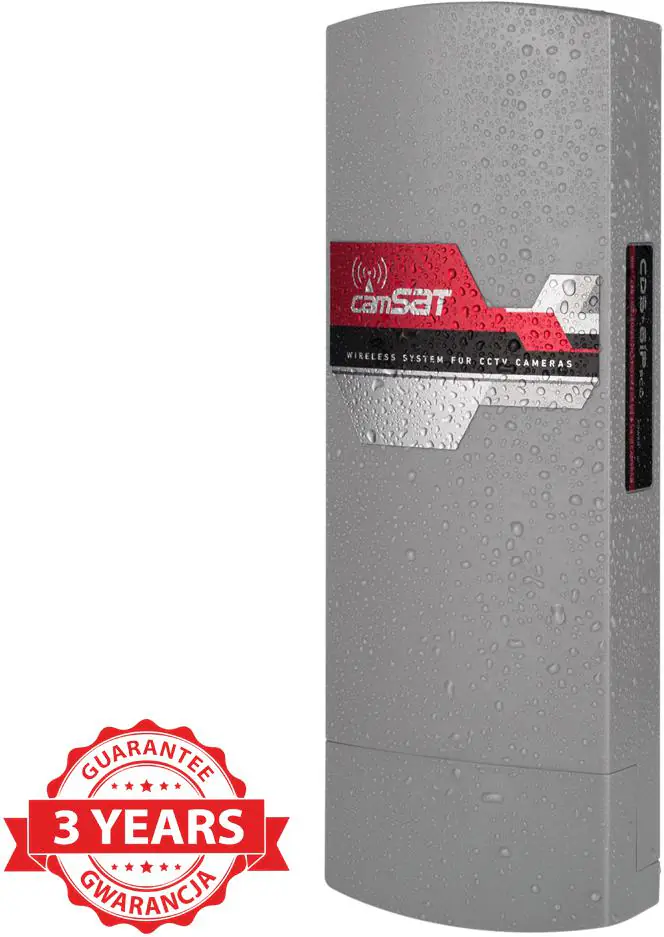

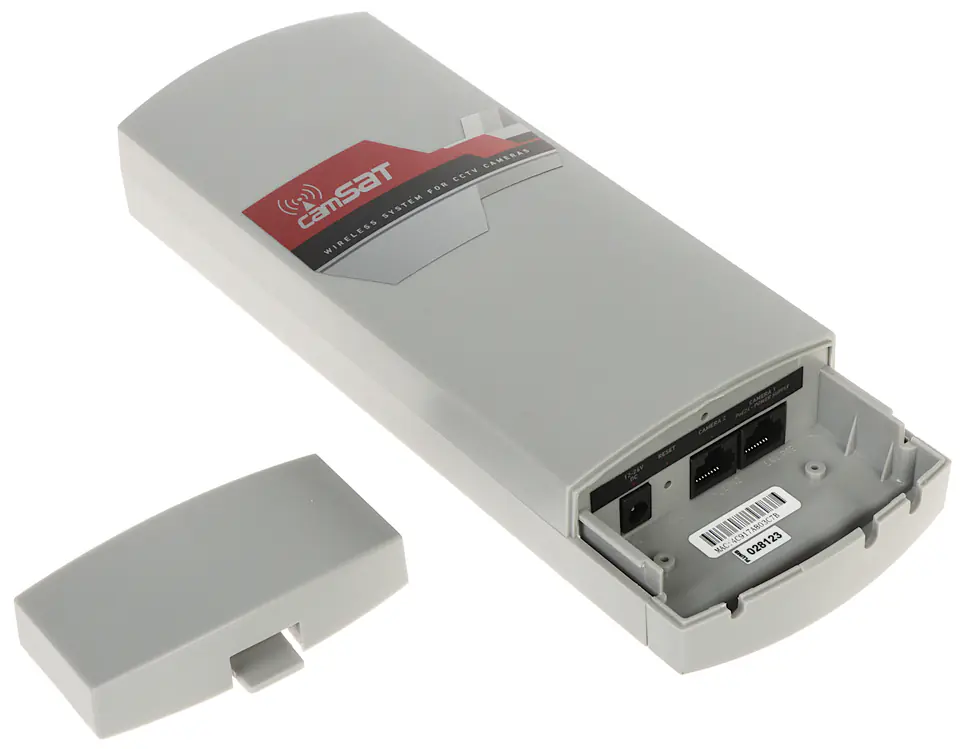

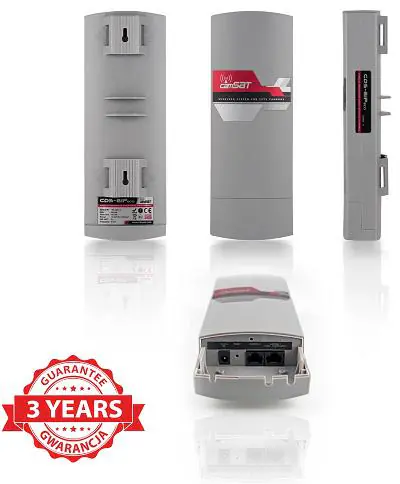

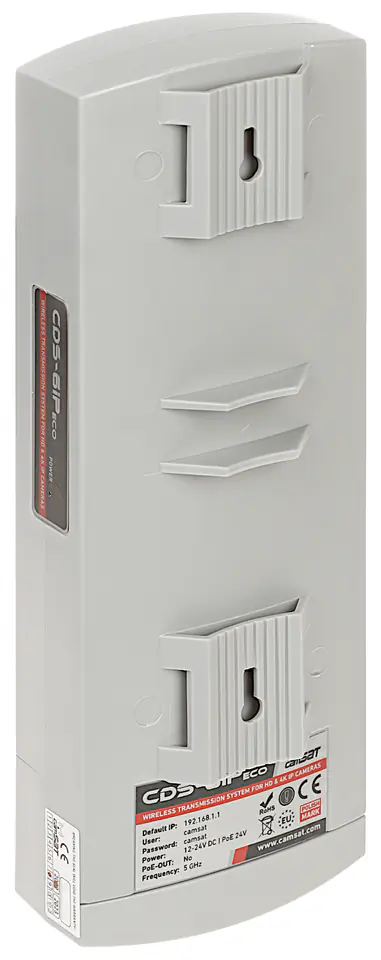

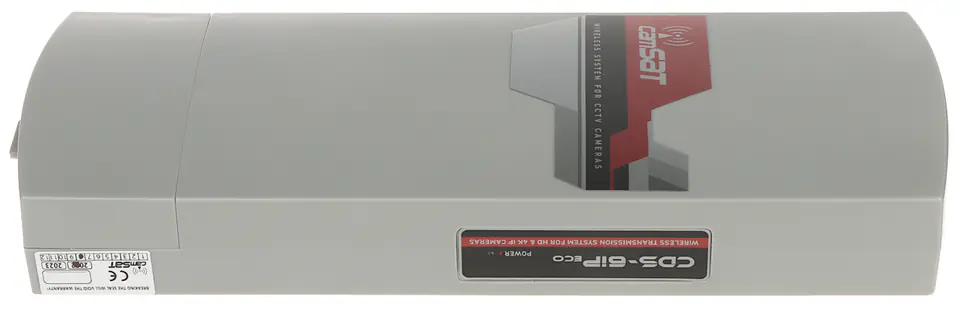

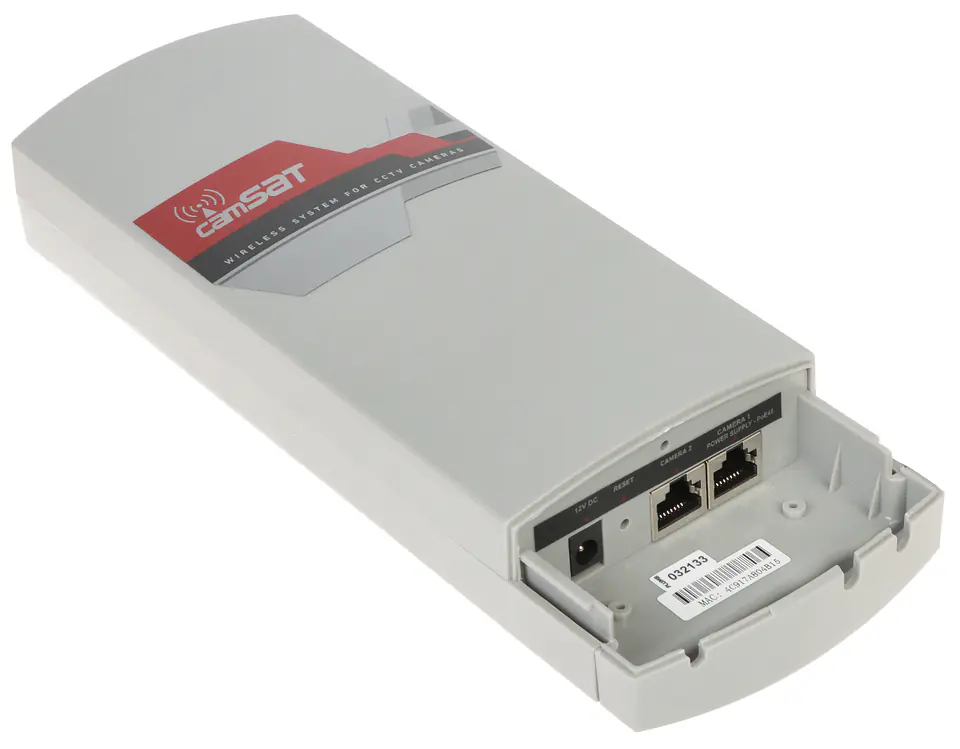

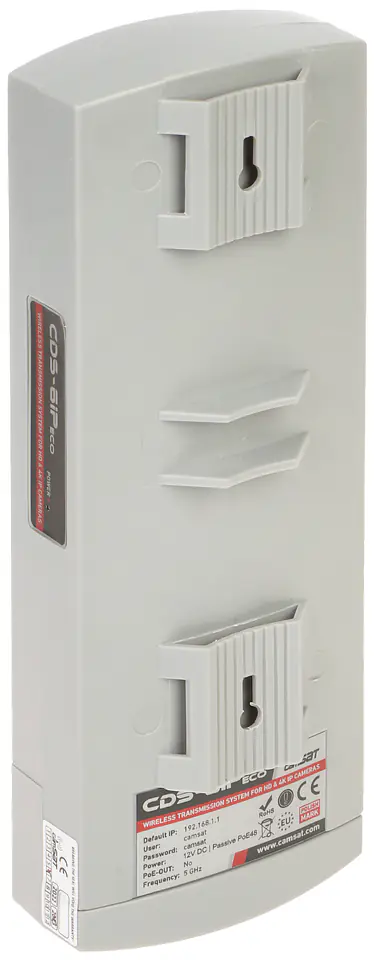

5.8 GHz CDS-6IP/ECO CAMSAT ACCESS POINT

€166.51
Shipping from warehouse: ⁨H7⁩
Estimated shipping: Mon, Nov 11 - Wed, Nov 13
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
CAMSAT
Product code:
CDS-6IP/ECO / 5902610350115

Specification

Antenna type:Integrated, set of 2 14 dBi MIMO - Interpolarized H/V
Baud:.max. 60 Mbps
Dimensions:249 x 88 x 52 mm
Frequency range:5180 MHz ... 5350 MHz, 5470 MHz ... 5725 MHz
Modulation type:OFDM
Operating modes:Video Bridge - dedicated mode for working with IP Master cameras - Access Point Slave - AP Client
Operating temperature:-20 °C ... 70 °C

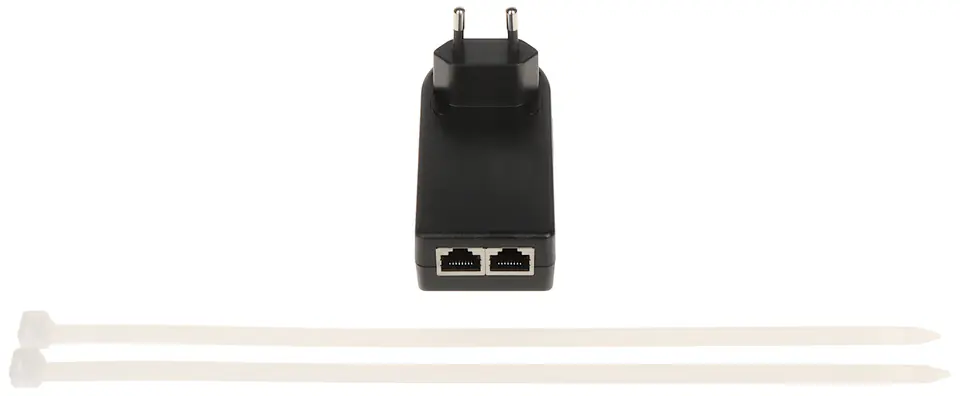

Power:Passive PoE : 24 V DC (using external adapter) 12 ... 24 V DC / 1 A (power adapter included)
Power consumption:≤ 11 watts
Producer / brand:CAMSAT
Scales:0.35 kg
Sealing:IP55
Security:64 / 128 / 152 bit WEP, WPA-PSK/WPA2-PSK

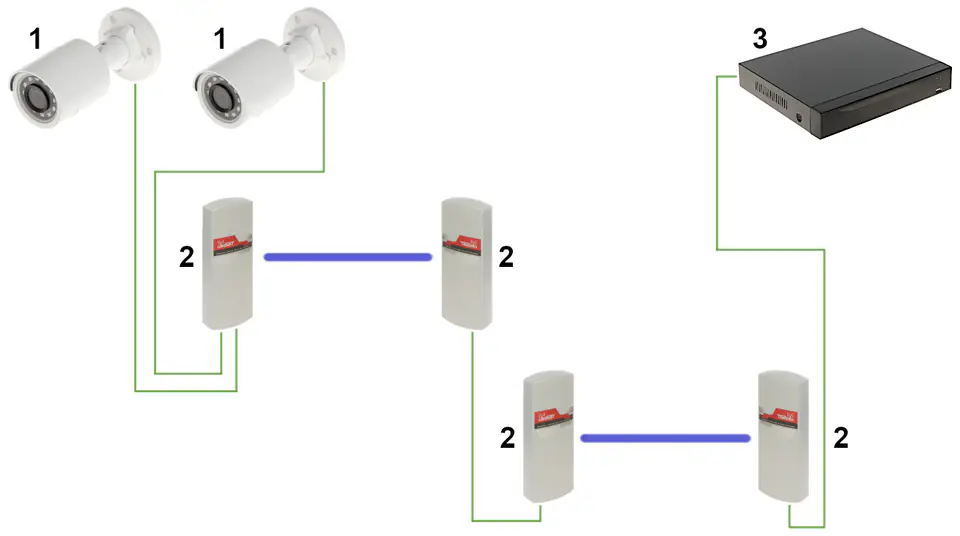

Selected features:Work in Point-to-Point and Point-to-Multipoint configurations MIMO technology - increases throughput (multi-antenna transmission) Two-way communication IP PTZ control Radio power regulation interference-free transmission, 802.11 Internet networks, Bluetooth, radio telephony, etc.
Transmitter power:≤ 500 mW ( 27 dBm )
Warranty:2 years

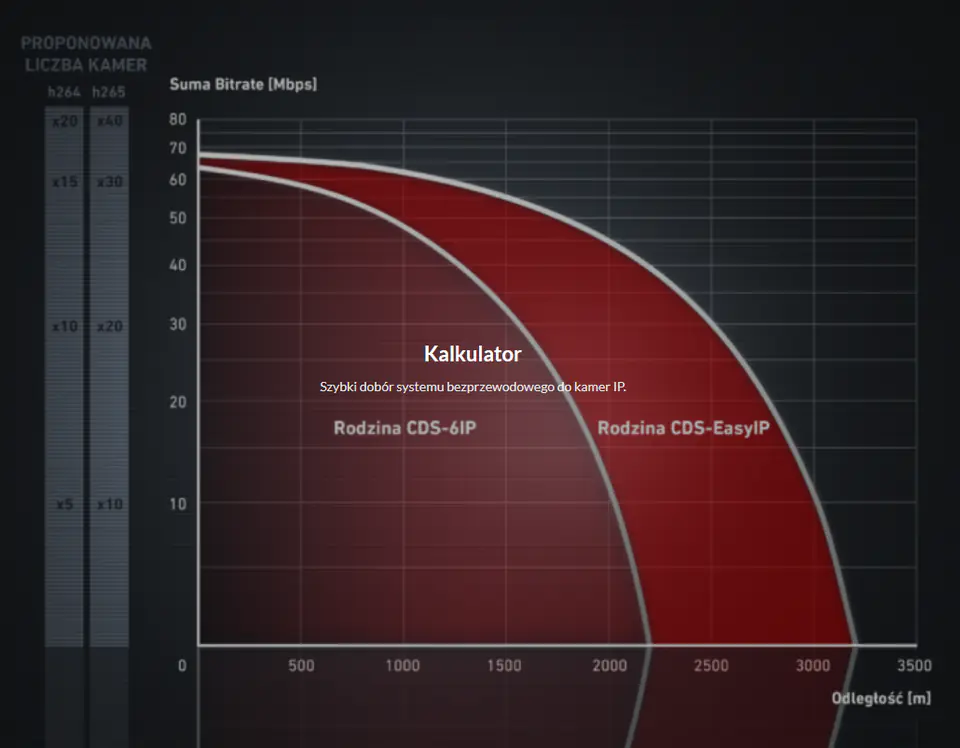

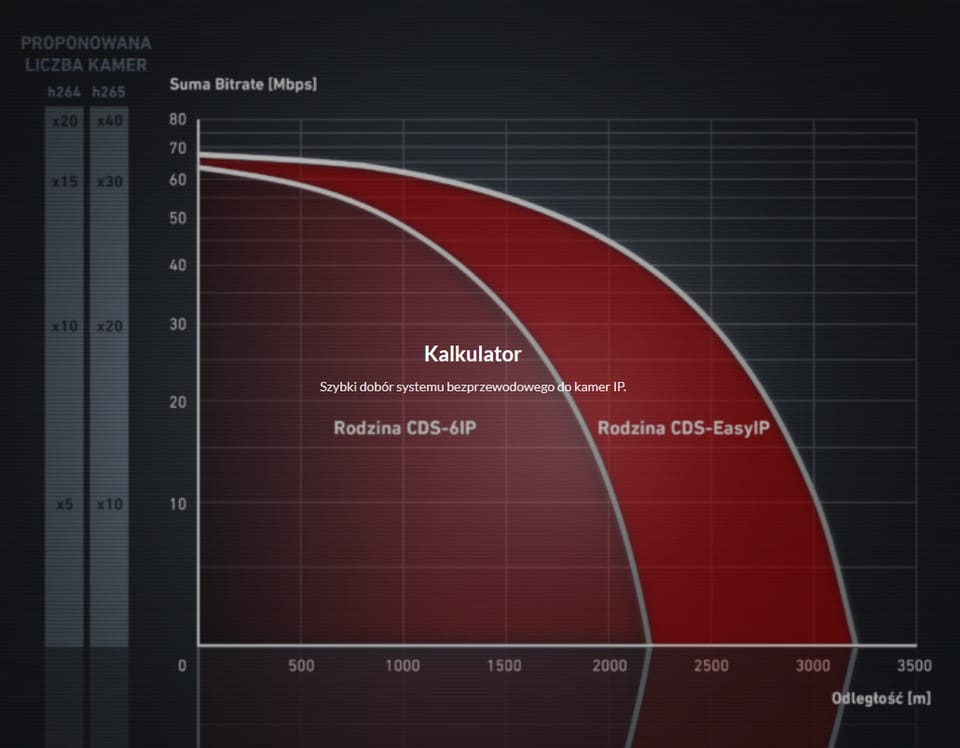

Wireless transmission range:.max. 2 km

Wireless CDS-6IP/ECO video transmission module for megapixel IP cameras and recorders Full HD / IP 4KUthe device is a transmitter and receiver in one module (transceiver)Encrypted with 64/128/152 bit identification code guarantees protection against third-party viewing

The device has a built-in dual antenna (MIMO 5GHz 2 x 13 dBi) and enables precise tuning of antennas and achieving high quality transmission at different distances

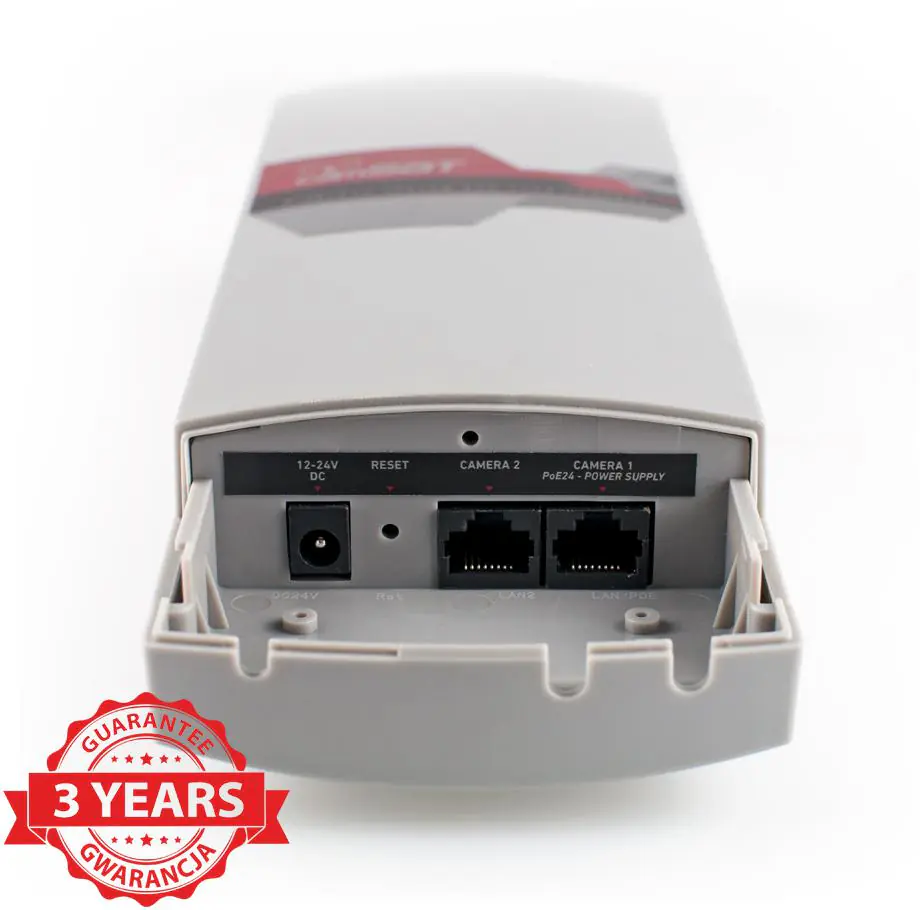

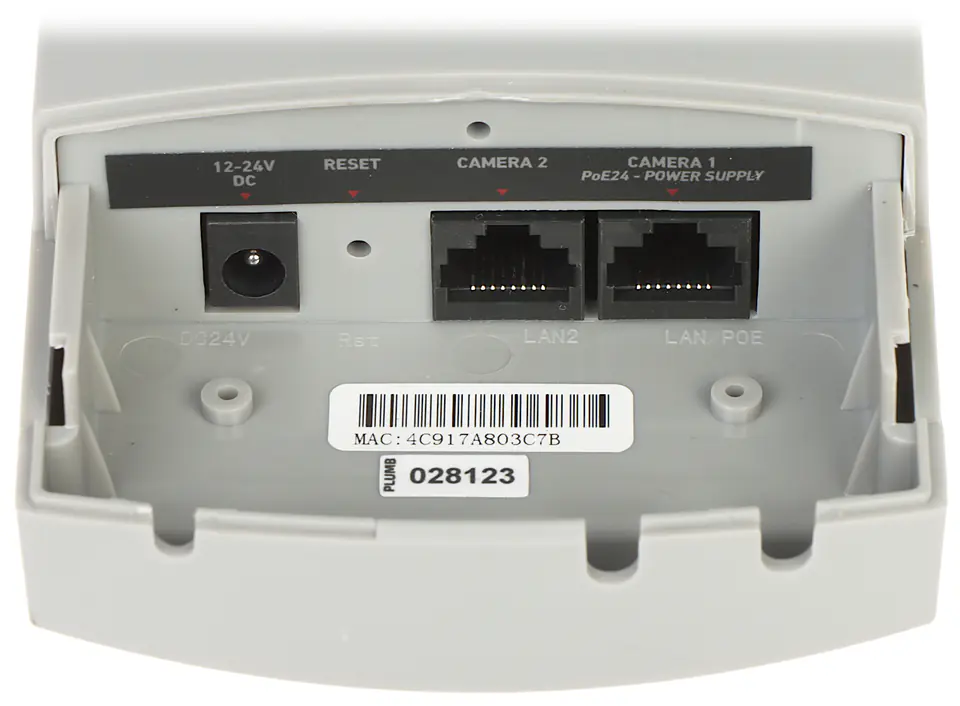

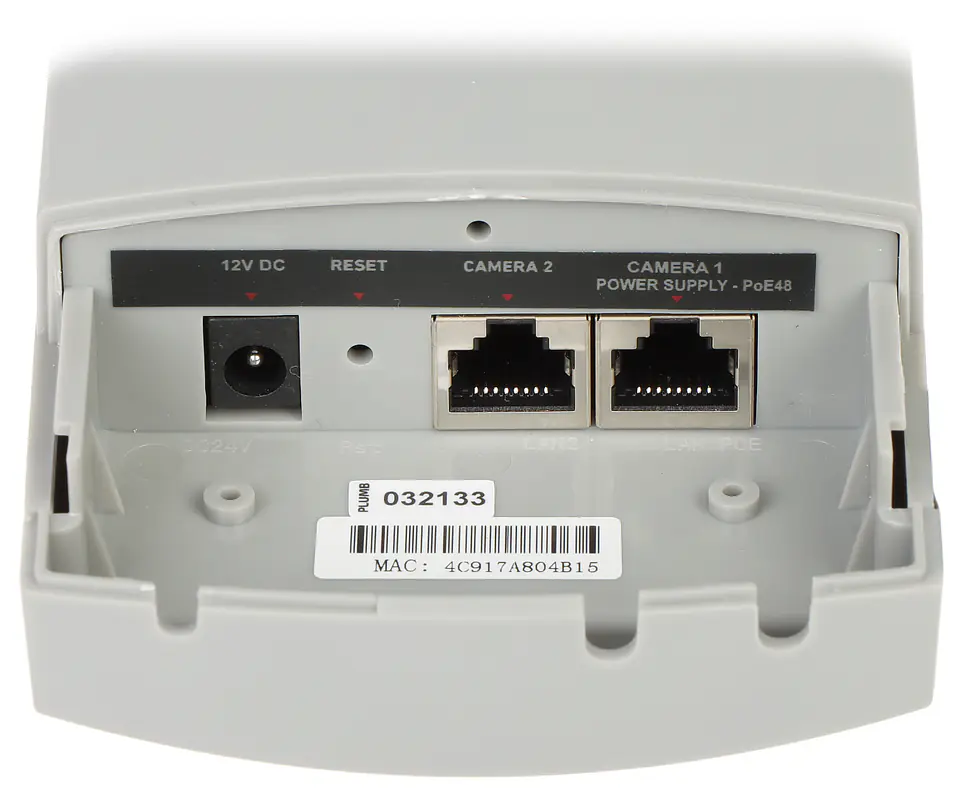

Remark! CAMERA 1 connector does not allow power to the camera via Passive PoE

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
