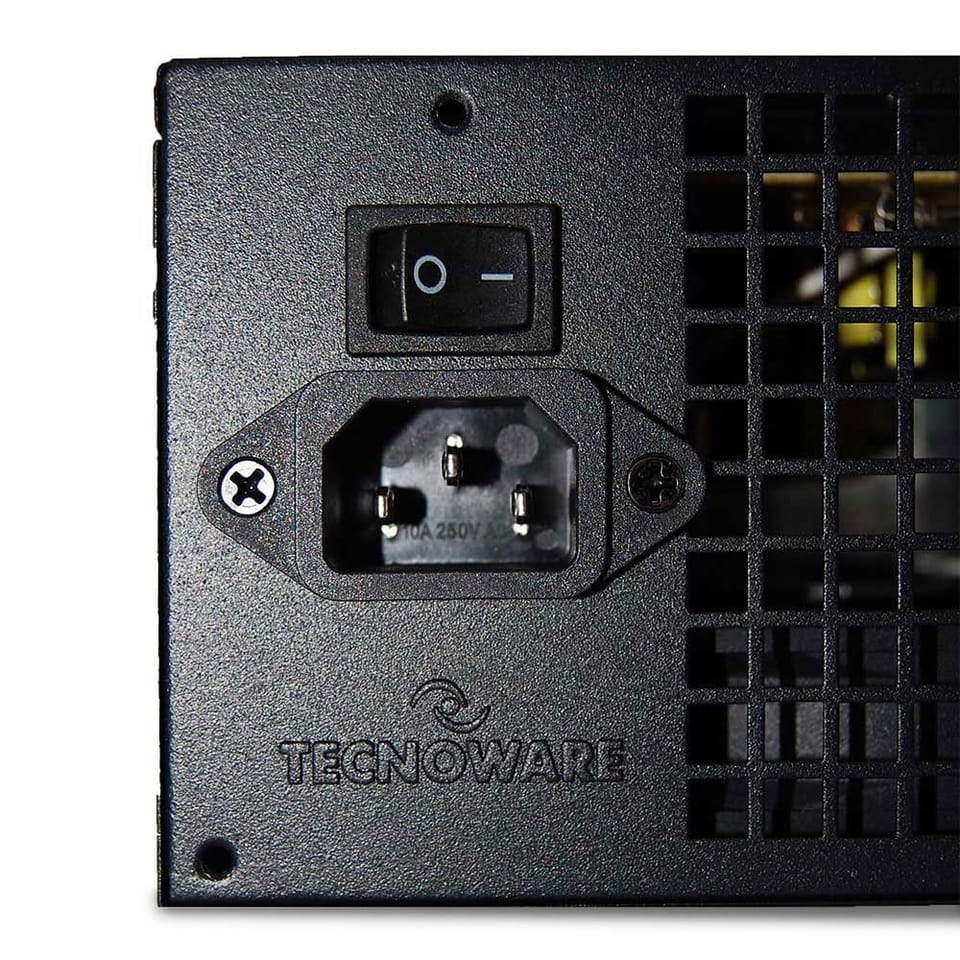

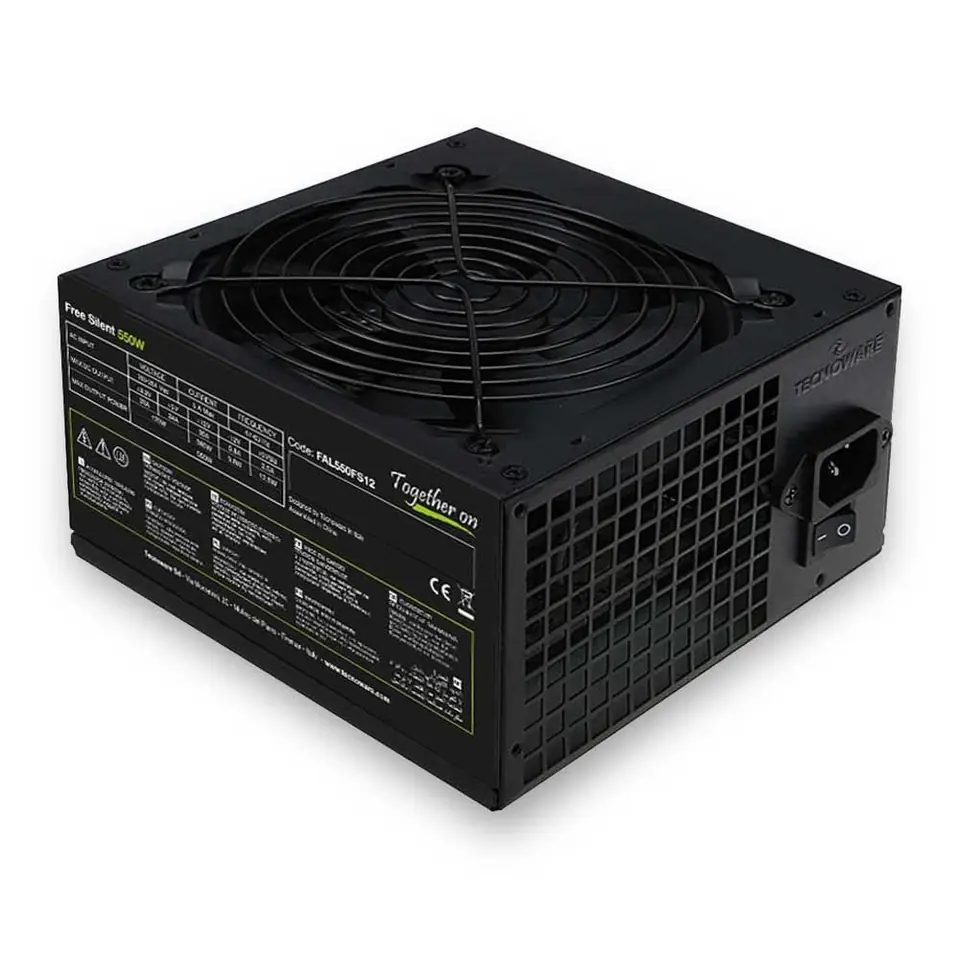

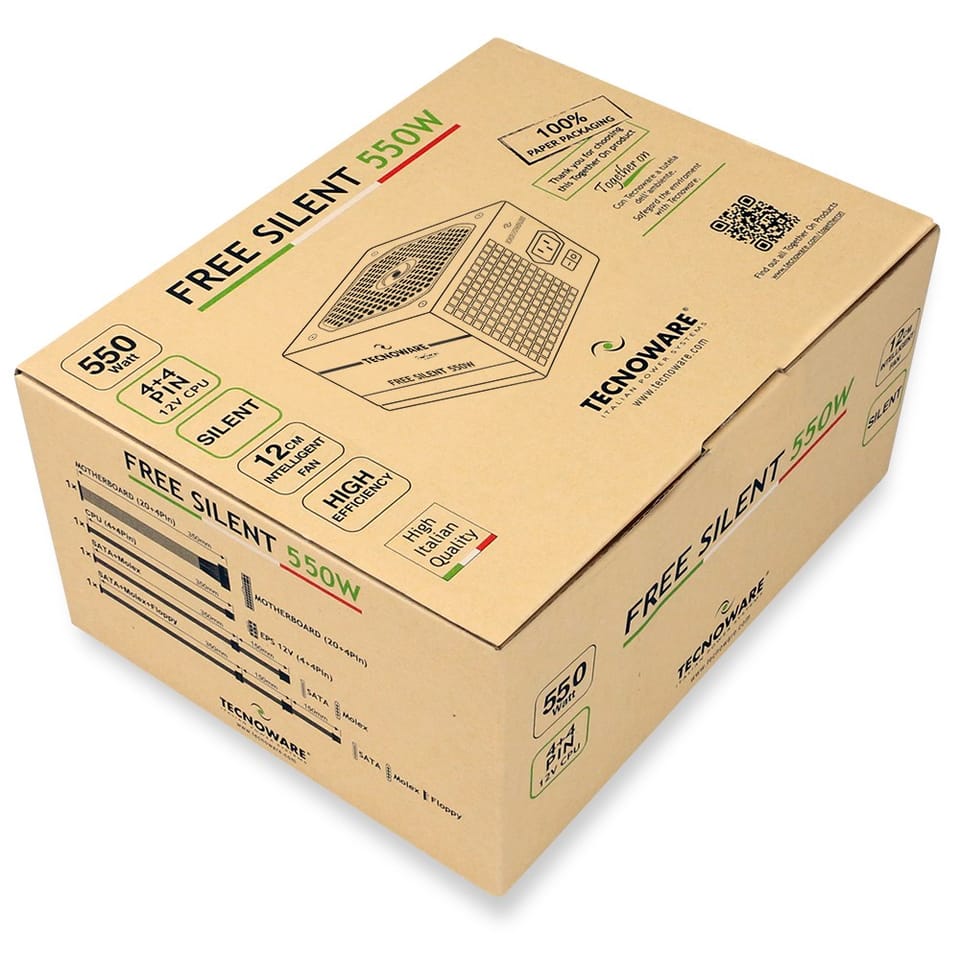

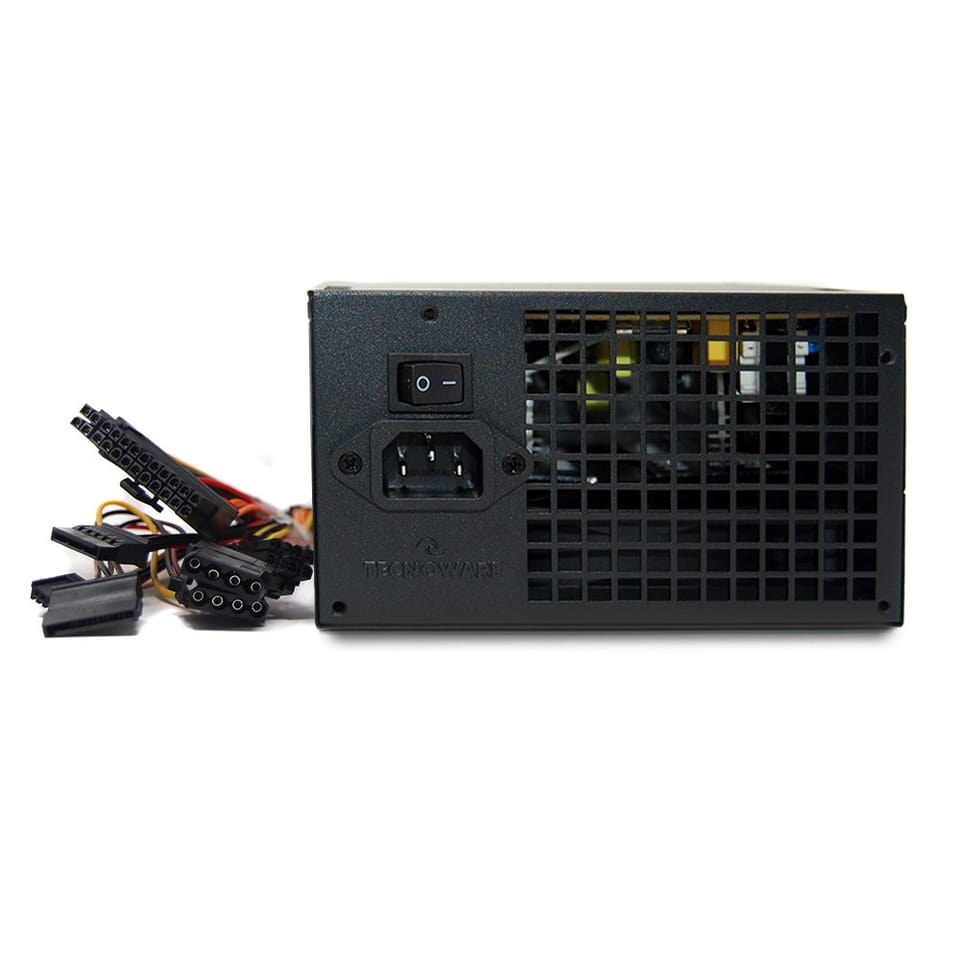

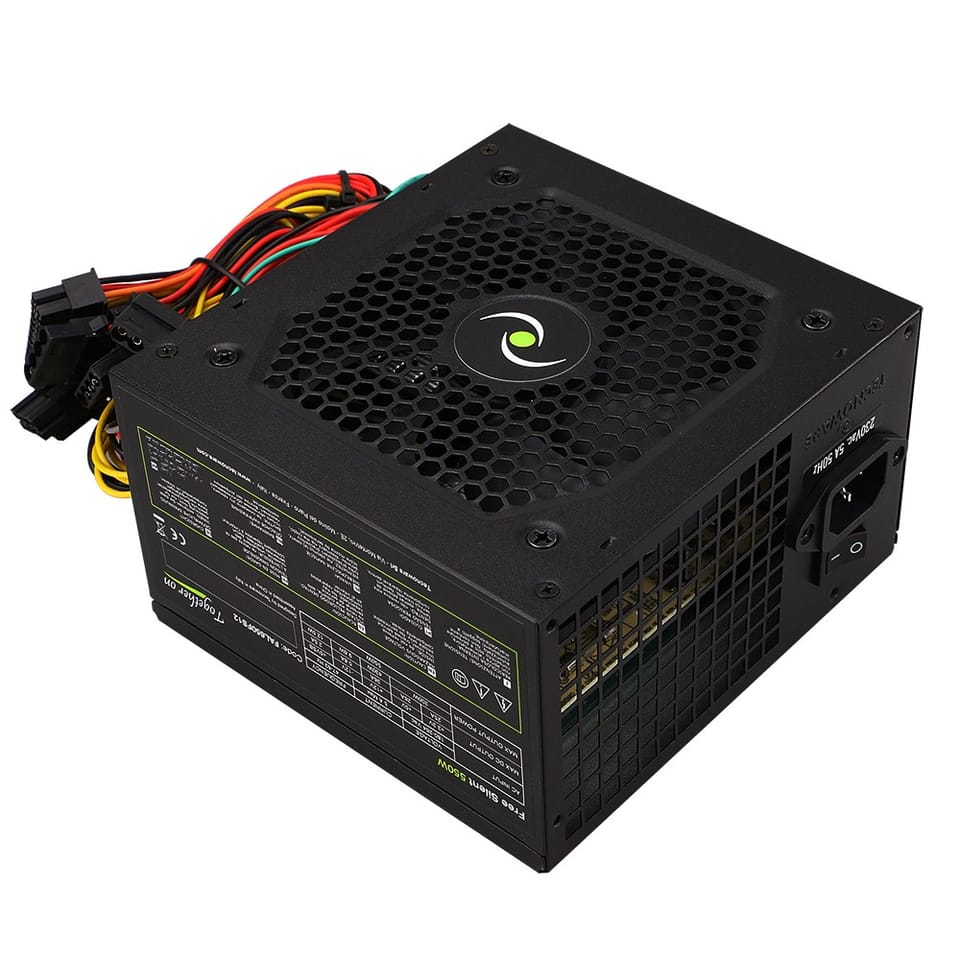

550W ATX POWER SUPPLY ENCLOSURE FAL550FS12 TECNOWARE
€38.39
Shipping from warehouse: A3
Estimated shipping: Mon, Nov 18 - Tue, Nov 19
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- TECNOWARE
- Product code:
- FAL550FS12 / 8026475175618
Share this product:
Specification
| Ac input frequency: | 47 - 63 Hz |
|---|---|
| Ac input voltage: | 180 - 264 V |
| Atx power connector (20+4 pin): | Yes |
| Cabling type: | Non-Modular |
| Compliance certificates: | CE |
| Cooling type: | Active |
| Cpu power connector (4+4 pin): | Yes |
| Depth: | 140 mm |
| Efficiency: | 86% |
| Eps power connector (4+4 pin): | Yes |
| Fan diameter: | 12 cm |
| Fan location: | Top |
| Floppy disk drive cable length: | 65 cm |
| Floppy disk drive connector: | Yes |
| Floppy drive power connector: | 1 |
| Height: | 85 mm |
| Input current: | 5 A |
| Max output current (-12v): | 0.8 A |
| Max output current (+12v): | 30 A |
| Max output current (+3.3v): | 23 A |
| Max output current (+5v): | 24 A |
| Max output current (+5vsb): | 2.5 A |
| Motherboard power cable length: | 35 cm |
| Motherboard power connector: | 20+4 pin ATX |
| Number of sata power connectors: | 2 |
| On/off switch: | Yes |
| Operating relative humidity (h-h): | 0 - 90% |
| Operating temperature (t-t): | 0 - 40 °C |
| Package type: | Box |
| Peripheral (molex) power cable length: | 500 mm |
| Peripheral (molex) power connectors (4-pin): | 2 |
| Power protection features: | Overload, Short circuit, Over voltage |
| Power supply unit (psu) form factor: | ATX |
| Product colour: | Black |
| Purpose: | PC |
| Safety: | 2014/35/UE; EMC 2014/30/UE |
| Storage temperature (t-t): | -15 - 40 °C |
| Total power: | 550 W |
| Weight: | 1 kg |
| Width: | 150 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
