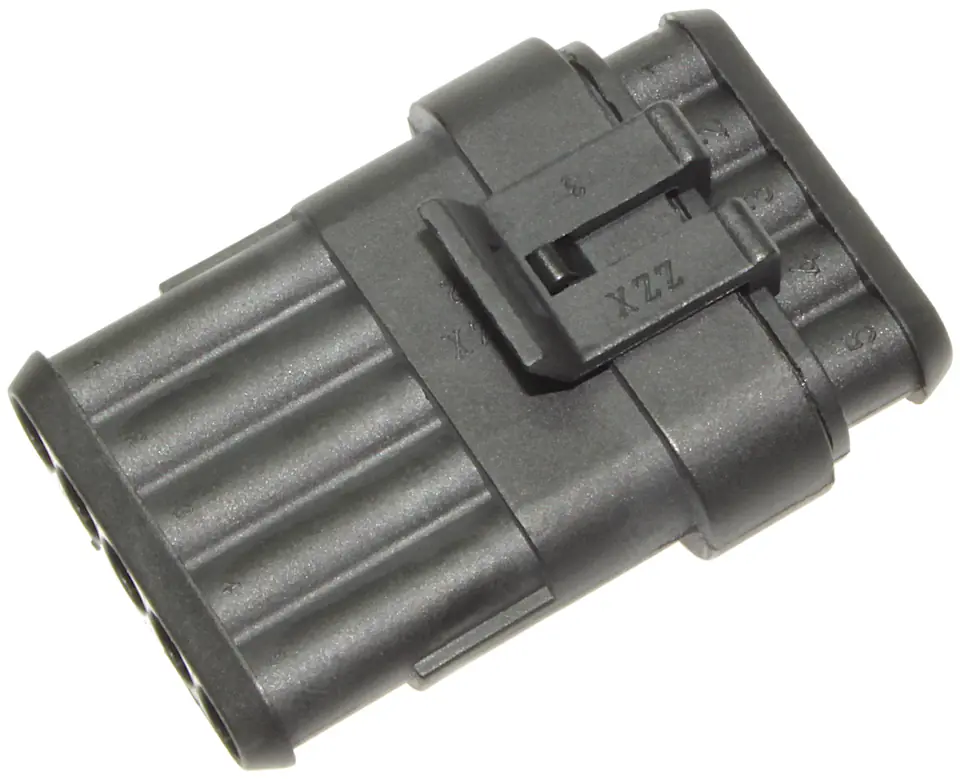

HERMETIC CONNECTOR SUPERSEAL CUBE PLUG 5 PIN
Universal connector used in the automotive industry in a very wide range. The set includes a male and female cube, a set of connectors and seals.

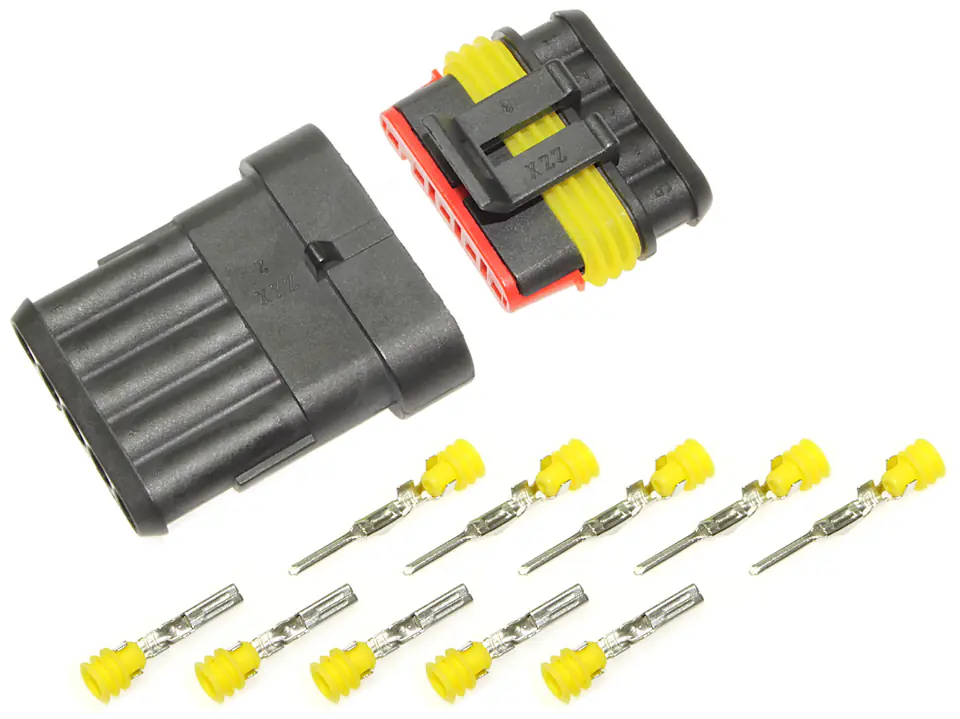

Included:

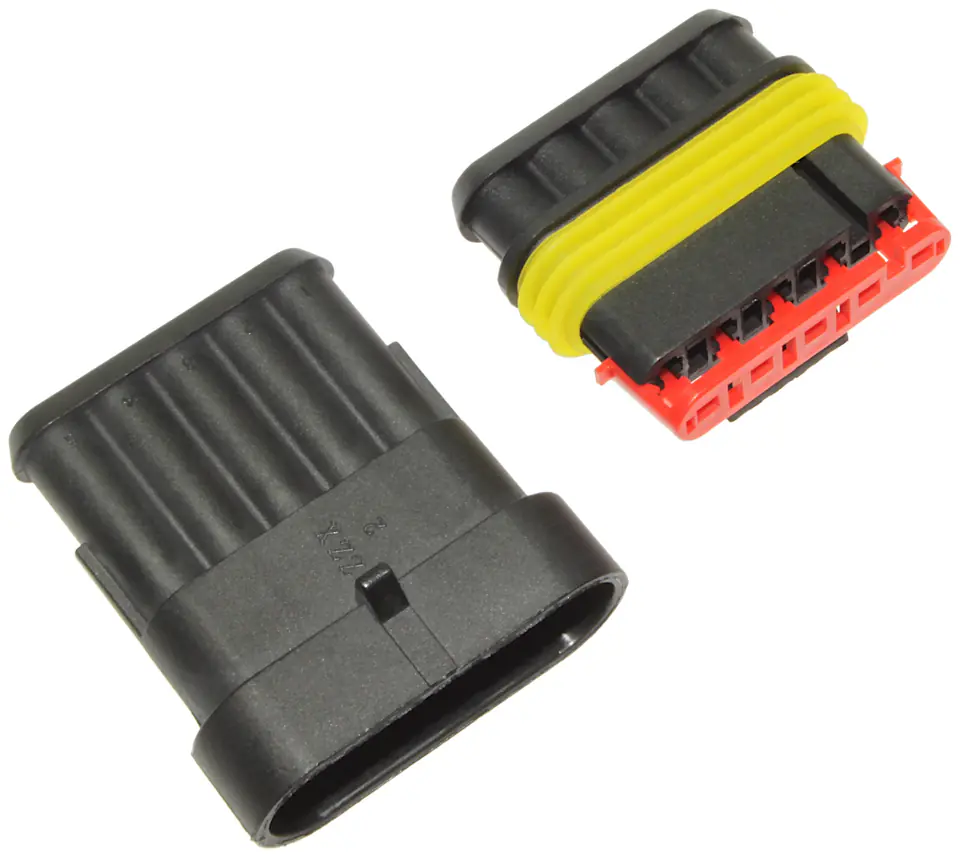

- two-piece lockable plug
- 5 pcs. male connector
- 5 pcs. Female connector
- 10 pcs. sealing rubber bands
Specification:
- Number of Pins, contacts: 5 pcs.
- Working voltage: 12-24V
- Maximum current: 15 A constant working / 18A ( 5 sec. )
- Working contacts: SS1.5 connector for 0.75-1.5 mm2 cable
- Material of contacts, connectors: Tin bronze CuZn/Sn
- Operating temperature range: -40°C- +125°C
- Protection class: IP67
- Housing material: Polyamide 6.6
- Compliance with the directive: RoHS, EC
