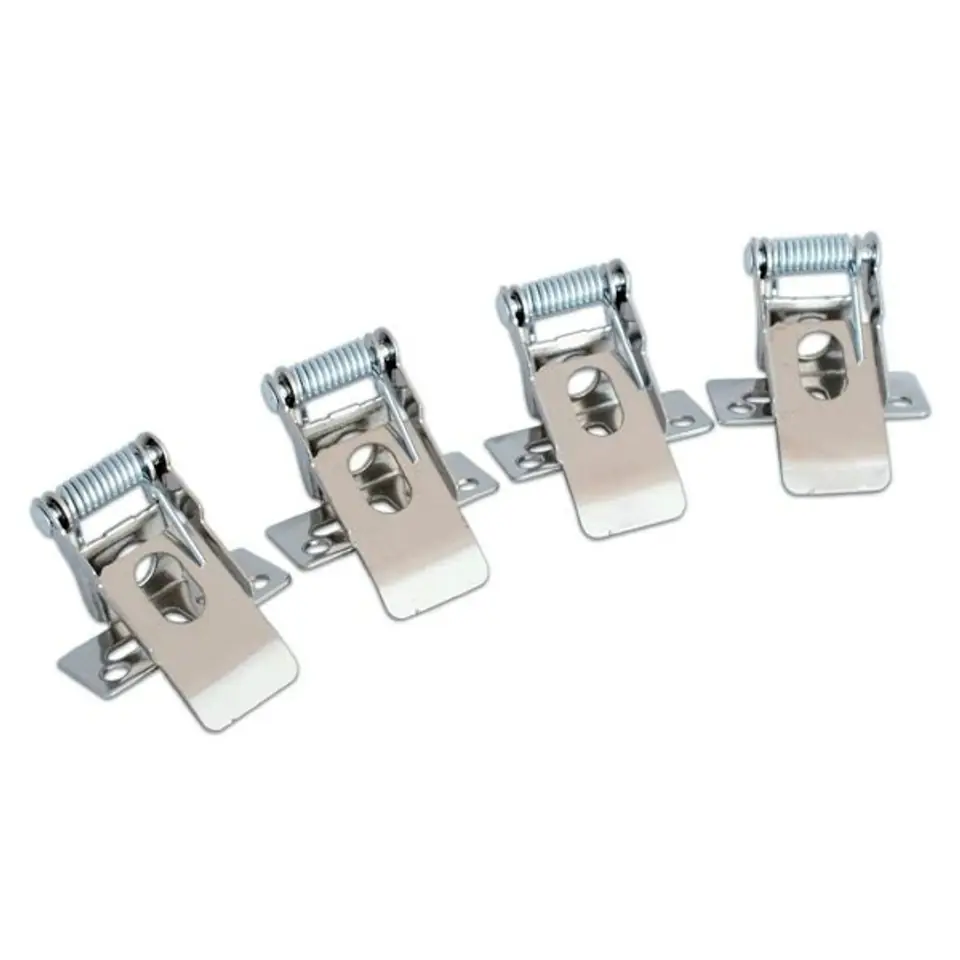

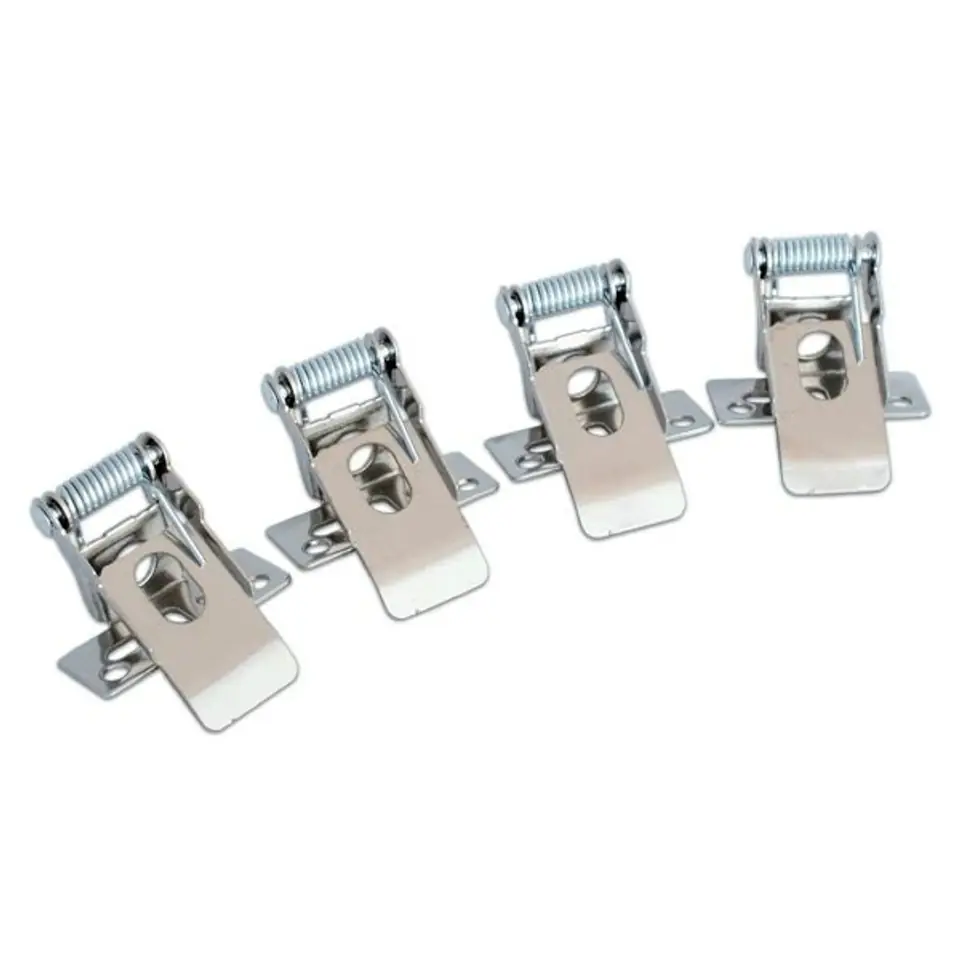

4 clips for mounting LED panel for boards gypsum cardboard g-k

mounting clips made of steel irreplaceable in the installation of LED panels in suspended plasterboard ceilings and cassette buildings
designed for mounting LED panels with dimensions 30x30, 60x30, 60x60, 120x30, 120x60 (two sets of clips should be used for mounting 120x60)
a set designed for alternative installation of ultra-thin LED panels available at our auctions, on our other auctions you will find different types of LED panels, surface-mounted frames for their assembly, steel cables for hanging and power supplies for 36W and 48W LED panels
Mounting method:

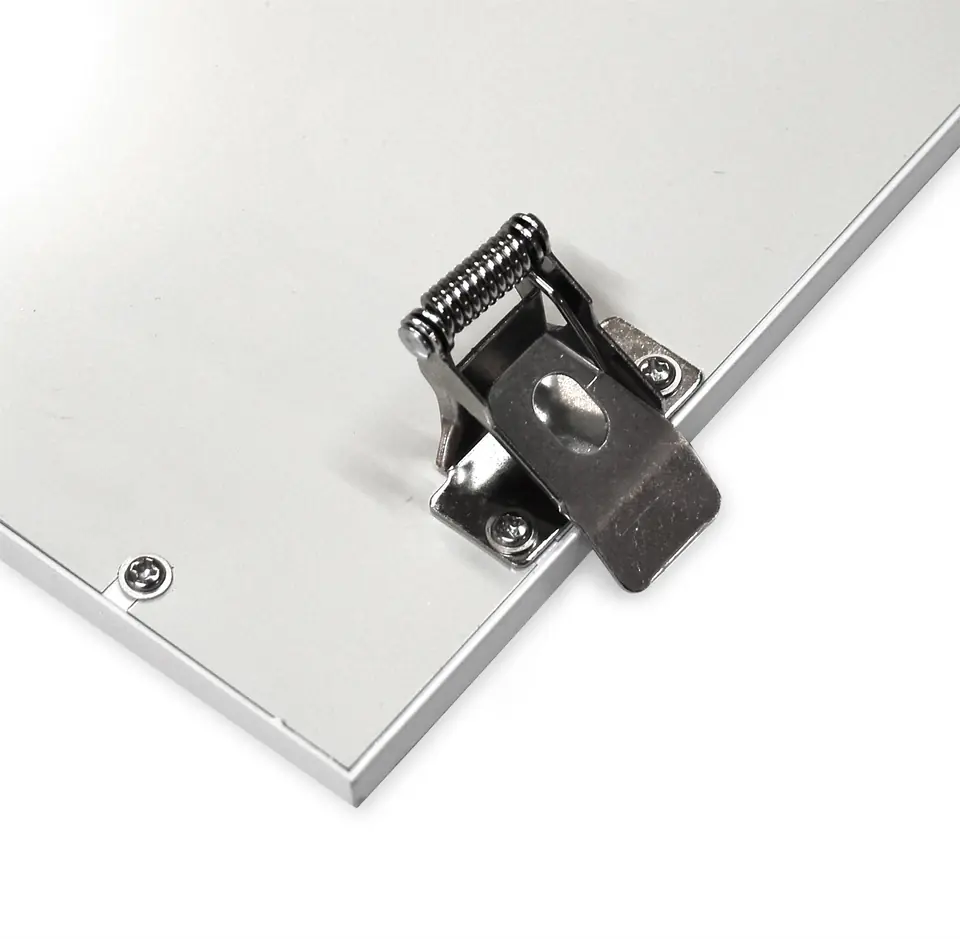

1. The clip should be placed on the edge from the inside of the panel, unscrew the original screws from the LED panel in the places where the clips are mounted;
2. in place of the removed screws, the clips should be fastened by screwing the screws in again;
3. remove the dimension from the panel and cut a hole in the ceiling, remembering that it should be smaller than the LED panel;
4. the last stage is to connect the power supply to the LED panel and installation in the cut hole
(Note: all operations and screwing in should be done carefully so as not to damage the panel housing)

Material: Steel
suitable for panels: 120x30, 60x60, 60x30, 30x30, 120x60
Application: cardboard/gypsum ceilings and cassette installation
Set: 4 clips for mounting one panel
included: mounting clips 4pcs, warranty card
