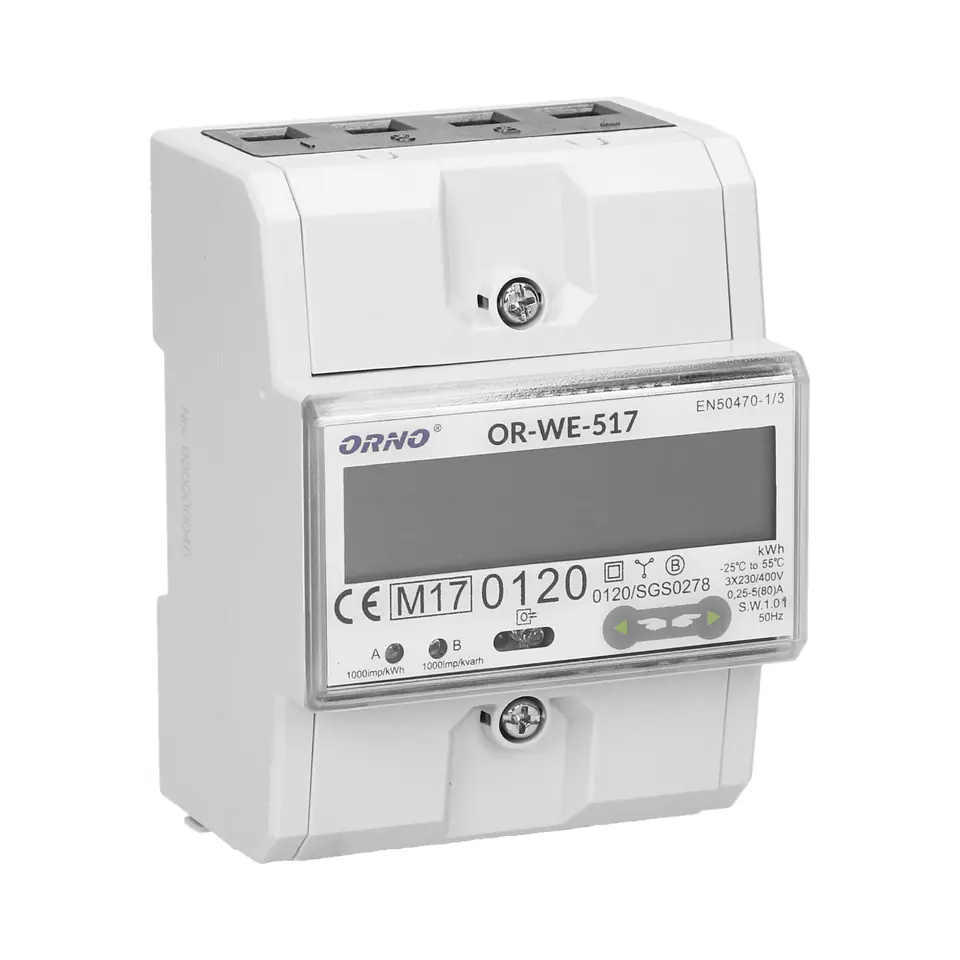

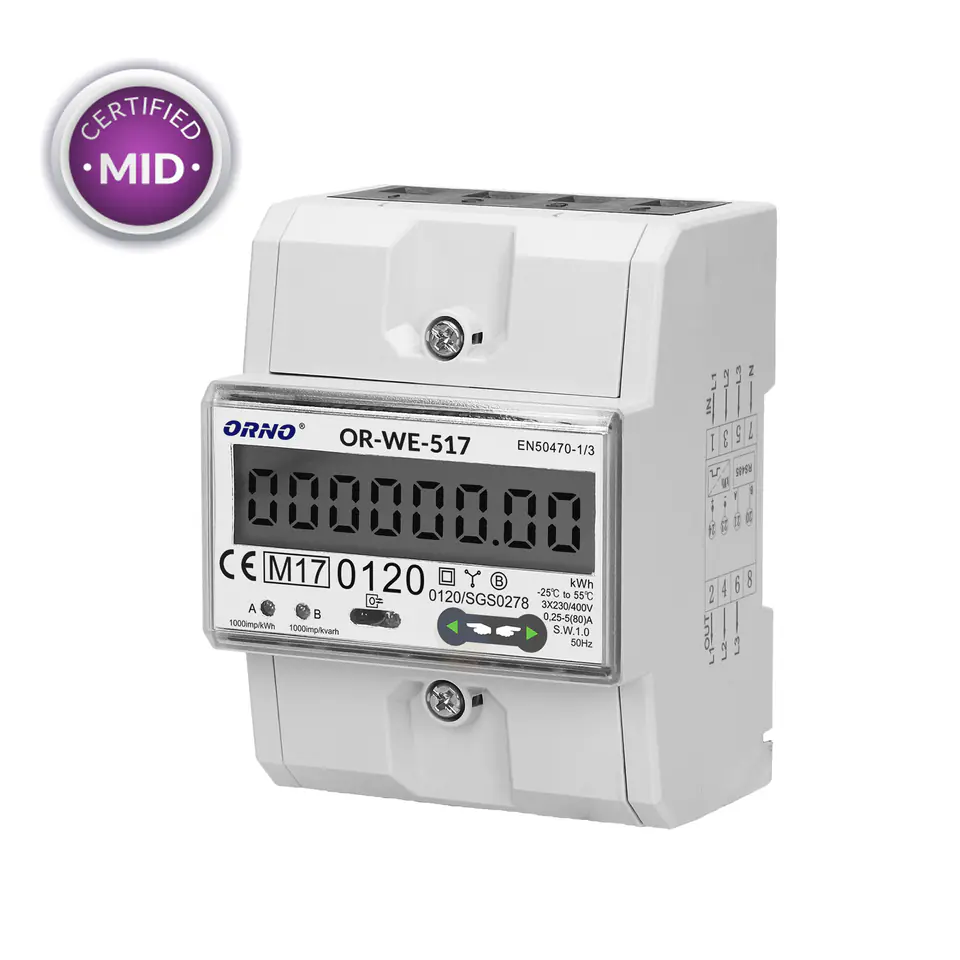

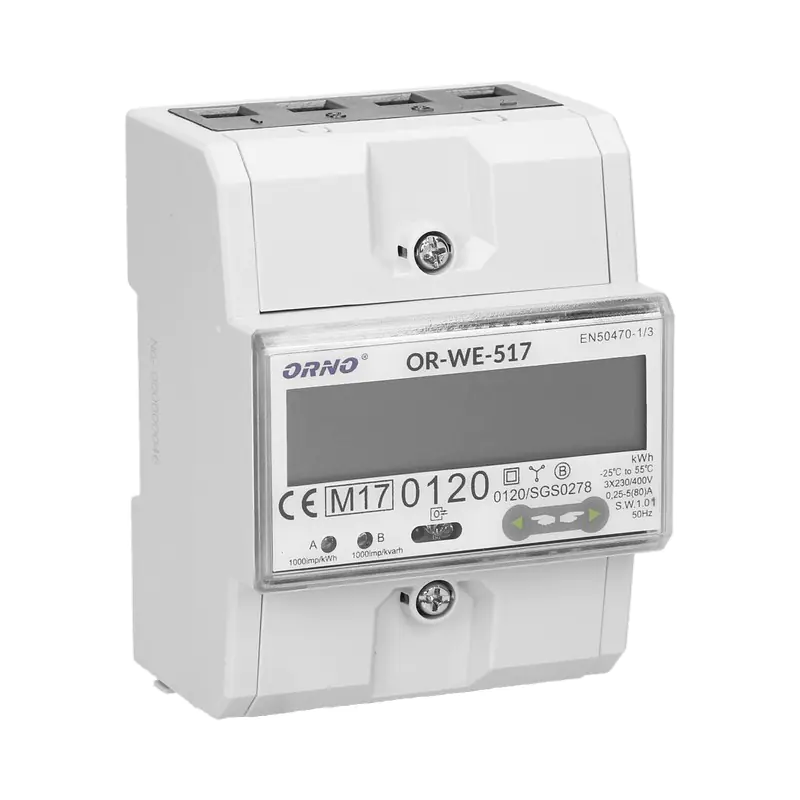

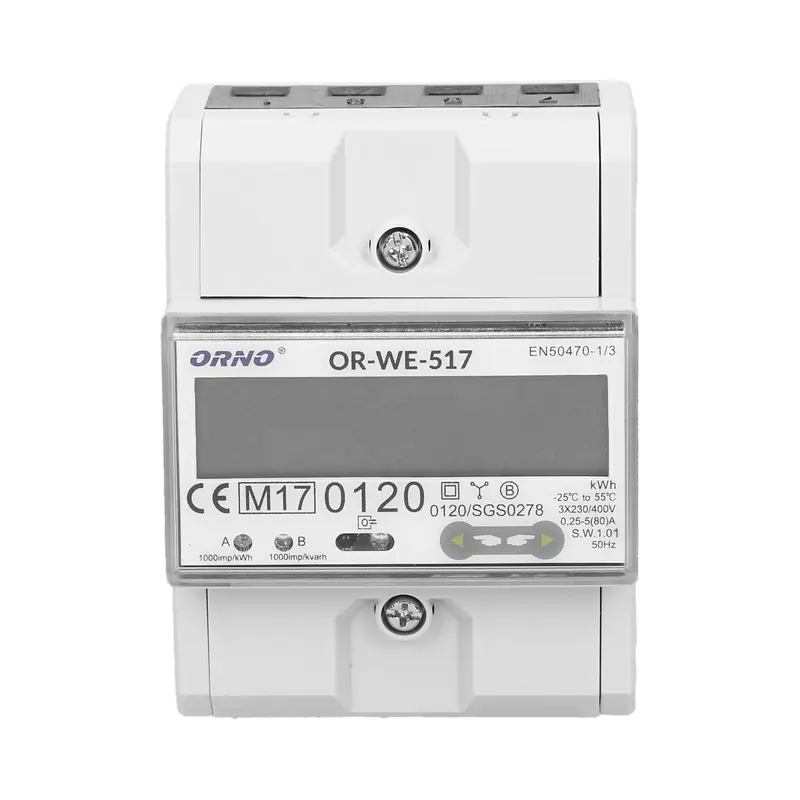

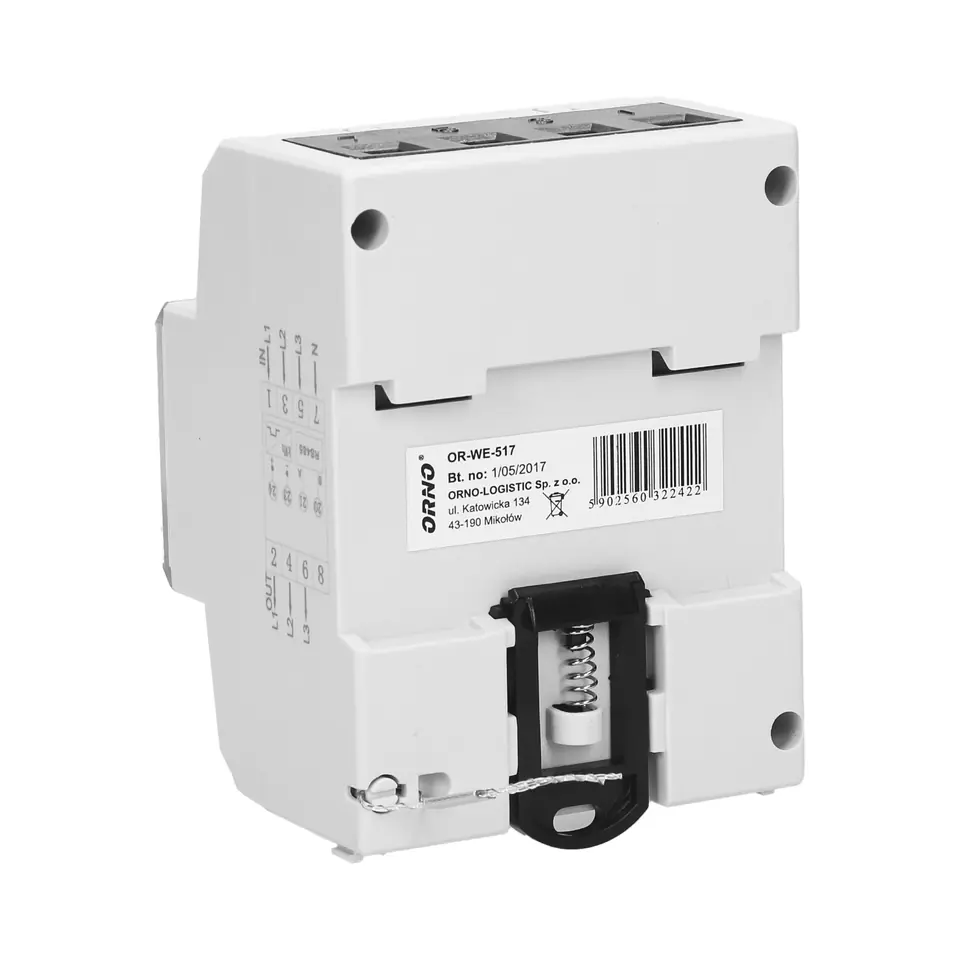

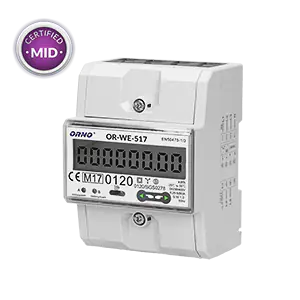

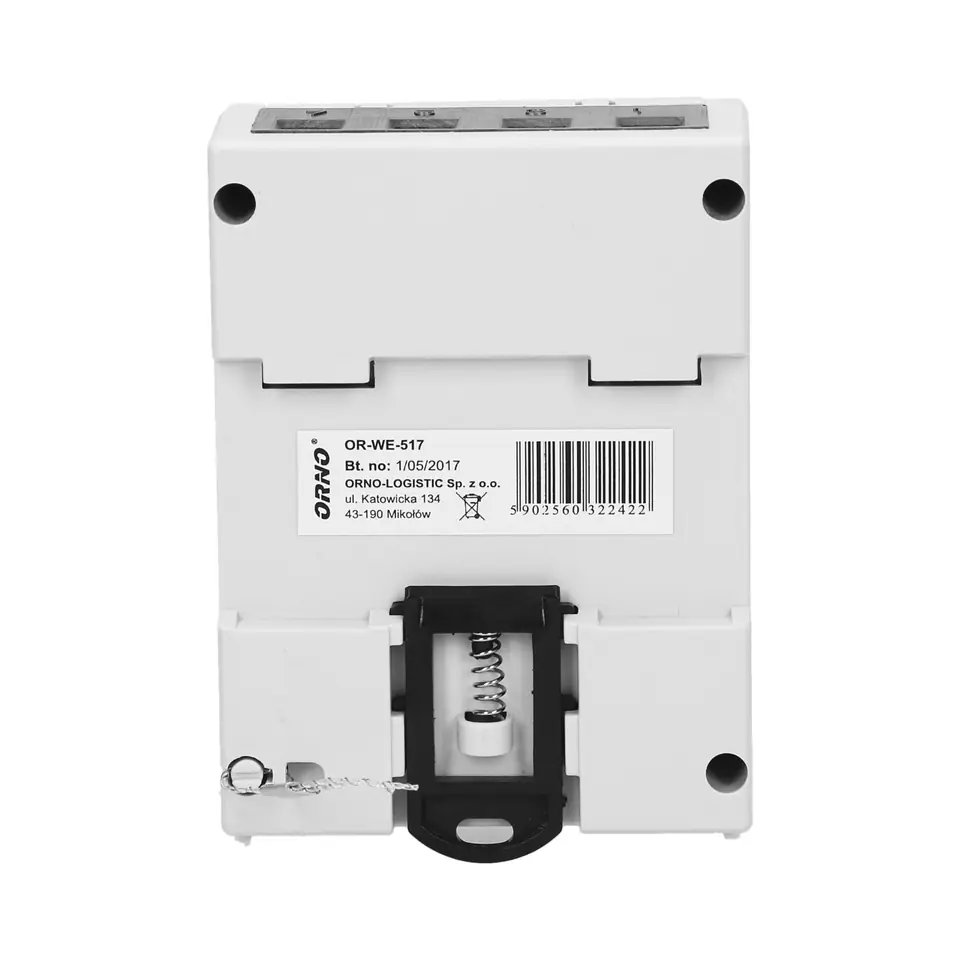

3-phase electricity meter, 80A, RS-485 port, multi-tariff, 3 modules, DIN TH-35mm

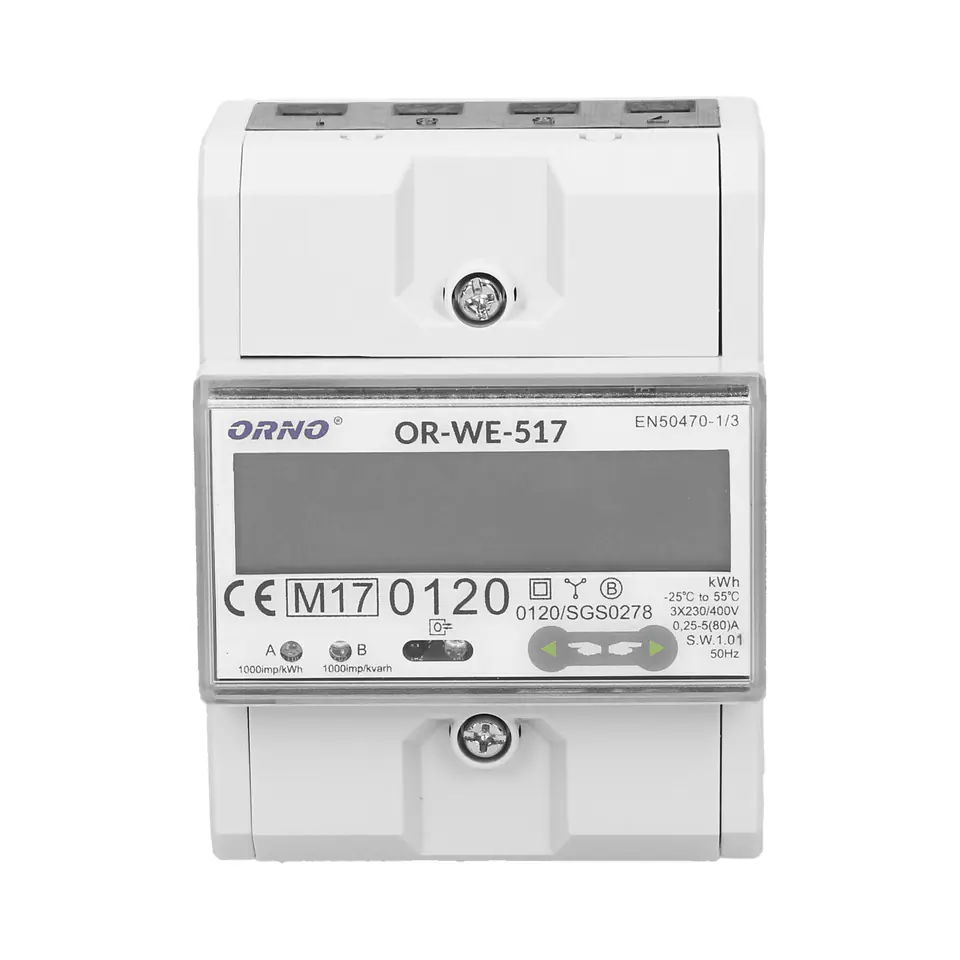

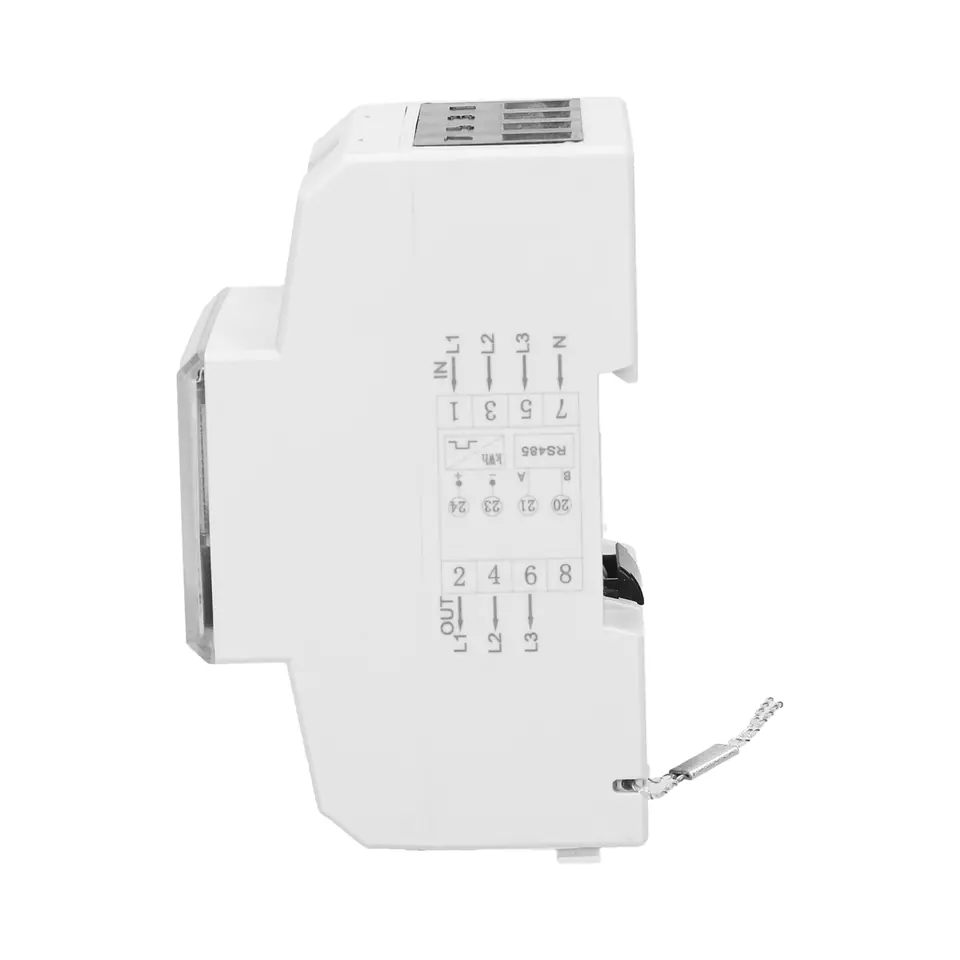

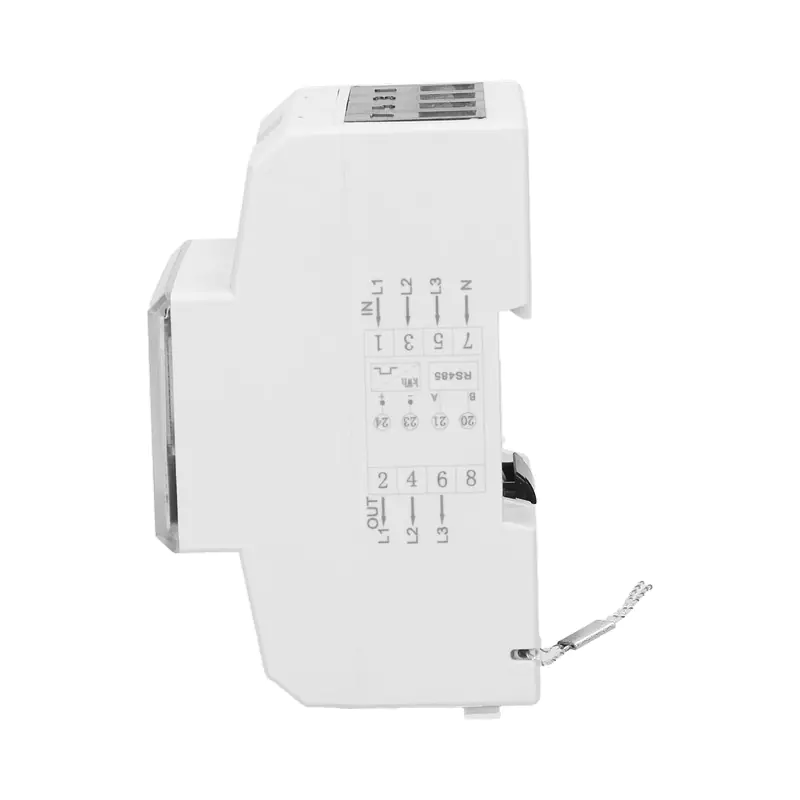

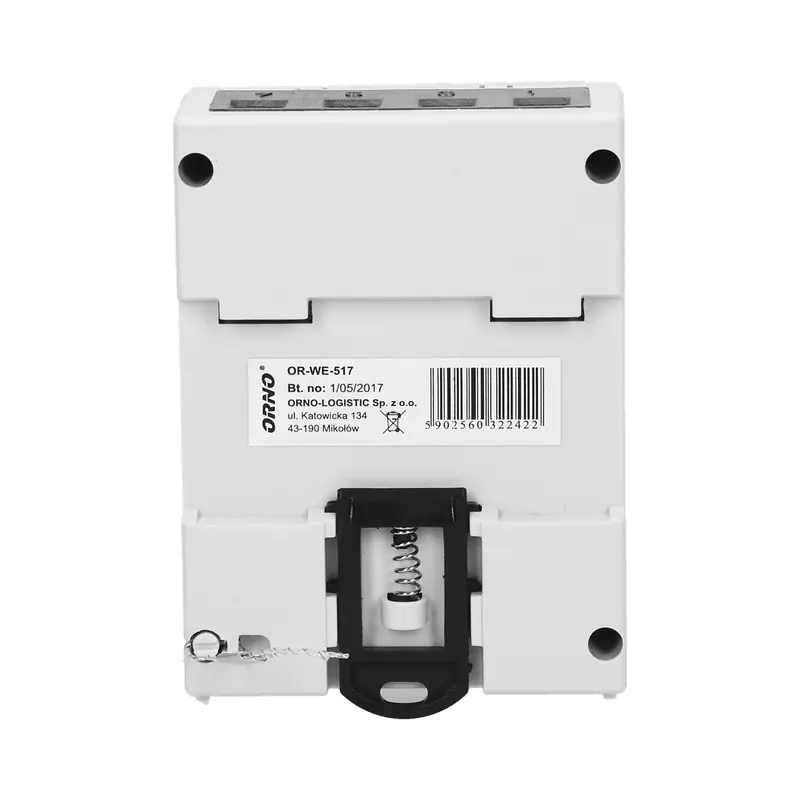

The device for making indications in metric units (kWh), is used for direct measurement of active power in a three-phase system and registration of the consumed electricity with the possibility of remote reading of registers of the indicator group, through the wired network of the RS485 standard. Protocol: Modbus-RTU type and 4 independent tariffs (user can set different times via RS485 port). Equipped with an IR optical port? works with the OR-WE-518 optical head. A special electronic system under the influence of the flowing current and applied voltage generates pulses in an amount proportional to the electricity consumed. The energy consumption in the phase is indicated by the flashing of the LED. The number of pulses is converted into the energy consumed, and its value is indicated by the LCD display (6+2). Power supply: 230V~, 50Hz, base current: 5A, max. current: 80A, min. current: 0.25A, pulse frequency: 1000 imp/kWh, accuracy class B, housing with a width of three modules, mounting on a DIN rail TH-35 mm. Energy measurement is performed in accordance with EN50470-1:2006, EN50470-3:2006 of the MID Directive 2014/32/EU.
