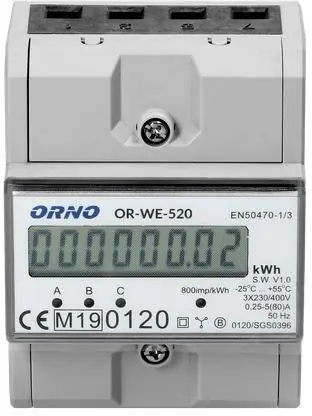

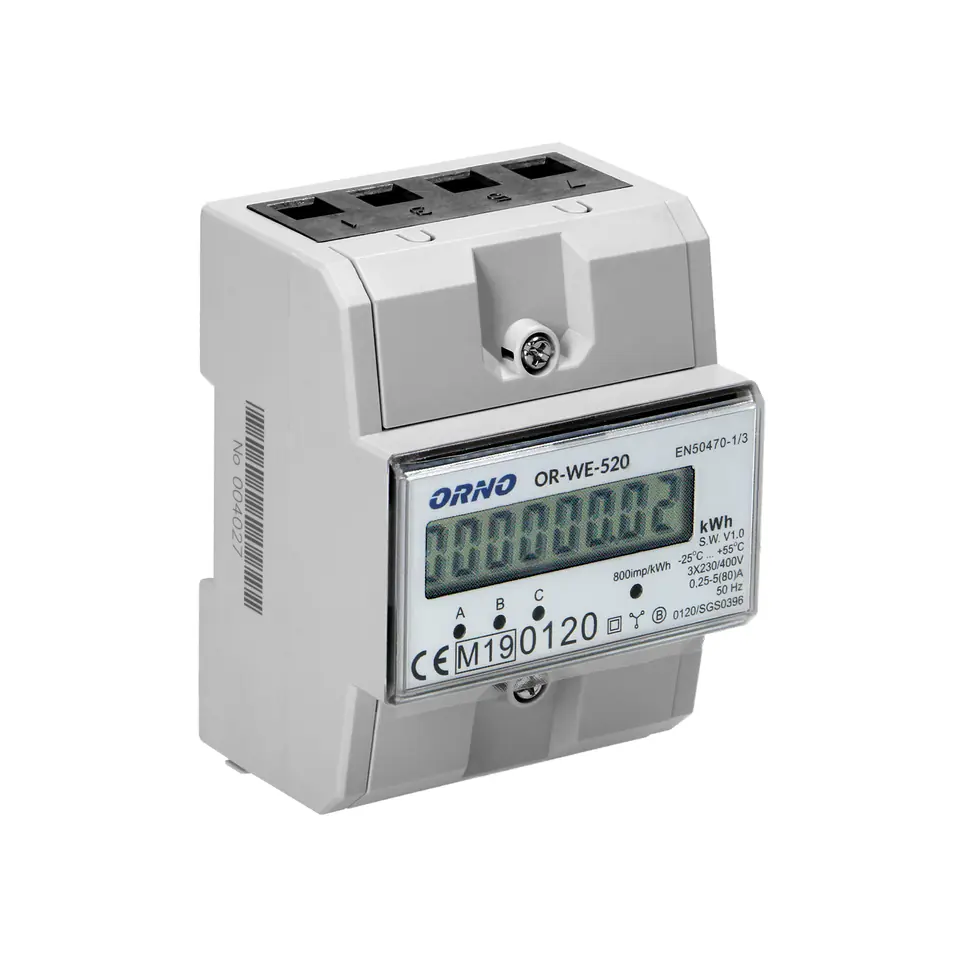

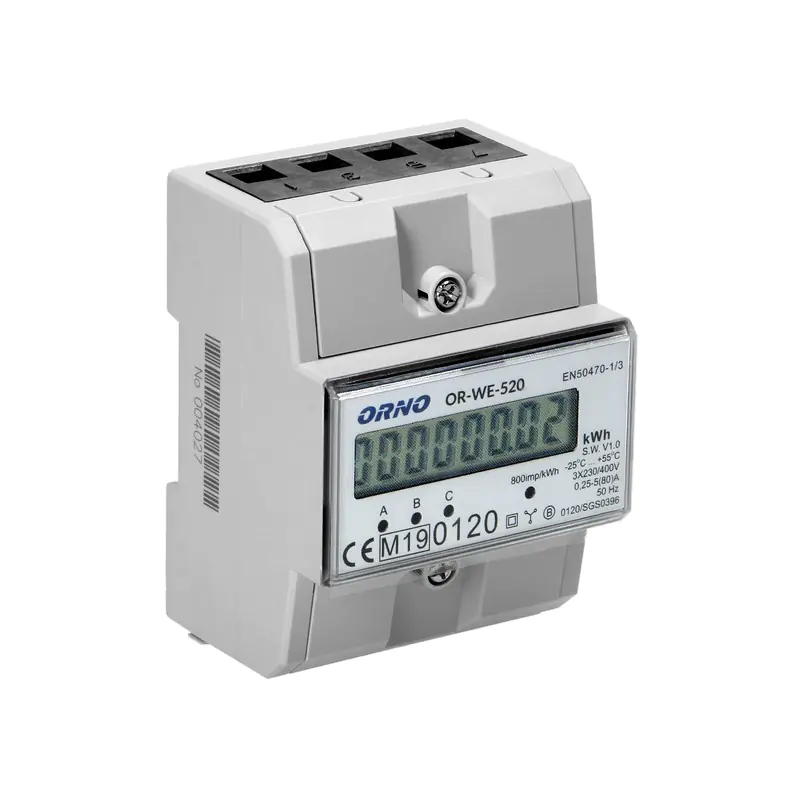

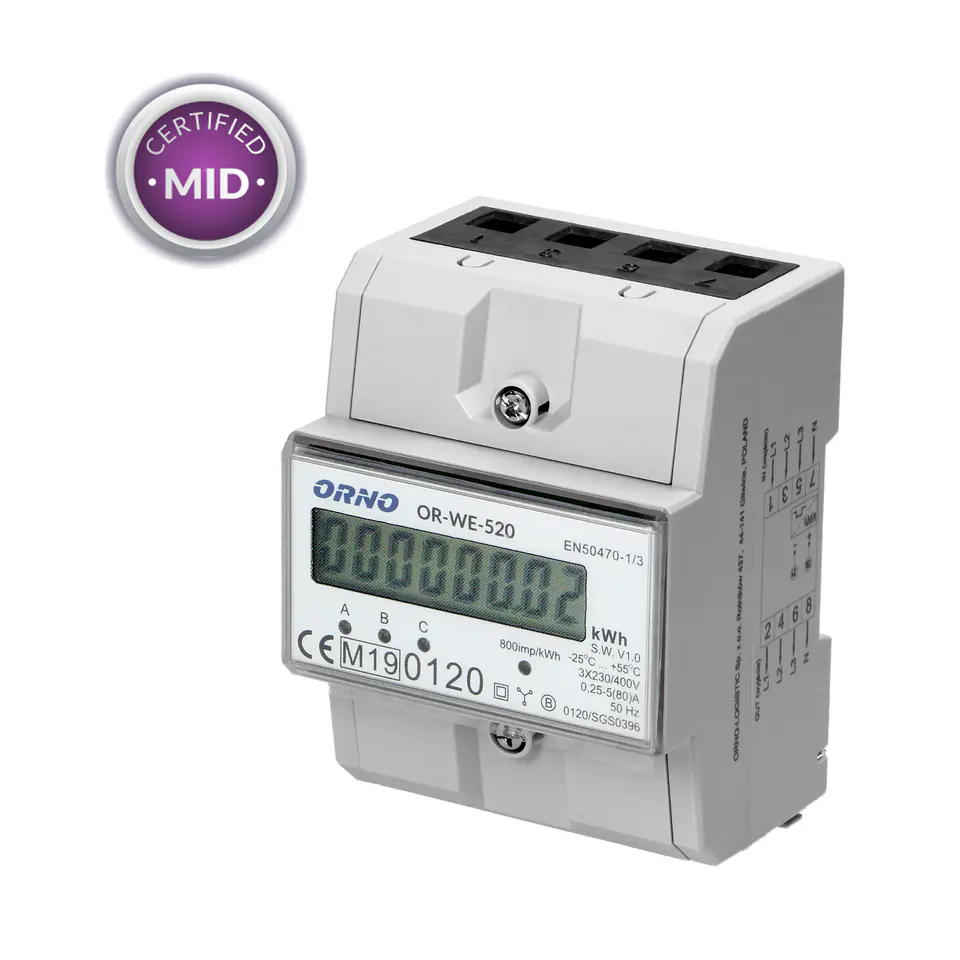

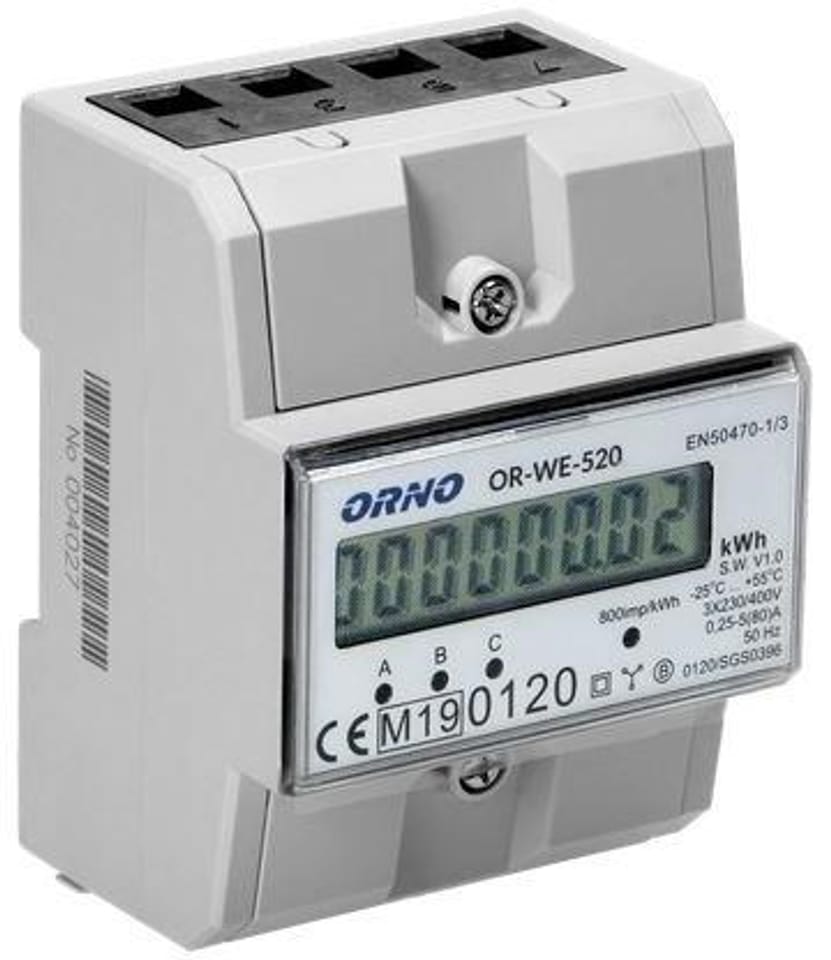

3-phase electricity meter, 80A, MID, 3 modules, DIN TH-35mm

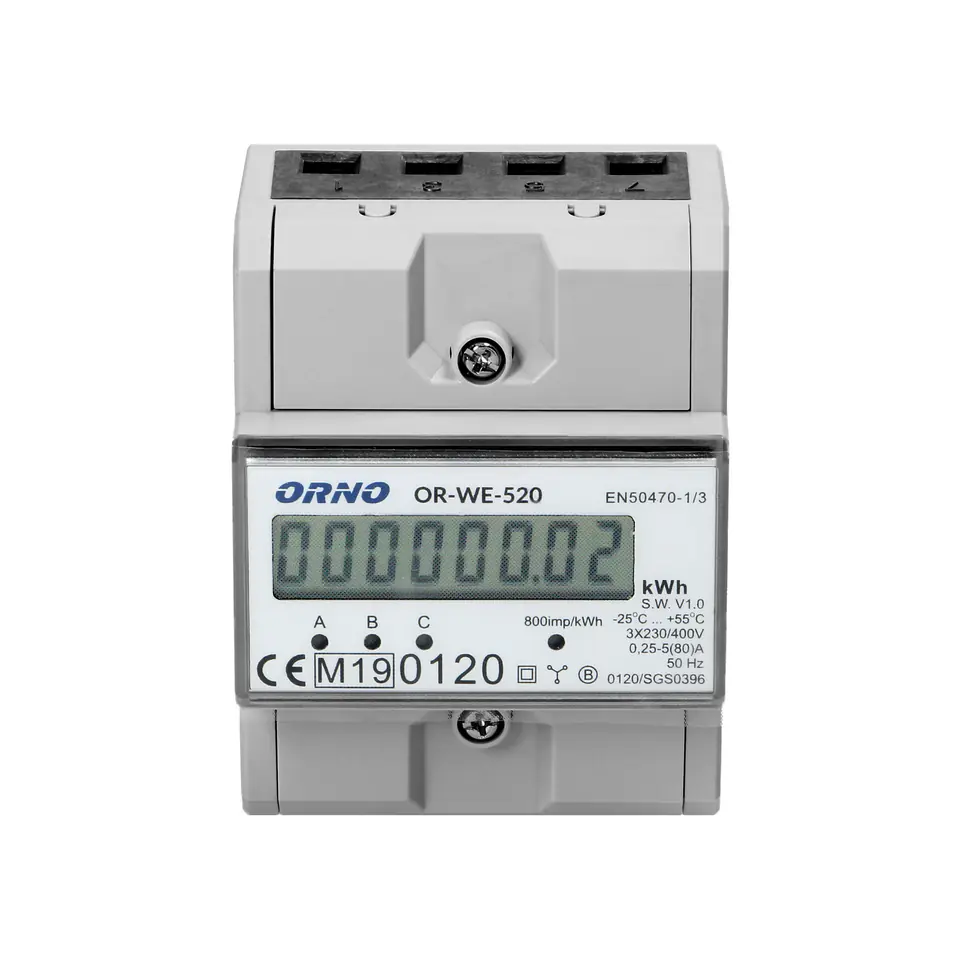

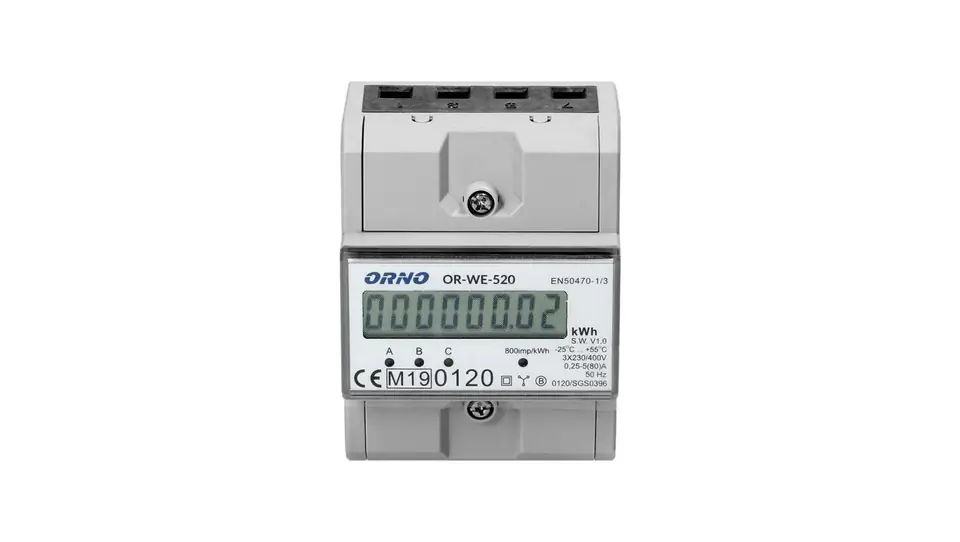

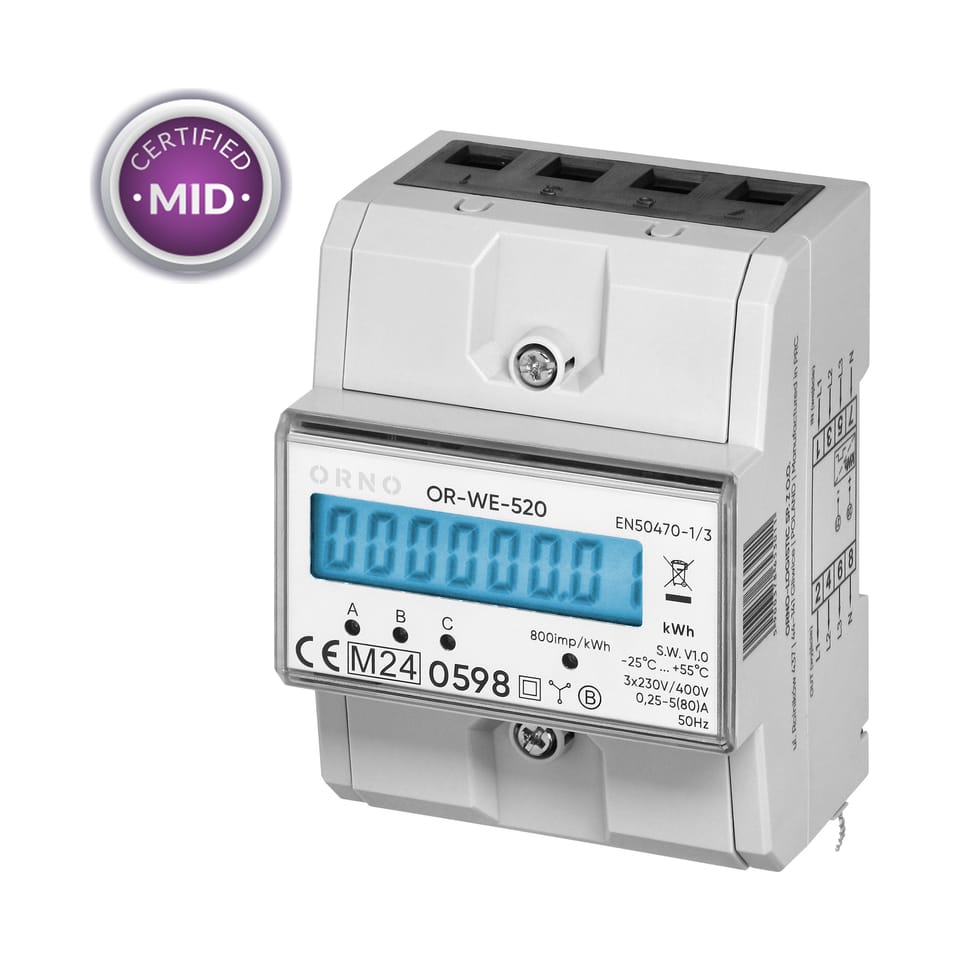

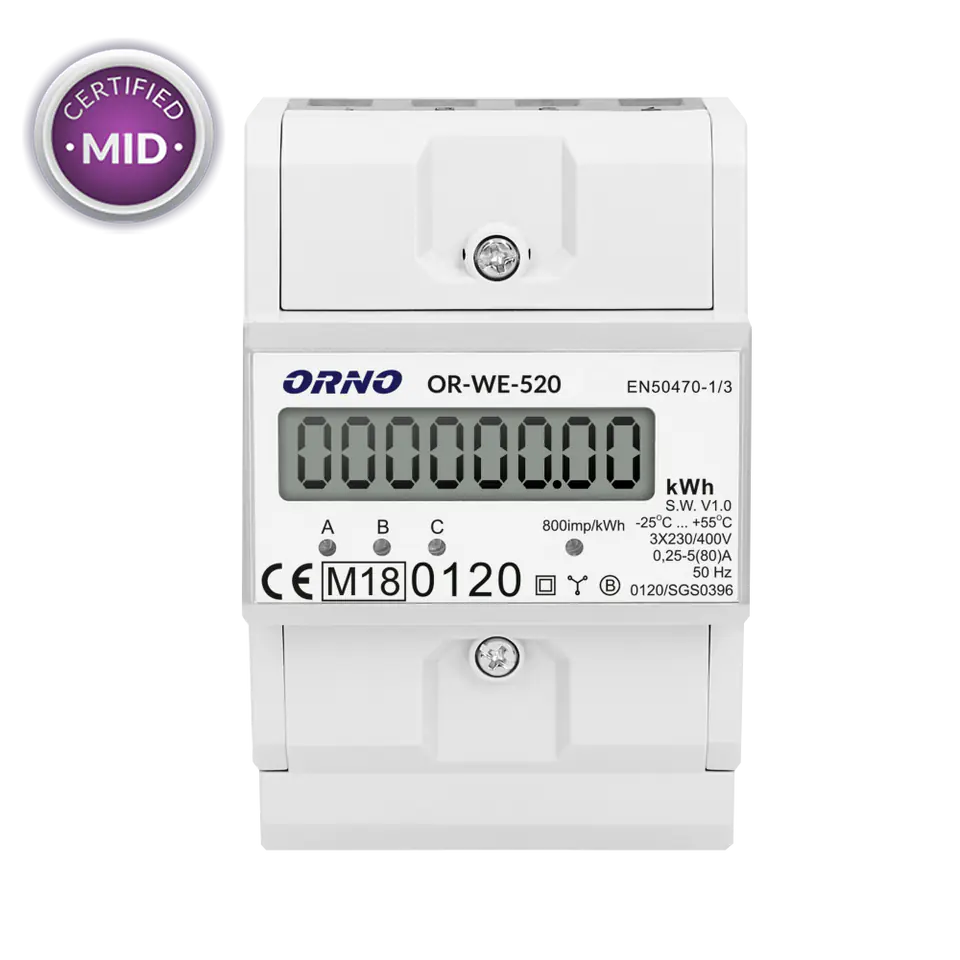

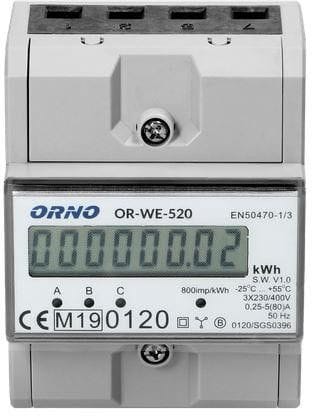

"The device for making indications in metric units (kWh), is used to directly measure active power in a three-phase system. A special electronic system under the influence of the flowing current and applied voltage generates pulses in an amount proportional to the electricity consumed. The energy consumption in the phase is indicated by the flashing of the LED. The number of pulses is converted into the energy consumed, and its value is indicated by the LCD display (6+2). Power supply: 230V~, 50Hz, base current: 5A, max. current: 80A, min. current: 0.25A, pulse frequency: 800 imp/kWh, accuracy class B, housing with a width of three modules, mounting on a DIN rail TH-35 mm, pulse output: power supply 12~27V, current ?27mA, pulse = 80ms. The energy measurement is carried out in accordance with EN50470-1:2006, EN50470-3:2006 of the MID Directive 2014/32/EU."
