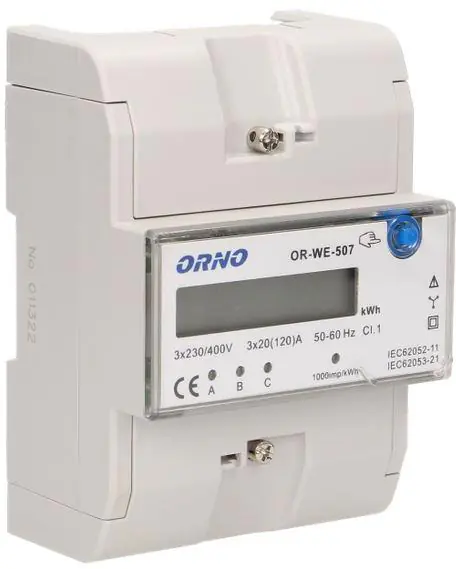

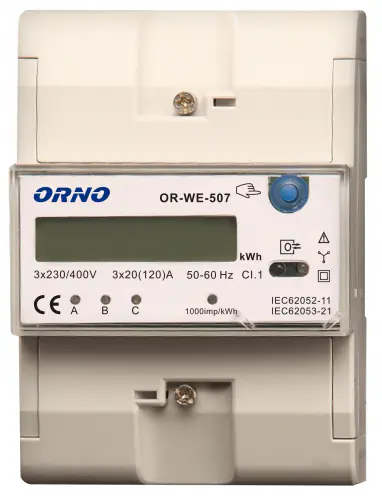

The device for making indications in metric units (kWh) is used for direct measurement of active power in a three-phase system. A special electronic system under the influence of the flowing current and the applied voltage in each phase indicates pulses in an amount proportional to the electricity consumed in a given phase. The energy consumption in the phase is indicated by the flashing of the appropriate diode. The sum of pulses from the three phases is converted into the energy consumed in the entire three-phase system, and its value is indicated by the LCD display (number of digits 6 + 1). Power supply: 3 × 230V~, 50Hz, base current: 20A, max. current: 120A, pulse frequency: 1000imp/kWh, additional button: erasing the peak power consumption of the measuring system load in the last 30 minutes. from the inclusion of the load, measurement accuracy: class1, mounting on a 35 mm rail.

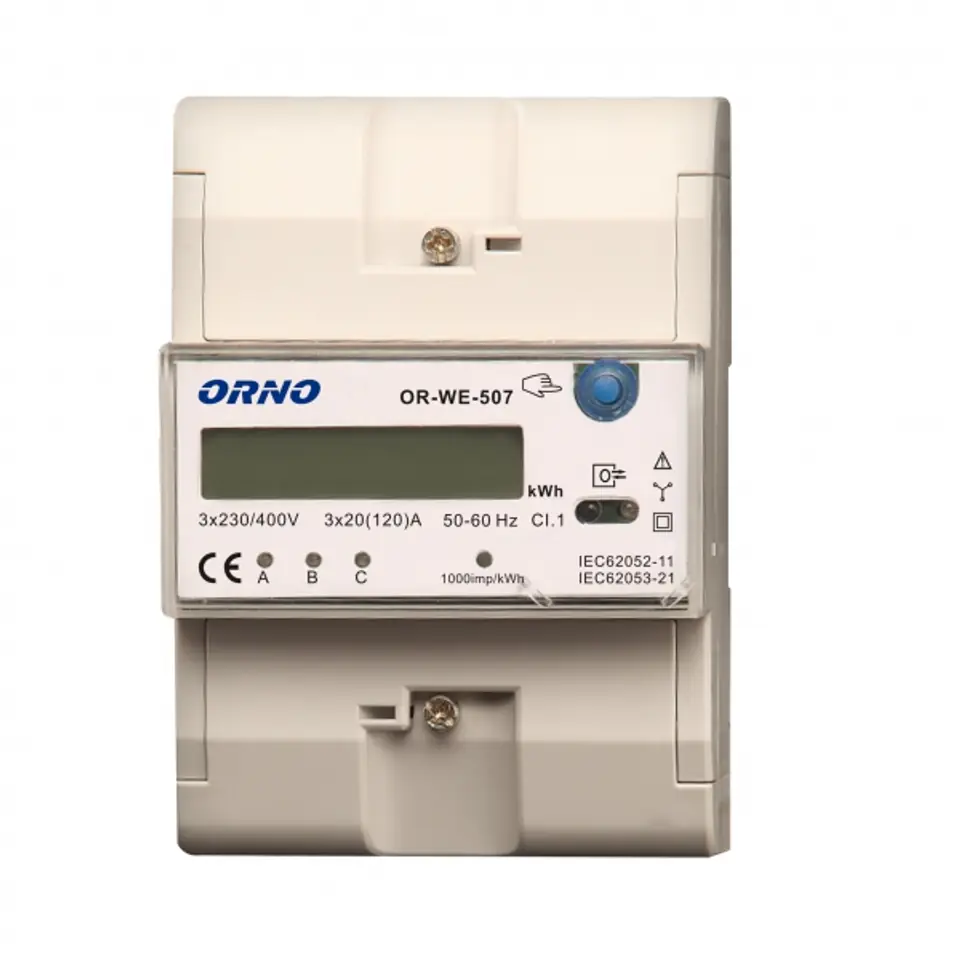

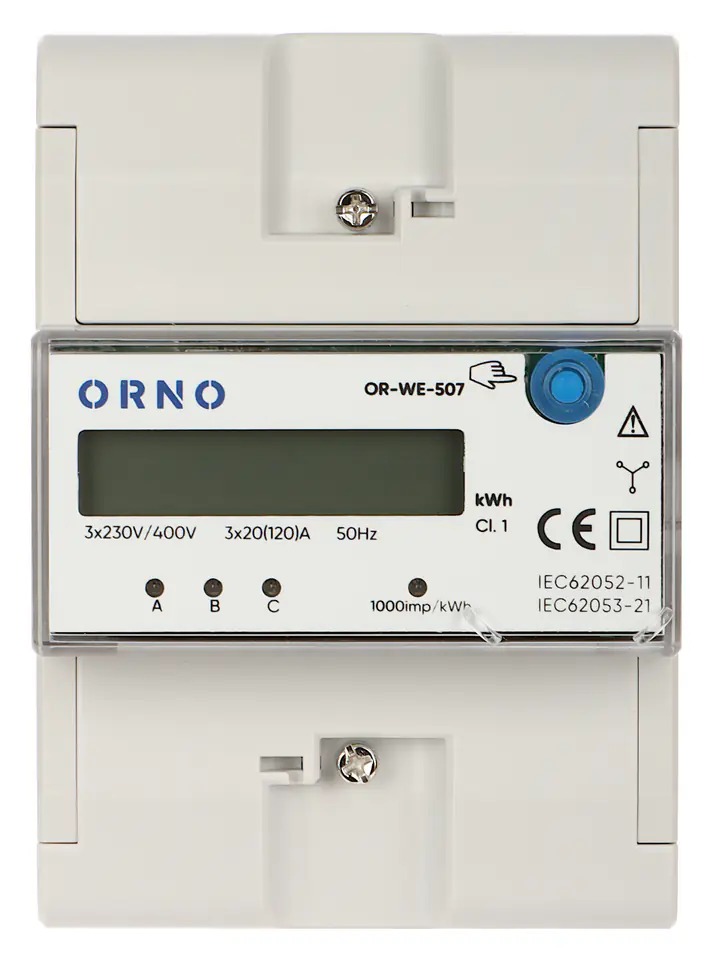

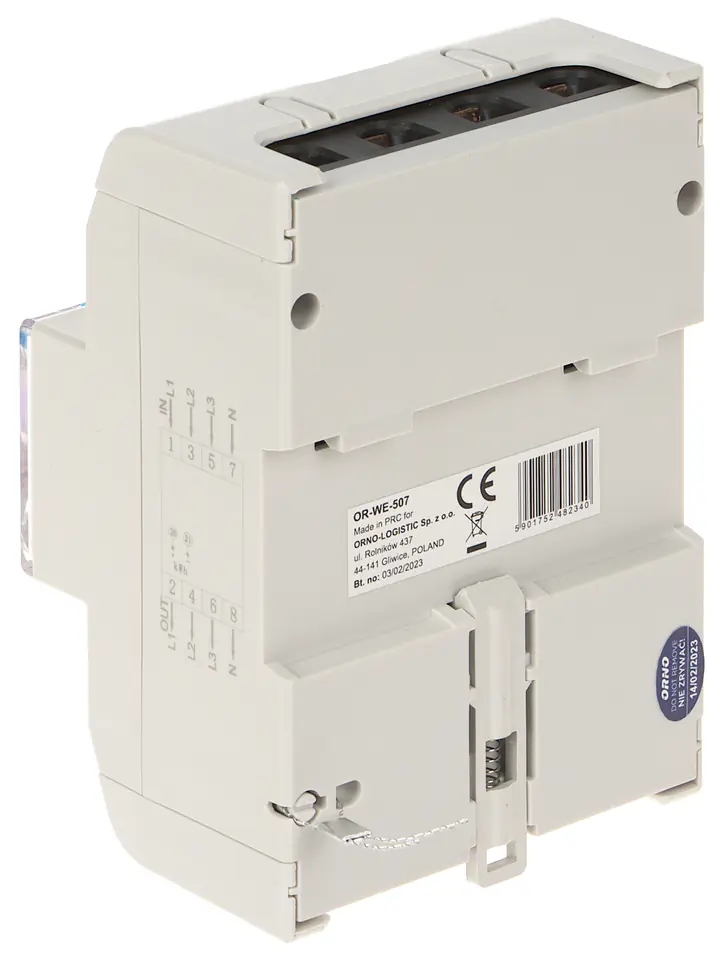

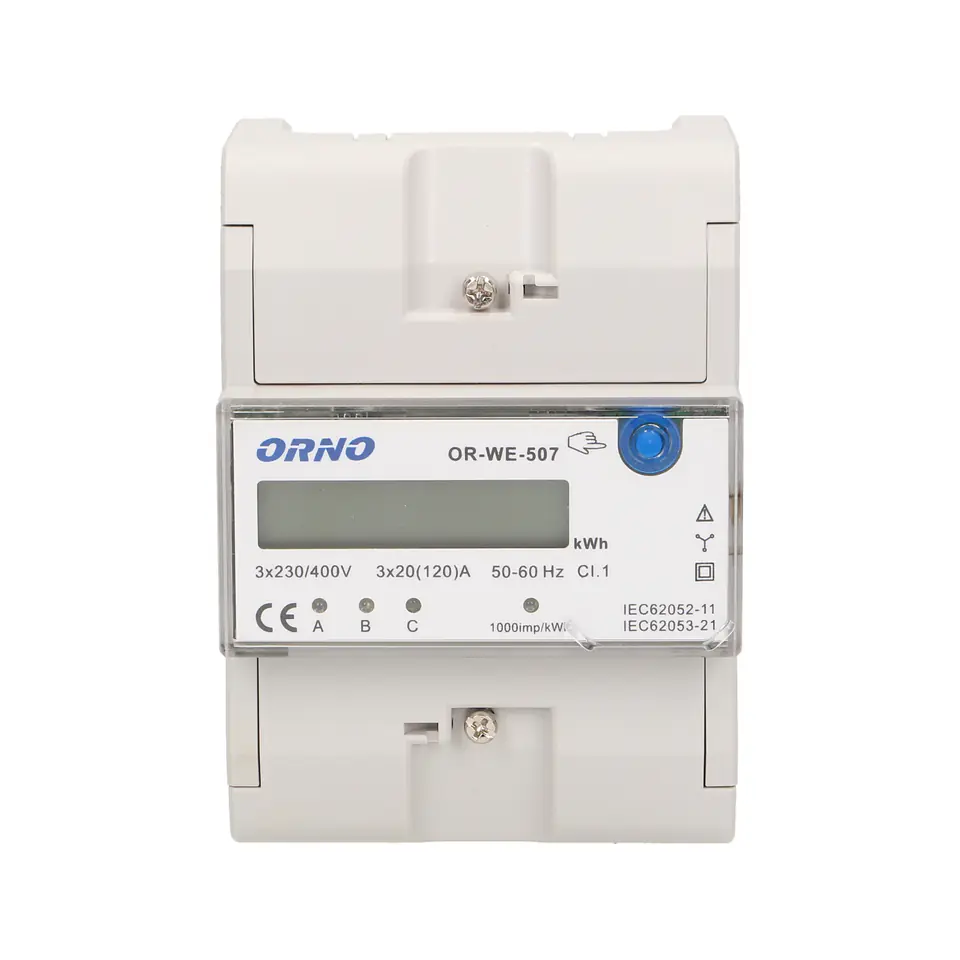

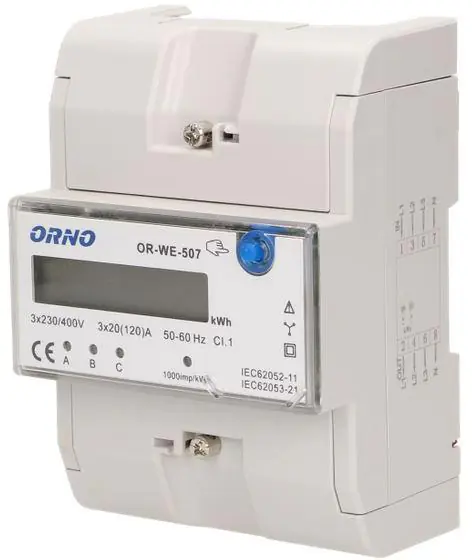

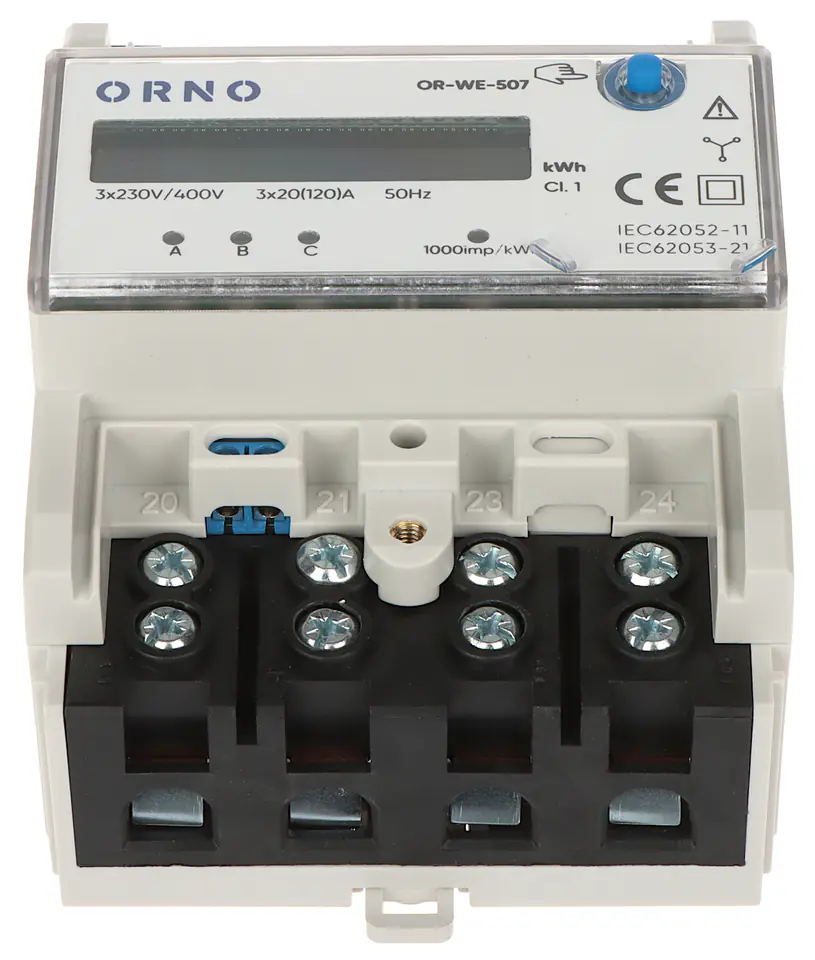

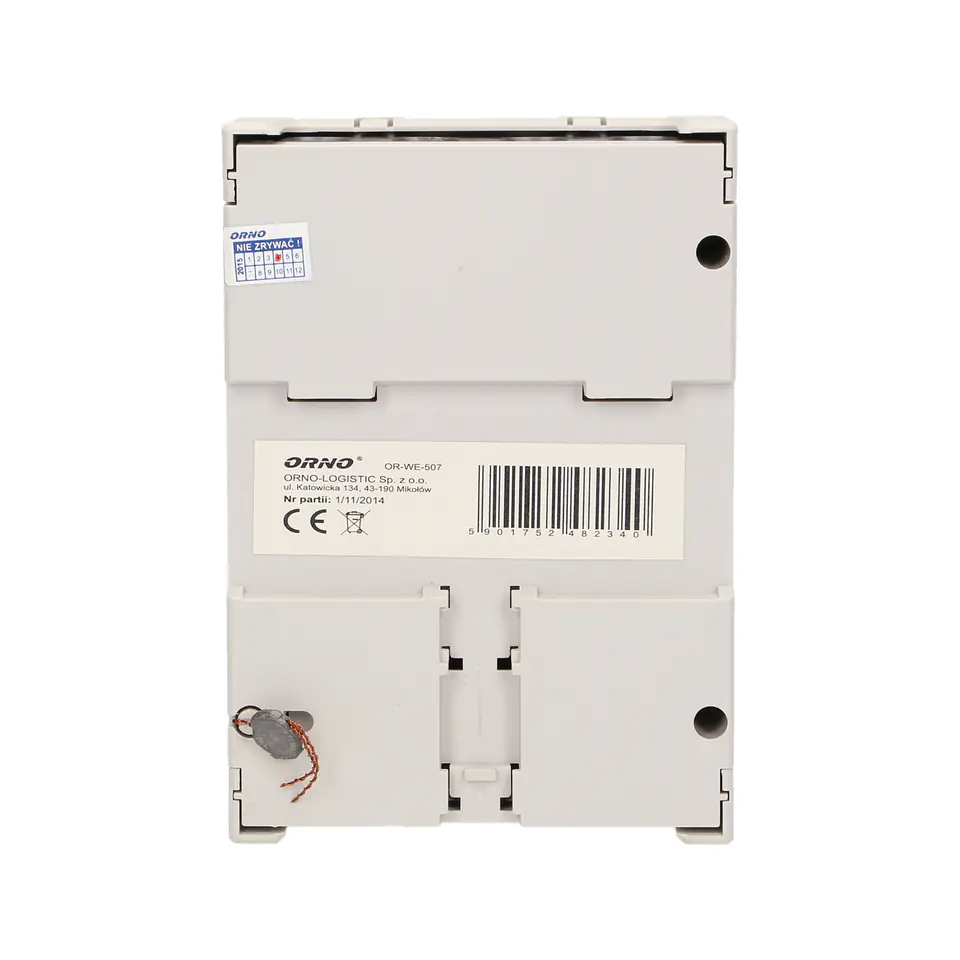

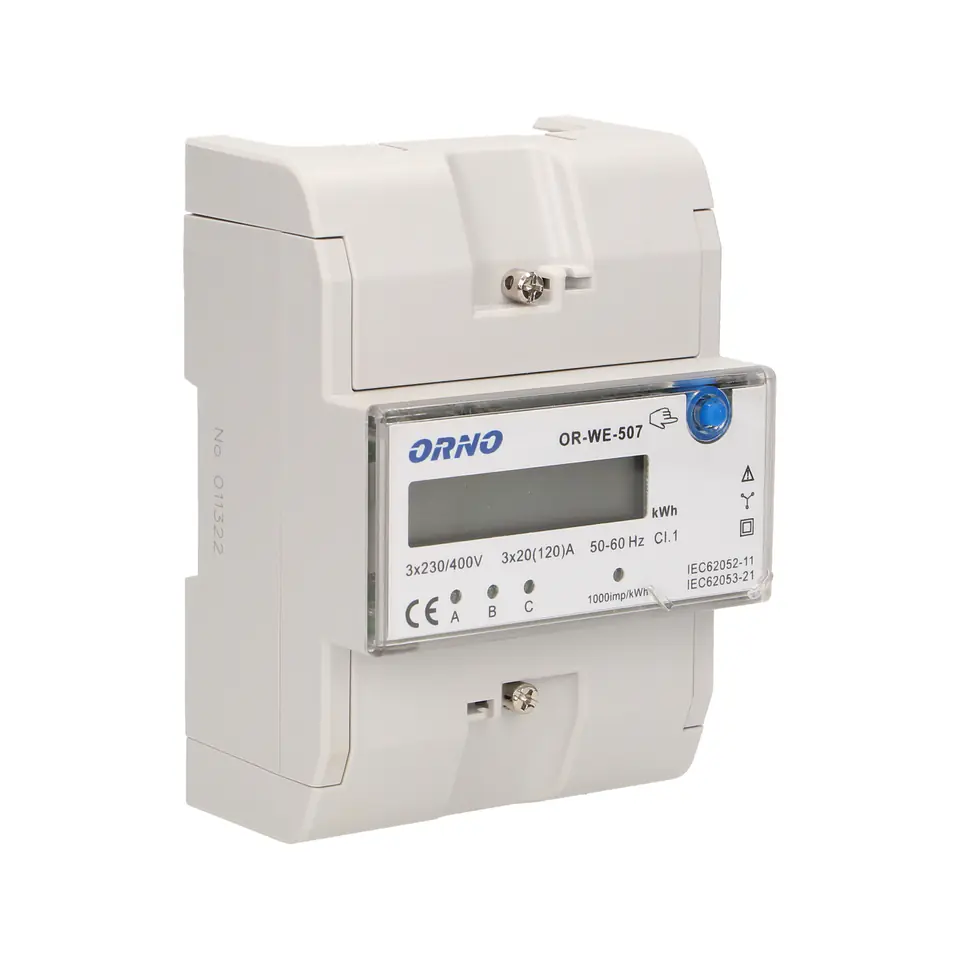

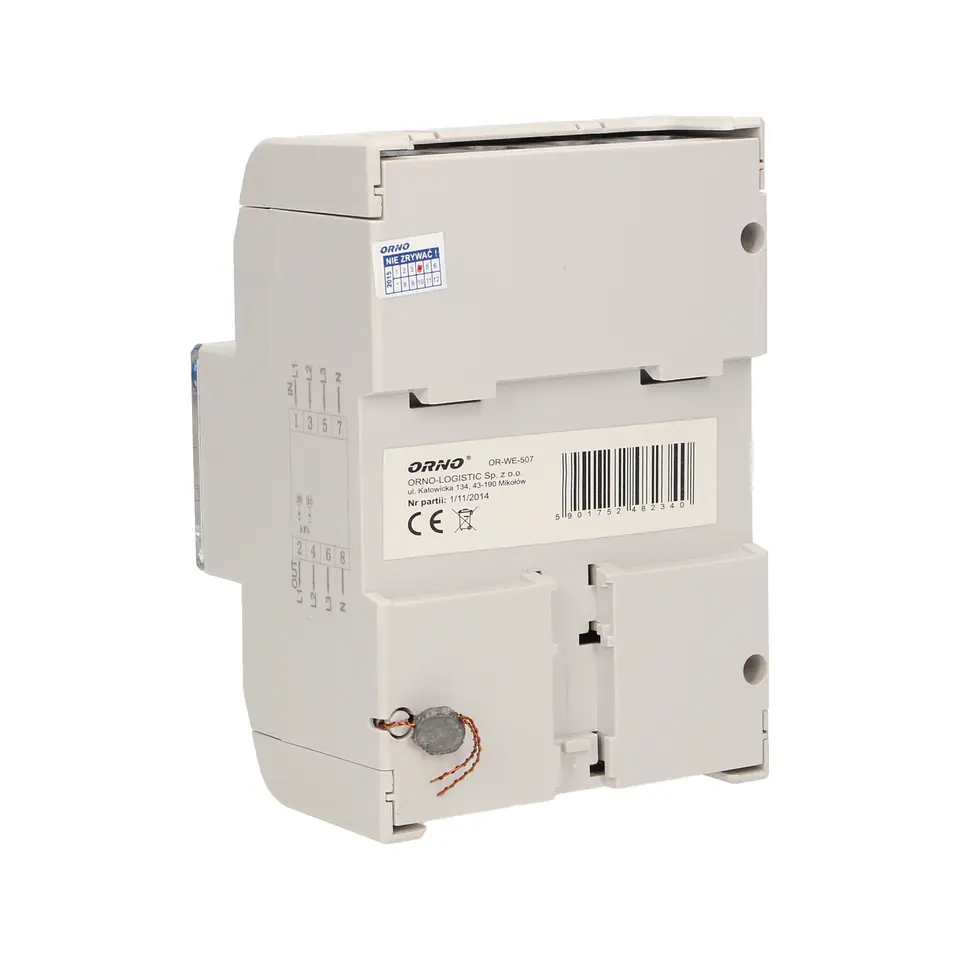

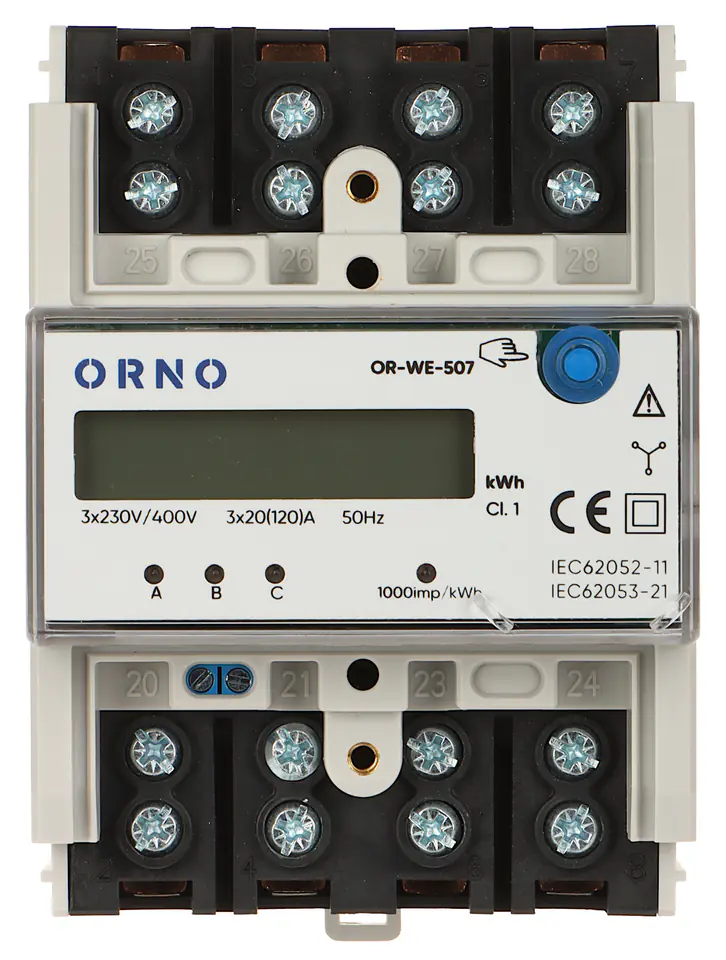

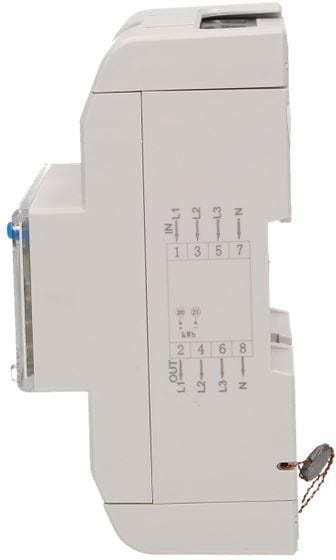

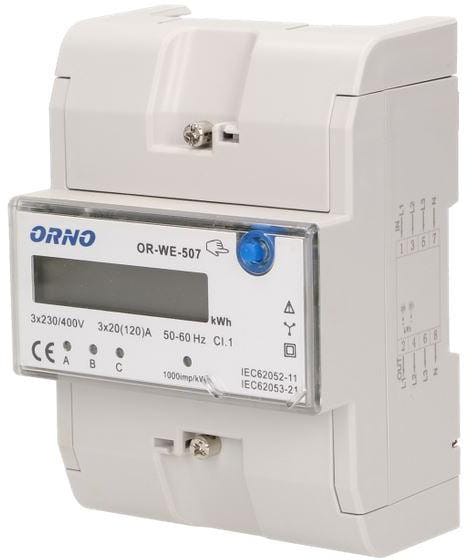

3-phase electricity indicator, 120A, 5 modules, DIN TH-35mm, additional button
€62.93
Shipping from warehouse: H7
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Orno
- Product code:
- OR-WE-507 / 5901752482340
Share this product:
Specification
| Ac input frequency: | 50 - 60 Hz |
|---|---|
| Accuracy class: | 1 |
| Application: | Plug-in |
| Calibrated: | No |
| Depth: | 67 mm |
| Display type: | LCD |
| Height: | 128 mm |
| How to connect the meter: | Direct connection |
| Input voltage: | 230 - 400 V |
| Measuring functions: | Power output |
| Model: | Two-wire counter |
| Modular version: | Yes |
| Mounting method: | Built-in |
| Number of meter tariffs: | Single tariff |
| Number of pulses per unit of energy [imp/kv ah]: | 1000 |
| Product colour: | White |
| Pulse i (falling slope, tristate): | No |
| Pulse m (rising slope): | No |
| Pulse p (falling slope): | No |
| Rated current: | 20 A |
| Rated current in cooperation with current converter: | Lack |
| Rated operating frequency [hz] from: | 50 |
| Rated operating frequency [hz] up to: | 60 |
| Rated voltage [v]: | 400 |
| Suitable for recording incremental values: | No |
| Type: | Electronic |
| Type of energy measured: | Active energy measurement |
| Units of measurement: | kWh |
| Width: | 90 mm |
| With electronic pulse generator: | Yes |
| With pulse output: | No |
