240MM UNIVERSAL PLIERS WITH INCREASED RATIO LINEMAN

Specifications:

Item no.: 09 12 240
EAN: 4003773071969
Pliers: phosphated, black
Head: polished
handles: with multi-component caps
Weight: 455 g
Dimensions: 240 x 55 x 22 mm
Standard: DIN ISO 5746 ASME B107.20
REACH: does not contain SVHC
RoHS: not applicable
Cutting range of medium hardness wire (diameter): 4.6 mm
Hardcore wire cutting range (diameter): 3.0mm



Large gear ratio for easy cutting
The optimal gear ratio allows you to use 50% less force compared to ordinary universal pliers
With a gap in the cable pulling connector
With universal crimping pin under connector
Robust design for the highest loads, universal application
Ergonomic handle with optimized shape for excellent hand support and efficient power transfer without fatigue
Gripping surfaces with cross teeth provide a very strong and secure grip
An additional gripping surface at the back of the connector allows, m.in, undermining and pressing
For cutting soft and hard wire
Blades separately induction hardened, blade hardness approx. 62 HRC
Electric steel, vanadium, forged, repeatedly oil-hardened


**

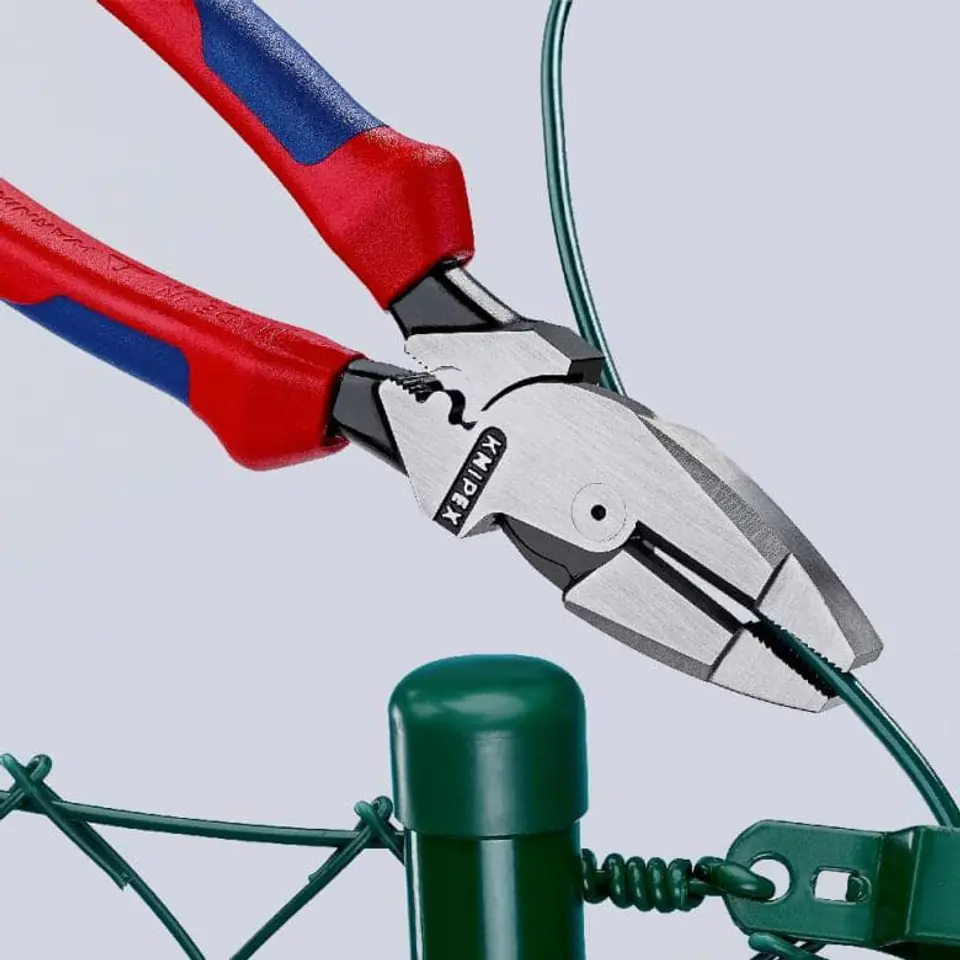

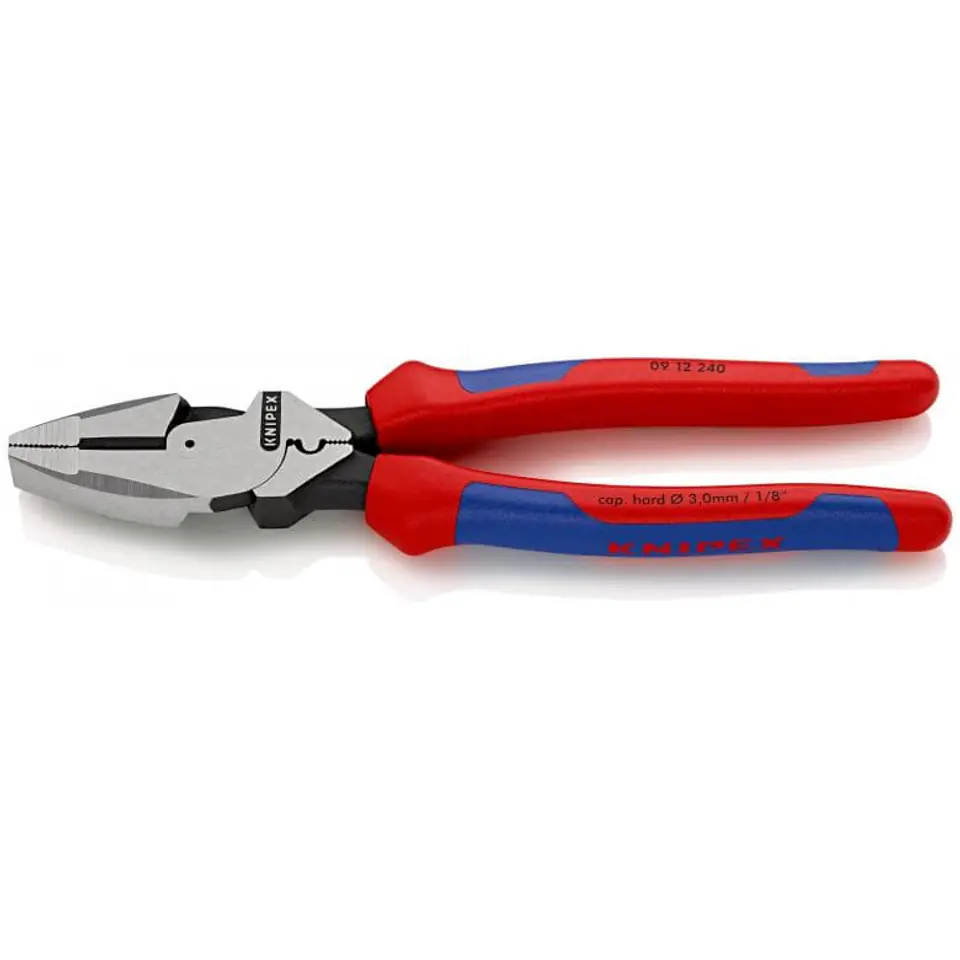

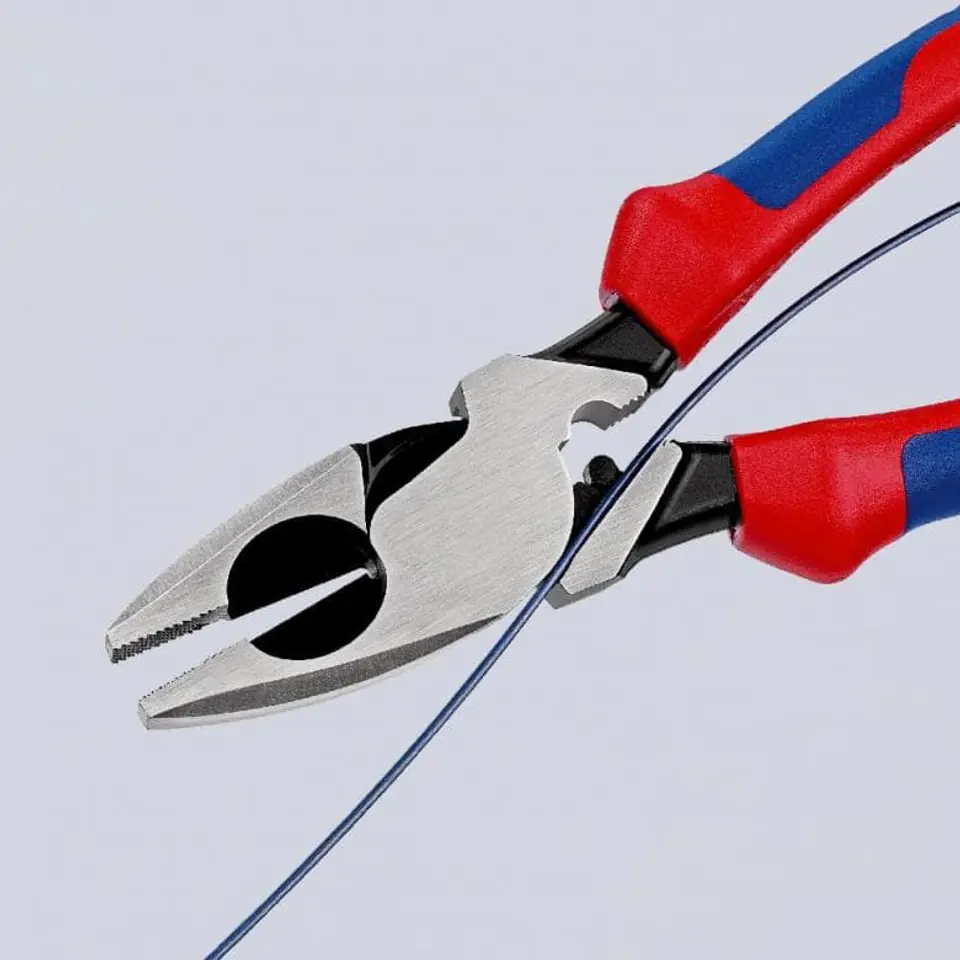

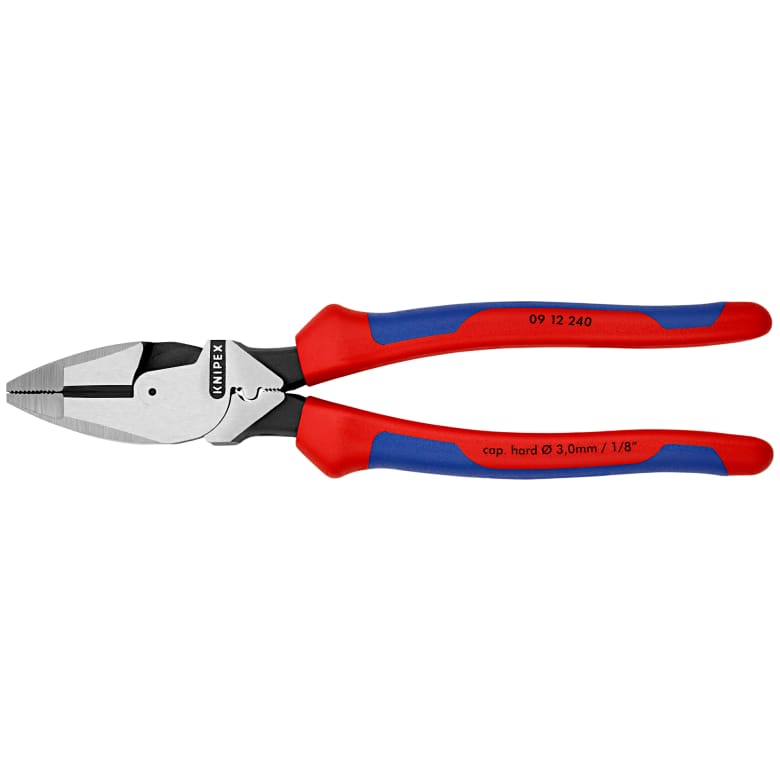

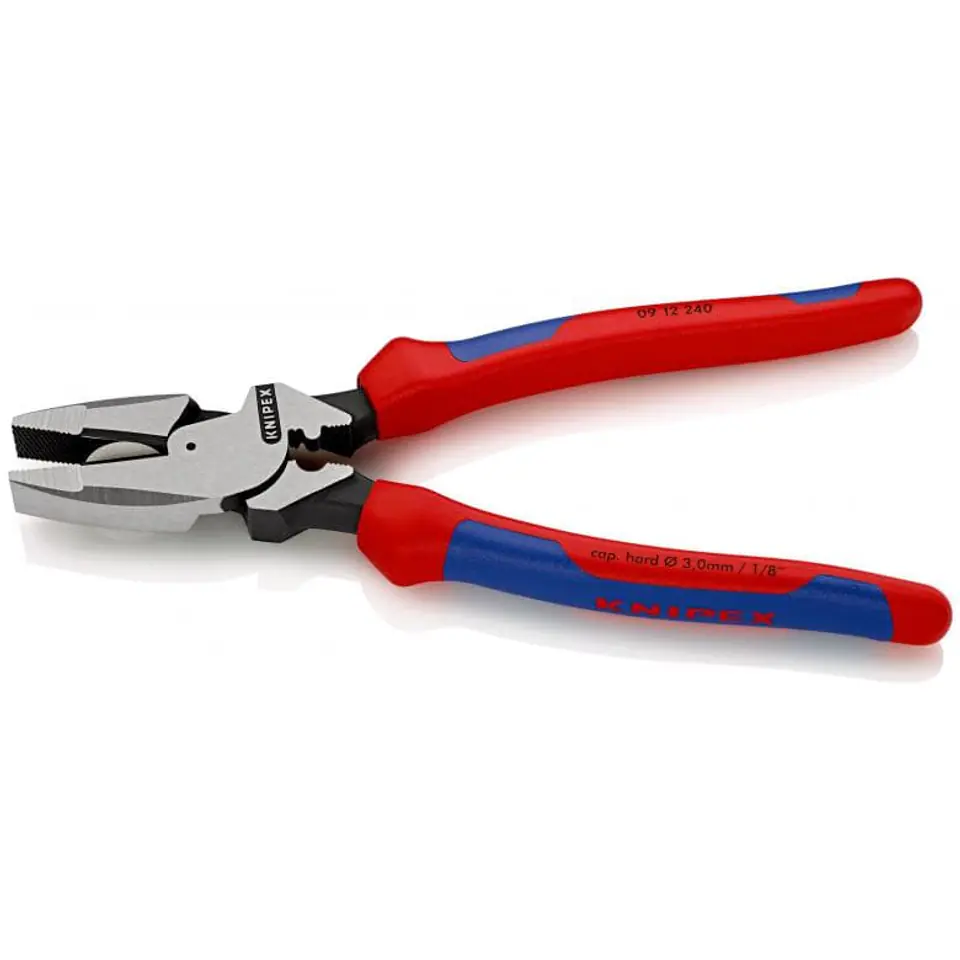

Illustrative photo.
