TECHNICAL DATA:
- Type: base loaded
- Frequency range: 27-28.5 MHz
- Impedance: 50Ω unbalanced
- Radiation (H-plane): 360° omnidirectional
- Polarization: vertical
- Band @ SWR ≤ 2: ≥ 1600 KHz
SWR @ res. freq.: ≤ 1.2
- Max. power:
25 Watts (CW) continuous,
100 Watts (CW) short time
- Standard mount: "N"
- Cable length / Type: 4 m / RG 58
- Materials: brass, copper nylon, stainless steel
- Height (approx.): 1220 mm
- Weight (approx.): 410 gr

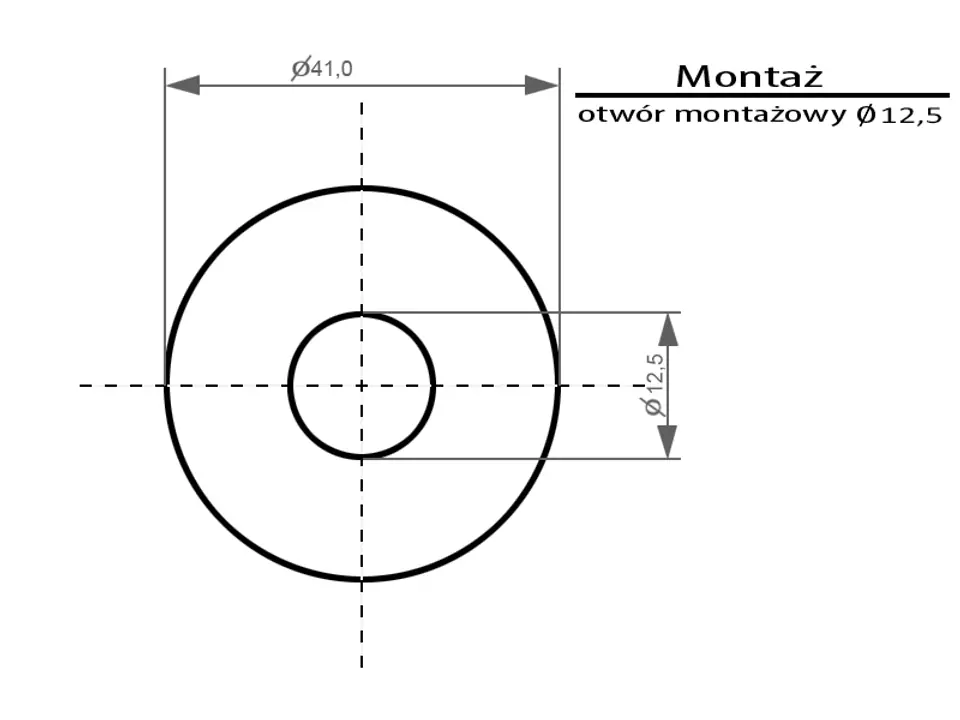

- Mounting hole size: Ø 12.5 mm.
