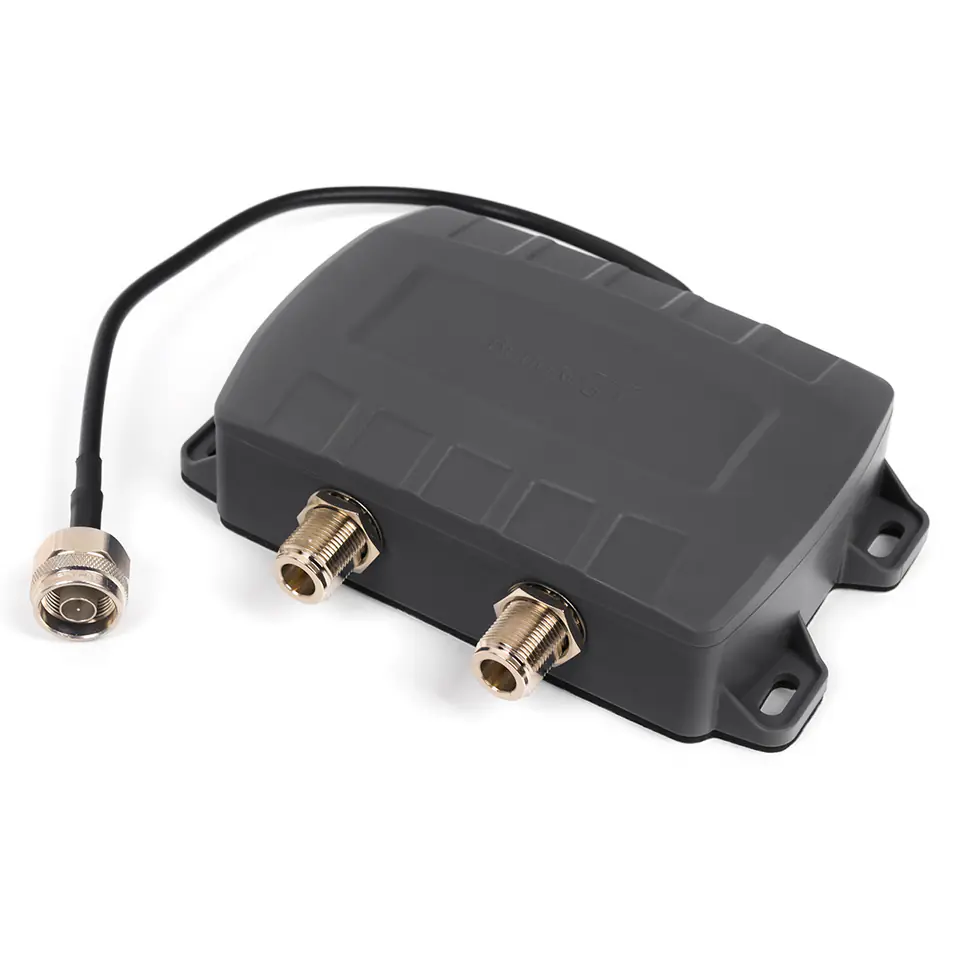

Ultra-Wideband 2-Way GSM Poynting Splt-16-V1-01 N Connectors
The SPLT-16 is a 2-way splitter that operates in the ultra-wideband band from 410 to 7200 MHz. Ultra-broadband operations allow for multiple implementations and can be used in all popular 4G/LTE and 5G applications, as well as dual-band Wi-Fi implementation. The product uses Wilkinson's power divider design as it provides low losses while ensuring a good phase and amplitude balance. The SPLT-16 can be used as a splitter to distribute power from one antenna to two independent devices. The SPLT-16 can also be used as an adder to combine two separate antennas into one device, allowing for antenna differentiation and better performance. The SPLT housing is made of ABS plastic with UV stabilizer, which is a material with high resistance to impacts, as well as acids and other chemicals.
- Ultra-wideband operation from 400 to 7200 MHz
- Wilkinson low-loss manifold design
- Constant phase equilibrium and amplitude
- Good insulation between ports
Application of splitter
- Cheapest routers (LCR)
- Combining the range of two antennas into one device
- Power distribution from one antenna to two independent devices
Click here for full antenna technical documentation.
