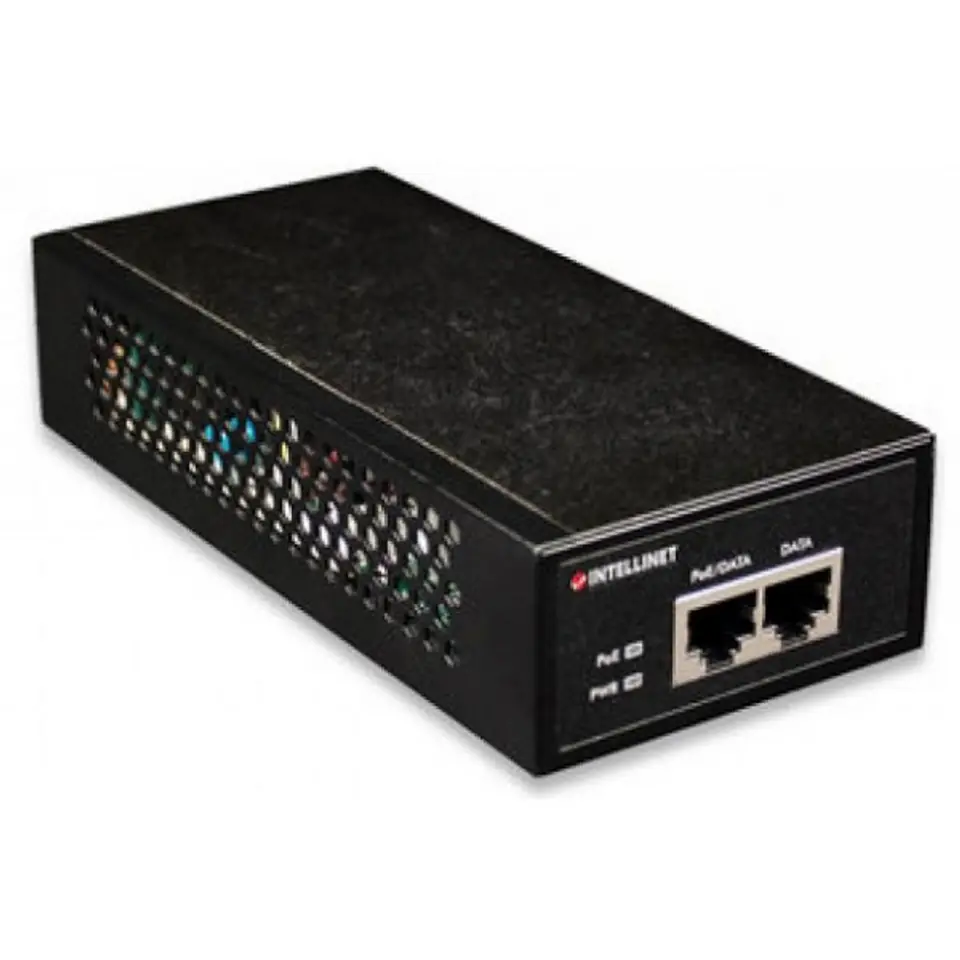

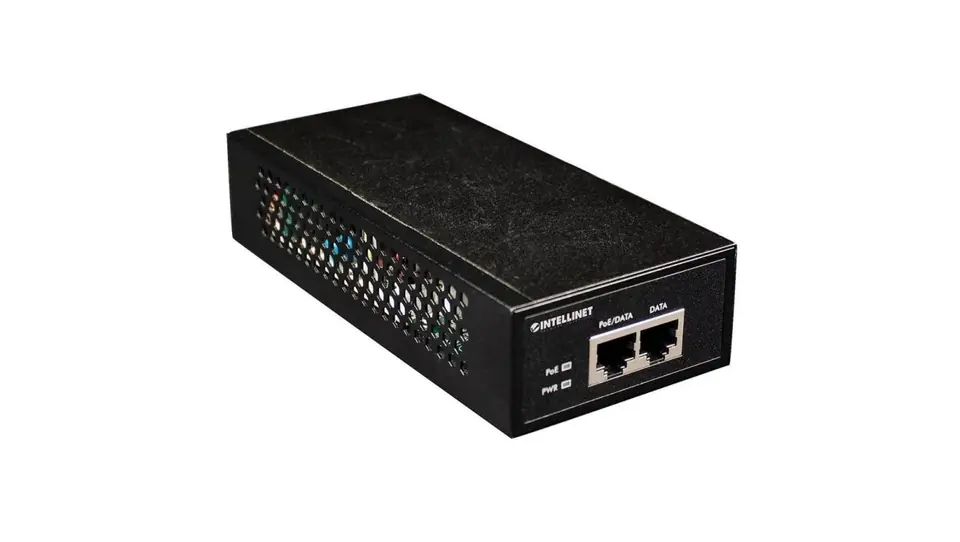

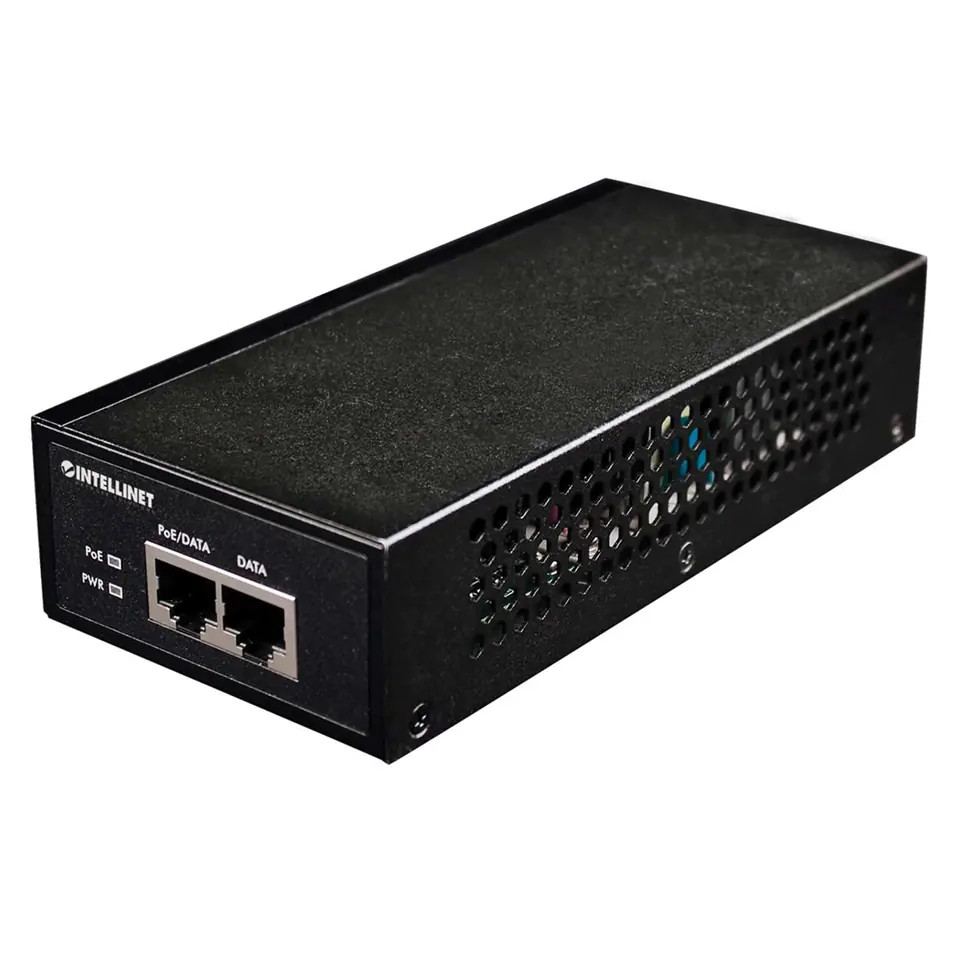

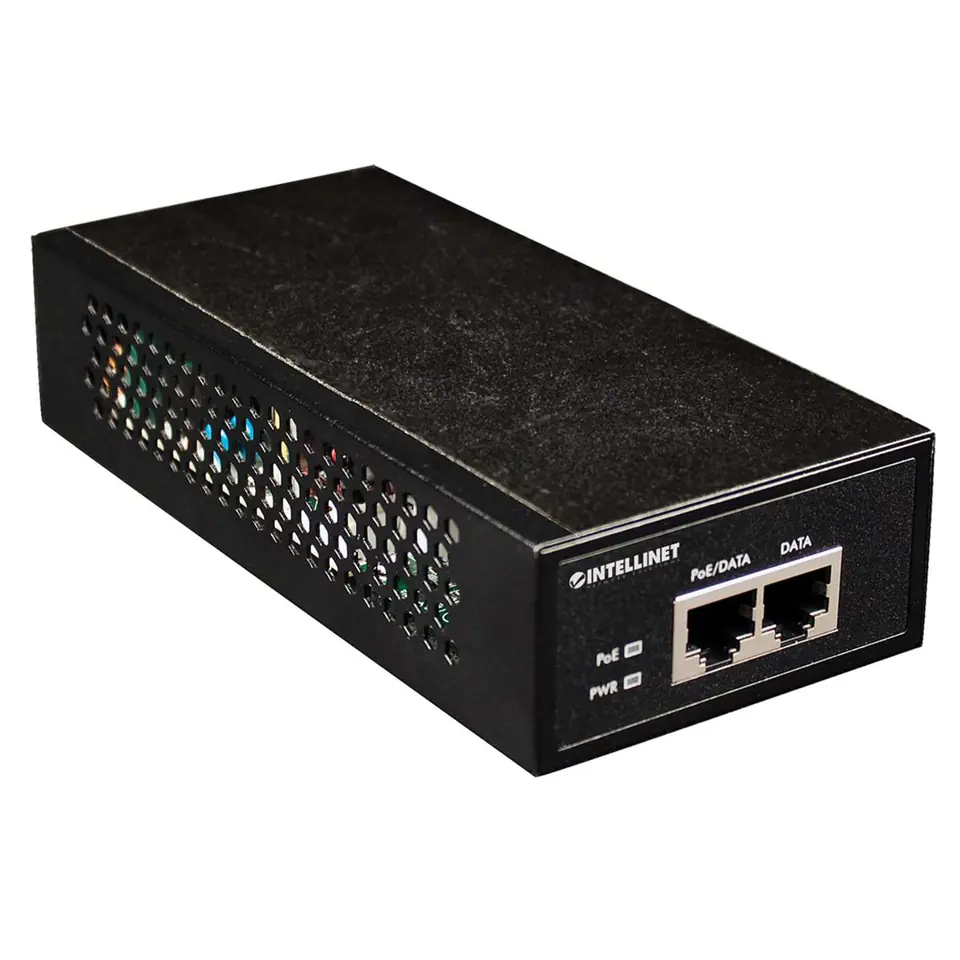

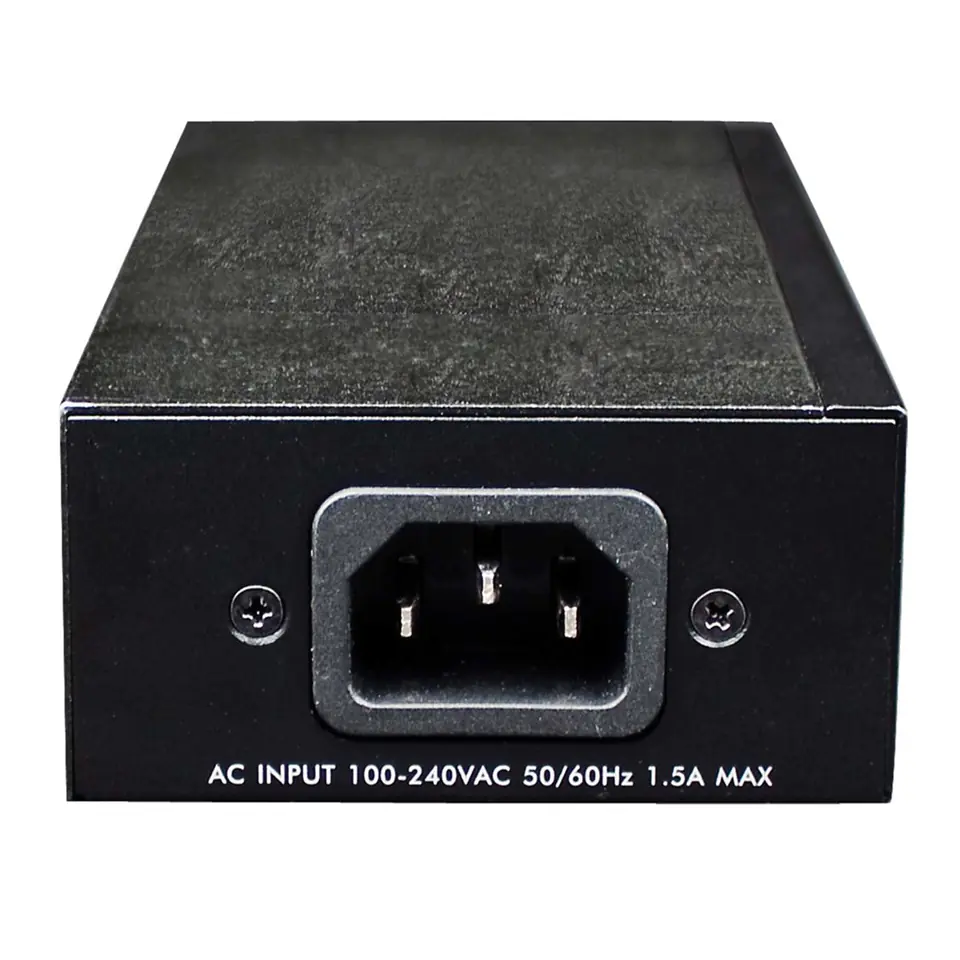

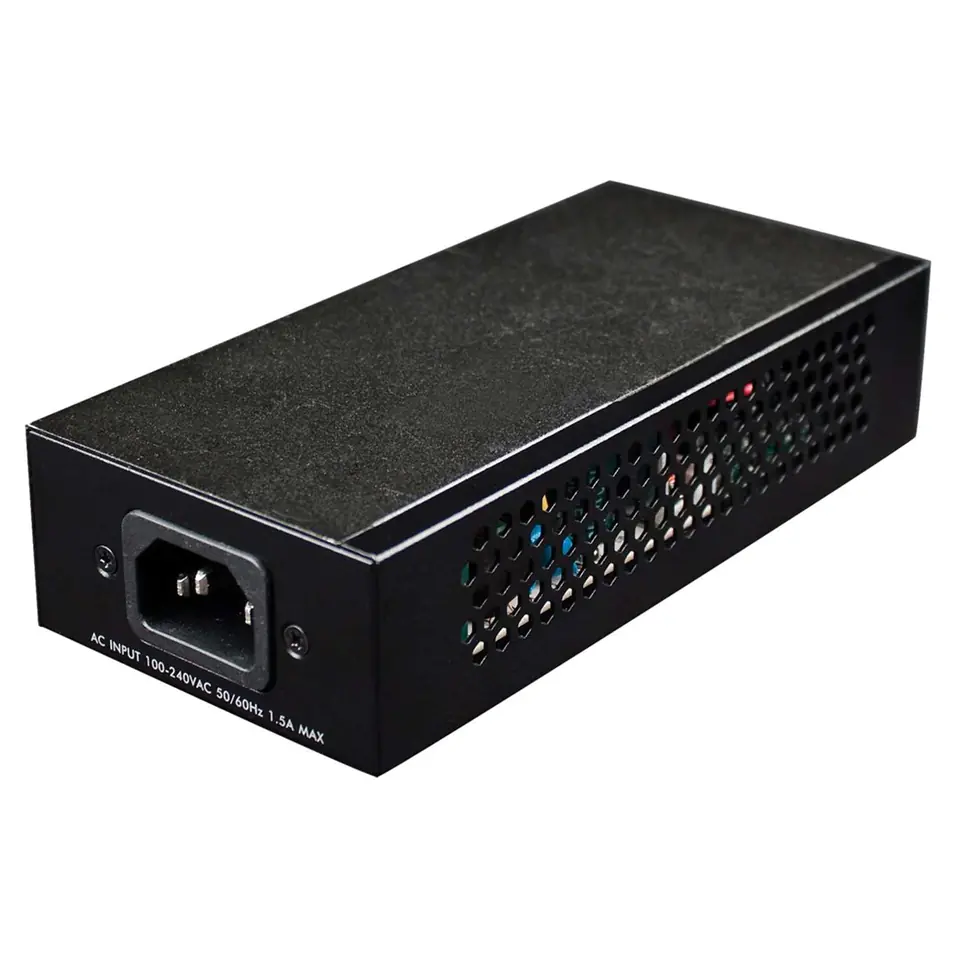

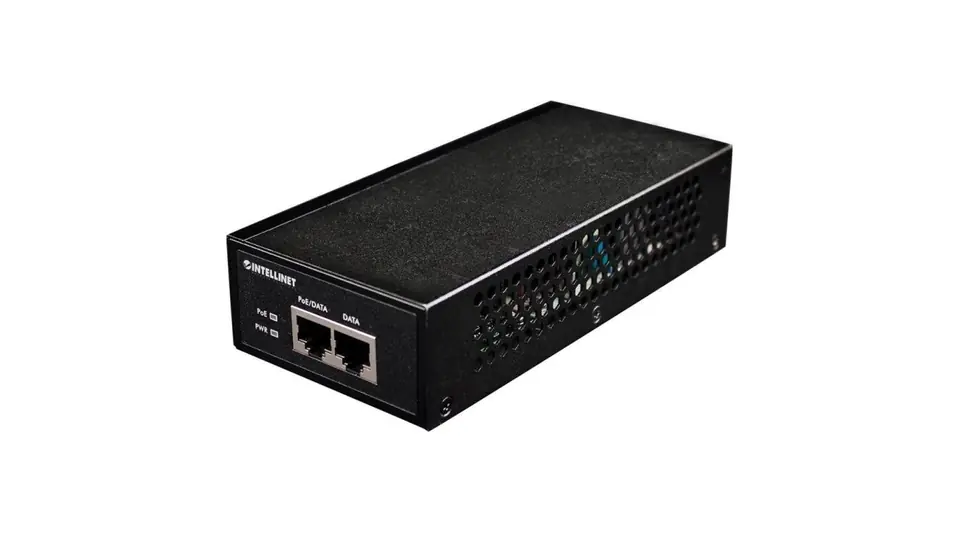

PoE+ power adapter from Intellinet Network Solutions for IEEE 802.3af and 802.3at compliant network devices. It has one RJ-45 1000 Mbps data input port, one RJ-45 1000 Mbps data output and power supply port, and one port for connecting an external power supply.
1P/802.3 AT/AF GIGA PoE Power Supply
€44.44
Shipping from warehouse: A3
Estimated shipping: Thu, Nov 14 - Mon, Nov 18
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- INTELLINET NETWORK SOLUTIONS
- Product code:
- 560566 / 0766623560566
Share this product:
Specification
| Cable types supported: | Cat5, Cat5e |
|---|---|
| Colour: | Black |
| Depth: | 154 mm |
| Destiny: | IEEE 802.3af and 802.3at compliant network devices |
| Dimensions (cm): | 15.4 x 7.2 x 3.5 |
| Ethernet interface type: | Gigabit Ethernet |
| Ethernet lan (rj-45) ports: | 2 |
| Ethernet lan data rates: | 10, 1000 Mbit/s, 100 |
| Features: | 1000 Mbps RJ-45 data input port, 1000 Mbps RJ-45 output and power supply port, External power supply port, Short GND surge protection, Overload protection above 1.8 A, High voltage protection above 58 V, Maximum power consumption [W]: 42 |
| Harmonized system (hs) code: | 85044095 |
| Height: | 35 mm |
| Housing material: | Metal |

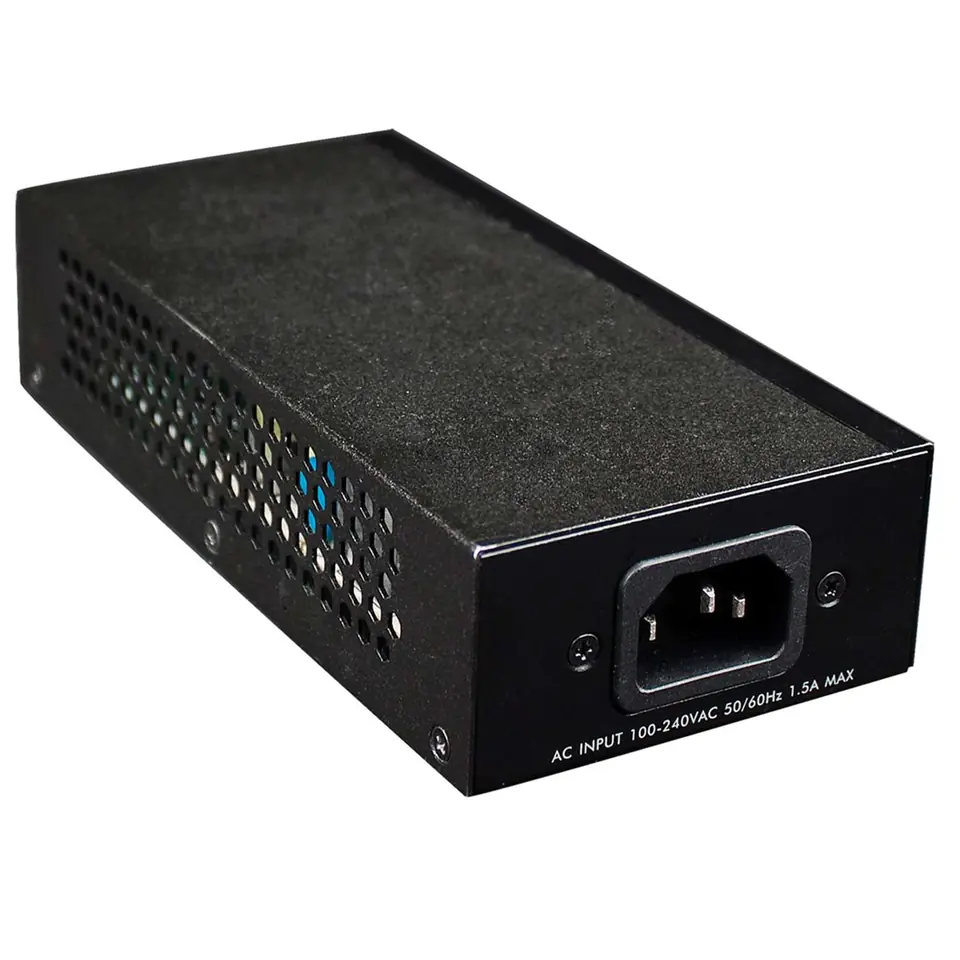

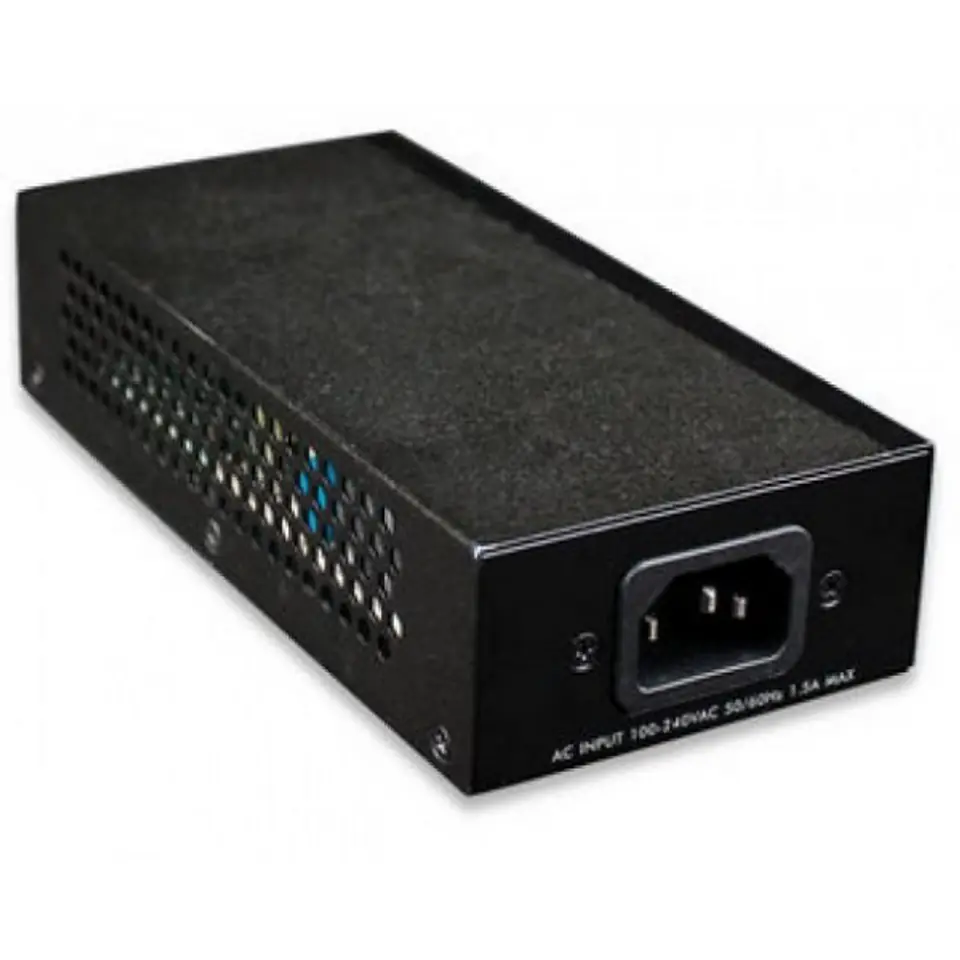

| Input voltage: | 100 - 240 V |
| Kind: | PoE Injector |

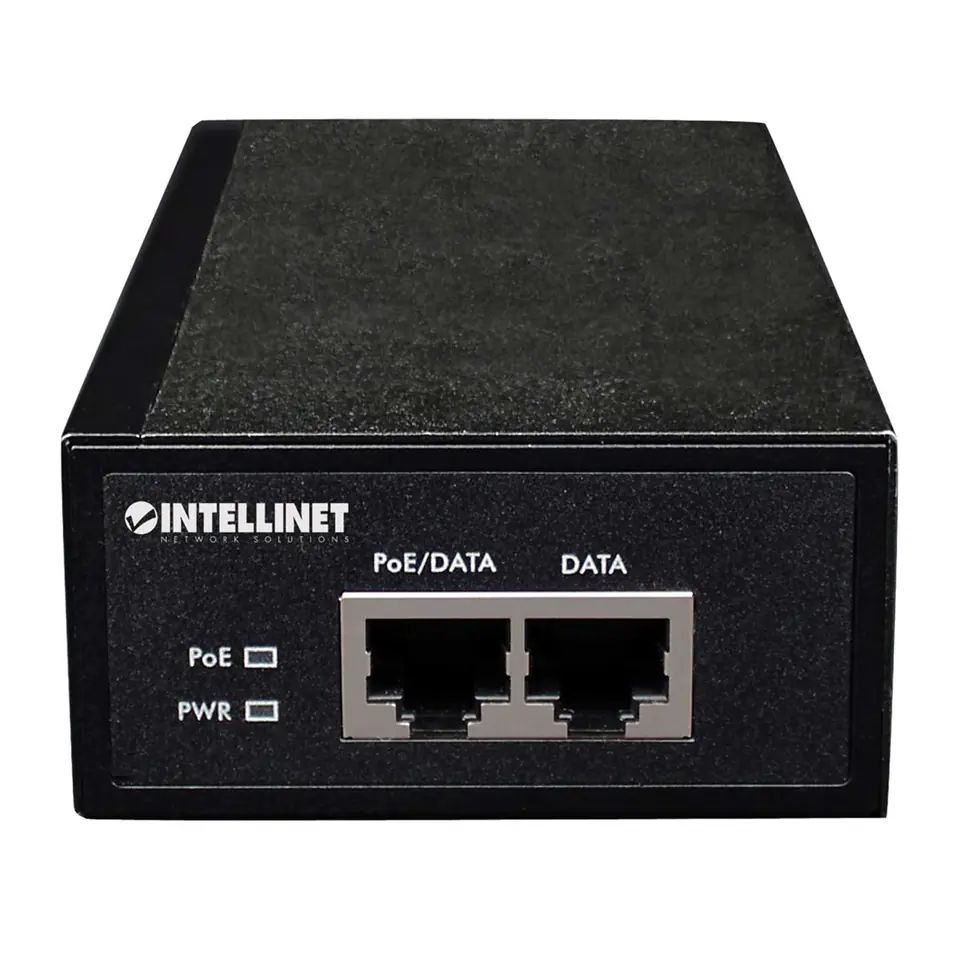

| Led indicators: | PoE, Power |
| Manual: | Yes |
| Networking standards: | IEEE 802.3u, IEEE 802.3at, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af |
| Number of products included: | 1 pc(s) |
| Operating relative humidity (h-h): | 10 - 90% |
| Operating temperature (t-t): | 5 - 45 °C |
| Power consumption (max): | 42 W |
| Power protection features: | Short circuit, Over voltage, Overload |
| Product colour: | Black |
| Storage temperature (t-t): | -20 - 55 °C |
| Warranty: | 3 years |
| Weight: | 790 g |
| Width: | 72 mm |
